Vārtu riteņi bīdāmajiem vārtiem, komplekts 80x80

Trumpai apie prekę

Prekė: Vartų ritinėliai stumdomiems vartams, komplektas 80x80. Kategorija: Vežimėliai ir ratukai.

• Gamintojas: PSG
• Modelis: 60.007-S2

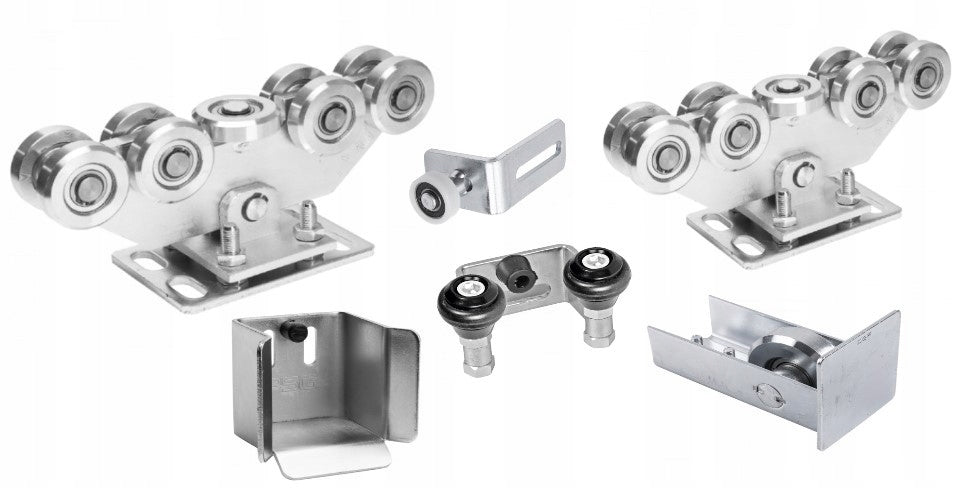

Set of trolleys with accessories for rail 80x80x5

The set consists of:

✅ 2 9-roller trolleys, self-aligning adjustable, base size 180x120, steel rollers

✅ Overrun roller with cap

✅ bottom socket/handle

FREE

✅ free top handle 40, 60, 80mm (1 piece to choose from)

✅ free vertical guide roller fi 25, 30, 32, 33, 35, 40, 43mm or bearing roller fi 35mm with angle (1 piece to choose)

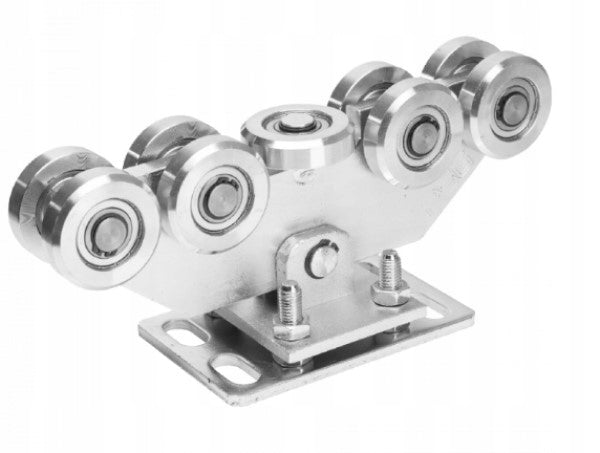

⭐ Technical description of the truck:

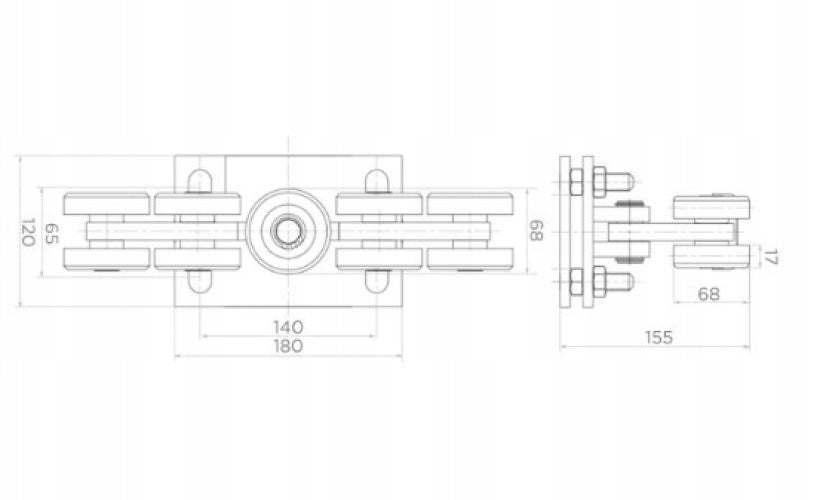

- dimensions of the base 180x120

- height adjustment with 4 screws

- horizontal adjustment through longitudinal holes

- rollers mounted on bearings, less noise emission during operation

- trolleys are equipped with 6204Z ERI-3 bearings

- lifting capacity up to 1000 kg

Dear customer!

We kindly inform you that in order to properly select trolleys for the rail, you should make sure which rail was used in your gate.

To make the right choice, check the external dimensions of the rail, the most commonly used profile "80x80" has dimensions 80x80x5, where 5 is the wall thickness.

Presented set ideally suited to such a rail, gate profile.

⭐ Overrun roller with cap

Roller designed for 80x80 rail

Cap protects the center of the rail from contamination

⭐ Socket/ bottom bracket

The bottom handle is used to relieve trolleys during a closed gate, it also stabilizes the gate vertically during adverse weather conditions.

⭐ FREE⭐ Top handle (catcher) for profile 40, 60, 80 mm (1 piece to choose from)

Top handle for self-supporting and rail sliding gates, which stabilizes them when closed, preventing lateral movements.

The handle has rubberized rollers to reduce noise when closing the gate, as well as a rubber bounce.

Note: Information to the seller must include information about choosing the size of the free top handle.

In the absence of information, we will send a 40mm handle as standard.

⭐ FREE⭐ Vertical guide roller fi 25, 30, 32, 33, 35, 40, 43 mm or bearing roller fi 32 or 35 mm with angle (1 piece to choose from)

Guide roller used to hold the rail (catheter) vertically during closing and opening the gate.

The roll is made of plastic.

1 piece to choose from:

- fi 25 mm (for catheter 30x30x2 mm)

- fi 30 mm (for 35x35x2 mm catheter)

- fi 32 mm (for 40x40x3 mm catheter)

- fi 32 mm with angle (for catheter 40x40x3 mm)

- fi 33 mm (for 40x40x3 mm catheter)

- fi 35 mm (for 40x40x2 mm catheter)

- fi 35 mm with angle (for catheter 40x40x2 mm)

- fi 40 mm (for catheter 45x25x2,5 mm)

- fi 43 mm (for catheter 50x50x3 mm)

Note: Information to the seller should include information about choosing the size of the free guide roller.

In the absence of information, we will send a fi 35mm roll with an angle as standard.

Technical drawings of guide rollers.

Specifications
