Vārtu slēdzene ar atsperi ZINC, 420 mm

Trumpai apie prekę

Prekė: Vartų užraktas su spyruokle ZINC, 420 mm. Kategorija: Šlepetės.

• Gamintojas: PSG
• Modelis: 64.067

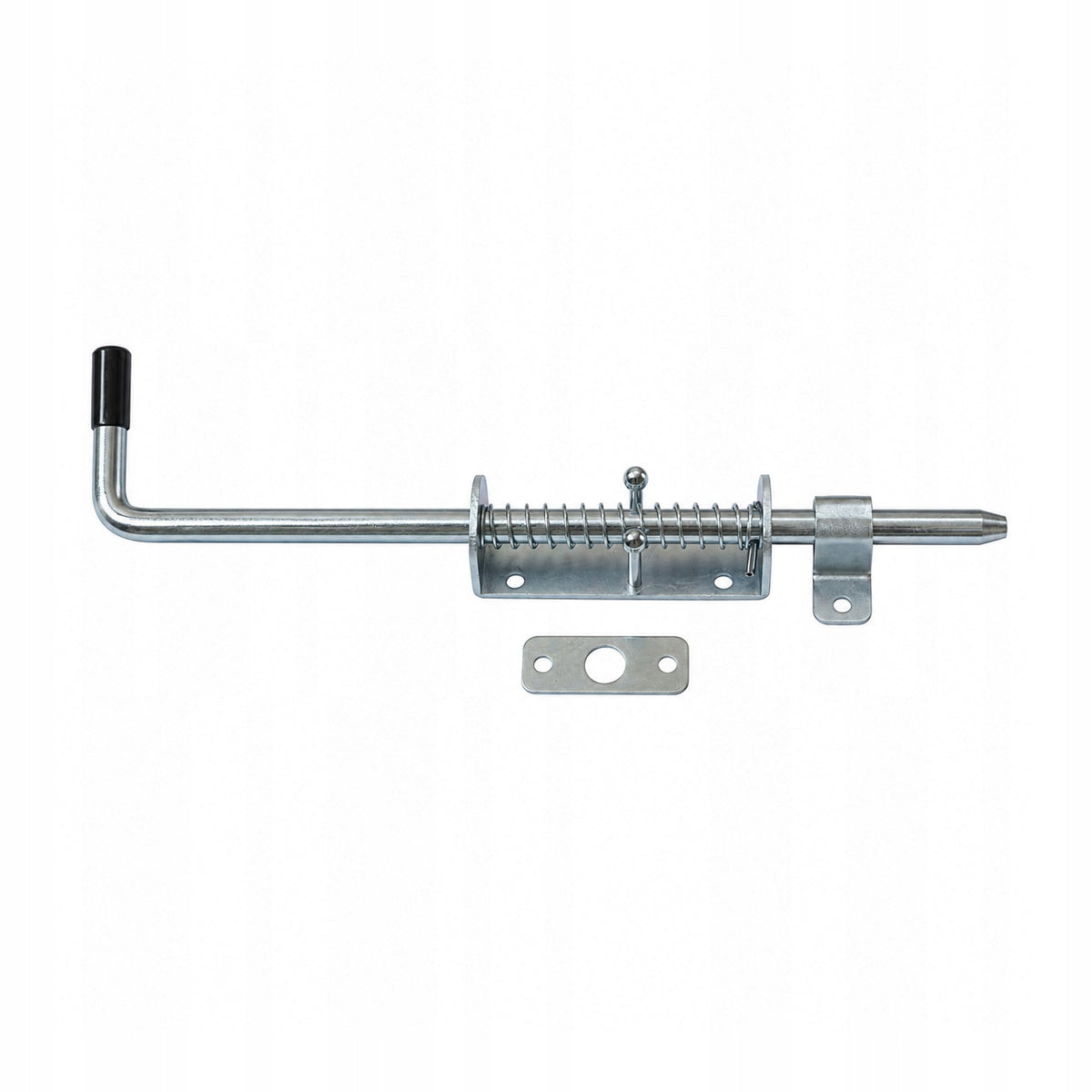

Steel spring bolt Ø 14 mm with a length of 420 mm with ergonomic rubber handle and two types of mounting hooks, designed for pressing and locking the wings of gates, wickets and utility doors.

⚙ UTILITY ADVANTAGES:

• Automatic spring pressure: The strong spring automatically inserts the stem into the hitch, protecting the wing from opening under the influence of strong wind.
• Open position lock: The transverse locking pin allows you to immobilize the bolt when you turn the handle, making it easier to move or pass freely.
• Double hitch set: The set includes both a round bridge hitch (for surface mounting) and a flat face plate with a hole of Ø 15 mm.
• Conical chamfered tip (Ø 9 mm): The tapered tip makes it easy to smoothly hit the shank into the hitch hole even with a slight sash drop.
• Comfortable rubber grip: The non-slip grip on the handle (80 mm) protects your hand from cold metal and makes it easy to handle on rainy and cold days.
• Galvanized zinc: The protective coating protects the entire steel structure against rust and weathering.

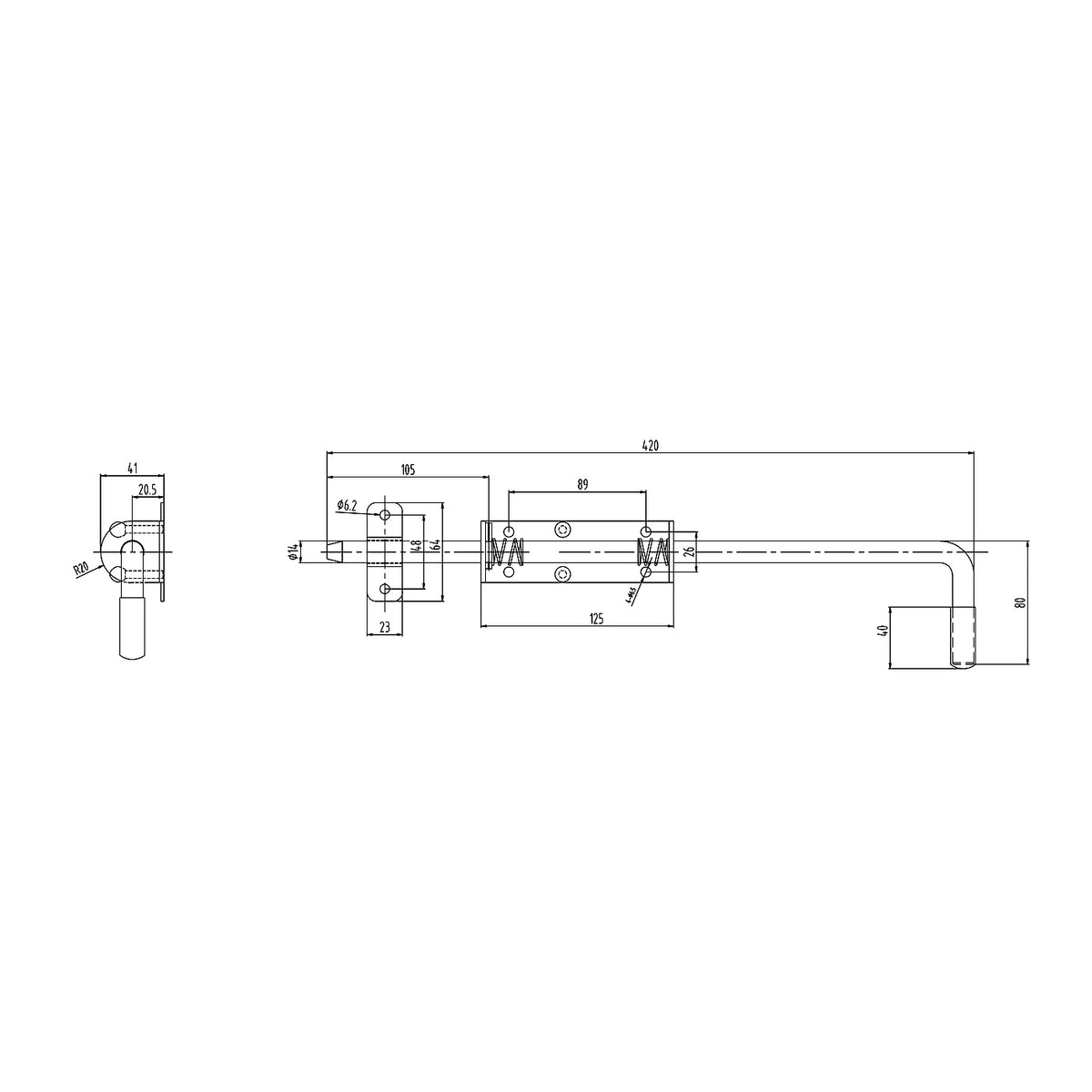

⚙ TECHNICAL PARAMETERS:

• Total length: 420 mm
• Mandrel diameter (bolt): Ø 14 mm
• Length of main board: 125 mm (width: 26 mm, hole spacing: 89 mm)
• Mainboard mounting holes: 4 × Ø 6,5 mm
• Bridge attachment (profiled): 64 × 23 mm (41 mm spacing, hole spacing: 48 mm, 2 × Ø 6,2 mm)

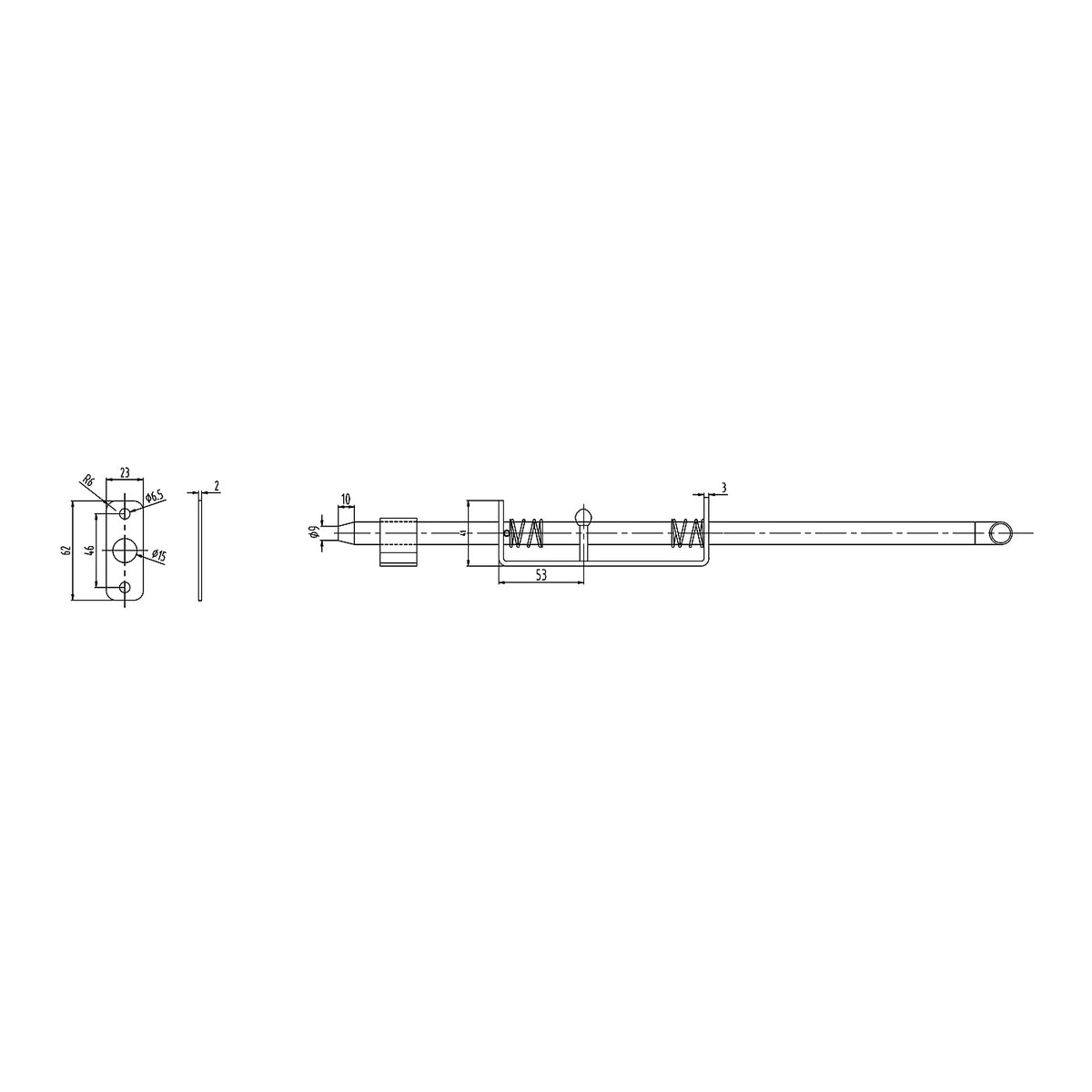

• Flat attachment (front plate): 62 × 23 mm (center hole: Ø 15 mm, hole spacing: 46 mm, 2 × Ø 6,5 mm)
• Handle length: 80 mm (rubber overlay: 40 mm)
• Material: Galvanized steel
• Assembly: Screwed (surface)
