Vartų valdiklis BLEBOX SHUTTERBOX GATEBOX, WiFi, suderinamas su Android ir iOS

Trumpai apie prekę

Prekė: Vartų valdiklis BLEBOX SHUTTERBOX GATEBOX, WiFi, suderinamas su Android ir iOS. Kategorija: Išoriniai moduliai.

• Gamintojas: Blebox
• Modelis: 06959

☑ General information

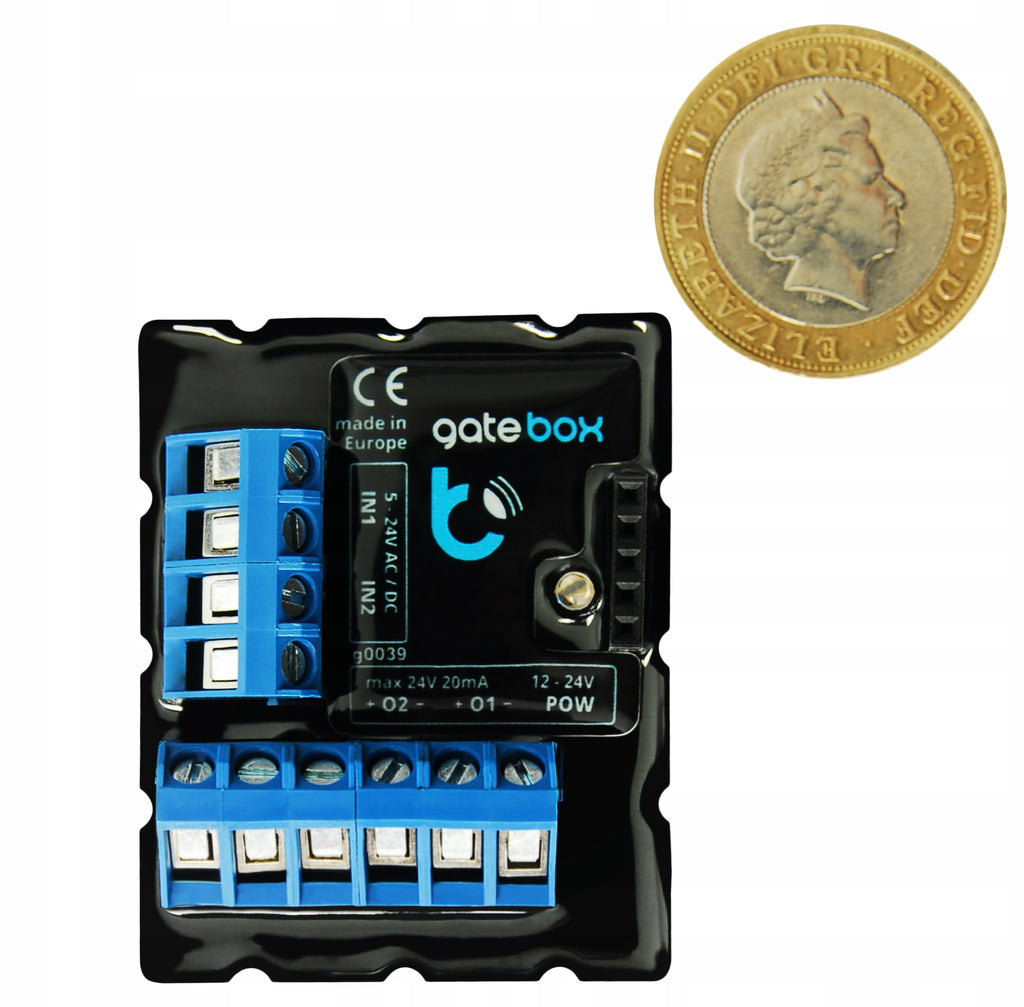

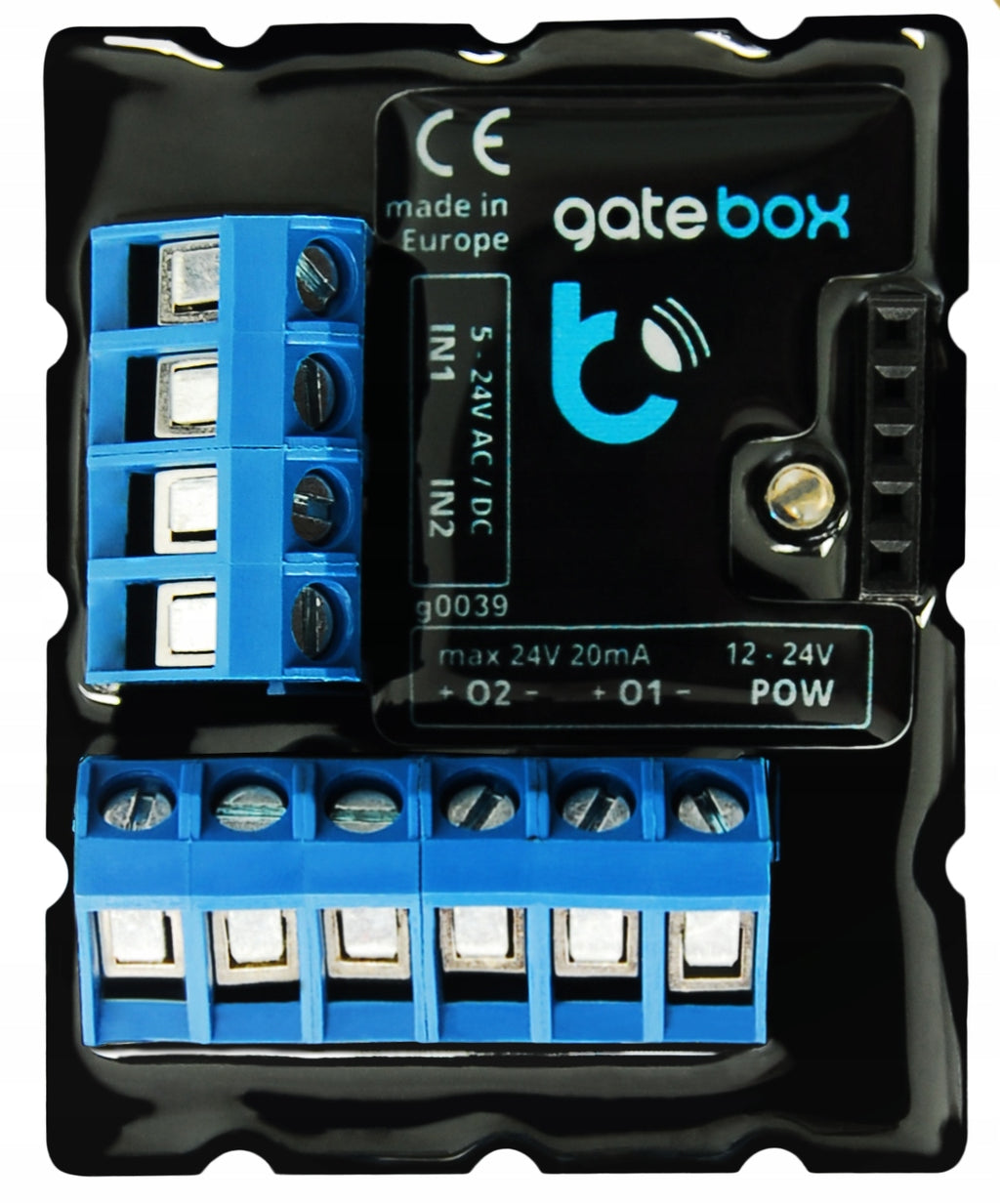

BLEBOX GATEBOX, sgate controller BleBox Gatebox - a module that allows you to control garage door blinds and check the status of gates via WiFi network, using a dedicated smartphone application. Intuitive configuration with a standard web browser. ShutterBox has screw terminals for mounting wires. Due to its small size, the unit can be installed in the gate drive housing.

What is gateBox?

gateBox - is the world's first controller that allows you to open and close gates, as well as check their status using smartphones and tablets, without the need to purchase additional devices and hidden fees.

Communication:

• Communication standard: μWiFi, WiFi compatible
• Type of transmission: bidirectional, encrypted
• Frequency: 2,4 GHz
• API: open
• Working mode: direct connection (as Access Point), WiFi connection via standard router, connection with access from anywhere in the world (only Internet access required)
• Compatible devices: Apple iPhone, Apple iPad, iPad Mini, Android, computers and mobile devices that fully support HTML5, soon Windows Phone and Apple Watch

Configuration instructions:

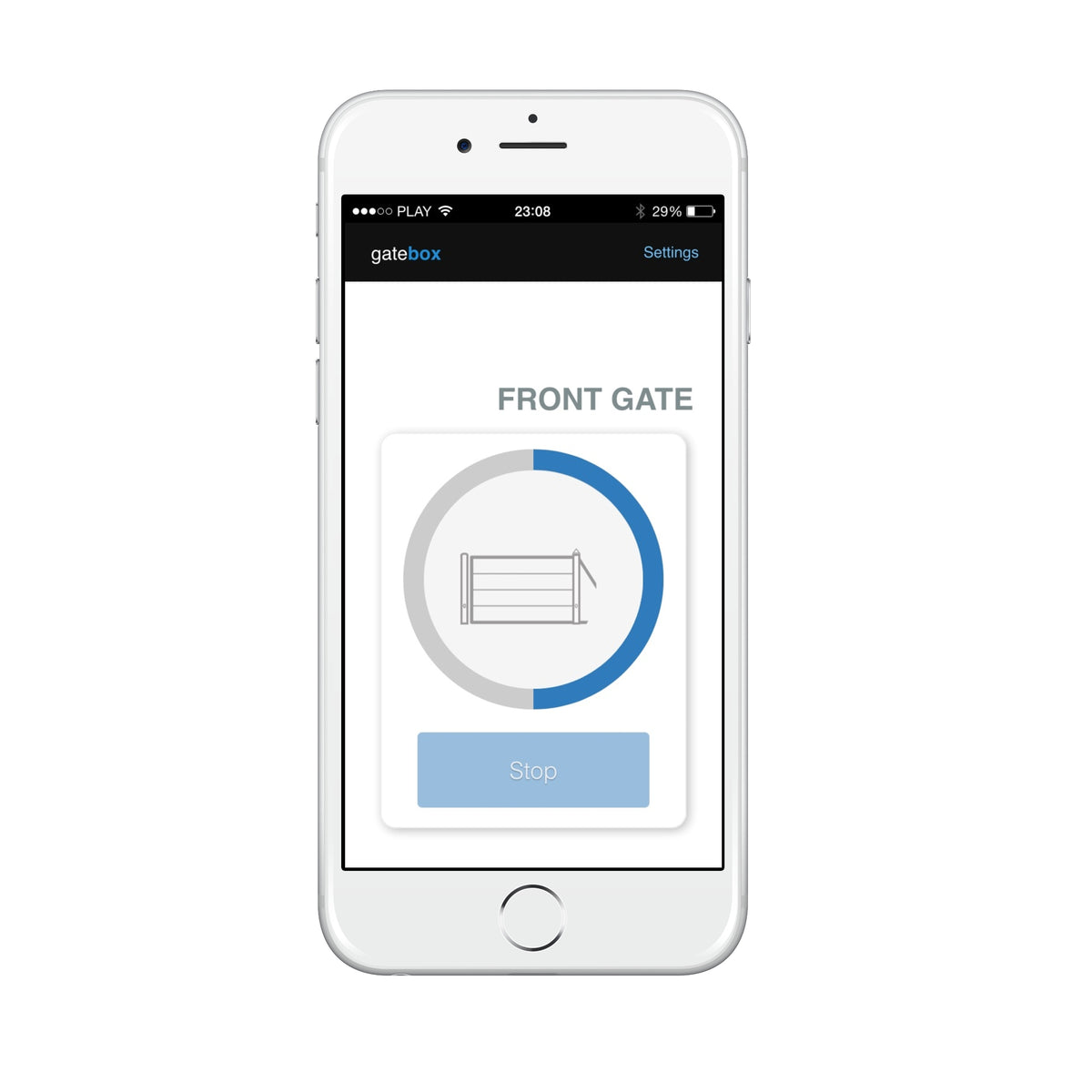

To connect the module to the WiFi network, we first connect the computer to the WiFi network created by the BleBox module. Start your web browser and enter your device address. The next step is to follow the instructions on the configuration page, where you need to select the local network (home/office) and then enter the password for access to this network. To control the BleBox module from your phone, download the application from the Android Play store application wBox - Control Everthing or for iOs wBox. If the phone/tablet is on the same network as the BleBox module, the module will be automatically added to the application.

⚙ Technical data

• Power supply voltage: 12-24V AC/DC
• Energy consumption: < 2W
• Average current consumption: 50mA
• Maximum current consumption: 250mA

Control outputs:

• Number of control outputs: 2
• Control output type: Open collector, impulse
• Maximum load: 20mA
• Maximum voltage: 24V
• Galvanic separation: YES

Signal inputs:

• Number of inputs: 2
• Input type: logical
• Voltage range: 12 - 24V AD/DC
• Input polarization: detected automatically
• Galvanic separation: YES

✅ Physical features of the device:

• Dimensions: 54-41-20 mm
• Housing: made of polyurethane composition, self-extinguishing for thermal class B (130°C)
• Degree of protection: IP20
• Assembly method: self-adhesive element(foil) or in drive housing

⬇ Connection diagram BLEBOX GATEBOX ⬇
