Vartų valdiklis su išorine antena SUPLA ZAMEL SBW-02/ANT

Trumpai apie prekę

Prekė: Vartų valdiklis su išorine antena SUPLA ZAMEL SBW-02/ANT. Kategorija: Rinkiniai.

• Gamintojas: Zamel
• Modelis: SBW-02/ANT

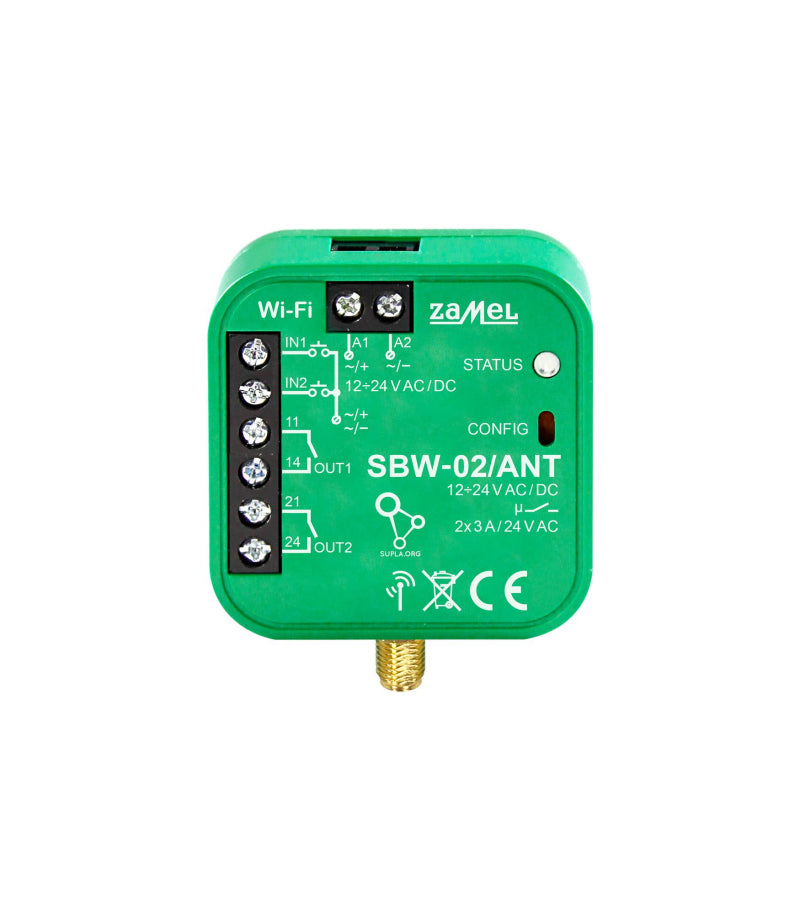

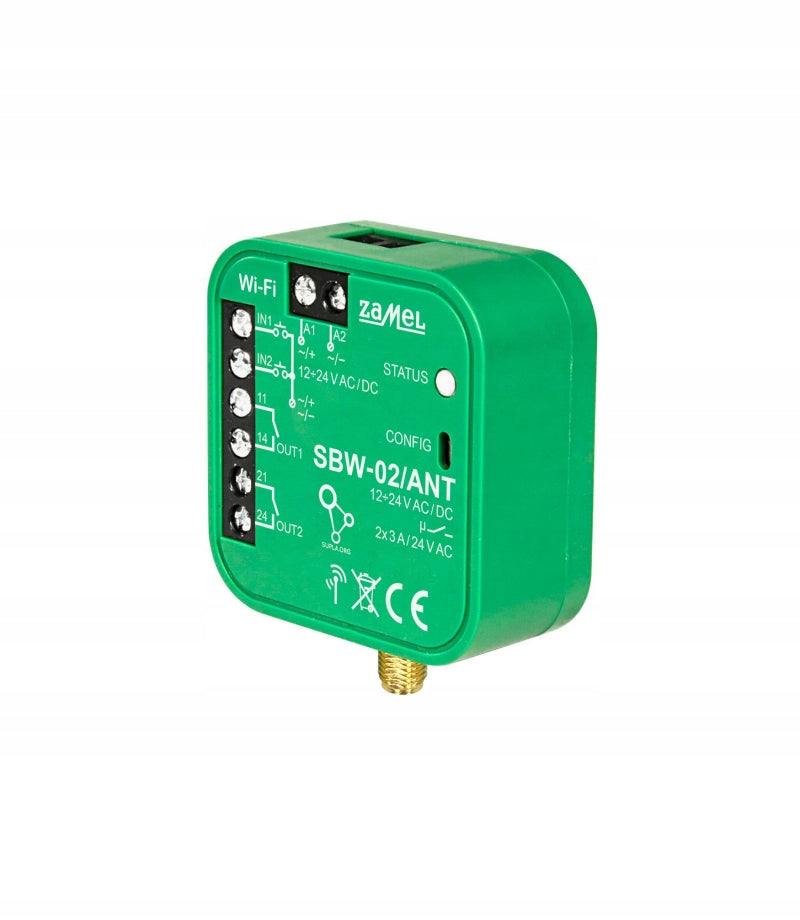

2-CHANNEL WI-FI GATE CONTROLLER WITH ANTENNA

EXTERNAL TYPE: SBW-02/ANT

PRODUCT DESCRIPTION

Gate controller allows integration with any gate drive and gate and allows remote control of the gate

through the Supla mobile application. Adapted device

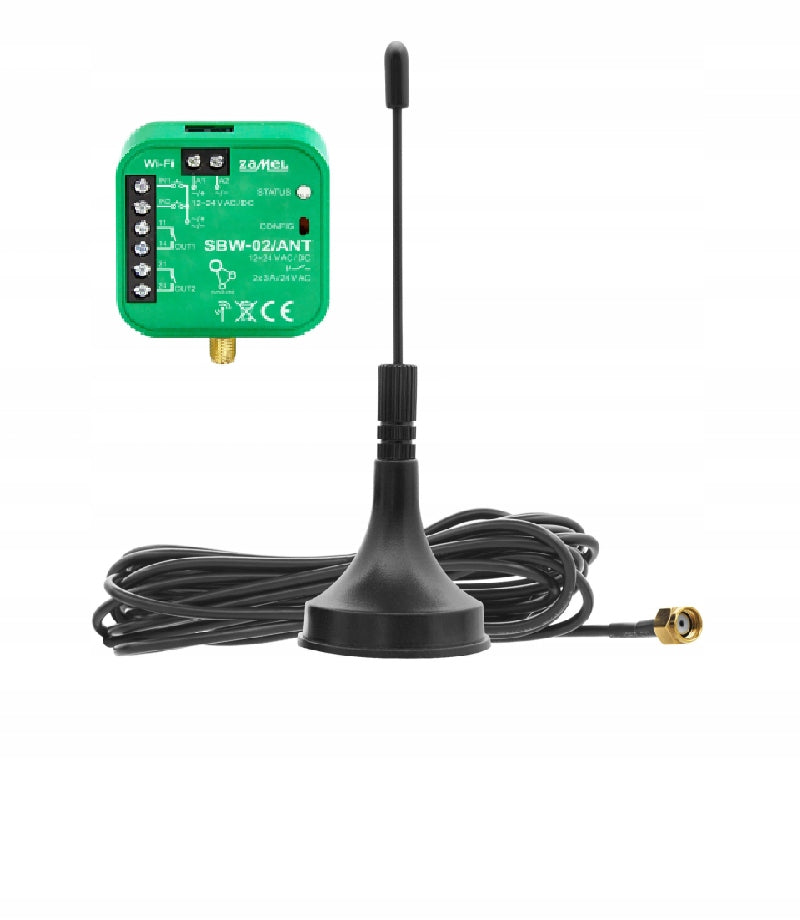

is for installation directly in the drive. With a universal 12 - 24V AC/DC power supply, it can be used in a variety of applications. By connecting signals from limit switches to the controller inputs, we receive information about opening and closing the gate / gate. The device is equipped with an RP-SMA connector, to which you can connect an external Wi-Fi antenna (included in the set).

FUNCTIONAL FEATURES OF THE PRODUCT:

• RP-SMA connector for connecting an external Wi-Fi antenna
• the ability to control the controller via the supla mobile application from anywhere in the world
• the ability to track the status of the gate by examining the status of limit switches
• wireless control of gate and gate drive using Wi-Fi technology
• power supply for 12-24V AC/DC controller

• Technical data:
• Mounting method For 60 mm electric can
• 12-24V AC/DC power supply
• Relay load capacity2 x NO 3A / 24 VAC
• Wi-Fi transmission 2.4GHz 802.11 b/g/n
• Maximum output current3 A/channel
• Number of dedreererer relays
• Number of dedreererer output channels
• Weight 0,04 kg
• Depth of the device 20 mm

⚙ Technical information

The device is designed for installation and configuration by people with appropriate knowledge, experience and qualifications in the field of electrical installations and automation.

For proper operation, the device requires connection to the electrical system, configuration with Wi-Fi network and saving individual user settings. During the configuration, the operating parameters, network settings and data necessary to communicate with the application are saved.

Violation of the control seal is treated as confirmation that the device was connected to the electrical system or interfered with its power terminals.
