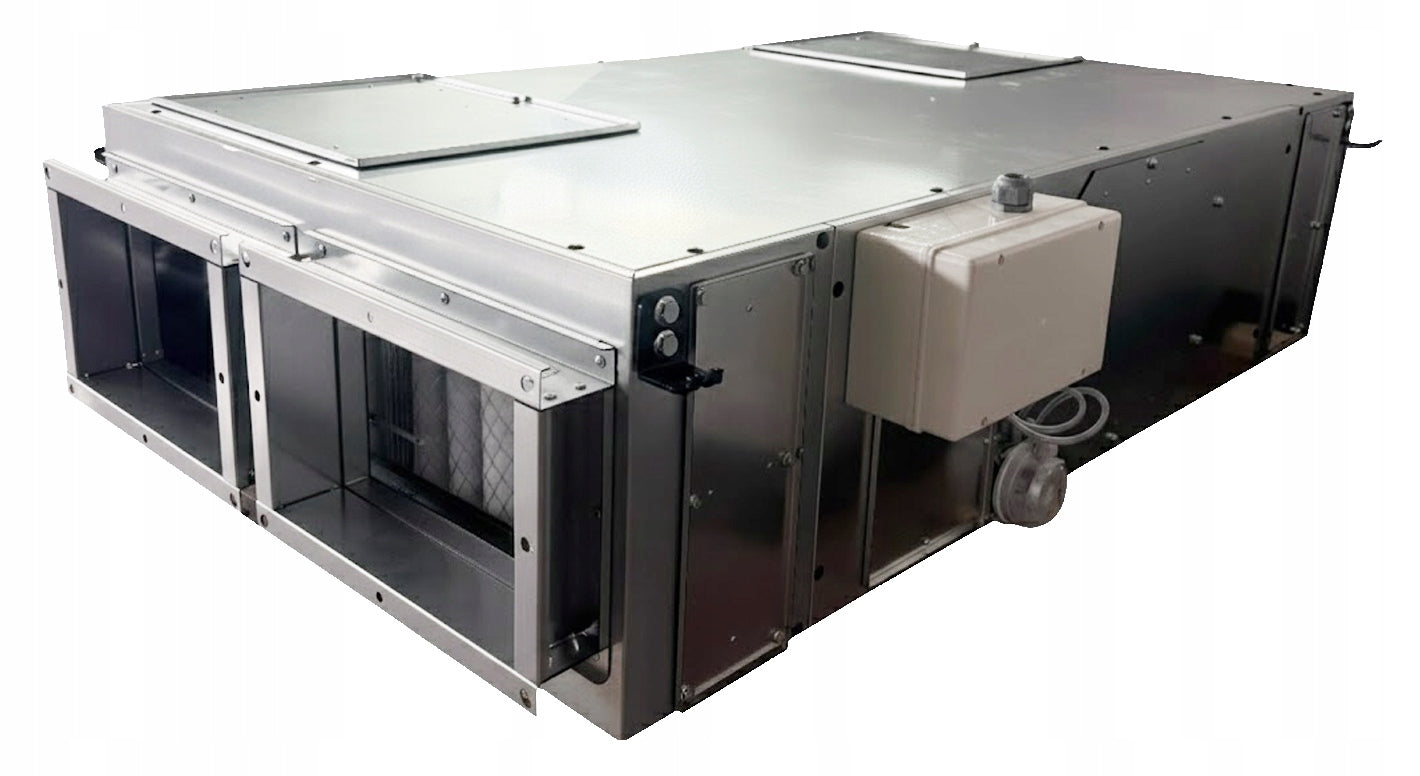

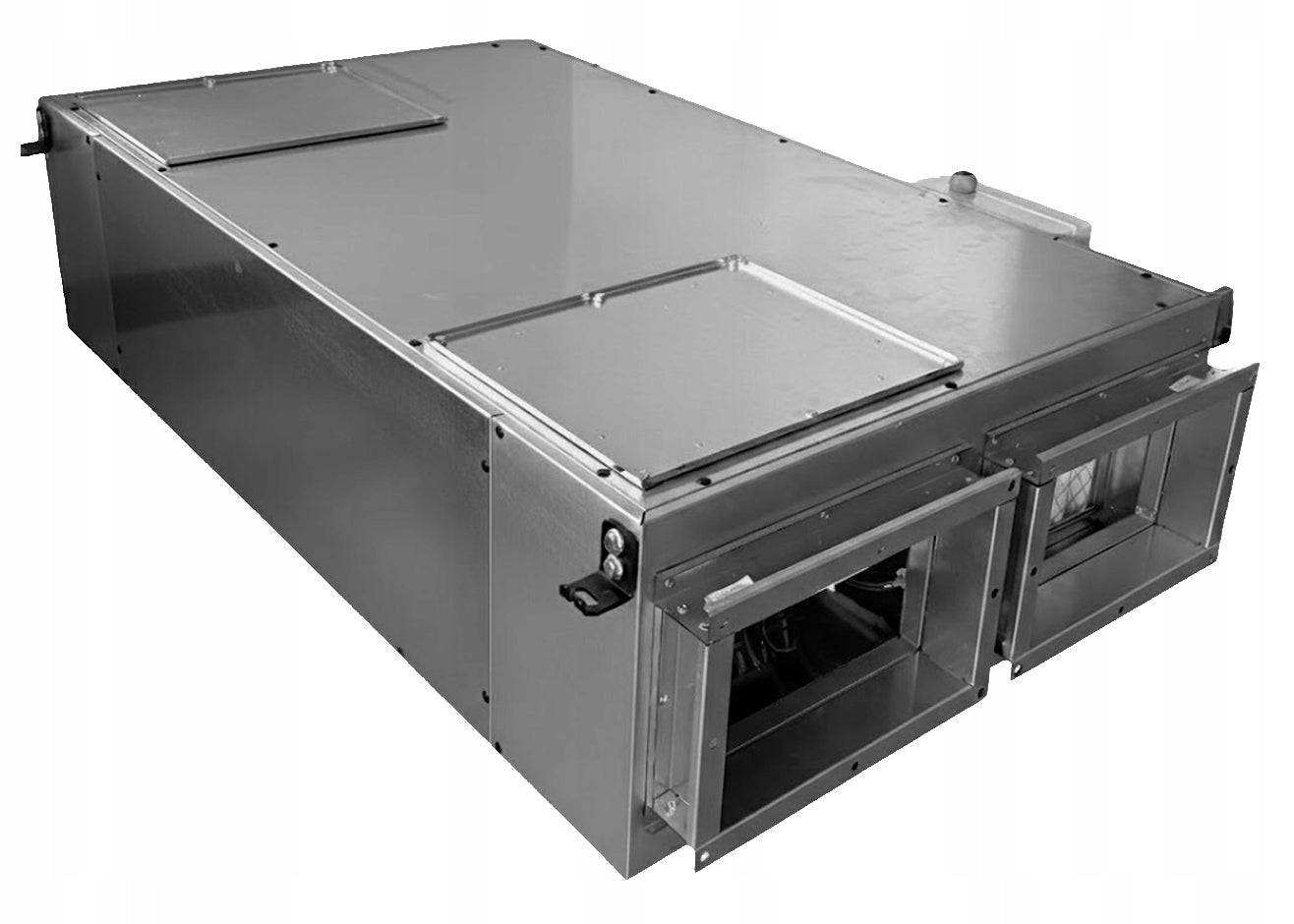

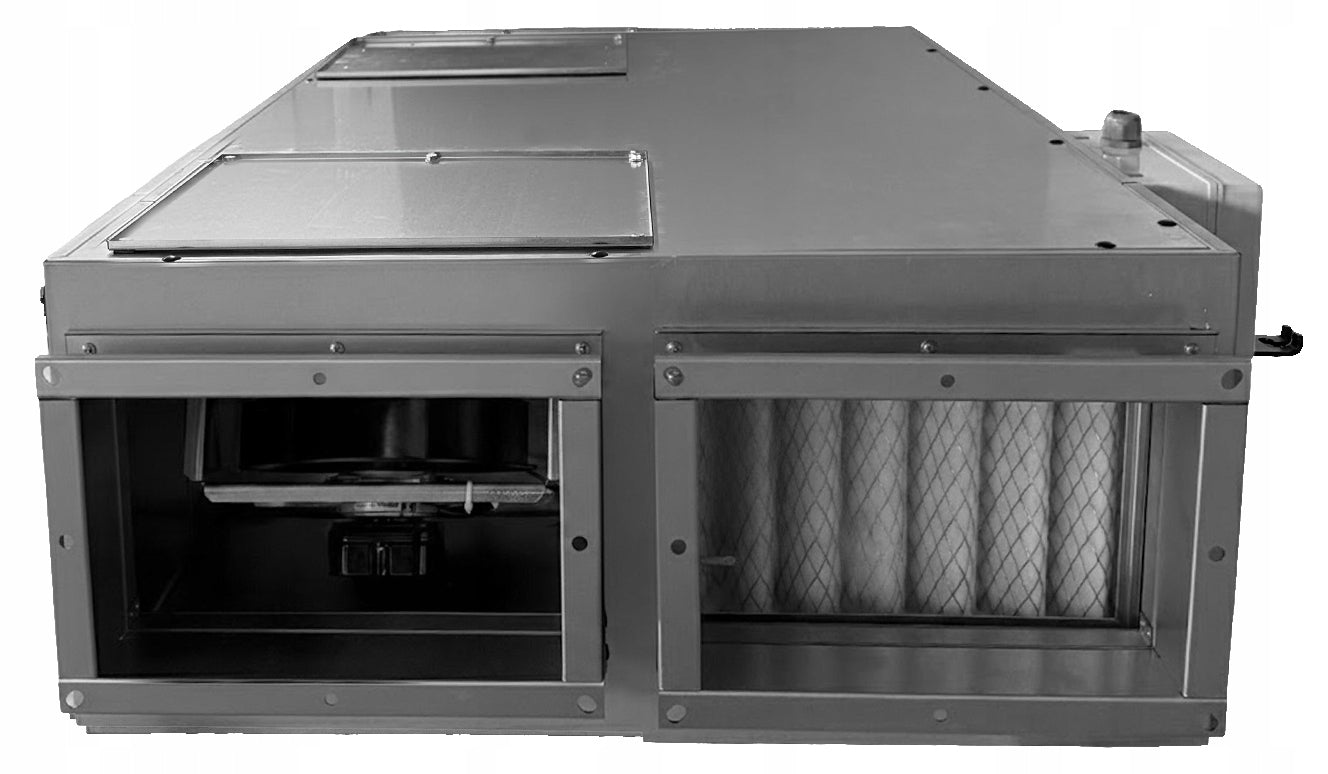

Ventilation unit BVN BKR-HR EC 700 with controller 620 m3/h
Ventilation unit BVN BKR-HR EC 700 with controller 620 m3/h Packaging status original
Ventilation unit BVN BKR-HR EC 700 with controller 620 m3/h Brand BVN
Lai tuvinātu, virziet kursoru virs attēla Noklikšķiniet uz attēla, lai tuvinātu
Ventilation unit BVN BKR-HR EC 700 with controller 620 m3/hVentilation unit BVN BKR-HR EC 700 with controller 620 m3/h Packaging status originalVentilation unit BVN BKR-HR EC 700 with controller 620 m3/h Brand BVN

Vėdinimo įrenginys BVN BKR-HR EC 700 su valdikliu, 620 m³/val.

Cena:
€2.908,06
Noliktava:
Pieejams noliktavā

Apraksts

Trumpai apie prekę

Prekė: Vėdinimo įrenginys BVN BKR-HR EC 700 su valdikliu, 620 m³/val.. Kategorija: Rekuperacinės vėdinimo sistemos.

  • Gamintojas: BVN
  • Modelis: BKR-HR EC 700

Technical data:

  • Maximum capacity: 620 m3/h
  • Maximum compression: 770 Pa
  • Fan motor type: EC
  • Fan power: 217 W
  • Supply voltage: 230 V 50Hz
  • Maximum current consumption: 1,7 A
  • Engine speed: 4400 rpm
  • Filter(air/exhaust): G4/G4
  • Exchanger type: cross countercurrent
  • Efficiency: 78%
  • Weight: 90 kg

Ventilation unit BVN BKR HR 700 is a device designed for effective air exchange in residential buildings, office buildings and public facilities. It provides a constant supply of fresh air while recovering heat, which translates into lower heating costs and improved user comfort. Thanks to its compact design and robust construction, the control panel easily integrates with ventilation systems in various types of facilities.

Equipped with a countercurrent exchanger and efficient fans, the BVN BKR HR 700 control panel ensures stable operation with low power consumption. The integrated controller allows you to adjust operating parameters, program operating modes and monitor parameters such as fan speed. The device also has air filters protecting the interior of the control panel and improving the quality of the supplied air.

The BVN BKR HR 700 control panel is a solution designed for demanding installations where both energy saving and high indoor air quality are important. Professional workmanship and availability of control functions make the device perfect for new investments and modernized ventilation systems.

When selecting the device, we recommend a consultation in order to optimally match the parameters and accessories (heaters, filters, channels, mounting elements) to the specifics of the facility.

Product Features:

  • Corrosion resistant galvanized sheet body
  • Aluminum Heat Exchanger
  • Efficient engines
  • Non-flammable sound and thermal insulation
  • Integrated bypass controlled from the motherboard
  • G4 filters easy to disassemble and clean
  • Remote control via touch panel, BMS Modbus or IoT
  • Smooth fan adjustment
  • Easy service access to filters and fans

Dimensions (mm):

  • A - 1340
  • B - 335
  • C - service distance
  • D - 580
  • E - 200
  • F - 210
  • G - service distance
  • H - 1291
  • J - 646

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Brand BVN
Parametry Kind switchboard
Parametry Product weight with unit packaging 90 kg
Parametry Manufacturer code BKR-HR EC 700
Parametry Packaging status original
Parametry Range of energy efficiency classes A+ - G
Parametry Energy efficiency class A
Parametry Certificates of conformity CE
Parametry Batteries included no
