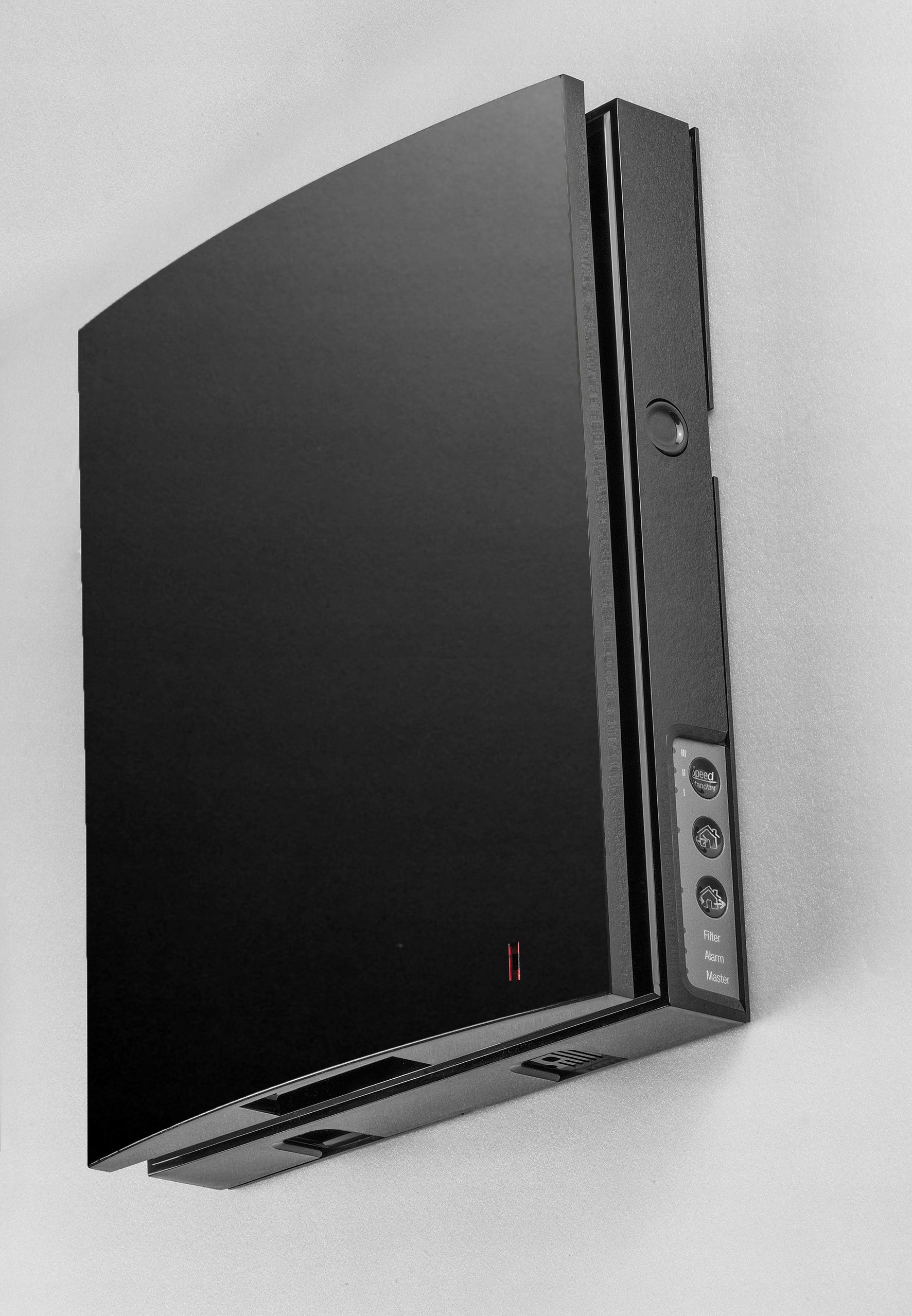

Vėdinimo įrenginys VENTO Expert A100-1 S10 W V.2 BLK, 108 m³/val.

Trumpai apie prekę

Prekė: Vėdinimo įrenginys VENTO Expert A100-1 S10 W V.2 BLK, 108 m³/val.. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Blauberg
• Modelis: A100-1 S10 W V.2BLK

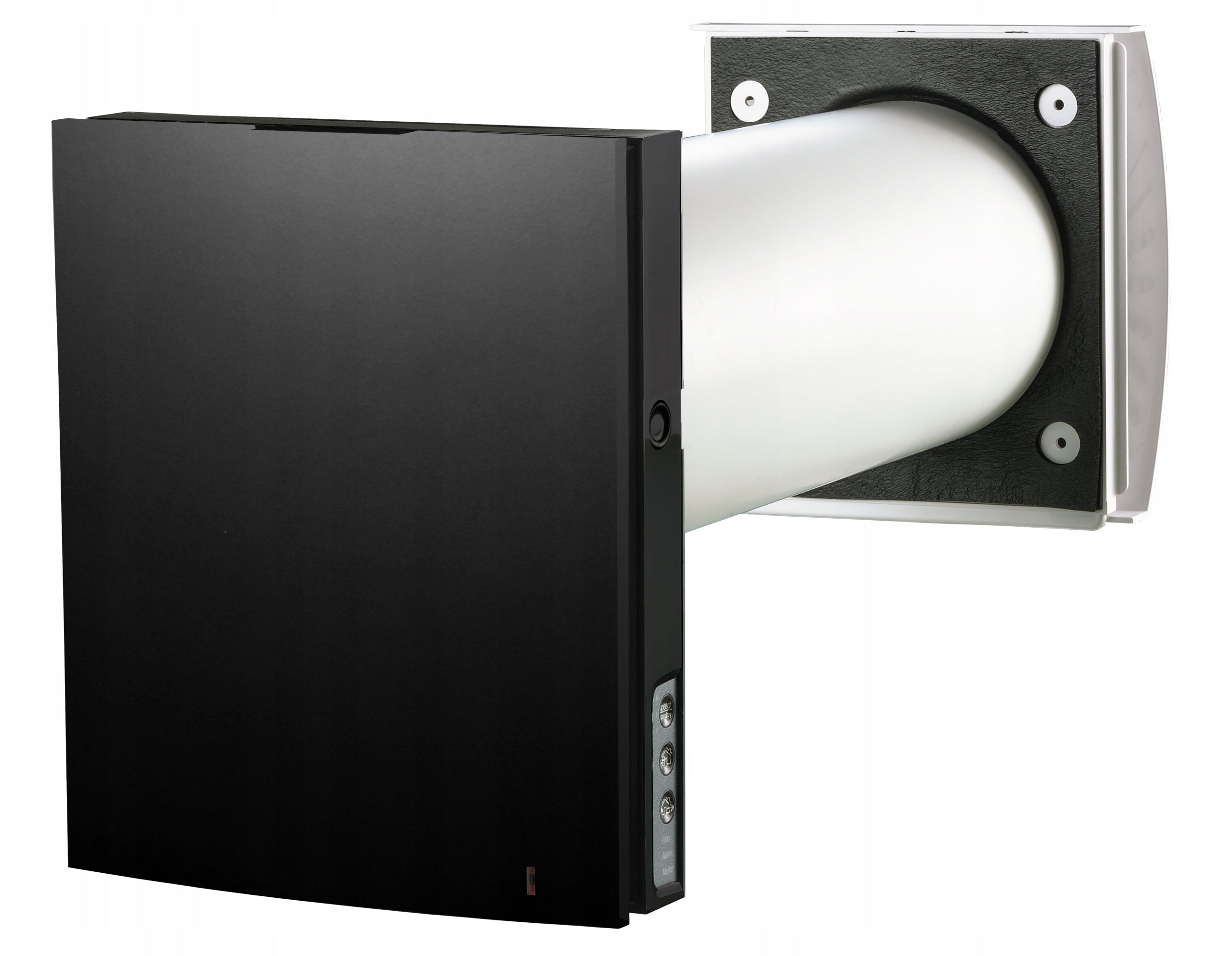

VENTO Expert A100-1 S10 W V.2 BLK - decentral ventilation unit - capacity up to 108 m3/h

Blauberg

VENTO EXPERT A100-1 S10 W V.2 - decentral ventilation unit with ceramic hygroscopic heat exchanger, Wifi, black internal panel and external outlet. AH-10WHITE160

PERFORMANCE

UP TO 108 (30) m³/h (l/s)

POWER

FROM 3,20 IN

NOISE LEVEL

FROM 13 dB(A)

APPLICATION:

• Efficient energy-efficient supply and exhaust ventilation of apartments, cottages, villas, social and utility rooms.
• Significant reduction of heat loss during room ventilation, thanks to effective heat recovery.
• A balanced flow of fresh air and humidity creates a controlled microclimate.
• Wi-Fi communication function to ensure the coordinated operation of several ventilation units.
• Control via mobile application for Android or iOS smartphone or tablet.

• Polluted, warm air removed from the room outside passes through the heat exchanger, gradually heating it up and giving away some of the moisture. After the ceramic exchanger heats up, the device automatically switches to the air intake mode.,
• Fresh, cool outside air passes through the exchanger, absorbing the moisture and heat accumulated in it. After 70 seconds, the heat exchanger cools down, the device switches to mode I - internal air exhaust.

CONTROL:

• Control the operation of the device using a mobile application for a smartphone or tablet.
• Synchronized operation of devices, thanks to the connection via Wi-Fi network.
• Control your ventilation system with a cloud service from anywhere in the world.

Vento Expert A100-1 S10 W V.2 is equipped with a humidity sensor to control the humidity level in the room. If the air humidity exceeds the setting point, the unit will start working at a higher gear independently of other devices in the system.

ASSEMBLY:

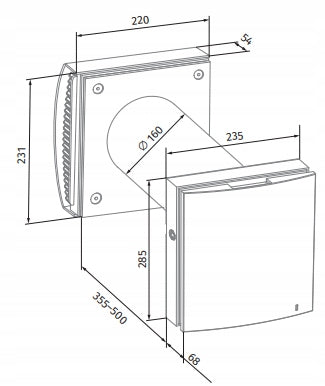

• The device is designed to be installed in the internal wall, through a pre-prepared hole in the external wall of the building.
• The optimal solution is the installation of an even number of units working cyclically and in the counterphase. This means that some devices simultaneously provide fresh air from the outside, and some - remove polluted air from the room. This allows for high-efficiency, balanced ventilation.
• During the construction of new buildings, the installation of equipment is carried out in two stages:
• Pre-assembly: when making internal and external facades (installation of ventilation duct and external outlet with hood, cable routing).
• Final assembly: before putting the house into use. Installation of a container with an exchanger, fan and filters, installation and connection of an internal block with control and blinds.

MORE DETAILS - IN THE PRODUCT CARD - DOWNLOAD

VENTO Expert A100-1 S10 W V.2 - decentral ventilation unit with ceramic, hygroscopic heat exchanger, Wifi and external outlet. AH-10WHITE160

Specifications
