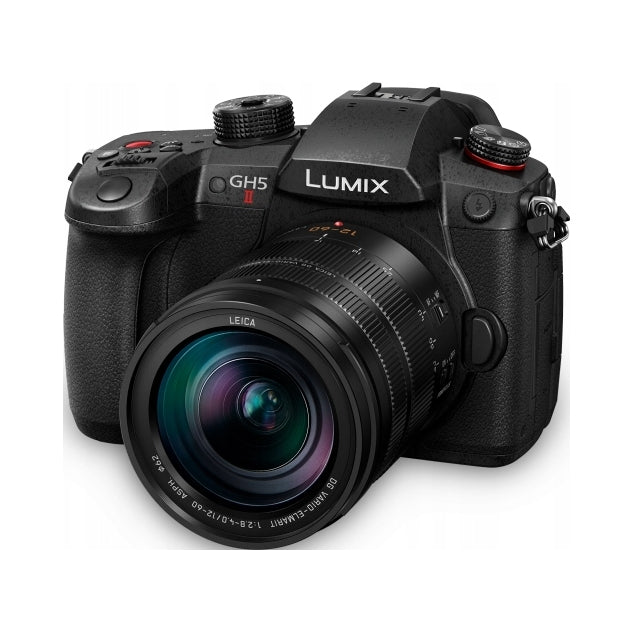

Veidrodinis Panasonic Lumix DC-GH5M2LE fotoaparatas su objektyvu

Trumpai apie prekę

Prekė: Veidrodinis Panasonic Lumix DC-GH5M2LE fotoaparatas su objektyvu. Kategorija: Sisteminių fotoaparatų.

• Gamintojas: Panasonic
• Modelis: GH5M2L
• Spalva: black
• Komplektacija: body + lens

DC-GH5M2LE

Hybrid mirrorless camera with live streaming function and the ability to record video in 10-bit C4K 60p/50p quality.

• Live MOS digital converter with a resolution of 20,3 megapixels with anti-glare coating
• Simultaneous internal/external recording in 10-bit C4K/4K 60p/50p quality
• Recording videos in 10-bit C4K/4K 30p/25p/24p 4:2:2, V-Log L mode and unlimited recording time
• Wireless live streaming
• Recording media: SD memory card / SDHC memory card* / SDXC memory card*
• Type: Live MOS matrix (17,3 x 13,0 mm)
• Effective number of pixels / Total number of pixels: 20,33 megapixels / 21,77 megapixels
• Anti-glare coating

Hybrid mirrorless camera with live streaming function and the ability to record video in 10-bit C4K 60p/50p quality.

LUMIX GH5M2 is a hybrid camera that will meet the needs of all creators. From streaming and creating ready-to-present materials to recording video in non-compression mode, V-Log L in 12 degrees of dynamic range to advanced post-production processing. With 10-bit C4K/4K 60p/50p 4:2:0 and 10-bit C4K/4K 30p/25p/24p 4:2:2 recording modes with 400 Mbps ALL-Intra compression, no restrictions are imposed on any settings. * Simultaneous internal recording with real-time HDMI signal output in 10-bit mode is supported. * Provided that the camera is used in an environment where its operation is guaranteed. Recording time depends on battery capacity and SD memory card. Recording can be automatically stopped in anamorphic mode and 10-bit C4K/4K 60p/50p quality to protect the camera.

The LUMIX GH5M2 provides 12-stage dynamic range thanks to the factory-installed V-Log L function, and the color grading modules can use the same mapping tables they use in the V-Log function.

This feature allows you to power your camera, so it is very convenient for long photo shoots in and out of the studio. When used in conjunction with the separately sold DMW-BTC15 charger (compliant with USB Power Delivery specification), it can be charged during power supply. * * * For this function to work, the battery must be in the camera and maintain a certain amount of energy.

Stream wireless live streaming indoors and outdoors with the easy-to-use LUMIX Sync (Android/iOS) app. Stream live events anytime, anywhere in the quality provided only by the mirrorless camera. Generally, live streaming to RTMP/RTMPS compliant platforms is possible (compatibility with all platforms is not guaranteed). In some cases, live streaming may not be possible as a result of changes to the service on the platform. ･Android and Google Play are trademarks or registered trademarks of Google Inc. ･IOS is a trademark or registered trademark of Cisco in the United States and other countries and is used under license.

The anti-glare coating effectively reduces glare, allowing you to capture realistic light composition even in difficult conditions with strong lighting, for example when shooting against light and ensuring high visual quality for both films and photos.

It includes fast and precise autofocus and deep learning technology used to recognize the bodies, heads, faces and eyes of humans, as well as animals.

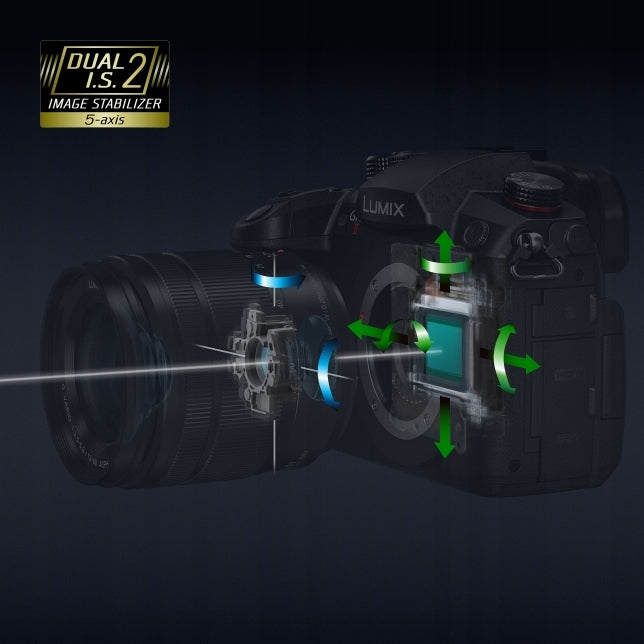

Dual I.S.2 stabilization in 5 axes (image stabilizer) combines Body I.S. stabilization and O.I.S. system in the lens, offering a correction of 6,5 points. * *According to CIPA standard [direction of deviation: focusing distance f=140 mm (equivalent to camera 35 mm, f=280 mm) with lens H-FS14140.

• Type: Mirrorless digital camera
• Recording media: SD memory card / SDHC memory card* / SDXC memory card* (* UHS-I/UHS-II UHS Speed Class 3 compliant for SDHC/SDXC memory cards and UHS-II Video Speed Class 90 standard for SDXC memory cards)
• Lens mount: Micro Four Thirds mount

IMAGE SENSOR

• Type: Live MOS matrix (17,3 x 13,0 mm)
• Effective number of pixels / Total number of pixels: 20,33 megapixels / 21,77 megapixels
• Anti-glare coating: Yes
• Proportions / Color filter: 4:3 / Basic color filter
• Dust reducing system: Type with matrix offset

SCOPE

• 12-stage characteristics (V-Log L)

PHOTOS

• Photos: JPEG (DCF, Exif 2.31), RAW
• 6K PHOTO (*¹) / 4K PHOTO (*¹): 6K PHOTO: MP4 (H.265/HEVC, audio format: AAC (2 can.)), 4K PHOTO: MP4 (H.264/MPEG-4 AVC, audio format: AAC (2 can.)), extracted images: JPEG (DCF, Exif 2.31)
• Aspect Ratio: 4:3 / 3:2 / 16:9 / 1:1
• File size (in pixels)
• 4:3: 5184x3888 (L) / 3712x2784 (M) / 2624x1968 (S) / 4992x3744 (6K PHOTO) / 3328x2496 (4K PHOTO)
• 3:2: 5184x3456 (L) / 3712x2480 (M) / 2624x1752 (S) / 5184x3456 (6K PHOTO) / 3504x2336 (4K PHOTO)
• 0.6729166667: 5184x2920 (L) / 3840x2160 (M) / 1920x1080 (S) / 3840x2160 (4K PHOTO)
• 1:1: 3888x3888 (L) / 2784x2784 (M) / 1968x1968 (S) / 2880x 2880 (4K PHOTO)
• Image quality: RAW / RAW+Fine / RAW+Standard / Fine / Standard
• Color space: sRGB, AdobeRGB

FILMS

• File format: MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2 can. 48 kHz/16 bits, 48 kHz/24 bits*, 96 kHz/24 bits*)) *After connecting the DMW-XLR1 adapter (sold separately). , MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio Format: AAC (2-Channel))
• System frequency: 59,94 Hz / 50,00 Hz / 24,00 Hz
• Video area: Full / Pixel by pixel
• MOV (*¹) High-resolution audio can only be selected when using the DMW-XLR1 adapter (sold separately).
• 59,94 Hz [C4K] 4096x2160: 59,94p, 200 Mbps (4:2:0,10 bits, LongGOP)* (H.265/HEVC, LPCM, high resolution audio) * Selectable HLG; 59,94p, 150 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC, LPCM, high resolution audio); 29,97p, 400 Mbps (4:2:2, 10 bits, ALL-Intra)* / 150 Mbps (4:2:2, 10 bits,LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC,LPCM, high resolution audio) * Selectable HLG.; 23,98p, 400 Mbps (4:2:2, 10 bits, ALL-Intra)* / 150 Mbps (4:2:2, 10 bits,LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC,LPCM, high resolution audio) * HLG selection.
• 59,94 Hz [4K] 3840x2160: 59,94p, 200 Mbps (4:2:0,10 bits, LongGOP)* (H.265/HEVC, LPCM, high resolution audio) * Selectable HLG.; 59,94p, 150 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC, LPCM, high resolution audio); 29,97p, 400 Mbps (4:2:2, 10 bits, ALL-Intra)* / 150 Mbps (4:2:2, 10 bits,LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC,LPCM, high resolution audio) * Selectable HLG.; 23,98p, 400 Mbps (4:2:2, 10 bits, ALL-Intra)* / 150 Mbps (4:2:2, 10 bits,LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC,LPCM, high resolution audio) * HLG selection.
• 59,94 Hz [anamorphic 6K] 4992x3744 (4:3): 29,97p, 200 Mbps (4:2:0, 10 bits, LongGOP)* (H.265/HEVC, LPCM, high resolution audio) * Selectable HLG.; 23,98p, 200 Mbps (4:2:0, 10 bits, LongGOP)* (H.265/HEC, MGOV)
• 59,94 Hz [anamorphic 4K] 3328x2496 (4:3): 59,94p,150 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC,LPCM, high resolution audio); 29,97p, 400 Mbps (4:2:2, 10 bits, ALL-Intra)* / 150 Mbps (4:2:2, 10 bits,LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC,LPCM, high resolution audio) * Selectable HLG.; 23,98p, 400 Mbps (4:2:2, 10 bits, ALL-Intra)* / 150 Mbps (4:2:2, 10 bits,LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC,LPCM, high resolution audio) * HLG selection.
• 59,94 Hz [FHD] 1920x1080: 59,94p, 200 Mbps (4:2:2,10 bits, ALL-Intra)* / 100 Mbps (4:2:2, 10 bits, LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC, LPCM, high resolution audio) * Selectable HLG.; 29,97p, 200 Mbps (4:2:2, 10 bits, ALL-Intra)* / 100 Mbps (4:2:2, 10 bits,LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC,LPCM, high resolution audio) * Selectable HLG.; 23,98p, 200 Mbps (4:2:2, 10 bits, ALL-Intra)* / 100 Mbps (4:2:2, 10 bits,LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC,LPCM, high resolution audio) * HLG selection.
• 50,00 Hz [C4K] 4096x2160: 50,00p, 200 Mbps (4:2:0,10 bits, LongGOP)* (H.265/HEVC, LPCM, high resolution audio) * Selectable HLG.; 50,00p, 150 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC, LPCM, high resolution audio); 25,00p, 400 Mbps (4:2:2, 10 bits, ALL-Intra)* / 150 Mbps (4:2:2, 10 bits,LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC,LPCM, high resolution audio) * HLG selection.
• 50,00 Hz [4K] 3840x2160: 50,00p, 200 Mbps (4:2:0,10 bits, LongGOP)* (H.265/HEVC, LPCM, high resolution audio) * Selectable HLG.; 50,00p, 150 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC, LPCM, high resolution audio); 25,00p, 400 Mbps (4:2:2, 10 bits, ALL-Intra)* / 150 Mbps (4:2:2, 10 bits,LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC,LPCM, high resolution audio) * HLG selection.
• 50,00Hz [anamorphic 6K] 4992x3744 (4:3): 25,00p, 200 Mbps (4:2:0, 10 bits, LongGOP)* (H.265/HEVC, LPCM, high resolution audio) * HLG selection.
• 50,00 Hz [anamorphic 4K] 3328x2496 (4:3): 50,00p,200 Mbps (4:2:0, 10 bits, LongGOP)* (H.265/HEVC, LPCM,High Resolution Audio) * Selectable HLG.; 50,00p, 150 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC, LPCM, high resolution audio); 25,00p, 400 Mbps (4:2:2, 10 bits, ALL-Intra)* / 150 Mbps (4:2:2, 10 bits,LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC,LPCM, high resolution audio) * HLG selection.
• 50,00 Hz [FHD] 1920x1080: 50,00p, 200 Mbps (4:2:2,10 bits, ALL-Intra)* / 100 Mbps (4:2:2, 10 bits, LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC, LPCM, high resolution audio) * Selectable HLG.; 25,00p, 200 Mbps (4:2:2, 10 bits, ALL-Intra)* / 100 Mbps (4:2:2, 10 bits,LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC,LPCM, high resolution audio) * HLG selection.
• 24,00 Hz [C4K] 4096x2160: 24,00p, 400 Mbps (4:2:2, 10 bits, ALL-Intra)* / 150 Mbps (4:2:2, 10 bits, LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC, LPCM, high-resolution audio) *HL selectable .
• 24,00 Hz [4K] 3840x2160: 24,00p, 400 Mbps (4:2:2, 10 bits, ALL-Intra)* / 150 Mbps (4:2:2, 10 bits, LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC, LPCM, high-resolution audio) * HL selectable
• 24,00Hz [anamorphic 6K] 4992x3744 (4:3): 24,00p, 200 Mbps (4:2:0, 10 bits, LongGOP)* (H.265/HEVC, LPCM, high resolution audio) * HLG selection.
• 24,00 Hz [anamorphic 4K] 3328x2496 (4:3)
• 24,00p, 400 Mbps (4:2:2, 10 bits, ALL-Intra)* / 150 Mbps (4:2:2, 10 bits, LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC, LPCM, high-resolution audio) * HLG selection.
• 24,00 Hz [FHD] 1920x1080: 24,00p, 200 Mbps (4:2:2, 10 bits, ALL-Intra)* / 100 Mbps (4:2:2, 10 bits, LongGOP)* / 100 Mbps (4:2:0, 8 bits, LongGOP) (H.264/MPEG-4 AVC, LPCM, high-resolution audio) * HL selectable
• MP4 (*¹)
• 59,94 Hz [4K] 3840x2160
• 59,94p, 100 Mbps (4:2:0 10 bits, LongGOP) (H.265/HEVC, AAC)
• 29,97p, 72 Mbps (4:2:0 10 bit, LongGOP) (H.265/HEVC, AAC)
• 23,98p, 72 Mbps (4:2:0 10 bit, LongGOP) (H.265/HEVC, AAC)
• 29,97p, 100 Mbps (4:2:0 8 bits, LongGOP) (H.264/MPEG-4 AVC, AAC)
• 23,98p, 100 Mbps (4:2:0 8 bits, LongGOP) (H.264/MPEG-4 AVC, AAC)
• 59,94 Hz [FHD] 1920x1080
• 59,94p, 28 Mbps (4:2:0 8 bit, LongGOP) (H.264/MPEG-4 AVC, AAC)
• 29,97p, 20 Mbps (4:2:0 8 bits, LongGOP) (H.264/MPEG-4 AVC, AAC)
• 23,98p, 24 Mbps (4:2:0 8 bits, LongGOP) (H.264/MPEG-4 AVC, AAC)
• 50,00 Hz [4K] 3840x2160
• 50,00p, 100 Mbps (4:2:0 10 bits LongGOP) (H.265/HEVC, AAC)
• 25,00p, 72 Mbps (4:2:0 10 bits LongGOP) (H.265/HEVC, AAC)
• 25,00p, 100 Mbps (4:2:0 8 bits LongGOP) (H.264/MPEG-4 AVC, AAC)
• 50,00 Hz [FHD] 1920x1080
• 50,00p, 28 Mbps (4:2:0 8 bits LongGOP) (H.264/MPEG-4 AVC, AAC)
• 25,00p, 20 Mbps (4:2:0 8 bits LongGOP) (H.264/MPEG-4 AVC, AAC)
• 24.00Hz – -

STREAMING TRANSMISSION

• Protocol: RTMP / RTMPS
• Streaming Quality
• NTSC (59.94 Hz) [HD] 1280x720: 59.94p, 6 Mb/s (H.264), 29.97p, 4 Mb/s (H.264)
• PAL (50.00 Hz) [HD] 1280x720: 50.00p, 6 Mb/s (H.264), 25.00p, 4 Mb/s (H.264)

VIEWFINDER

• Type: OLED Live View Finder
• Pixels: About 3,68 million points
• Field of view / Magnification: About 100% / about 1,52x / 0,76x (35 mm camera equivalent) with 50 mm lens set to infinity; -1,0 m-1 when the aspect ratio is set to 4:3
• Viewing distance / Diopter adjustment: About 21 mm when set to infinity; -1,0 m-1 / -4,0 - +3,0 (dpt)
• Eye sensor: Yes
• Display speed: 120 fps. /s / 60 kl. /s

REAR DISPLAY

• Type: TFT LCD display with static touch panel
• Monitor size: About freely adjustable angle, 7,5 cm (3 inches), 3:2 aspect ratio
• Pixels: About 1,84 million points
• Field of view: About 100%

FOCUS ADJUSTMENT

• Type: Contrast AF system
• DFD technology: Yes
• Focus mode: AFS (single) / AFC (continuous) / MF
• AF Mode: Automatic Detection (Face, Eyes, Body, Animal) / Tracking / 225-area / Zone (vertical/horizontal) / Zone (square) / Zone (oval) / 1-area+ / 1-area / Pinpoint / Custom 1, 2, 3 (touch function is available for full area)
• AF detection range: EV -4 - 18 (F2,0, equivalent to ISO100, AFS)
• Custom AF setting: AF sensitivity, AF area switching sensitivity, object forecasting in motion
• AF Assist Lamp: Yes
• AF lock: Set the Fn button in the custom menu to AF lock
• Post Focus / Focus Stacking: Yes/Yes
• Focus ring control: Nonlinear/linear * After fixing compatible lens.
• Other: Focus Peaking / 1-area AF sliding speed,AF-ON / AF-ON: close, AF-ON: far away, focus/snapshot priority,vertical/horizontal focus switching, AF/AE lock holding,AF+MF, MF Assist, MF Guide, focus ring lock,display/hiding AF mode, range of AF points,AF shutter, release shutter when you press the button halfway,fast AF, continuous AF (when recording videos), AF with eye proximity detection,loop focus frame, AFC starting point (225-area),touch shutter, Touch AF/AE function, AF touch panel,Lens focus recovery

EXPOSURE CONTROL

• Metering System: 1728-zone multi-pattern sensing system
• Metering Mode: Multi / Center-Weighted / Spot / Highlight Weighted
• Measuring Range: EV 0-18 (F2.0 lens, ISO100 equivalent)
• Shooting Mode: Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure / Creative Video / Custom 1, 2, 3, 4 / Intelligent Auto
• ISO Sensitivity (Standard Output Sensitivity): Photos: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Adjustable in 1/3 EV steps); Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Adjustable in 1/3 EV steps)
• Exposure Compensation: 1/3 EV step ±5EV (±3EV for video)
• AE Lock: Set Fn button in Custom Menu to AE Lock

IMAGE STABILIZATION SYSTEM

• Sensor-shift type (5-axis / 6.5 stops*)
• * Based on CIPA standard [Pitch/yaw direction: Focusing distance f=60mm (35mm camera equivalent, f=120mm) with H-ES12060 lens].
• Dual I.S. (6.5 stops*, compatible with Dual I.S. 2)
• * Based on CIPA standard [Pitch/yaw direction: Focusing distance f=140mm (35mm camera equivalent, f=280mm) with H-FS14140 lens].

WHITE BALANCE

• White Balance: AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color Temperature Set 1, 2, 3, 4
• White Balance Adjustment: Blue/Amber tint, Magenta/Green tint
• Color Temperature Setting: 2500–10000 K in 100 K steps

SHUTTER

• Type: Slot shutter
• Shutter speed: Photos: Bulb (max. 30 minutes), 1/8 000 – 60, Electronic front curtain: Bulb (max. 30 minutes), 1/2 000 – 60, Electronic aperture: Bulb (max. 60 s), 1/16 000 – 60, Videos: 1/16 000 – 1/25
• Creative Video M mode / MF mode: 1/16 000 – 1/2
• Self-timer: 10 s, 3 images / 2 s / 10 s / custom time
• Remote control: Remote control via DMW-RS2 (sold separately)
• Silent mode / Shutter mode: Yes / Yes (Automatic / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKETING

• AE range: 3, 5, 7 photos with step 1/3, 2/3 or 1 EV, max. ±3 EV, single/serial
• Bracketing aperture: 3, 5 or all positions
• Focus bracketing: 1–999 photos, focus steps can be set in 10 levels
• White balance range: Three images in blue/amber axis or magenta/green axis, color temperature setting

TAKING SERIAL PHOTOS

• Speed of continuous shooting
• Mechanical / electronic front curtain
• AFS/MF: H: 12 fps. /s, M: 7 kl. /s (with Live View function), L: 2 fps. /s (with Live View)
• AFC: H: 9 class /s (with Live View), M: 7 fps. /s (with Live View function), L: 2 fps. /s (with Live View)
• Electronic aperture
• AFS/MF: H: 12 fps. /s, M: 7 kl. /s (with Live View function), L: 2 fps. /s (with Live View)
• AFC: H: 7 fps. /s (with Live View), M: 7 fps. /s (with Live View function), L: 2 fps. /s (with Live View)
• Number of images recorded
• RAW / RAW+JPEG: more than 108 photos
• JPEG: More than 999 photos (when using SD card with speed class "UHS-II Speed Class 3 (U3)" inserted into card slot 1).
• * When registering under the test conditions specified by Panasonic.

6K PHOTO (*1) / 4K PHOTO (*1)

• Burst Shooting Speed: 6K PHOTO: 30 fps, 4K PHOTO: 60 fps, 30 fps
• EXIF Information: Yes (Each JPEG file cropped from a 6K/4K burst file is EXIF compliant).

TIME LAPSE PHOTOGRAPHY

• Yes

TIME LAPSE MOVIE

• Yes

FLASH

• Flash Type: External TTL Flash (Sold Separately)
• Flash Mode: Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *Only in iA mode.
• Flash Sync
• 1st Curtain Sync, 2nd Curtain Sync
• Flash Power Adjustment
• 1/3 EV step ±3 EV
• Flash Sync Speed
• 1/250 sec. or less
• Wireless Control
• Yes (When using DMW-FL200L / FL360L / FL580L (Optional)), Wireless Channel: 1ch/2ch/3ch/4ch
• Flash Sync Terminal Yes

VIRTUAL ZOOM EXTENDER

• 2.0x (EX S), 1.4x (EX M) *Still image recording only.

PHOTO STYLE

• Photo Styles: Standard / Vivid / Natural / L.Classic Neo / Flat / Landscape / Portrait / Monochrome / L.Monochrome / L.Monochrome D / L.Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log L/XL / Hybrid Log-Gamma / My Photo Style 1–10
• Image Adjustment: Contrast / Highlight / Shadow / Saturation / Color Tone / Color Depth / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB

*Adjustable settings vary depending on the Photo Style mode.

FILTER

• Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*

*Still images only.

VIDEO RECORDING FUNCTION

• Master Pedestal function level: 31 degrees
• Luminance level: 8 bits: 0‒255 / 16‒235 / 16‒255, 10 bits: 0‒1023 / 64‒940 / 64‒1023
• Way Monitor / Vector Range: Selectable
• LUT preview: Display / HDMI
• HLG preview: Display (MODE1/MODE2/OFF. ) / HDMI (AUTO / MODE1 / MODE2 / OFF. )
• Anamorphic view with Desqueeze function: 2,0x / 1,8x / 1,5x / 1,33x / 1,30x / OFF
• Sync scanning function: Yes
• Time code: Counting: the ability to choose between Rec Run and Free Run, time code mode: the ability to choose between Drop Frame mode and Non-Drop Frame mode (with NTSC (59,94 Hz) selected).
• SS/amplification mode: Aperture opening time/ISO / angle/ISO / Aperture opening time/dB
• Color bars / 1 kHz test area: Yes (SMPTE / EBU / ARIB) / Yes
• Knee Control: Yes (in Like709 mode)
• Other functions: Red recording frame indicator, blue streaming frame indicator,

INFORMATION ON HORIZONTAL POSITION

• Photo/Film (ON. / OFF. )

LEVELLING RATE

• Yes

FUNCTION BUTTON

• RECORDING Comp. exposure / Sensitivity / White balance / Photo style / Measurement mode / Proportions / Image quality / Image size / Spot measurement 1 photo / Long exposure NR / Min. shutter speed / 1 photo RAW+JPG / i.Dynamic range /Filter effect / Disposable AE / Touch controlled AE /Exposure mode / Sync scan / AF mode /Custom AF setting (photos) / Custom AF setting (video) /Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Swipe Speed /Focus ring lock / AE LOCK /AF/AE/AF-ON/AF-ON LOCK:to close / AF-ON: to distance / AF point range / Focus zone setting /Flash mode / Flash adjustment. / wireless flash configuration / drive mode / 1 photo 6K/4K PHOTO / bracketing / silent mode / image stabilization / shutter type / external. teleconverter / Live View Composite mode / Video file format /Video recording quality / Video recording quality (my list) /variable frame rate / time code display /displaying the sound recording level / mute the sound source /adjustment of the sound recording level / limitation of the sound recording level /XLR microphone adapter setting / special microphone directionality adjustment /image stabilization / electronic image stabilization (video) / Boost I.S. (video) / video image area / focus transition / live framing / Q.MENU / recording/playback switch / video recording /viewfinder/display switch / operation lock /knob control switch / preview / aperture preview /constant preview / level indicator / histogram / point measurement of luminance /Video frame marker / photo grid lines / improve live view quality /monochrome live view / night mode / viewfinder/display style /display with video priority / Zebra pattern / LUT View Assist (display) /LUT View Assist (HDMI) / LUT / HLG View Assist selection (display) /HLG View Assist (HDMI) / Sheer Overlay / State Range I.S. / vector/WFM range / anamorphic view with Desqueeze function /color bars / focus ring control / magnification control /step enlargement / zoom speed / target card slot /disabled (disable the "press and hold" function /Restoring default settings

• PLAY Magnification from AF point / LUT View Assist function (display) /HLG View Assist function (display) / anamorphic view with Desqueeze function /RAW processing / 6K/4K PHOTO photo bulk saving /removal of individual elements / protection / evaluation 1,2, 3, 4, 5 / copying / recording/playback switch /Viewfinder/display switch / video recording /night mode / changing card slot / Wi-Fi / sending image (smartphone) /LUT View Assist (HDMI) / HLG View Assist (HDMI) /6K/4K photo playback / no setting / Disabled (disable “press and hold” function) /Restoring default settings

PRINTING

• PictBridge compatible

INTERFACE

• USB: SuperSpeed ​​USB 3.1 Type-C Gen 1
• HDMI (*²)
• HDMI: HDMI Type A, Audio: Stereo
• Monitor Output: 4:2:2 10bit (when [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit]). ; 4:2:2 8bit (when [Rec Quality] is set to [4:2:0 8bit]). ; Down Conversion: Auto / 4K / 1080p / 1080i / OFF
• Playback: 59.94Hz: Auto / C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p; 50.00Hz: Auto / C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p; 24.00Hz: Auto / C4K/24p / 4K/24p / 1080p
• Remote control input φ2.5mm
• Microphone: Stereo, Wind Noise Reduction: OFF / Low* / Standard / High *only when DMW-MS2 (optional) is connected.
• External Microphone/External Audio Device Input: φ3.5mm for external microphone/external audio device, MIC (Plug-in Power) / MIC / LINE selectable., Stereo / Lens Auto / Directional / Super Directional / Manual modes are only available when connecting the DMW-MS2 microphone (sold separately).
• XLR Microphone: Yes, with DMW-XLR1 (sold separately)
• Speaker: Mono
• Headphone output: φ3.5mm
• SD card slot: Slot 1, Slot 2

WIRELESS TECHNOLOGY

• Wi-Fi: 2.4 GHz (STA/AP) (IEEE 802.11 b/g/n), Wi-Fi 5 GHz (STA) (IEEE 802.11 a/n/ac) *5 GHz Wi-Fi band is not available in some countries.
• Bluetooth: Bluetooth® 4.2 (Bluetooth Low Energy (BLE))

DUST AND SPLASH PROTECTION*

• Yes * Dust and splash resistance does not guarantee that damage will not occur if the camera is exposed to direct contact with dust and water.

POWER

• Batteries: Lithium-ion battery (7.2V, 2200mAh, 16Wh) (included), USB power supply, USB charging, USB Power Delivery
• Battery Life (CIPA Standard): Approx. 400 shots, 1200 shots (LVF Power Save*) with H-ES12060 / DMW-BLK22, Approx. 410 shots, 1200 shots (LVF Power Save*) with H-FS12060 / DMW-BLK22 * Under Panasonic test conditions based on CIPA standard. When the sleep mode transition time is set to 1 second.
• Continuous recording time (motion pictures) (*¹): MP4 [4K/60p]: Approx. 120 min with H-ES12060 / H-FS12060, MP4 [FHD/60p]: Approx. 140 min with H-ES12060 / H-FS12060
• Actual recording time (motion pictures) (*¹) MP4 [4K/60p]: Approx. 60 min with H-ES12060 / H-FS12060, MP4 [FHD/60p]: Approx. 70 min with H-ES12060 / H-FS12060
• DMW-BGGH5 battery grip (sold separately)

DIMENSIONS / WEIGHT

• Dimensions (L. x H. x D. ) About 138,5 x 98,1 x 87,4 mm / 5,45 x 3,86 x 3,44 inches (without protruding elements)
• Weight: About 727 g (1 SD memory card, rechargeable battery, body), Approx. 647 g (body only)

WORKING ENVIRONMENT

• Working temperature (*³) from -10°C to 40°C
• Humidity in operation Relative humidity from 10% to 80％

Standard accessories

• DC-GH5M2 kit: Body cover, hot shoe cover, eyecup, flash sync socket cover, holder connector cover with battery, shoulder strap, battery, charger, cable holder
• DC-GH5M2L kit / DC-GH5M2M kit: Body cover, hot shoe cover, eyecup, flash sync socket cover, holder connector cover with battery, shoulder strap, battery, charger, cable holder, lens cover, lens sun visor, lens mount cover
• An instruction manual for advanced features is available for download on the support page for Panasonic LUMIX products using a PC, smartphone or tablet connected to the Internet.

Attention

• (*¹) Applicable to video recording
• - Use SD cards with speed class "Class 4" or higher to record MP4 movies (at speeds below 28 Mbps).
• - Use SD cards with the speed class "UHS-I / UHS II UHS Speed Class 3 (U3)" to record videos in [MP4] format in [4K] or [MOV] resolution.
• (The SD card speed class is a standard for continuous writing of data to a card.)
• - Video speed class 60 or higher is required for ALL-Intra 400 Mbps recording. An SD memory card with a speed class of 60 or higher is recommended for recording videos in ALL-Intra C4K/4K quality.
• - MP4 movies in [MP4] mode in [4K] resolution:
• - When using an SDHC memory card: you can continue recording without interruption, even when the file size exceeds 4 GB, but the video file will be divided into recorded and played separately parts.
• - When using an SDXC memory card: You can continue recording without interruption, even when the file size exceeds 96 GB or 3 hours and 4 minutes, but the movie file will be divided into recorded and played separately parts.
• - MP4 movies in [MP4] mode in [FHD] resolution:
• - You can continue recording without interruption, even when the file size exceeds 4GB or 30 minutes, but the video file will be divided into recorded and played separately parts.
• - 10-bit 4:2:2 recording is a recording mode used for film productions and movies that require processing on a computer.
• Original video cannot be played on a standard TV or Blu-ray Disc™ recorder/player.
• There may be problems when playing on these devices (e.g. stopping playback).
• - In case of high ambient temperature or continuous recording, the camera can stop recording to protect its components. Wait until the camera cools down.
• (*²) For video signal [C4K/60p] [C4K/50p] [4K/60p] [4K/50p], use an HDMI 2.0 cable with the HDMI logo, described as "4K compatible".
• (*³) The camera may stop recording when used at a lower or higher operating temperature than recommended: -10 to 40 degrees.

Specifications
