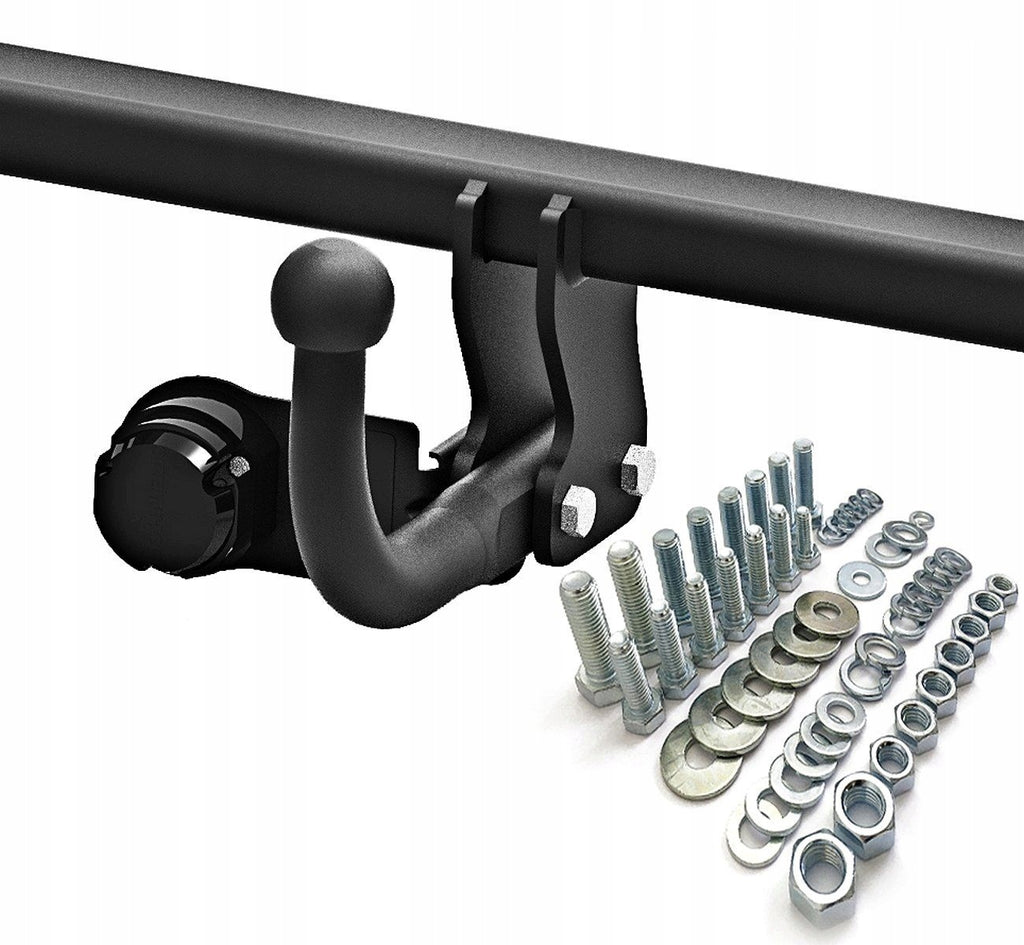

Velkamasis kablis Opel Corsa D 2006–2014, 1350 kg

Trumpai apie prekę

Prekė: Velkamasis kablis Opel Corsa D 2006–2014, 1350 kg. Kategorija: Pilnas vilkimo kablys (sija + rutulys).

• Gamintojas: Imioła Hak-Pol

Towing hook for Opel Corsa D — does not fit OPC and GSi versions. It allows you to safely tow the trailer and mount the bicycle rack on the hook, and thanks to the matching design, the installation is carried out in accordance with the factory attachment points provided. Parameters: pull 1350 kg, pressure 55 kg, E20 approval.

TOWING HOOK FROM HAK-POL IMIOŁA

Towing Hook Fits Cars:

✅ Opel Corsa D (hatchback) — 09/2006 - 11/2014

You can also mount the Imioła Hak-Pol O/033 towbar to:

• ✅ Opel Corsa E (hatchback) — 12/2014 - 06/2019

Except for OPC and GSi versions.

COMPLETE HOOK for assembly Company: IMIOŁA HAK-POL ✅

Key benefits

• Drawing capacity: 1350 kg — solid base for cargo trailers, tow trucks and campsites (the limit depends on the car anyway).
• Ball pressure: 55 kg — more stable under bike racks and trailers (less "rocking").
• Hook approval: E20 — legal installation and use (inspection / review).
• Assembly at factory points — requires removal of the bumper and its undercutting.

TECHNICAL SPECIFICATION OF THE HOOK:

• ✔ Catalog No.: O/033
• ✔ Drawing: 1350 kg
• ✔ Pressure on the hook ball: 55 kg
• ✔ D-value: 7,66 kN

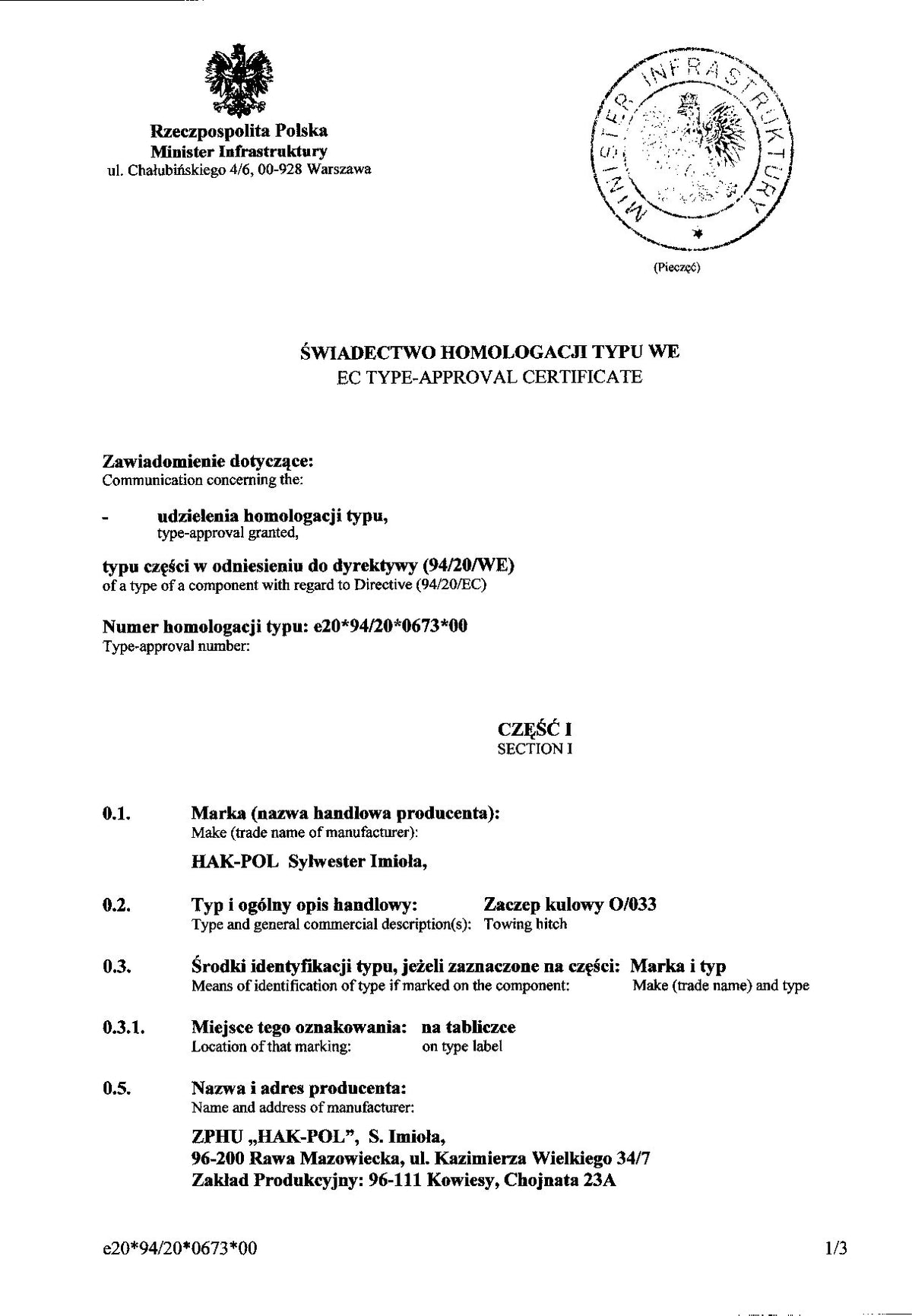

• ✔ Hook approval: E20 (e20*94/20*0673*00)
• ✔ Installation information: requires removal of the bumper and undercutting of the bumper

The manual shows the components and mounting points (Point. 1 – 3 and the order of assembly step by step.

We know how important safety and security are to you – that’s why our hooks have the required approvals and certificates.

This allows you to install a compliant product and can tow legally and without stress during inspection or inspection.

E20 approval is peace of mind for you: you mount a product approved for use and use the hook legally – without stress during inspection or inspection.

It is also a signal that the hook meets the strength requirements and has been evaluated in accordance with applicable standards.

Imioła Hak-Pol – polish manufacturer since 1991.

Modern production (laser/robot/CNC) and confirmed quality: E20/e20 approvals + PIMOT certificate

Imioła Hak-Pol is a polish manufacturer of tow hooks operating since 1991, offering solutions tailored to over 500 models of passenger cars and vans.

You choose a brand that focuses on precision and repeatable quality: production is based on m.in. o laser cutting, robotic welding and CNC, which translates into a secure fit and durability.

Why does this matter to you?

• Peace and legality: products have the required approvals (E20/e20) and PIMOT certificate of conformity, and the hitches are tested in the laboratory of the Industrial Automotive Institute (PIMOT).
• Durability for years: anti-corrosion protection includes blasting, phosphating and powder coating with polyester paint — important if the car drives all year round and sees salt/winter.
• Repetitive build quality: modern technologies (laser/robots/CNC) mean less risk of "fighting during assembly" and greater certainty that the elements are evenly made.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Imioła Hak-Pol
Parametry	Ball type	screw‑off
Parametry	Harness included	none
Parametry	Dedicated harness	no
Parametry	Type approval	yes
Parametry	Maximum vertical load of ball	55 kg
Parametry	EAN (GTIN)	5900000623573
Parametry	Packaging status	original
