Vertikāls eļļas kompresors, 100 l, 230V, 10 bar, 3500W, dubultvirzuļa, ar eļļu

Trumpai apie prekę

Prekė: Vertikalus alyvos kompresorius, 100 l, 230V, 10 bar, 3500W, dvigubas stūmoklis, su alyva. Kategorija: Kompresoriai.

• Gamintojas: Tagred
• Modelis: TA3401
• Galia: 3.5 kW
• Įtampa: 230 V

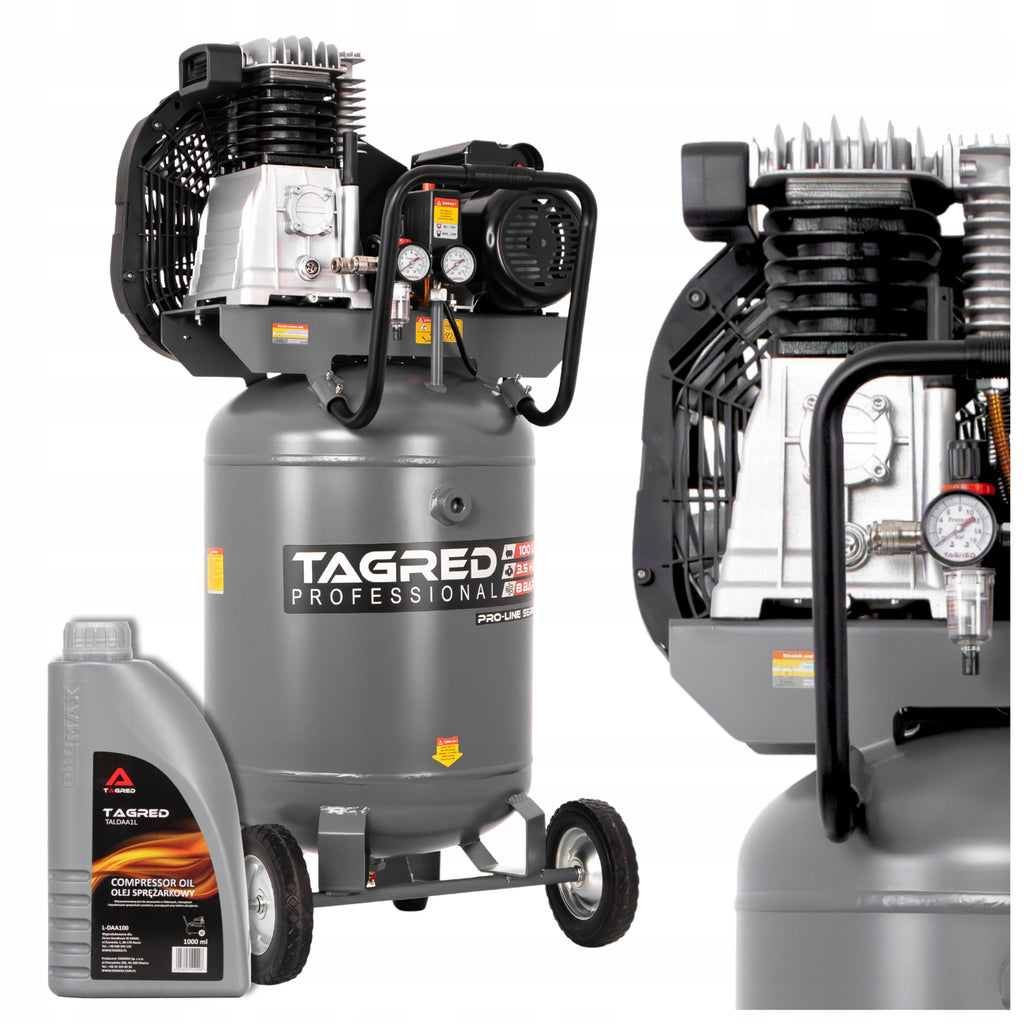

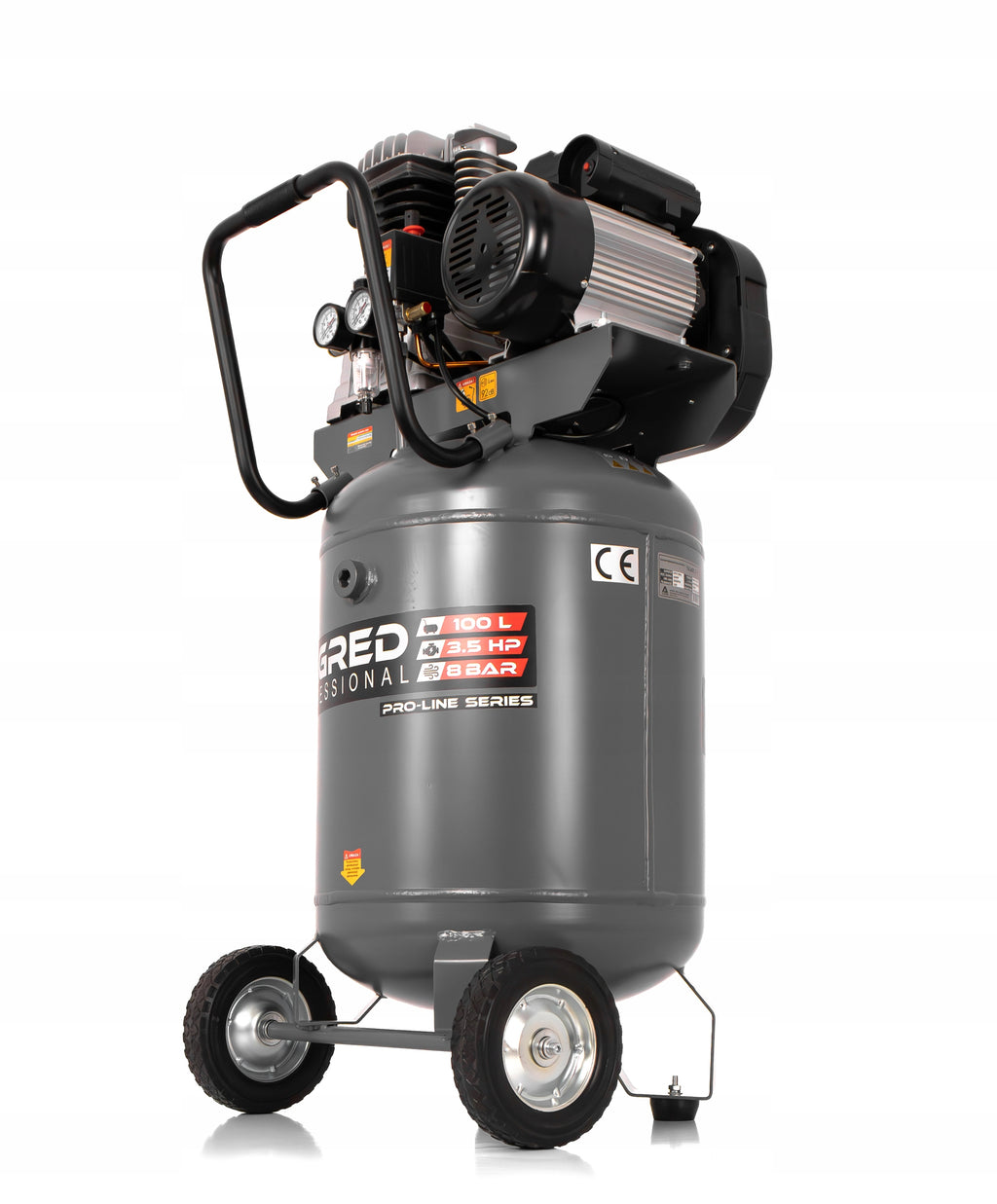

Professional oil compressor TAGRED model TA3401 is powerful,and at the same time compact workshop compressor, which thanks to the use of two-piston pump with iron cylinders in a row system and efficient engine with large power provides reliable source of compressed air for the most demanding tasks,such as painting, powering pneumatic tools or intensive blowing.

The machine is characterized by exceptional working culture and high durability, which is supported by an advanced cooling system with a 7-blade fan and an oil status speculum to prevent blurring, while offering high blowing capacity of 390 L/min at an operating pressure of 8 bar (maximum pump pressure is 10 bar).

Thoughtful design with vertical orientation allows for significant space saving in the workshop, and the mobility of the device is facilitated by bearing, rubberized wheels and solid handle, which in combination with the weight of 74 kg guarantees stability and easiness of transport.

By choosing the Polish brand TAGRED, you get equipment equipped with a professional separator with pressure reducer and dehydrator and a complete set of accessories with free compressor oil, which makes it ready for intensive operation immediately after commissioning.

➡ Specification

• Model: TA3401
• Engine: electric, air-cooled: 7-blade fan with increased diameter
• Effective performance - 420l/min
• Real capacity - 390l/min
• Pressure max pump: 10 Bar
• Number of pistons: 2
• Nominal pressure: 8 bar
• Maximum engine power: 3,5 KW/ 4,8HP
• Nominal engine power(on shaft): 2,6 KW/3.5 HP
• For proper and safe operation of the device, it is required to use protection in the switchgear: overcurrent switch min.C16A
• Frequency: 50-60Hz
• Current: C16A
• Voltage: 230V
• Iron cylinders: Yes
• Separator: yes
• Additional description: Built-in pressure regulator, polish brand

➡ Dimensions of the device ready for operation:

• Height: 120 cm
• Width: 58 cm
• Depth(with handle):: 54 cm
• Net weight: 74 kg

➡ Dimensions of the device in the package:

• Height: 130 cm
• Width: 62 cm
• Depth 53 cm
• Net weight: 92 kg

➡ Composition of the set

• Oil compressor TA3401
• 2 quick couplers + quick-connector directly screwed into the cylinder
• 2 rubberized and bearing wheels
• 2 rubber feet
• Built-in dehydrator with reducer - oil separator with reducer and pressure gauge.
• air filter with sponge cartridge
• 1 crankcase vent
• User manual in Polish
• Bottle of specialized compressor oil TAGRED 1L

☝ Equipment ready to work from the first moment!

➡ Professional quality and solid workmanship

Professional pump is equipped with a iron cylinder in a row system, which increases durability and resistance to intensive work. The carefully refined design includes a piston with a diameter of 65 mm, a practical oil level speculum for easy control and a suction filter, which effectively protects the compressor from contamination and helps reduce the risk of pump blurring.

➡ High efficiency and economical operation

The compressor is distinguished by high efficiency while low electricity consumption, making it perfect for both workshop and home garage. The device is a reliable source of compressed air, ideal for pumping, blowing, painting and powering pneumatic tools.

➡ Powerful motor and operational safety

The powerful 2,6 kW electric motor ensures long service life and stable compressor operation even during intensive use.

Thanks to single-phase power, the device can be easily connected to standard electrical installations (minimum protection C16A recommended).

In addition, the compressor is equipped with thermal protection, which protects the motor from overload, helping to avoid expensive repairs and extending the failure-free operation of the device.

☝ Professional compressor that can handle even the most demanding tasks!

➡ Precision pressure switch

The compressor has a precision pressure switch, which is responsible for automatic maintenance of the appropriate pressure in the tank between the set upper and lower values.

Presostat has been equipped with a relief valve, whose task is to remove pressure from the compressor pistons. Thanks to this, after restarting the device starts smoothly and the engine is not overloaded.

➡ Professional solutions that make a difference

The compressor is equipped with a practical set of control and protection elements, which significantly increase safety and convenience of use. On the panel there are readable pressure gauges, enabling accurate control of the pressure in the tank, as well as safety valve, which protects the installation from excessive pressure increase.

The device also has a pressure reducer with dehydrator, working manometer and fast connector type 26, which allows fast and convenient connection of pneumatic tools. The applied membrane pressure reducer allows maintaining the stable value of the output pressure, regardless of the pressure fluctuations in the tank, which translates into precise and effective operation of pneumatic devices.

➡ Robust construction and convenient transport

The compressor tank is made of high quality materials and welded using automatic welding machines, which ensures precision weld, high tightness and long-term reliability of the device.

The compressor is also equipped with an ergonomic handle and large, durable wheels, which significantly facilitate transport and movement of the device in the workshop or workplace.

✅ Why choose the TAGRED TA3401 compressor?

• Extreme durability thanks to cast iron cylinders: The use of an in-line pump with cast iron cylinders ensures a much longer service life and better heat dissipation than in cheaper aluminum counterparts.
• Saving space (Vertical Design): Thanks to the vertical orientation of the tank, the compressor takes up minimal floor space, making it an ideal choice for smaller workshops and garages.
• Clean and dry air immediately: Built-in separator with dehydrator effectively removes moisture and oil from compressed air, which is necessary for painting and prolongs the life of your pneumatic tools.
• Power that does not disappoint: The engine with a maximum power of 4,8 HP in combination with a large 7-blade cooling fan allows for long-term operation without the risk of overheating the device.
• Maximum tool performance: An additional quick coupler screwed directly into the cylinder allows for full-flow air intake (without losses on the reducer), which is crucial when working with demanding impact wrenches or grinders.
• Effortless mobility: Despite its solid weight (74 kg), the compressor is driven lightly and stably thanks to rubberized, bearing wheels and ergonomic handle.
• Safety and control: The oil level speculum allows for instant control of the lubrication status, which minimizes the risk of costly pump blurring.
• Ready to Work Kit: You buy and work – you get a free special oil included, so the device is ready for the first flooding and start immediately out of the box.

❓ Frequently Asked Questions and Answers ❓

✔ What can the TAGRED TA3401 compressor be used for?

The TAGRED TA3401 compressor is perfect for car workshops, vulcanization services and home garages. It can be used to power impact wrenches, pneumatic grinders, paint guns, pump wheels or blow.

✔ What is the efficiency of the TAGRED TA3401 compressor?

The compressor achieves 420L/min effective efficiency and 390 L/min real efficiency, which allows for efficient work with pneumatic and paint tools.

✔ What are the dimensions of the TAGRED TA3401 compressor?

The dimensions of the device ready to work are about 120 cm high, 58 cm wide and 54 cm deep (with handle). Thanks to the vertical design of the tank, the compressor takes up relatively little space in the workshop or garage, despite its large capacity of 100 liters.

✔ Does the TAGRED TA3401 compressor have overheating protection?

Yes. The compressor is equipped with thermal protection, which protects the motor from overload and overheating, which increases the safety and durability of the device.

✔ What is the capacity of the TAGRED TA3401 compressor tank?

The compressor has a tank with a capacity of 100 liters, which allows for stable and efficient operation.

✔ Is the TAGRED TA3401 compressor mobile and easy to transport?

Yes. The compressor is equipped with large rubberized wheels and an ergonomic handle that allow easy movement of the device in the workshop or garage despite its solid construction.

✔ What is included with the TAGRED TA3401 compressor?

The set includes a 100L oil compressor, quick couplers, reducer with dehydrator, air filter, rubber wheels, stabilizing feet and specialized compressor oil TAGRED 1L, so that the device is ready for the first start.

✔ Why choose the TAGRED TA3401 compressor?

The compressor is distinguished by a double piston pump with cast iron cylinders, high efficiency up to 420 L/min and a solid 100L tank construction. This makes it an efficient and durable solution for workshop, car service and garage.
