Vertikālais bezeļļas kompresors R2 STRONG, 100 l, 10 bar

Trumpai apie prekę

Prekė: Vertikalus bealyšinis kompresorius R2 STRONG, 100 l, 10 bar. Kategorija: Kompresoriai.

• Gamintojas: Tagred
• Modelis: TA3397
• Galia: 3 kW
• Įtampa: 230 V

Oil-free vertical double piston compressor, compressor 100L polish brand TAGRED 3000W R2(2 pistons in row system),

10 BAR‼ ☞Compressor from novelty, factory set to 10 BAR☜

PRO-LINE SERIES > PROFESSIONAL!

➡ Technical data

• Model: TA3397
• Nominal engine power (on shaft): 2,2 KW/3KM
• Maximum engine power: 3,0 KW / 4,1 HP
• For proper and safe operation of the device, it is required to use protection in the switchgear: overcurrent switch min.C16A
• Connection: 1/4 inch
• Working pressure: 10 BAR
• Number of pistons: 2
• Capacity of tank: 100 liters
• Maximum engine speed: 2850 rpm /min.
• Network: 230 V ~ / 50 Hz

➡ Composition of the offered set

• 1x air compressor 100L
• 2x wheels + screws
• 2x rubber foot + screws
• 2x air filter
• Reducer

➡ Efficiency:

• Efficient capacity at 2 bar: 394 l/min
• Efficient capacity at 4 bar: 363 l/min
• Efficient capacity at 6 bar: 345 l/min
• Efficient capacity at 8 bar: 321 l/min
• Efficient capacity at 10 bar: 287 l/min
• Efficient capacity at 8 – 10 bar: 273 l/min

➡ Dimensions after folding:

• Depth: 50 cm
• Width: 44 cm
• Height: 115 cm
• Weight: 60 kg

➡ Dimensions in the package:

• Depth: 44 cm
• Width: 47 cm
• Height: 132 cm
• Weight: 75 kg

➡ 2-piston compressor

Two air pumps - built of connecting rod, Teflon ring, cylinder and valve plate, this design guarantees virtually maintenance-free operation of the compressor.

➡ Enlarged ribbed heads

Enlarged ribbed heads - heat is better dissipated

➡ Reinforced pistons

Reinforced pistons and low friction piston rings made of high quality materials

❇ Modern electric motor to prevent vibration of the device

Directly on the rotor are placed symmetrically eccentric wheels with bearings and connecting rod

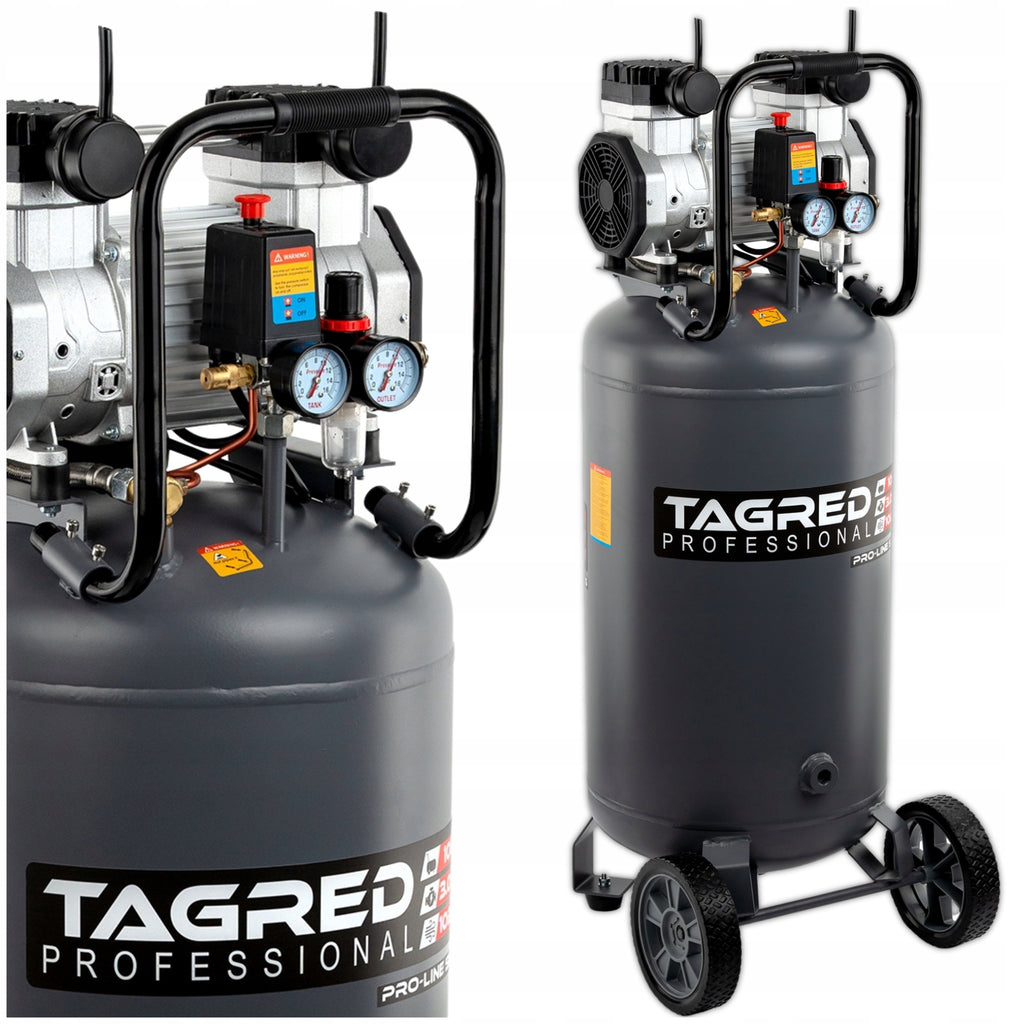

➡ Two readable pressure gauges

The compressor is equipped with two readable pressure gauges showing pressure. One of them is combined with a reducer.

➡ Durable metal handle

Durable, metal transport handle with rubberized, anti-slip finish. Approved cylinder numerically welded by welding machines - perfect quality of welds!

➡ What distinguishes oil-free air compressors brand TAGRED from competing offers:

• Vertical, insanely ergonomic, takes up little space.
• High work culture, comfort and convenience of use
• Ecological = oil-free!!! No oil particles in the compressed air produced - the compressor is ideal for work where clean air is required
• 2-piston - two air pumps - built of connecting rod, Teflon ring, cylinder and valve plate, this design guarantees virtually maintenance-free operation of the compressor.
• Enlarged ribbed heads - heat is better dissipated
• Reinforced pistons and low friction piston rings made of high quality materials
• Modern electric motor to prevent vibration of the device - directly on the rotor are placed symmetrically eccentric wheels with bearings and connecting rod
• w1 - The compressor is equipped with a pressure reducer that traps water in the blown air
• Equipped with two readable pressure gauges showing pressure. One of them is combined with a reducer and dehydrator
• It has a pressure reducer equipped with an innovative adjustment mechanism, a large pressure gauge located on the compressor in a position that facilitates reading parameters and a convenient tap.
• Economic - thanks to its modern design, it is more efficient, draws much less electricity compared to oil compressors. The compressor does not require oil servicing and is not equipped with such elements as connecting rods pins, bushings, heavy pulleys, fans, V-belts, chamber vent and relaxers makes the compressor lighter, less vibrating and does not require additional costs
• Mobile - is lightweight, has wheels, a comfortable handle so it is very easy to move with it.
• Durable, metal transport handle with rubberized, non-slip finish
• Homologated cylinder numerically welded by welding machines - perfect quality of welds! Reinforced construction of compressed air cylinders - additionally protected with anti-corrosion coating.

☝ High work culture, safety and comfort - convenience and simplicity of use are just some of the advantages of the latest line of TAGRED oil-free compressors.

☝ TAGRED oil-free compressors are needed where compressed air cannot be contaminated with oil. Our compressors operate more quietly, are smaller and lighter, and therefore more mobile, than traditional oil compressors.

☝ Quiet oil-free compressor - a professional source of clean, oil-free air. A reliable and quiet pump can be successfully placed in an office, study, or next to a machine without increasing the discomfort caused by loud operation.

☝ The heads are equipped with an air filter with an efficient ventilation system - this solution allows for maximum efficiency from a relatively small compressor and separate safety valves

☝ The TAGRED oil-free compressor uses a functional and virtually maintenance-free piston-diaphragm assembly. The solution used makes the operation of the air compressor efficient and can be used both in utility rooms and at home.

☝ In the offered compressor there is no need to check the oil level and change it or tighten the heads.

☝ TAGRED vertical compressors have an additional advantage: they take up little space and can be easily placed, for example, in a in the corner of the garage, attic or workshop . The floor compressor requires little space +

✅TAGRED: The large motor provides more power and the ability to continuously operate without problems with overheating of the engine and its faults.

❌OTHER: Small engine Ø92-118mm, does not provide enough power, quickly becomes overloaded, which causes overheating and engine damage.

✅TAGRED: The large cooling fan provides 20 - 30% more cooling. More cooling air means lower pump temperature during operation, which significantly extends its service life.

❌OTHER: Small fan Ø90-115mm, small air flow, no possibility of cooling the pump, easily overheats which can lead to fire. High temperature also significantly shortens the life of the pump.

✅TAGRED: Larger crankcase, about 30% more cooling holes provide better airflow throughout the engine, allowing each pump element to cool. This translates into longer service life and efficiency.

❌OTHER: Small crankcase. No adequate number of cooling holes, no airflow through the entire housing. They overheat easily, which reduces work efficiency and leads to serious engine failures.
