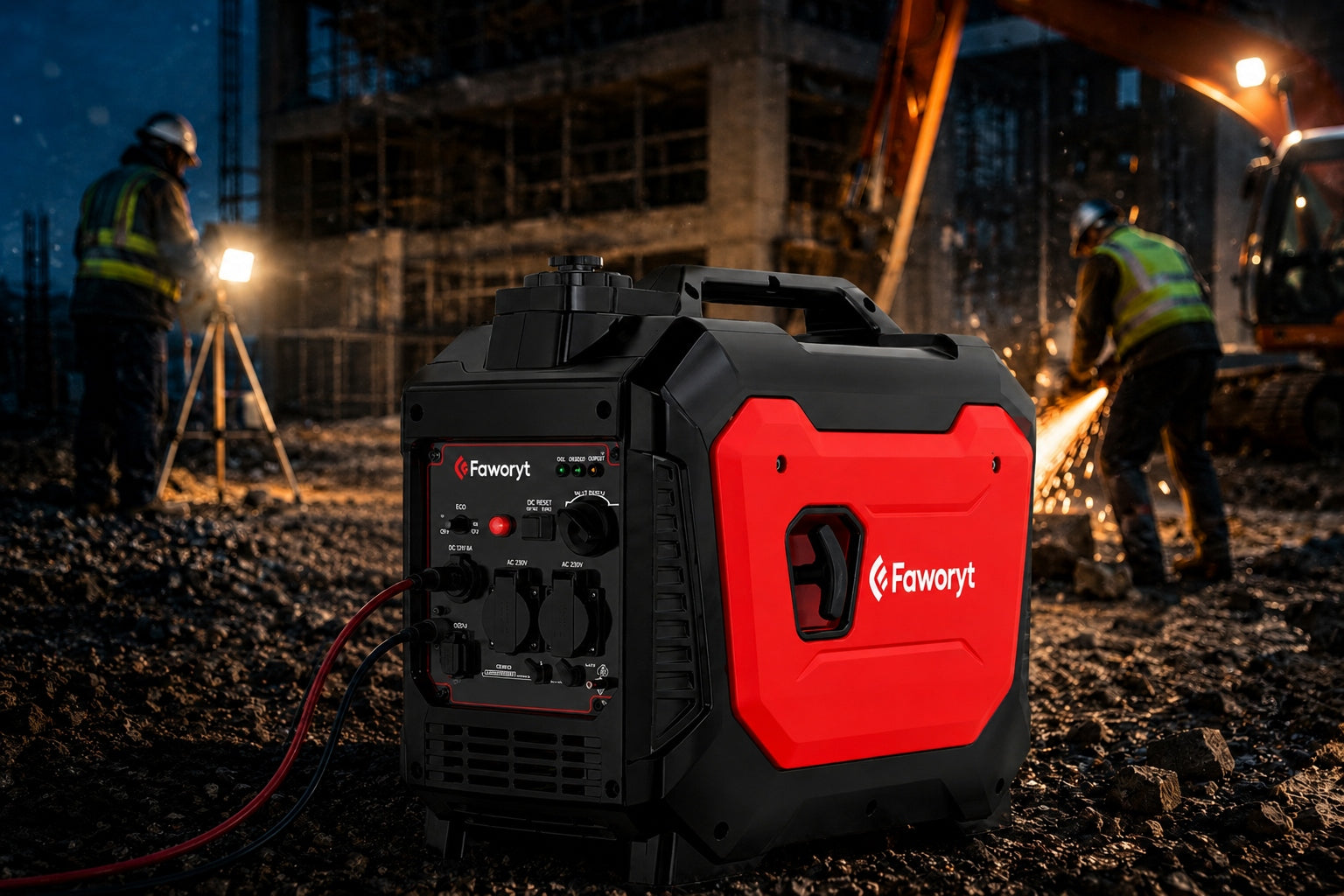

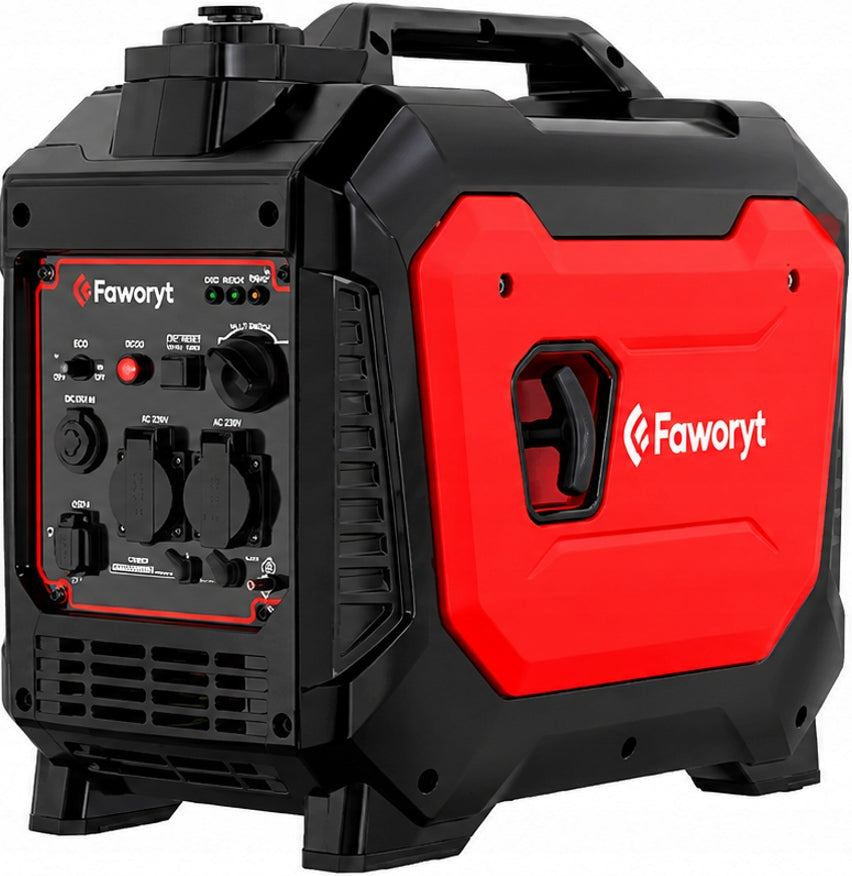

Vienfazis inverterinis generatorius Faworyt 3500W 141 cm³ 3,2 kW

Trumpai apie prekę

Prekė: Vienfazis inverterinis generatorius Faworyt 3500W 141 cm³ 3,2 kW. Kategorija: Elektros generatoriai.

• Gamintojas: Faworyt
• Modelis: GI3500
• Įtampa: 230 V

EAN: 5904679252478

Catalog number: 36061250

Manufacturer's designation: FAA GI3500

Model: Faworyt GI3500

Compact inverter unit for home, plot, workshop and recreation

Faworyt GI3500 is a single-phase inverter unit designed to generate electricity wherever there is no access to the grid or an emergency power source is needed.

The device offers a maximum output power of 3,2 kW and a continuous power of 3,0 kW. It allows you to power typical household appliances, power tools, lighting, chargers, electronic equipment and equipment used on the plot, in the garage, workshop or during the trip.

Inverter technology is responsible for electronic stabilization of energy parameters. Thanks to this, the unit can be used to power many electronic devices, provided that the permissible power is respected, the recommendations of the receiver manufacturer and its inrush current is taken into account.

The closed, compact housing reduces noise and protects components. The net weight of about 24 kg and small dimensions make it easy to transport and store the device.

The most important advantages

• inverter technology,
• maximum output power of 3,2 kW,
• continuous power 3,0 kW,
• rated voltage 230 V,
• frequency 50 Hz,
• single-phase operating system,
• rated AC current about 13 A,
• Ducar DHP140 engine,
• engine capacity 141 cm³,
• engine power 3,6 kW,
• power about 4,89 hp,
• manual starter,
• two AC 230 V 16 A sockets,
• one DC 12 V 8 A output,
• one USB port,
• fuel tank 6,3 l,
• working time up to about 6 hours at 50% load,
• sound pressure level of about 66 dB with 7 m at 25% load,
• low oil level sensor,
• overload protection,
• rubber socket covers,
• degree of protection IP23M,
• compact housing,
• net weight of approximately 24 kg,
• Candle wrench and oil funnel included.

Maximum power 3,2 kW

The maximum output power of the unit is 3,2 kW, or 3200 W.

This is a short-term power available, for example during:

• starting the receiver,
• temporary increase in demand,
• short overload associated with starting the device.

The unit should not work for a long time with a load corresponding to the maximum power.

Continuous power 3,0 kW

The continuous power is 3,0 kW, or 3000 W.

This is the basic parameter that should be followed when planning a constant load on the unit.

The total power of connected receivers should not exceed 3000 W. In practice, it is worth leaving an additional supply, especially if the powered devices have motors, compressors, pumps or transformers.

Why is the model called the GI3500?

The designation GI3500 is the model name and does not mean that the unit delivers 3500 W of continuous power.

Actual electrical parameters are:

• maximum power: 3200 W,
• Continuous power: 3000 W.

These values should be taken into account when selecting devices for power supply.

Faworyt GI3500 is an inverter unit.

In a classic generator, the frequency and voltage are directly related to the engine speed. In an inverter design, the energy generated by the generator is electronically processed and stabilized before being fed into the sockets.

Thanks to this, the unit offers:

• more stable voltage,
• more stable frequency,
• limitation of typical parameter fluctuations,
• the ability to power many electronic devices,
• compact design,
• Lower noise levels than many open-frame aggregates.

Is the generator suitable for electronics?

Inverter technology allows you to use the unit to power, among others:

• chargers,
• laptops,
• computers,
• television sets,
• routers,
• controllers,
• LED lighting,
• audio equipment,
• mobile devices.

However, before connecting, you should check the requirements of the device manufacturer.

Particular caution is required by:

• boilers with electronic control,
• heat pumps,
• alarm systems,
• medical devices,
• automation of gates,
• devices requiring a specific grounding method or neutral wire connection.

For such receivers, the selection and method of connection should be consulted with the electrician or manufacturer of the device.

The unit operates in a single-phase system and produces a rated voltage of 230 V at a frequency of 50 Hz.

It is designed for typical single-phase receivers used in the home, garden, workshop and during recreation.

It does not have a 400 V three-phase socket and cannot power devices that require three-phase power.

For the 230 V output, the manufacturer gives a rated current of about 13 A.

The relationship between power, voltage and current is approximately:

3000 W ÷ 230 V = approximately 13 A

The presence of two 230 V sockets should not be interpreted as doubling the available power.

Both sockets benefit from the common power of the unit. The total load of all outputs must not exceed the parameters of the device.

The unit is equipped with a single-cylinder, four-stroke Ducar DHP140 engine with a capacity of 141 cm³.

The unit reaches a rated power of 3,6 kW, or about 4,89 hp.

The engine has been selected to cooperate with a generator set with a continuous power of 3,0 kW and a maximum of 3,2 kW.

It provides the drive needed to:

• stable operation of the generator,
• power supply of typical receivers,
• responding to changes in load,
• maintaining the output parameters,
• Operation for several hours under moderate load.

Engine power and electrical power

The engine power of 3,6 kW is not equal to the power available in the sockets.

Part of the energy is lost during the conversion of mechanical energy into electricity and during the operation of the inverter system.

Therefore, the parameters should be distinguished:

• mechanical power of the motor: 3,6 kW,
• maximum electrical power of the unit: 3,2 kW,
• continuous electrical power: 3,0 kW.

The engine uses a top-valve OHV system.

Valves placed in the head ensure efficient replacement of the fuel-air mixture and effective exhaust gas discharge.

The most important advantages of OHV construction:

• stable work,
• good combustion efficiency,
• adequate power characteristics,
• effective cooling,
• proven design,
• simple service.

Ducar DHP140 is an air-cooled single cylinder unit.

The engine does not require the use of coolant. The air flow around the cylinder and the unit components is responsible for the temperature drainage.

During use, keep clean:

• ventilation openings,
• air intakes,
• starter housing,
• space around the silencer,
• cooling ducts.

Do not cover ventilation openings or place the unit directly against the wall.

The engine is started with a cable starter.

Solution:

• does not require a starter battery,
• simplifies the design,
• reduces the number of elements requiring charging,
• allows you to start the unit in the field.

Before starting, you should:

1. check the oil level,
2. replenish the fuel,
3. set the unit on an even surface,
4. disconnect electrical receivers,
5. open the fuel valve,
6. set mechanical suction,
7. start the engine with a cable,
8. after heating, turn off the suction,
9. wait before connecting the load.

The motor has suction operated by a lever.

The function makes it easier to start the cold unit by temporarily enriching the fuel-air mixture.

After the engine is warmed up, the suction should be set in the working position. Leaving it on can cause:

• unequal work,
• increased combustion,
• decrease in power,
• smoke,
• formation of sediments on the candle.

The capacity of 141 cm³ ensures a favorable combination of:

• adequate power,
• small dimensions,
• moderate fuel consumption,
• low weight of the aggregate,
• easy transport.

The unit is smaller and lighter than the motors used in large frame units, which makes it possible to enclose the entire unit in a compact housing.

The engine is equipped with a foam air filter.

The filter traps dust, dust and other contaminants sucked in by the unit.

Regular inspection and cleaning help:

• maintain proper power,
• reduce fuel consumption,
• protect the cylinder and piston,
• ensure easier start-up,
• extend the life of the engine.

The filter should be operated according to the manufacturer’s instructions. Do not start the engine without a properly installed cartridge.

The engine does not have a replaceable oil filter.

This means that it is particularly important to:

• regular control of the oil level,
• timely replacement of lubricant,
• the use of the right type of oil,
• setting the unit on a horizontal surface.

The engine holds about 0,4 liters of oil.

The manufacturer indicates SAE 30 oil. The final selection of viscosity should be adjusted to the ambient temperature and instructions.

The unit can be delivered without oil. Before the first startup, it is absolutely necessary to check its level.

Starting the engine without the right amount of lubricant can lead to serious damage to the unit.

The unit is equipped with a low oil level sensor.

The system helps protect the engine from working with insufficient lubrication. With too low a level, it can:

• prevent the engine from starting,
• cause it to stop,
• indicate an irregularity.

The sensor is not a substitute for manual control. The oil level should be checked before each start of work.

The fuel tank capacity is 6,3 liters.

This allows you to work longer without refueling frequently. Actual operating time depends on:

• the level of load,
• type of receivers,
• ambient temperature,
• condition of the air filter,
• fuel quality,
• frequency of load changes.

The manufacturer declares a runtime of up to about six hours at 50% load.

Half of the continuous load corresponds to approximately 1500 W.

The value is indicative. Actual time may be shorter or longer depending on:

• current power of receivers,
• number of device start-ups,
• weather conditions,
• engine settings and technical condition,
• fuel quality.

The unit has two standard single-phase 230 V sockets.

They allow you to connect two receivers or a distribution strip, as long as the total power does not exceed the permissible power of the unit.

Two sockets do not mean two independent circuits of 3000 W.

The total power of all connected devices should remain within the limits of:

• 3000 W during continuous operation,
• 3200 For a short time only.

The device has a 12 V DC output with an intensity of up to 8 A.

It can only be used according to the manufacturer’s instructions and intended use.

The current product card does not declare the battery charging function. Therefore, this output should not be presented as an automatic car charger.

For proper charging of batteries, it is best to use a dedicated rectifier or charger equipped with control of the charging process.

The USB port allows you to power or charge compatible devices with the right parameters, such as:

• telephones,
• powerbanks,
• USB lights,
• small electronics,
• tourist equipment.

Before connecting, check the required voltage and intensity of the device.

In the case of expensive electronics, it is worth using original cables and not connecting the device when starting or turning off the engine of the unit.

Faworyt GI3500 does not have a 400 V output.

It is not designed to power:

• three-phase motors,
• welding machines requiring 400 V,
• large industrial machinery,
• three-phase pumps,
• devices requiring a three-phase installation.

The unit has an overload protection system.

The protection reacts when the load exceeds the system’s capabilities.

It can limit or disconnect the output voltage, protecting:

• generator,
• inverter system,
• installation of the aggregate,
• connected wires.

After the security is activated, the following should be:

1. disconnect the receivers,
2. turn off the devices with the highest power,
3. check the total load,
4. reset the security according to the instructions,
5. reconnect the receivers individually.

When selecting an aggregate, it is not enough to check only the rated power of the receiver.

Devices equipped with motors or compressors can draw several times more current during start-up than during normal operation.

This includes, but is not limited to:

• refrigerators,
• freezers,
• pumps,
• hydrophores,
• compressors,
• power tools,
• air conditioners,
• concrete mixers.

For example, a device with a rated power of 800 W may temporarily require much more power during start-up.

Before buying a generator, check both the operating power and the power or inrush current of the receiver.

The manufacturer gives a sound pressure level of about 66 dB at 25% load, measured from a distance of seven meters.

This parameter should not be confused with the declared sound power level of 96 dB(A).

These are two different ways of determining noise:

• 66 dB – level felt at a certain distance and at partial load,
• 96 dB(A) – the declared sound power level of the source.

The closed housing makes the unit less cumbersome than many open structures of similar power, however, it is still an internal combustion device and an appropriate distance should be maintained during operation.

The current technical data sheet states that the GI3500 does not have a separate ECO mode.

Therefore, do not advertise the device as equipped with an economic switch that automatically reduces the engine speed.

Despite the inverter technology, the unit works according to the characteristics specified by the manufacturer.

The unit does not use the classic AVR regulator.

Stabilization of parameters is carried out by an inverter system, therefore the lack of AVR does not mean a lack of voltage stabilization.

AVR is typical for many traditional synchronous units, while the GI3500 uses electronic energy conversion.

The unit has a protection rating of IP23M.

The marking informs about a certain level of protection of the housing against access to dangerous parts and against water falling at a limited angle.

It does not mean full waterproofing.

The unit must not be used:

• during heavy rain,
• in a puddle,
• on a flooded surface,
• under a leaky roof,
• in a place exposed to direct pouring of water.

The device should work on dry, stable and ventilated ground.

The sockets are equipped with rubber covers.

They help to limit the access of dust and debris to unused outputs.

Guards shall be closed during:

• storage,
• transport,
• work when the socket is not in use.

They do not replace the protection of the unit against rain or the maintenance of the principles of safe operation with electricity.

The engine, generator and exhaust system were placed in a compact housing.

Construction:

• reduces noise levels,
• protects components,
• facilitates transport,
• gives the unit a compact form,
• reduces the risk of accidental contact with moving parts.

During operation, the housing and the silencer area can reach a high temperature.

The net weight of the aggregate is about 24 kg.

This allows you to move the device between workplaces, however, due to the weight, the correct lifting technique should be used.

Do not lift the unit for:

• wires,
• socket guards,
• pacemaker,
• elements of the control panel.

The dimensions of the device are approximately:

• length: 55 cm,
• width: 33 cm,
• height: 49 cm.

The small size makes it easy to:

• storage in the garage,
• transport in the car,
• transport to the plot,
• setting in the workshop,
• use during departures.

During transport, the unit should be cold, positioned in the correct position and protected against sliding.

• package length: about 58 cm,
• package width: about 37 cm,
• package height: about 53 cm,
• gross weight: about 26,4 kg.

The unit can serve as a temporary power source during a power outage.

It can power properly selected devices, such as:

• lighting,
• refrigerator,
• freezer,
• router,
• chargers,
• television,
• small household appliances,
• selected elements of the heating system.

Do not connect the unit directly to the home installation through a regular outlet.

The so-called plug-and-plug power supply is dangerous and can cause:

• electric shock,
• fire,
• damage to the aggregate,
• supplying voltage to the power grid,
• a threat to energy workers.

Connection to the building installation requires an appropriate network-aggregate switch and execution by an authorized electrician.

Faworyt GI3500 can power, among others:

• lighting,
• tourist refrigerator,
• power tools,
• tool battery chargers,
• radio,
• electronic equipment,
• small garden equipment.

The total demand and inrush current must remain within the generator’s capabilities.

The unit can work with properly selected devices, such as:

• drills,
• grinders,
• jigsaws,
• soldering irons,
• working lighting,
• tool chargers,
• small power tools.

Before connecting equipment with high power or strong starting current, check its nameplate.

The compact design means that the model can be used during:

• stay on the plot,
• camping,
• motorhome trips,
• fieldwork,
• outdoor events,
• powering a temporary station.

Local rules on noise and the use of combustion engines must be observed.

Before connecting a specific analysis, they require:

• welding machines,
• large compressors,
• strong submersible pumps,
• hydrophores,
• high power heaters,
• electric kettles,
• heating plates,
• air conditioners,
• power tools with high starting current,
• three-phase devices,
• installations requiring a specific neutral system.

A 2500 to 3000 W receiver may leave too little stock for proper start-up and stable operation.

Basic information

• brand: Faworyt,
• model: GI3500,
• designation: FAA GI3500,
• catalogue number: 36061250,
• EAN: 5904679252478,
• type of device: inverter generator set,
• Phase system: single-phase.

Electrical parameters

• maximum output power: 3,2 kW / 3200 W,
• continuous power COP: 3,0 kW / 3000 W,
• rated voltage: 230 V,
• frequency: 50 Hz,
• AC rated current: about 13 A,
• DC output: 12V/8A,
• sockets 230 V 16 A: 2,
• USB port: 1,
• three-phase socket: none,
• AVR system: no,
• inverter technology: yes,
• ECO mode: no,
• overload protection: yes,
• degree of protection: IP23M,
• battery charging function: no,
• copper winding generator: unconfirmed / card gives "no".

Engine

• engine brand: Ducar,
• engine model: DHP140,
• engine type: four-stroke OHV,
• number of cylinders: 1,
• engine capacity: 141 cm³,
• rated engine power: 3,6 kW,
• Engine power: about 4,89 hp,
• starter: manual,
• suction: mechanical,
• cooling: air,
• shaft position: horizontal,
• cast iron cylinder sleeve: no,
• oil filter: no,
• air filter: foam,
• oil tank capacity: 0,4 l,
• recommended oil: SAE 30,
• fuel tank capacity: 6,3 l,
• exhaust emission standard: Stage V,
• Low oil sensor: yes.

Working time and noise

• working time at 50% load: up to about 6 hours,
• sound pressure level with 7 m at 25% load: about 66 dB,
• declared sound power level: 96 dB(A).

Dimensions and weight

• length of the device: about 55 cm,
• width of the device: about 33 cm,
• height of the device: about 49 cm,
• net weight: about 24 kg,
• gross weight: about 26,4 kg,
• package dimensions: approximately 58 × 37 × 53 cm.

• inverter unit Faworyt GI3500,
• key to the spark plug,
• funnel for pouring oil,
• instruction manual,
• manufacturer's documentation,
• Factory equipment components.

Fuel and engine oil do not need to be included. Before the first start, the oil should be checked and replenished.

Before connecting the device, you should:

1. check its rated power,
2. determine the current or starting power,
3. add up the collection of all receivers,
4. leave an adequate supply of power,
5. connect devices individually,
6. be the first to start receivers with the highest starting current.

For long-term operation, it is not recommended to constantly use the full limit power.

The combustion unit produces toxic carbon monoxide.

The device must not be started:

• at home,
• in the garage,
• in the basement,
• in a gazebo with closed walls,
• in the trailer,
• in a tent,
• in the utility room,
• close to open windows and doors.

The unit must work outside, in a well-ventilated place, at a safe distance from the building.

During use, you should:

• set the device on a dry, even surface,
• protect them from rain,
• do not touch the hot silencer,
• do not refuel the working engine,
• wait before adding fuel,
• do not overload the sockets,
• use cables of appropriate cross-section,
• do not use damaged extension cords,
• do not cover the ventilation,
• Keep children away from the device.

Faworyt GI3500 combines a maximum power of 3,2 kW, a continuous power of 3,0 kW and inverter technology in a compact housing weighing approximately 24 kg.

Two 230 V sockets, a 12 V output and a USB port provide the ability to connect different receivers, and a 6,3 l tank allows you to work up to about six hours at half load.

Low oil sensor, overload protection and rubber socket covers increase operational safety.

It is a good choice for emergency power supply, plot work, workshop use and recreational applications when a compact, relatively quiet and stable 230V single-phase current source is needed.

Specifications
