Vilktspējas āķis RENAULT TRAFIC III, ar 7 kontaktu moduli, 2014–2024, 2100 kg

Trumpai apie prekę

Prekė: Vilkties kablys RENAULT TRAFIC III, su 7 kontaktų moduliu, 2014–2024, 2100 kg. Kategorija: Pilnas vilkimo kablys (sija + rutulys).

• Gamintojas: Imioła Hak-Pol

Reliability and durability confirmed by e20 approval.

FLANSZOWA ball unscrewed into two screws with the possibility of adjusting to 2 DEGREES OF HEIGHT. The set includes a universal module with an extensive beam and a 7PIN socket. Easy installation of the module because all wires to the module are connected with one extended cube.

✅PLUG AND PLAY MODULE + ADAPTER / ELECTRICAL ADAPTER FROM 7PIN TO 13P FREE

TECHNICAL DATA OF RENAULT HIT HOOK 3

• Producer: Hak-Pol Imioła ✅
• Ball system: unscrewable, flange ✅
• Approval: EU ✅
• Pulling: 2100 kg ✅
• Hook weight: 24.2 kg ✅
• Vertical pressure on the ball: 100 kg ✅
• Bumper undercut: NOT ❌

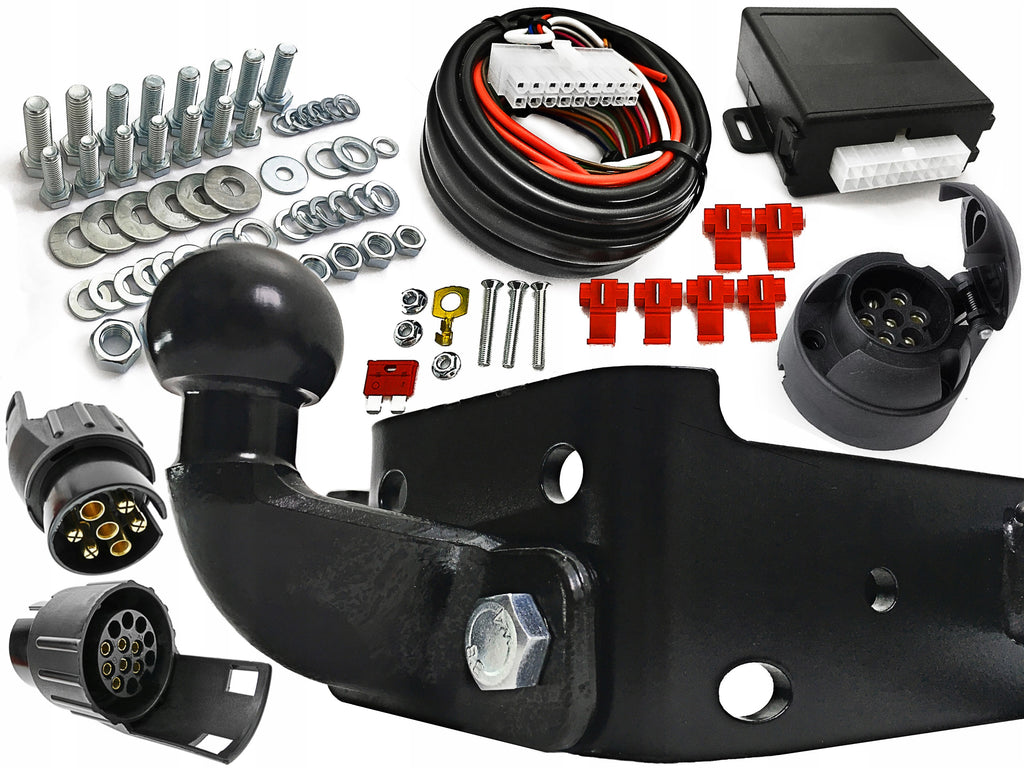

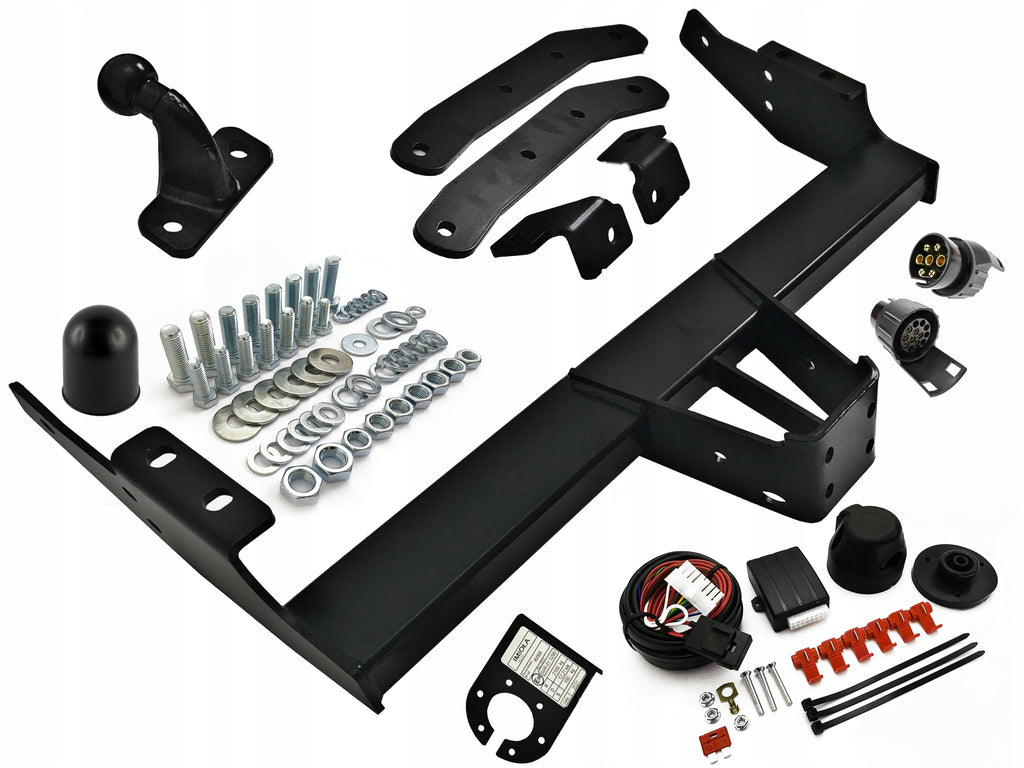

✅The hook set includes:

1. Towing hook with flange unscrewable ball dismantled on two screws
2. Universal MODULE 7pin with extended electrical harness and 7PIN socket. Easy installation of the module because all wires to the module are connected with one extended cube. PLUG AND PLAY MODULE.

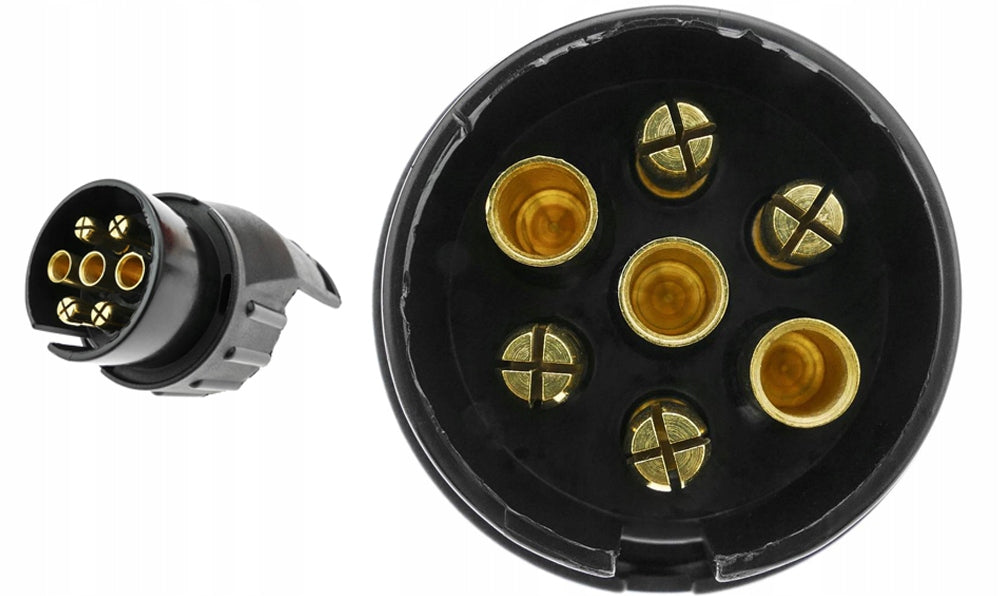

3. Adapter from 7PIN to 13PIN free!
4. All screw washers, nuts necessary for hook installation
5. Instruction for assembly
6. Approval on the data plate

EASY INSTALLATION OF THE MODULE BECAUSE ALL WIRES TO THE MODULE ARE CONNECTED WITH ONE EXTENDED CUBE. PLUG AND PLAY MODULE.

✅Module set contents:

1. Control unit
2. 7pin electrical harness
3. 7pin socket with elastic band
4. Quick connectors
5. Mounting screw, nut and washer
6. Clamp band
7. Connectors
8. Connector Eyelet
9. Fuse 10A
10. Fuse holder
11. TOWBAR CAP

✅FUNCTIONS OF THE MODULE CONTROL PANEL

• fog lamps - YES
• reversing lamps - NO
• brake lights STOP - YES
• position lamps - YES
• direction indicators - YES
• trailer module - YES
• CAN BUS - YES
• cooperation with parking sensors - NO (we have modules supporting parking/reverse sensors in another offer)
• approval - YES, E20

❗❗FITS THE VEHICLE:

✅RENAULT HIT 3 III

• VAN PLATE + PASSENGER GLAZED BUS
• L1 SHORT + L2 LONG
• MODELS 06.2014 TO 2022

✅OPEL VIVARO 2 II B

• VAN PLATE + PASSENGER GLAZED BUS
• L1 SHORT + L2 LONG
• MODELS 06.2014 TO 06.2019

✅FIAT TALENTO

• VAN PLATE + PASSENGER GLAZED BUS
• L1 SHORT + L2 LONG
• MODELS 2016 TO 2022

✅NISSAN NV300

• VAN PLATE + PASSENGER GLAZED BUS
• L1 SHORT + L2 LONG
• MODELS 2016 TO 2022

POLISH MANUFACTURER'S TOWBAR
