Apraksts
Trumpai apie prekę
Prekė: Wi-Fi relė TUYA, 1 kanalas, 230V, 16A, MINI. Kategorija: Automatizavimo moduliai.
- Gamintojas: Sone
- Modelis: SB1283

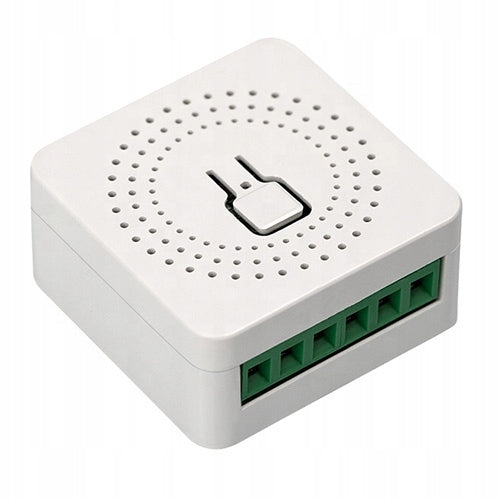

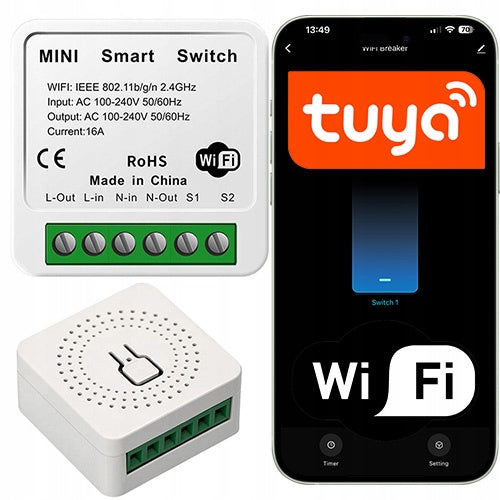

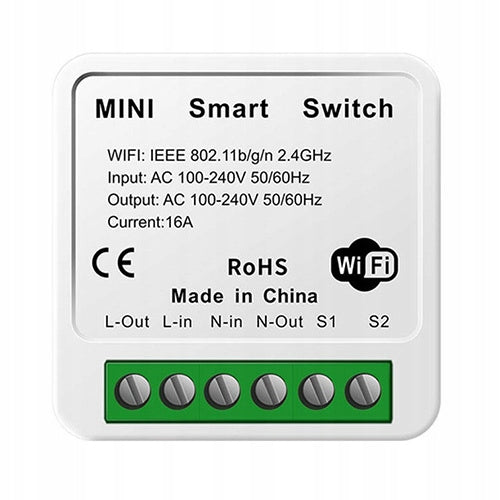

Our WiFi Tuya module – a practical and compact controller for intelligent management of lighting and other electrical devices (max. 3680W). Ideally suited for turning on and off ceiling lamps, wall lamps, LED strips or floodlights – directly from the application on your smartphone or using a traditional button on the wall.
Installation is simple and does not require specialized knowledge – just connect the module in the flush-mounted box and configure it in the free application Tuya or Smart Life (Android/iOS). The device supports both monostable and bistable mode, and also remembers the last state after power loss.
Control is possible locally or remotely – via 2,4GHz Wi-Fi, from anywhere in the world. The module supports schedules, timers and automation scenes, so you can adjust the action to your daily habits. It also works with Google Assistant and Amazon Alexa – all you need is a voice command to turn on the light without touching the switch.
Key Information:
- 2,4GHz WIFI communication
- Control from the Tuya or Smart Life app (Android / iOS)
- Remote control via Wi-Fi – the ability to operate from anywhere
- Compatible with Google Home and Amazon Alexa voice assistants
- ON/OFF mode – ideal for controlling lighting and electrical appliances
- State memory – the device remembers the last state after power loss
- Support for monostable and bistable switches – selection of mode in the application
- Possibility to set timers, schedules and automation scenes
- Compact dimensions: 41 x 41 x 23 mm – we recommend installation in the installation box fi 60 mm
- Maximum load: 16A / 3680W (for LED: up to 280W)
- Voltage: 100-240V
- Control from both the app and the wall button
- Recessed mounting – ideal for upgrading existing installations
- Ability to work without a physical switch – only from the application
- Functions: Timer, Schedule, Smart Scenes
Remote control and compact size
This module allows you to conveniently control the light or other connected device from anywhere – all you need is a smartphone with Internet access. Thanks to Wi-Fi connectivity, there is no need for additional gateways or control panels – the device connects directly to your home network and mobile application.
Compact size (41 x 41 x 23 mm) allows easy installation in a standard flush-mounted box with a diameter of 60 mm. It is an excellent solution for both new installations and modernization of existing ones – without the need to rework the electrical system. Thanks to the support of classic switches and the ability to set their operating mode in the application, integration with the existing installation is quick and simple.
Connection diagram
Connection diagram with stair or cross connectors
The most popular applications:
- Turn on and turn off outdoor lighting specific time (Schedule)
- Turn off the lighting when leaving the house based on location settings
- Control several lights with one switch, e.g. Going to sleep.
- Turning off all lighting in the house when going to sleep, or going to work - a very useful feature that saves energy
CONTROL TURN OFF (ON/OFF)
- LED bulbs
- Halogens
- Classic bulbs
- Floodlights
- LED Strips
- LED Hoses
Supported functions:
- Turn on/off the remote light using the app
- Turn on/off the light local manually with the button
- Timer - setting the time to turn on
- Schedule - on/off according to the set plan
- Scene - setting the control dependence on the time of day or other factors selected by us
- OUR DRIVER PROVIDES A PREVIEW OF WHETHER THE LIGHT IS ON
- Assembly in flush-mounted box (for convenience - we recommend 60mm depth)
- State memory in case of power loss
Application and ecosystem TUYA and SMART LIFE
The device works with Tuya Smart and Smart Life
Popular applications for IoT devices (Internet of Things)
Simple addition of the device - just hold down the button on it and search for it in the application.
The TUYA and SMART LIFE ecosystems are:
- The application works in Polish, you can add and control various smart devices in it
- The application works with a very wide range of devices
- Nearly 10 000 manufacturers
- 310 000 devices compatible with the app
- 30 categories that can include, among others: lighting, monitoring, air conditioning, heating
- The application is free and constantly developed with new features.
- Applications can be downloaded to iOS and Android devices.
Above all, it is intuitive operation and simple installation
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Kind | control panel |
| Parametry | Series | Sterownik 1 kanał wifi tuya |
| Parametry | Power supply | mains |
| Parametry | Communication | WiFi |
| Parametry | Brand | Sone |
| Parametry | Number of communication channels | 1 |
| Parametry | Additional features | WiFi connection |
| Parametry | Product weight with unit packaging | 0.1 kg |
| Parametry | Manufacturer code | SB1283 |
| Parametry | EAN (GTIN) | 5902065395006 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
| Parametry | Certificates of conformity | CE,WEEE |
