WiFi garažo vartų ir įėjimo valdiklis PAGIO TUYA su jutikliais

Trumpai apie prekę

Prekė: WiFi garažo vartų ir įėjimo valdiklis PAGIO TUYA su jutikliais. Kategorija: Automatizavimo moduliai.

• Gamintojas: no brand
• Modelis: WL-CKM01

📲 Turn your gateway into a smart one – control it from your phone from anywhere!

The modern WiFi PAGIO module allows you to remotely control the garage, sliding or swing gate – without replacing the drive!

Simply connect your device to the control panel and enjoy complete control through the app.

📲 Control the gate from your phone – from anywhere

The PAGIO WiFi controller is a simple and effective solution that allows you to turn standard gate automation into a modern smart home system. Thanks to the connection to the application, you can control the gate from anywhere – all you need is access to the Internet.

The device acts as a potential-free relay, thanks to which it works with most drives available on the market. You do not have to replace the entire automation – just connect the module to the control panel.

Plus, with the included sensor (contactor), you have the ability to check the current status of your gateway and receive real-time notifications.

Features of the PAGIO WiFi Driver

✅ Remote control - Open and close the gate from anywhere in the world – all you need is internet access.

✅ Gateway status - Check in the application whether the gateway is currently open or closed (with the sensor connected).

✅ Notifications - Receive information about any change in gateway status in real time.

✅ Event history - Full record of all openings and closures - you have full control over the use.

✅ Schedule of work - Automatic opening and closing of the gate according to the agreed plan.

✅ Timer - Set countdown – the gate will close automatically after a specified time.

✅ Voice control - Support Google Assistant and Amazon Alexa.

✅ User Management - Add other users and control their access to your device.

✅ Scenes and automations - Integrate the module with other smart home devices and create smart scenarios.

✅ Device settings - Customize the operation of the module to your needs – full configuration in the application.

🔧 Compact size and convenient installation

The PAGIO module is designed for maximum installation convenience. Thanks to its small dimensions (45 × 45 x 18 mm) it can easily fit in a standard installation box or inside the drive housing.

In addition, the device is equipped with a practical mounting bracket, which allows quick and stable attachment in the selected place.

👉 Possibility of installation:

• in a flush-mounted box
• at the control panel
• directly on the automation housing

➡ Quick installation without combination and without the need for modifications

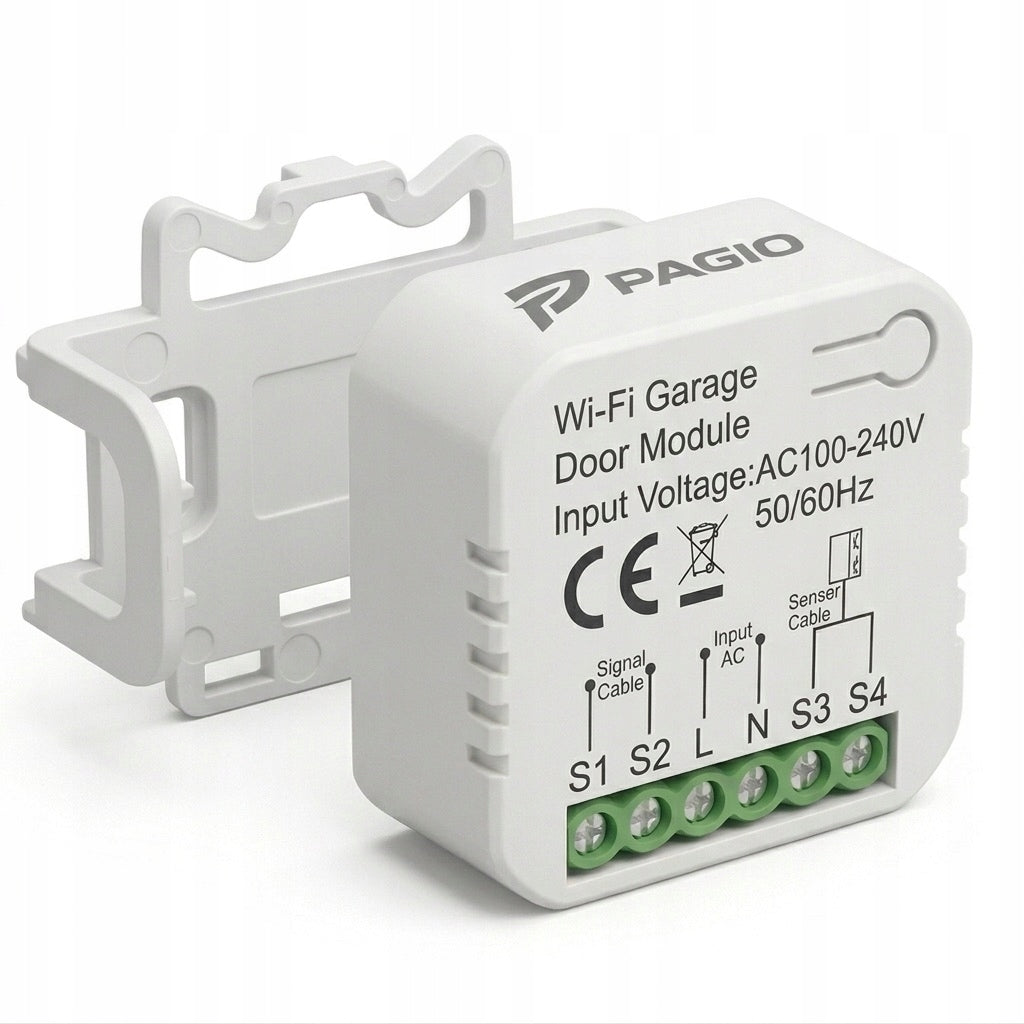

🔌 Simple and universal connection scheme

Installation of the PAGIO module is quick and intuitive – the device has been designed to work with most drives available on the market.

Just follow 3 simple steps:

1 Connection to the gate control panel

Connect the control cables (S1, S2) to the control panel in the drive.

2 Power supply module

Connect 230V power supply (L, N)

3 Sensor connection (optional)

The sensor (S3, S4) allows you to check whether the gate is open or closed and allows you to send notifications.

📱 Compatible with Tuya and Smart Life

The PAGIO module works with popular Tuya and Smart Life applications that allow you to conveniently control smart home devices from one place. These are proven and stable platforms used by millions of users around the world, providing simple configuration and intuitive operation even for people without experience. Thanks to the integration with the Tuya system, you can manage not only the gateway, but also other devices in your home, creating a coherent and functional smart ecosystem.

Applications are available free of charge at:

✔ Android (Google Play)

✔ iOS (App Store)

🎙 Voice control

The PAGIO module works with Amazon Alexa and Google Assistant voice assistants.

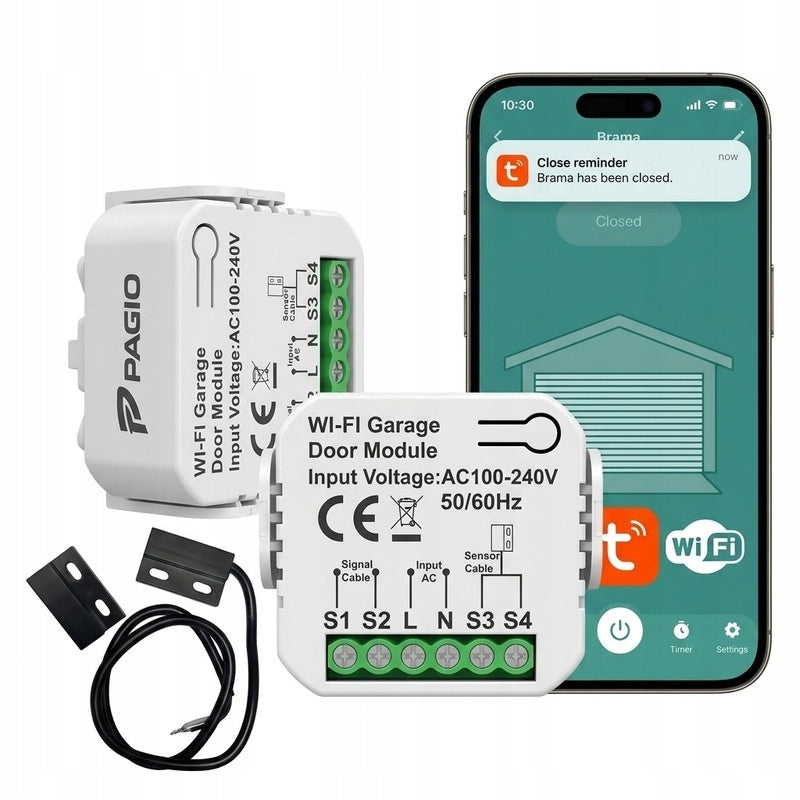

📦 What do you get in the set?

✔ PAGIO WiFi Module

✔ Sensors (contact)

✔ Instructions

Specifications
