WiFi relė DIN bėgiui, energijos suvartojimo matuoklis, TUYA

Trumpai apie prekę

Prekė: WiFi relė DIN bėgiui, energijos suvartojimo matuoklis, TUYA. Kategorija: Automatizavimo moduliai.

• Gamintojas: Adelid
• Modelis: MPM-PLR sterownik licznik

Product code: MPM-PLR

✅ The module allows remote control of electrical devices and monitoring of energy consumption through TUYA or Smart Life applications. With a built-in electricity meter and advanced security features, you can keep track and protect your electrical network.

• The relay offers a wide range of automation, work schedules and alarms, giving you full control over the power supply.
• The MPM-PLR relay has a visible control function, which is responsible for turning off the relay after exceeding the set maximum value for the device.

✅ Technical data:

• Supply voltage: AC 100V – 300V,
• Load capacity: max 63A,
• Frequency: 50/60Hz,
• Power consumption of the device: < 0.3W,
• Device dimensions: 18 x 50 x 82mm,
• DIN rail mounting: 35mm,
• Operating temperature: -20°C to +60°C,
• Communication: WiFi 2,4GHz,
• Network standard: IEE 802.11 b/g/n,
• T-button (TEST).

✅Supported functions:

• Remote control of electrical devices,
• Measurement of electricity,
• Security: Overload, residual current, overcurrent, too high or too low voltage,
• Communication via WiFi 2,4GHz,
• Compatibility with TUYA and Smart Life apps,
• Automation of work schedules,
• Alarms and notifications,
• Timer: the ability to set a countdown that will turn off or on after a set time,
• Scenes and automations – controlling the device on the basis of conditions, e.g. turn on after sunset,
• Monitoring and recording of events,
• Protection against accidental disconnection.

✅Remote control and automation

This Wifi relay module allows you to remotely control electrical devices through TUYA or Smart Life applications. You can set schedules, automation and alarms, giving you full control over the power supply of your devices.

✅Energy efficiency and optimization

Thanks to automation functions, the relay responds to various conditions, and work schedules allow you to precisely plan the operating time of devices. This solution ensures optimal use of energy and guarantees continuity of operation of the installation.

✅ MPM-PLR series relays are an excellent solution for many applications, such as:

• operation of light bulbs, heaters or submersible pumps.
• Thanks to their versatility and automation capabilities, users can conveniently control the operation of these devices, ensuring optimal operating conditions and energy savings.

✅Dimensions of the device:

• A - height: 82mm,
• B - depth: 50mm,
• C - width: 18mm.

✅ Relay state memory after voltage failure

• After the voltage goes out, the relay will return to its previous state.

✅ Indicator diode

• signals the Wifi connection status and relay status.

✅ Overcurrent and residual current protection

• Overcurrent protection protects the electrical system from overload and short circuits. If the permissible current is exceeded (e.g. When connected devices draw too much power), the relay automatically cuts off power, preventing damage to devices and fires.
• Residual current protection (differential) provides protection against electric shock. Detects the difference between the current flowing in and out of the devices, which may mean leakage in the circuit, e.g. user failure. When it detects such a problem, it immediately turns off the power, increasing safety

✅Voltage measurement

The module allows you to check on an ongoing basis whether the electrical system is working properly and whether the voltage is normal. This helps prevent damage to devices caused by voltage spikes.

✅Measurement of current

The relay also measures how much power the connected devices consume, allowing you to better manage energy and quickly detect equipment that can generate high costs.

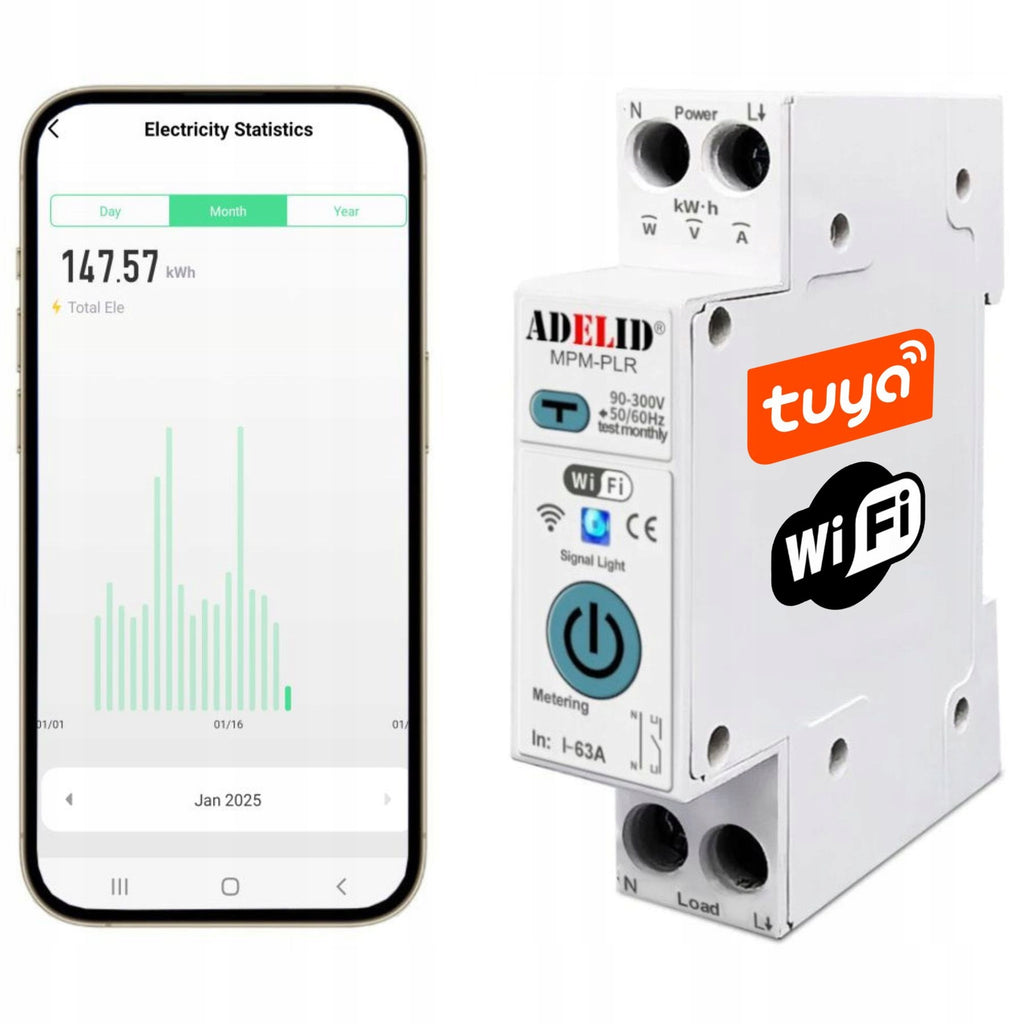

✅Measurement of energy consumption

You can monitor your devices’ energy consumption and view them on a chart in hourly, daily or monthly intervals, making it easier to control costs and improve energy efficiency.

✅Measurement of active power

The module measures the power actually used by devices for their operation, which helps to control their effectiveness.

✅Protection against low voltage

The device automatically turns off the equipment when the voltage drops below the safe level, protecting it from damage.

✅Protection against high voltage

The module turns off the devices when the voltage exceeds the safe level, protecting against damage caused by voltage spikes.

✅Protection against overload

The module disconnects devices when it detects too much current load, protecting against overheating and short circuit.

✅Protection against leakage current

The residual current module disconnects the power supply when it detects leakage current, protecting against shock or fire.

✅ Automatic shutdown.

Our relay with each protection has a visible function "CONTROL", which is responsible for turning off the relay after exceeding the set maximum value for the device.

✅ Schedules.

• Schedule - allows you to schedule specified hours turn devices on and off.
• Sunset and Sunrise - control of devices based on hours of sunrise and sunset. This allows the user to automatically schedule devices to turn on and off during the day.
