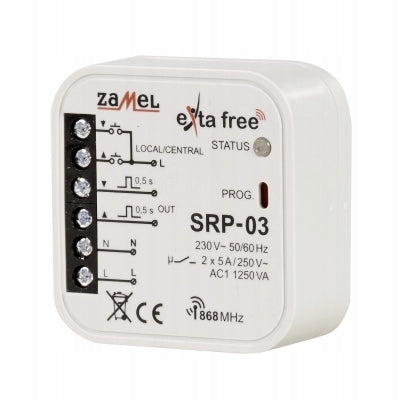

Žaliuzių valdiklis EXTA FREE SRP-03, 5A, 230V

Trumpai apie prekę

Prekė: Žaliuzių valdiklis EXTA FREE SRP-03, 5A, 230V. Kategorija: Išoriniai moduliai.

• Gamintojas: Zamel
• Modelis: EXF10000081

The SRP-03 roller shutter controller is designed to perform the central control function of window roller shutter drives. The device generates central control pulses (full opening or closing of a roller shutter or group of roller shutters, pulse duration 0,5 s). SRP-03 can be used as an element of wireless (EXTA FREE system transmitters) or wired (louver switches) central control, which allows the integration of wired roller shutter controllers (SRM-10, SRP-01 or devices from other manufacturers) with the EXTA FREE wireless control system.

ATTENTION! The given range of action concerns open space, i.e. ideal conditions, without obstacles. If there are obstacles between the transmitter and the receiver, it is necessary to provide for a reduction in the operating range for: brick from 10 to 40%, wood and gypsum from 5 to 20%, reinforced concrete from 40 to 80%, metal from 90 to 100%, glass from 10 to 20%, respectively. Overhead and underground high-power lines and mobile telephony transmitters located in close proximity to devices also have a negative impact on the operating range.

Characteristics:

• Designed for wired and wireless central control (group) drives of window blinds, awnings, gates (electric motors 230 V~),
• energy-saving device, adapted to continuous operation,
• wired central control inputs for roller shutters,
• possibility of cooperation with any louver switch (not equipped with backlight elements),
• integration with wired roller shutter controllers SRM-10 and SRP-01 or devices from other manufacturers,
• possibility of wireless control for existing roller shutters with group/central wired control installation,
• possibility of local wired control (using a louver switch),
• easy installation in a flush-mounted box fi60 mm,
• long operating range (up to 250m),
• optical signalling of action,
• low power consumption, possibility of continuous operation,
• the possibility of increasing the range of action by using the RTN-01 retransmitter,
• cooperation with EXTA FREE wireless control system transmitters.

TECHNICAL DATA (SRP-03)

Rated Receiver Supply Voltage 230V AC

Frequency 868 MHz

Coding transmission with addressing

Number of receiver channels 1

Operating range of the receiver 250 m

Degree of protection of receiver IP20

Maximum relay current 5 A

Maximum relay voltage 250 V AC

Maximum relay power 1250 VA

Contacts 2 NO

Category of use AC1
