Apraksts
Trumpai apie prekę
Prekė: ZigBee USB valdiklis Avatto Dongle Plus, centras, suderinamas su Home Assistant. Kategorija: Centriniai blokai.
- Gamintojas: Avatto
- Modelis: ZB-G05B
SKU: ZB-G05B
Key Features
☑ Range up to 400 m: connect equipment throughout your home and garden without losing signal.
☑ Support 128 devices: expand the system with more sensors without buying new gates.
☑ Antenna 5 dBi (20 dBm): eliminate delays and call interruptions.
☑ 100% on-premises: You will get an immediate automation response without charge or the cloud.
☑ Home Assistant and Zigbee2MQTT: connect multiple brands of devices in one place.
☑ Aluminum housing: reduce interference from other USB-connected devices.
☑ Zigbee, Thread, BT 5.2 LE: you will support the latest wireless standards.
☑ 2 operating modes: you will use the adapter as the main coordinator or amplifier (router).

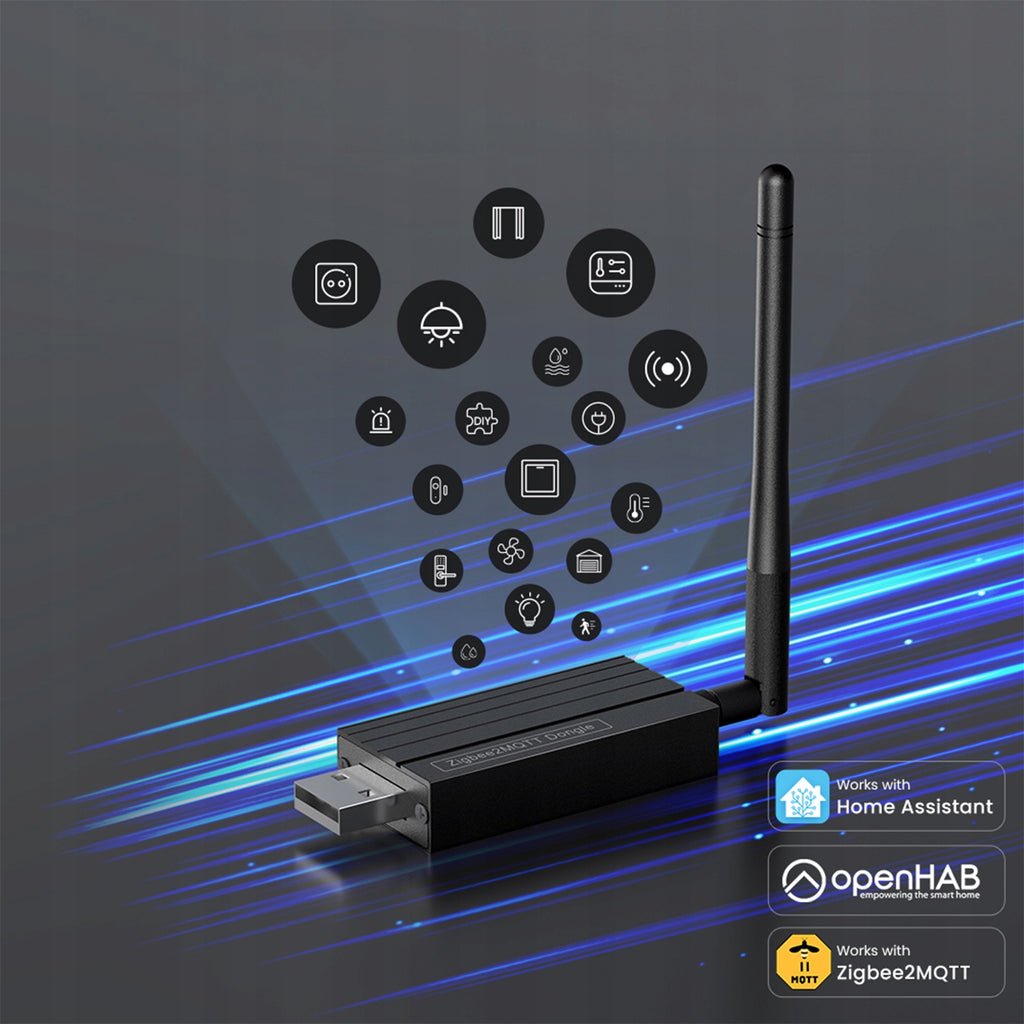

Home Assistant: Full Integration
The USB AVATTO Zigbee 3.0 Dongle GW70-MQTT gateway frees you from closed ecosystems. You can combine devices from different manufacturers in Home Assistant, openHAB or Zigbee2MQTT. You will gain lightning-fast response time because all automation runs 100% locally, without failover servers in the cloud.
400 m: Powerful Range
An external antenna with a gain of 5 dBi provides signal power of 20 dBm. You cover stable coverage of the farthest corners of your home, basement and garden.
- full 360 degree rotation
- 90 degree tilt
- standard SMA connector (can be replaced antenna)
CC2652P Chip: Aluminum Housing
The heart of the coordinator is the efficient Texas Instruments CC2652P chip, which allows for smooth operation of up to 128 devices at the same time. The matte aluminum housing acts as an electromagnetic screen that effectively reduces interference from other equipment connected to the server.

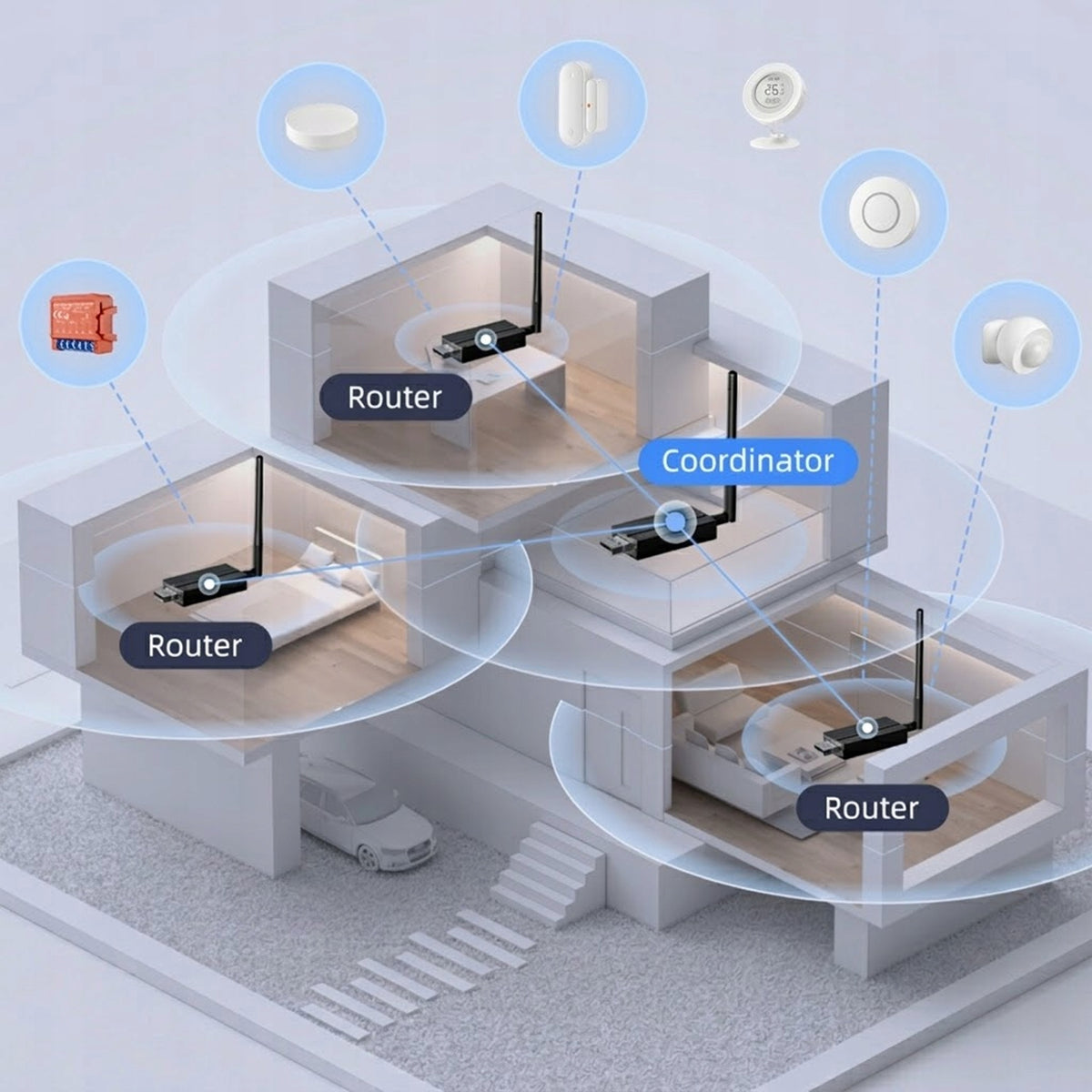

2in1: Coordinator or Router
The device works as the main heart of the network (it has a preloaded firmware EZNet 6.10.3). However, you can change the software and use the adapter as an efficient signal amplifier (router). You will quickly solve the problem of dead zones and connect devices in a remote garage.

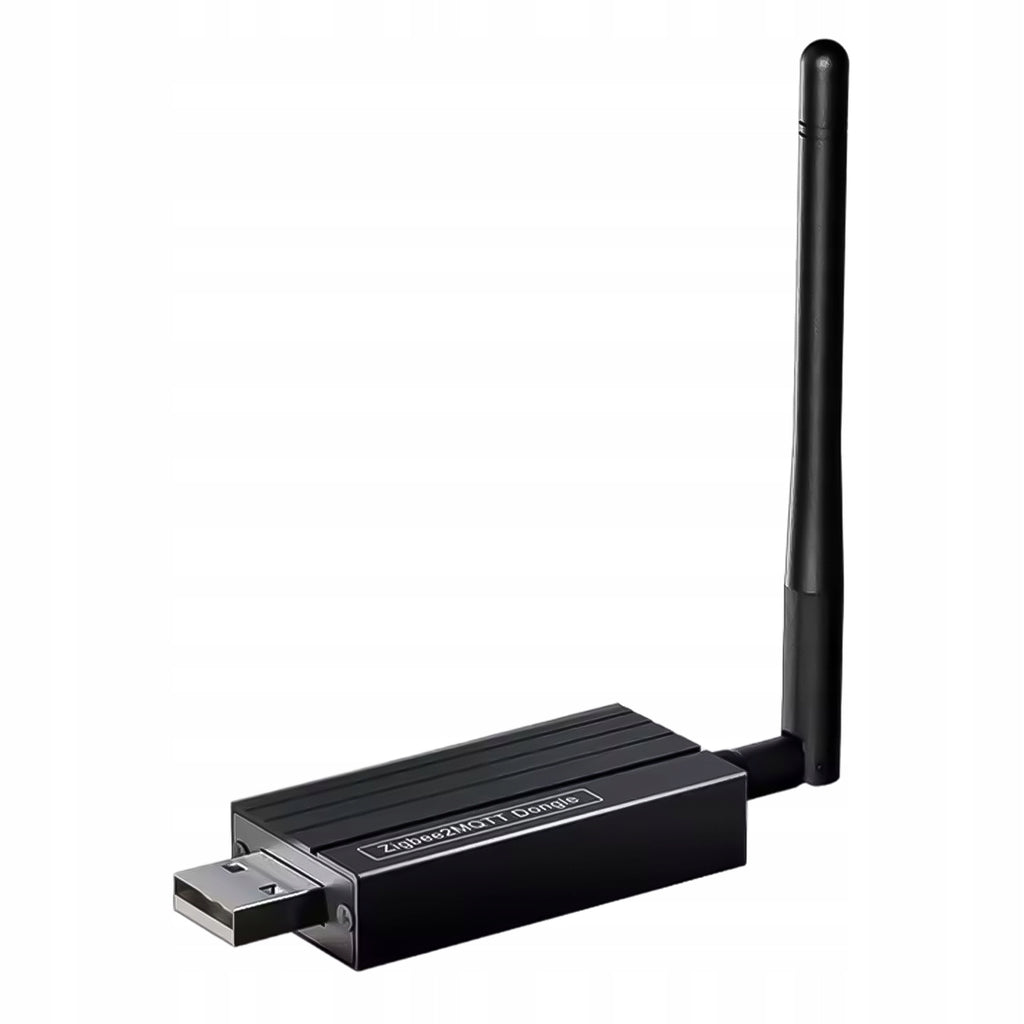

Specification
Basic information:
- Model: AVATTO GW70-MQTT
- Chipset: Texas Instruments CC2652P + CP2102N
- Housing Material: Aluminum
- Operating temperature: -10°C to 40°C
- Maximum number of supported devices: 128
- Operating modes: coordinator (factory preloaded firmware EZNet 6.10.3) or router
Wireless communication parameters:
- Supported protocols: Zigbee 3.0, Thread, Bluetooth 5.2 LE
- Communication frequency: 2,4 GHz - 2,48 GHz
- Maximum range: up to 400 m (in open space)
- Maximum signal strength: 20 dBm
- Antenna Gain: 5 dBi
- Antenna connector: SMA (external, detachable with 90° and 360° adjustment)
Dimensions:
- Overall dimensions (with antenna): 176,5 x 24,5 x 11 mm
- Dimensions of the adapter itself: 73 x 24,5 x 11 mm
- Antenna length: 108,5 mm
Compatibility:
- Home Assistant
- openHAB
- Zigbee2MQTT
- ZHA
Applications:
- Building an on-premises smart home system (no cloud)
- Integration of Zigbee devices from different manufacturers in one application
- Extending the range of your existing Zigbee network (as a router)
Contents of the set:
- USB Adapter (Dongle)
- External antenna
- User manual
The color of the product may differ slightly from the one shown in the pictures due to differences in display settings.
Frequently Asked Questions
Does the gateway require a permanent internet connection?
No. The device operates 100% locally. Your automations are done quickly even in the event of an internet failure from your provider.
Will I connect devices from other brands than Avatto to it?
Yes. Thanks to integration with systems such as Zigbee2MQTT or Home Assistant, you can handle thousands of devices from different manufacturers in one environment.
Can I connect the gateway on a USB extension cable?
Yes, it is even recommended. Move the gateway away from the computer or server (e.g. Raspberry Pi) further reduces the risk of radio signal interference.
What software is preloaded?
The adapter has EZNet 6.10.3 firmware preloaded. This means that right out of the box, it is ready to work as the main network coordinator.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Avatto |
| Parametry | Series | ZB-G05B |
| Parametry | Kind | control switchboard |
| Parametry | Communication | ZigBee |
| Parametry | Manufacturer code | ZB-G05B |
| Parametry | EAN (GTIN) | 6976037362487 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
