Zigbee vartai ZBBridge-P su iš anksto įdiegta SUPLA programa

Trumpai apie prekę

Prekė: Zigbee vartai ZBBridge-P su iš anksto įdiegta SUPLA programa. Kategorija: Centriniai blokai.

• Gamintojas: ELTY
• Modelis: 4176

Zigbee gateway with preloaded SUPLA software

The device was prepared on the basis of SONOFF ZBBridge-P with ESP32 and CC2652P systems. The gateway enables the integration of compatible sensors, roller shutter controllers, relays and Zigbee switches with SUPLA Cloud.

Key features:

• Integration of compatible Zigbee devices with SUPLA Cloud.
• Automatic recognition of the manufacturer and model of the device.
• Automatic creation of the appropriate channel type in SUPLA.
• Support battery temperature and humidity sensors.
• Support for Zigbee roller shutter controllers, relays and switches.
• Configuration and management of devices via local web panel.

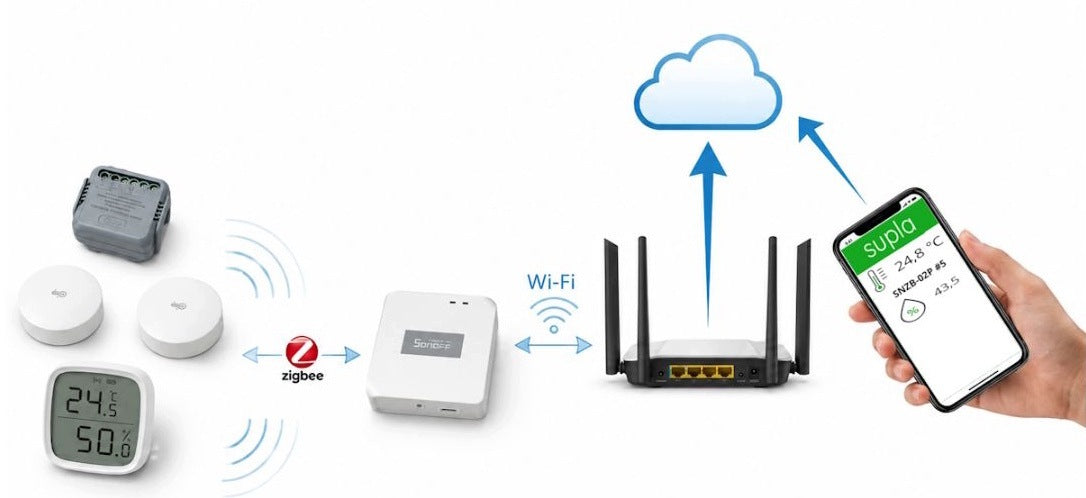

Zigbee integration with SUPLA

The gateway allows you to use compatible Zigbee devices directly in the SUPLA system. After pairing the device, the software recognizes its manufacturer and model, and then automatically assigns the appropriate SUPLA channel type.

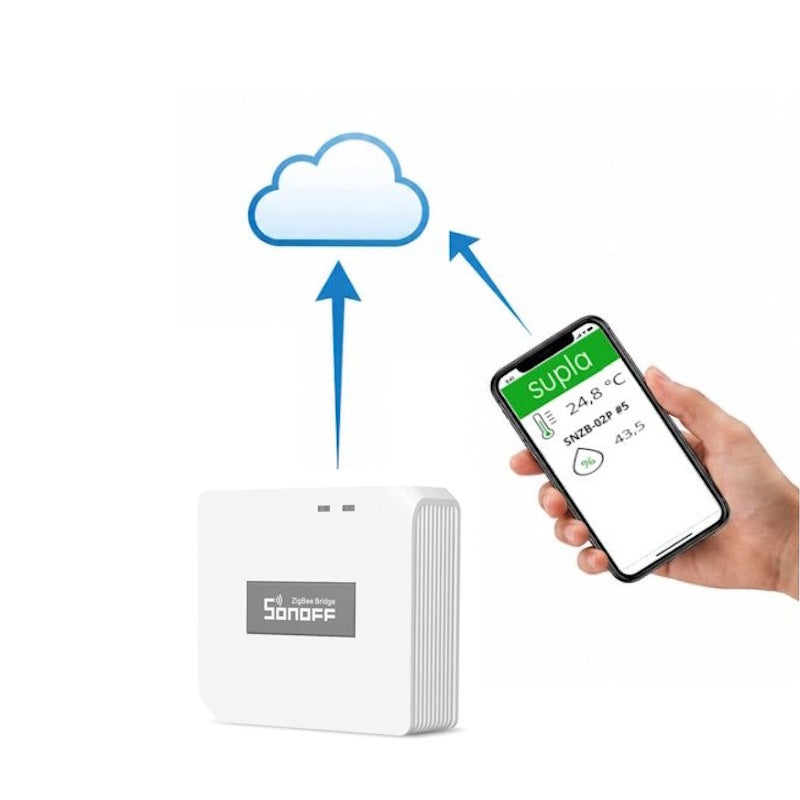

Once the gateway and its channels are registered in SUPLA Cloud, Zigbee devices are available in the SUPLA app. Sensors transmit current measurements, roller shutter controllers allow you to control the position of the roller shutter, while relays and switches are presented as standard switch channels.

Supported Zigbee devices

The software supports models tested for cooperation with the gateway. The list of compatible devices is gradually expanded.

• SONOFF SNZB-02P – battery temperature and humidity sensor.
• SONOFF SNZB-02D – battery temperature and humidity sensor with LCD display.
• SONOFF SNZB-02LD – battery temperature sensor with wired probe.
• SONOFF SNZB-02WD – external temperature and humidity sensor IP65 with LCD display.
• SONOFF SNZB-05P – battery flood sensor.
• SONOFF SNZB-06P – radar motion and presence sensor.
• SONOFF MINI-ZBRBS – Zigbee roller shutter controller with automatic calibration.
• SONOFF ZBMINIL2 – miniature Zigbee switch without neutral cable N.
• MOES ZSS-S01-TH-C-MS – temperature and humidity sensor.
• MOES ZM-108-M – Zigbee roller shutter controller.
• MOES ZM-104-M – a relay that also acts as a Zigbee router.
• MOES ZS-B-EU1-WH-MS – single-circuit light switch without neutral cable N.
• MOES ZS-B-EU2-WH-MS – two-channel light switch without neutral cable N.
• MOES ZS-SR-EU1-WH-MS – white, single-circuit Star Ring light switch without neutral cable N.
• MOES ZS-SR-EU1-GY-MS – grey, single-circuit Star Ring light switch without neutral cable N.
• MOES ZS-SR-EU2-WH-MS – white, two-channel Star Ring light switch without neutral cable N.
• MOES ZS-SR-EU2-GY-MS – grey, two-channel Star Ring light switch without neutral cable N.
• MS1 – rain sensor, presented in SUPLA as a flood sensor.

Note: If the device is not listed, it is not supported. The gateway rejects devices that have not been added and checked by us.

Support for temperature and humidity sensors

Measurements from compatible temperature and humidity sensors are available in the SUPLA app and SUPLA Cloud. Historical data enables the analysis of temperature and humidity changes over time.

Zigbee roller shutter control

The gate works with roller shutter controllers. The software allows you to calibrate the movement time of the roller shutter, and after its execution in SUPLA there are commands to open, close and stop and information about the percentage position of the roller shutter.

Management by Web panel

After entering the local IP address of the gateway in the browser, a configuration panel is available. It allows you to configure Wi-Fi and SUPLA Cloud connections, manage Zigbee devices, control their parameters and update gateway software.

• Wi-Fi network configuration.
• Configuring the connection to SUPLA Cloud.
• Add and remove Zigbee devices.
• Preview of the manufacturer and model of the device.
• Preview the time since the last device message.
• Reading the quality of the LQI connection.
• Reading the battery level.
• Distinguish between Zigbee routers and endpoint devices.
• Software update by OTA.

Hardware platform

The gateway was prepared on the basis of SONOFF ZBBridge-P. ESP32 is responsible for network communication and software operation, while communication with Zigbee devices is carried out by CC2652P.

Technical specification

• Device type: Zigbee gateway to SUPLA
• Hardware platform: SONOFF ZBBridge-P
• Main Processor: ESP32
• Zigbee layout: CC2652P
• Network connectivity: Wi-Fi
• System: SUPLA Cloud
• Configuration interface: local web panel
• Power connector: Micro USB

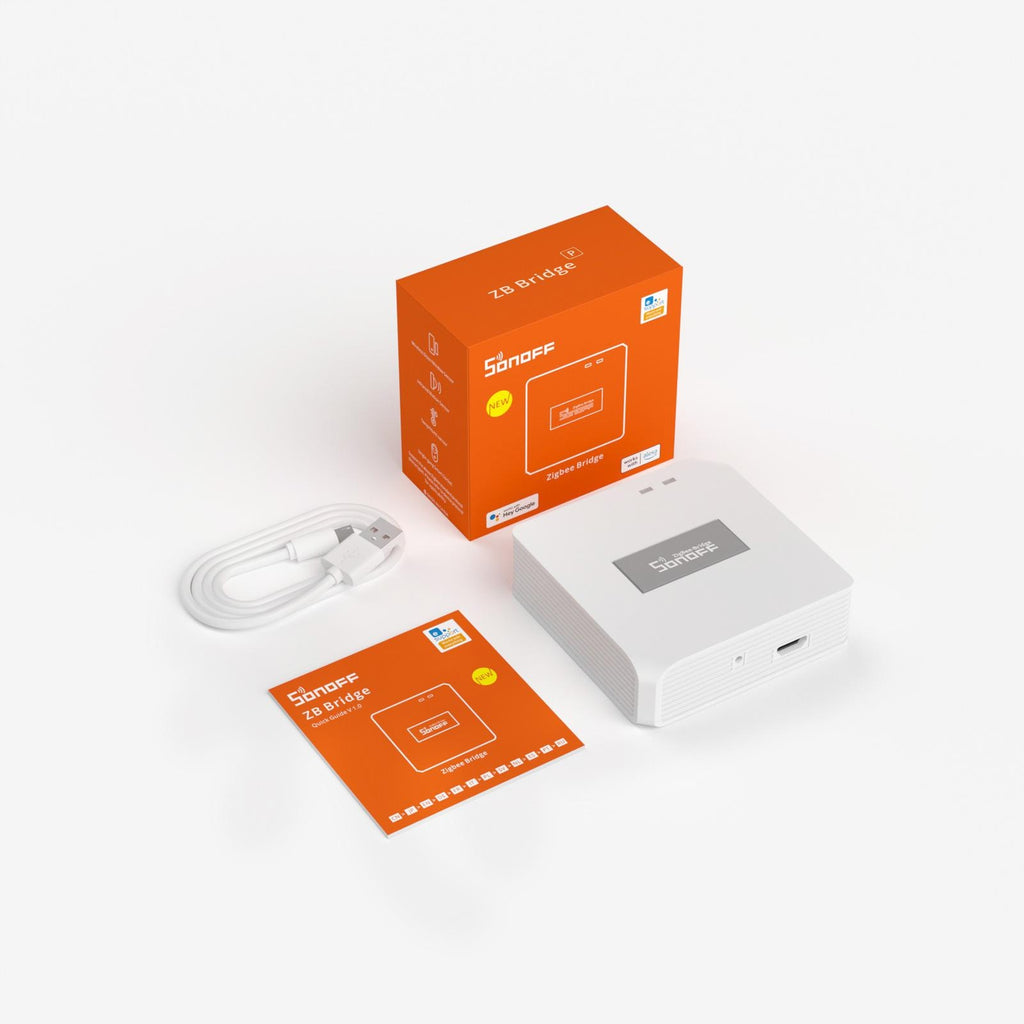

Contents of the set

1. Zigbee gateway with preloaded SUPLA software.

Note: The power supply is not included. A suitable USB power supply can be used to power the gateway, e.g. charger with USB-A output.
