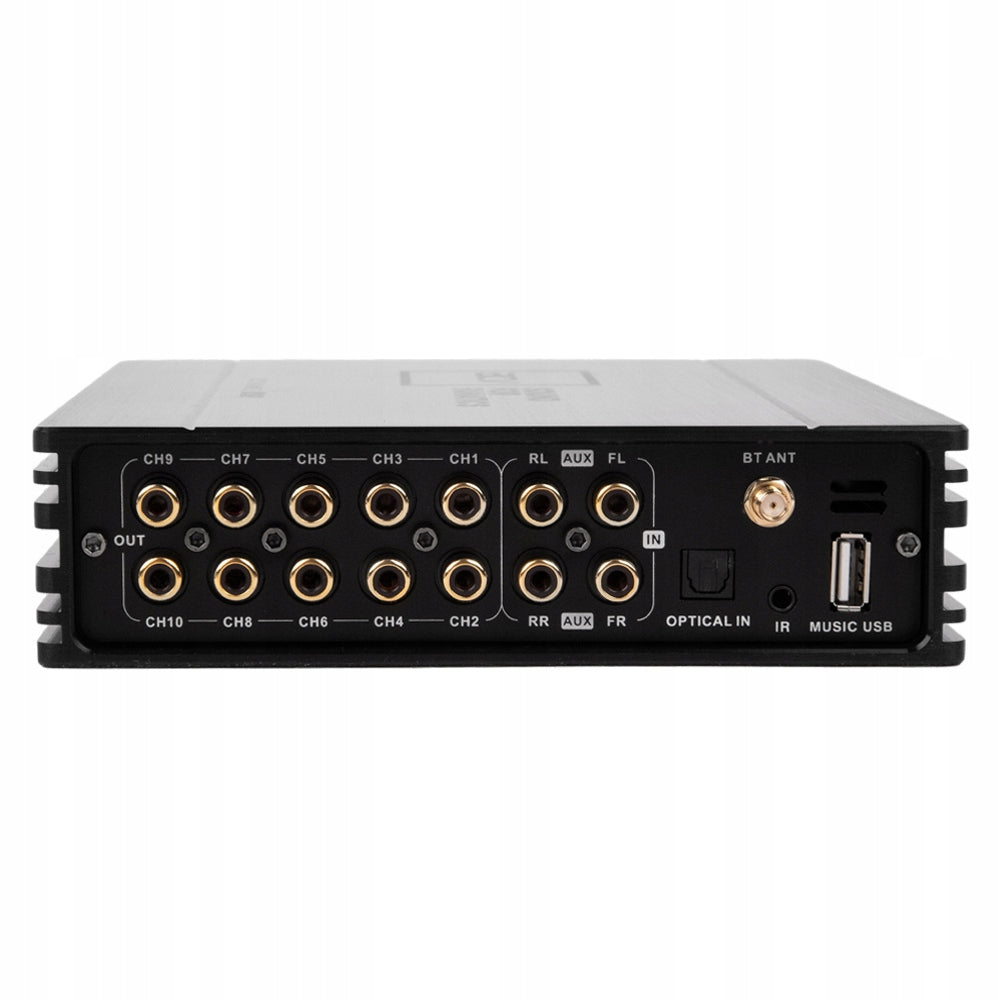

10 kanalų DSP procesorius su integruotu 400 W ACV DSP10HD stiprintuvu

Trumpai apie prekę

Prekė: 10 kanalų DSP procesorius su integruotu 400 W ACV DSP10HD stiprintuvu. Kategorija: Stiprintuvai.

• Gamintojas: ACV
• Modelis: DSP10HD

10-channel DSP processor with built-in amplifier

• Nominal power 4 ohms: 8 x 25 W
• Nominal power 2 ohms: 8 x 50 W

The W operates reliably at 2/4 ohms impedance, providing powerful and clear sound. The 1 dB volume control allows for precise sound matching. The device features 6 high-level inputs, a 5-pair RCA output, and a 2-pair RCA input, giving you the flexibility to connect a variety of audio sources. The optical input also ensures maximum sound quality.User-friendly application/software interface for iOS/Android/PCFast and convenient switching/rewriting presets with the ability to create your own presetsBuilt-in Bluetooth module (version 5.1) with Qualcomm AptX HD codec for wireless,lossless music streaming (support SBC 44100Hz/16 bits / 328 kbps BR/EDR)Radio frequency output power (EI.R.P. ): 4 dBm (max. ), power class 2Maximum communication range: up to 10 mBluetooth function allows you to pair the DSP processor with Bluetooth-enabled mobile devices (mobile phones, tablets, etc. ), which can play audio files. If your connected Bluetooth device supports features such as A2DP and AVRCP, you can play music through the DSP and control playback. Music playback is muted during the call and resumed when it is finished.The set includes a stylish OLED remote control, allowing you to conveniently adjust the volume,selection of preset stations, subwoofer volume and source.The high-performance DSP processor provides incredible control over the sound directly in the player,Allowing you to enjoy high-quality music (24 bits/96 kHz) in the car.Advanced high-pass and low-pass crossover with the ability to freely assign frequencies to any channel,offering a selection of characteristics of Butterworth, Bessel or Linkwitz-Riley. The slope can be adjusted up to 48 dB/octave. This allows for maximum performance of the audio system in the car. Time delays can be adjusted for each channel with an accuracy of 1 centimeter, which allows you to:

• the feeling of being in a concert hall or on the dance floor;
• the feeling of the sound of the instrument live;
• comfort of listening at any volume.

31-band parametric equalizer with +15 dB boost and -15 dB mute in increments of 0,1 dB for each band and adjustable Q.5 pairs of linear RCA 4 V audio outputs for full audio band. Optical input for Hi-Res sound in the car – 4 V RMS (without distortion). The Bluetooth 5.1 DSP processor is equipped with a modern Bluetooth module from Qualcomm with EDR support, the basic SBC codec, as well as AAC, AptX/AptX HD, enabling high-definition audio streaming from smartphones. Designed to connect a USB drive to listen to FLAC files (48 kHz/16 bits) and more.Compact dimensions of 171,6 x 44,6 x 178 mm save space in the car.

Features of Wired OLED DSP Remote Control

• Regulation of overall DSP CPU gain
• Adjustable overall subwoofer level
• Selection of presets
• Selection of sound sources
• Silencing

Set Contents:

• DSP Processor
• USB cable to connect to computer
• Power/speaker harnesses
• Infrared receiver
• Wireless remote control (CR2025 battery not included! )
• Wired remote control OLEDOperating instructions
• Rated power 4 ohms: 8 x 25 W
• Rated power 2 ohms: 8 x 50 W
• Frequency Response: 20 – 20 000 Hz
• Total Harmonic Distortion (THD) at 1 kHz (4 ohms): 0,01%
• Signal-to-noise ratio: >105 dB
• Channel Separation: >92 dB
• Processor: 32-bit with a clock frequency of 295 MHz
• Sampling rate (bits/kHz): 24/96 (ADI 1452)
• RCA Impedance: Input = 21 kOhm, Output = 100 Ohm
• High Level Impedance: 20 Ohms
• RCA Input Clamps: 2 Pairs
• RCA Output Clamps: 5 Pairs
• Optical Input: Yes
• High Level Inputs: 6
• Built-in Bluetooth V5.1: Yes
• Bluetooth APTX HD Support: Yes
• Supported audio formats: FLAC, AAC, APE, WAV, MP3, WMA
• RCA Line Output: 2,5 V
• Crossover: Off. / HPF / LPF / Bandwidth-pass
• Filter Types: Linkwitz-Riley, Bessel, Butterworth
• Slope: Off. / 6 dB / 12 dB / 18 dB / 24 dB / 36 dB / 48 dB per octave
• Crossover frequency: Steps every 1 Hz, 20 – 20000 Hz
• Phase adjustment: 0° / 180°
• Level adjustment: Steps every 1 dB
• Time correction, distance (centimeters/inch): 0 – 850 cm / 0 – 334,6 inch
• Time correction, delay (milliseconds): 0 to 25 ms
• Delay step (milliseconds / centimeters / inches): 0,01 ms / 0,1 cm / 0,1 inch
• Memory: 6 preset settings (6 slots)
• Smartphone App: Yes
• Power consumption (max. ): 7,5 A
• Current without load: 1,5 A
• Off: < 0,1 mA
• REMOTE CONTROL OUTPUT: 12 V (300 mA)
• REMOTE CONTROL INPUT: 12 V (1 mA)
• Operating voltage: 14,4 V (10,5 – 16 V)
• Fuse: 15 A
• Dimensions: 171,6 x 44,6 x 178 mm

Specifications
