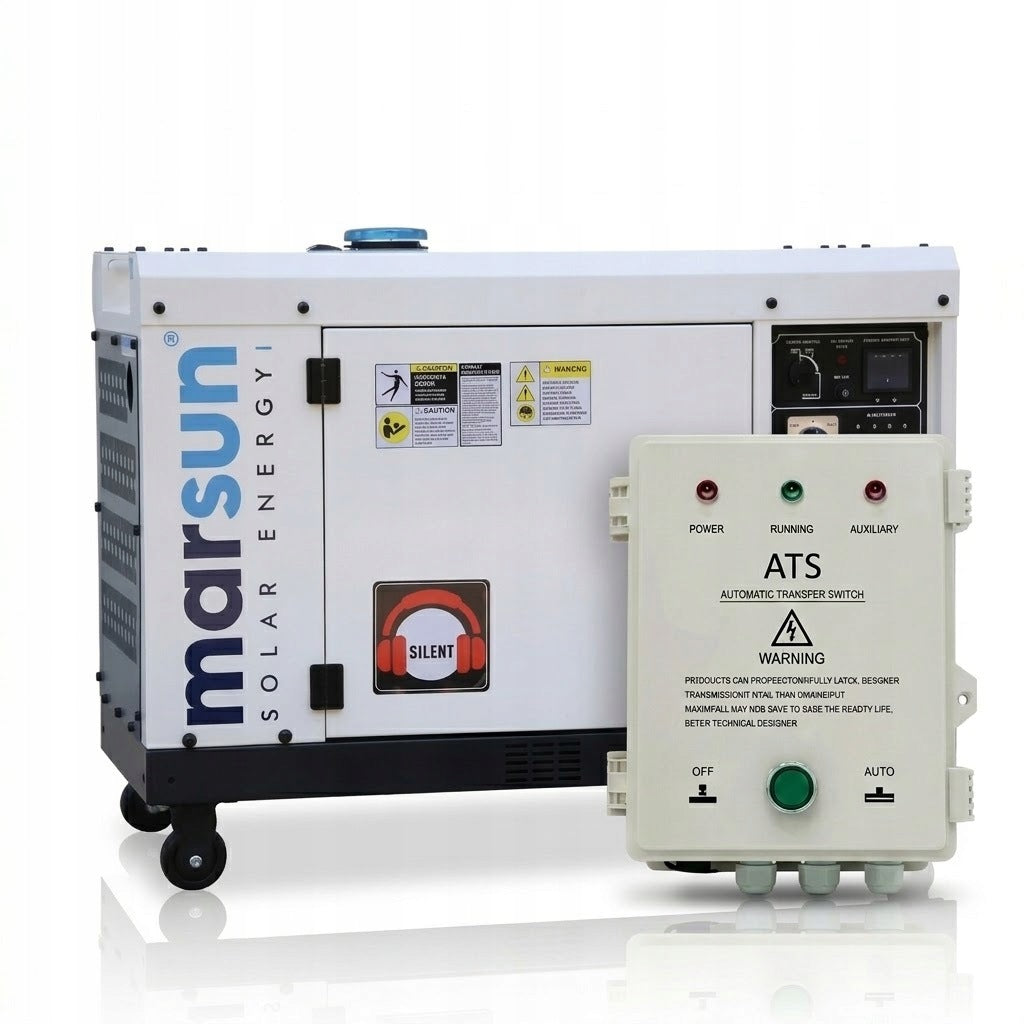

10 kW dyzelinis generatorius su AVR, suderinamas su DEYE MARSUN, su ATS

Trumpai apie prekę

Prekė: 10 kW dyzelinis generatorius su AVR, suderinamas su DEYE MARSUN, su ATS. Kategorija: Elektros generatoriai.

• Gamintojas: marsun SOLAR ENERGY
• Modelis: MVD11000ATS

The included ATS module is a guarantee of full maintenance-free and continuous power supply in your home or business.

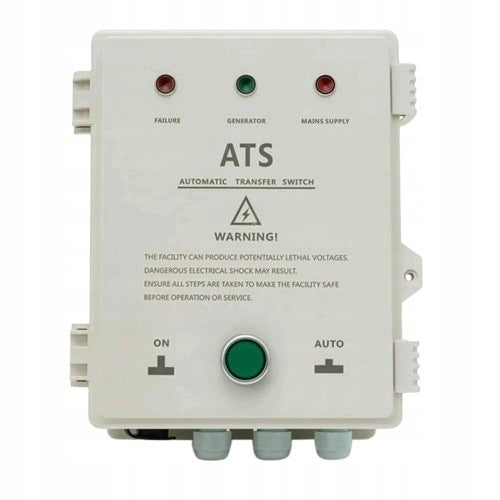

How does the ATS system work in this set?

No power detection: The ATS module monitors the voltage in the municipal network on an ongoing basis. When the current disappears, it automatically sends a signal to start the unit.

Self-start: The unit fires electrically and takes over the power supply of the object – without the need for your presence or manual turning of the key.

Power Return: When the electricity in the municipal network returns, the ATS will switch the power back to the public network, after which it will safely cool and shut down the aggregate motor.

The standard ATS module included is configured for basic operation for voltage loss in the urban network.

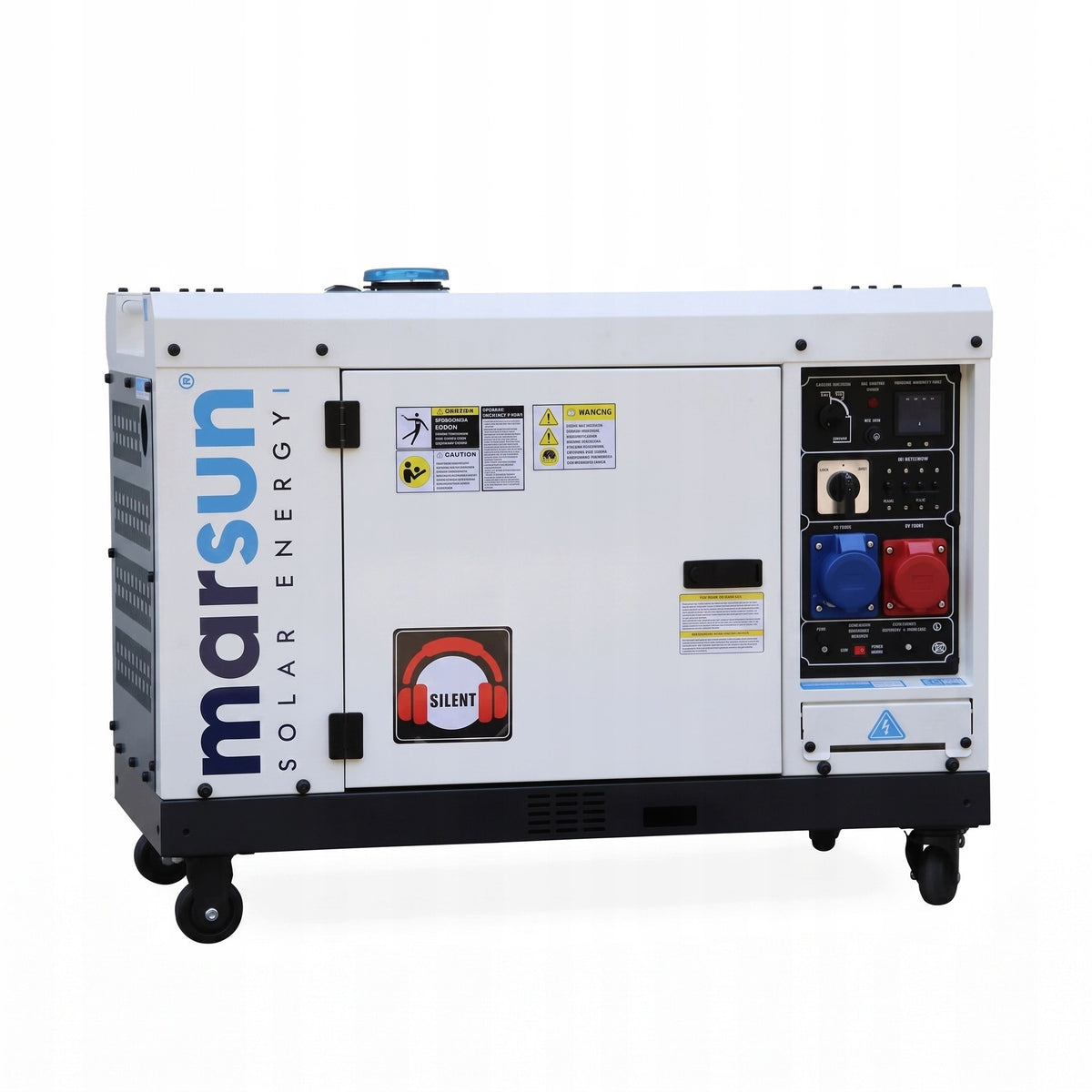

The Marsun MVD10 generator set is a professional and reliable device designed for users who expect a reliable power source in all conditions. With a rated power of 9 kW and a maximum power of 10 kW, it is perfect as an efficient emergency power source for your home, workshop, farm or business.

At the heart of the unit is the efficient diesel engine, designed for long-term operation and heavy loads. The combination of high power, durable construction and economical operation makes the Marsun MVD10 a reliable solution wherever stable power supply is crucial.

Stable voltage thanks to AVR technology

Marsun MVD10 is equipped with AVR (Automatic Voltage Regulation) system, which is responsible for automatic stabilization of the output voltage.

The electronic AVR system continuously controls voltage parameters and adjusts its level accordingly, reducing fluctuations during operation of the unit. Thanks to this, the device provides more stable power supply to connected receivers.

The AVR system is particularly useful when powering devices requiring stable voltage parameters, such as utility electronics, CO boiler controllers, TV sets, computers or automation devices.

AVR increases the safety of connected devices and ensures the comfort of use of the unit even under variable loads.

Silent housing – comfort of work

High power does not necessarily mean excessive noise levels. The Marsun MVD10 is equipped with a closed, reinforced Silent enclosure, which is designed to reduce noise and vibrations generated during engine operation.

The use of sound-absorbing materials, anti-vibration elements and an optimized exhaust system reduces noise emissions and improves the comfort of use of the unit.

The declared noise level is up to 72 dB, thanks to which Marsun MVD10 offers a solution tailored to demanding applications where noise and vibration reduction are important.

Safety and security at work

Working with a device generating electricity and an internal combustion engine requires appropriate protection. Marsun MVD10 has been equipped with a number of systems controlling the operating parameters of the unit and protecting its most important components.

• Overheating protection – monitors the temperature of the device and, if too high a temperature is detected, can automatically interrupt the operation of the unit.
• Low oil sensor – controls the level of engine oil and, in the event of its shortage, protects the engine against unfavorable conditions.
• Overload protection – helps protect the generator from the effects of excessive load.
• Working control and fuel consumption system – allows for more efficient use of fuel depending on operating conditions.
• AC overcurrent switch – protects the electrical circuit against the effects of excessive current.
• Working parameter control systems – monitor the most important functions of the unit on an ongoing basis, increasing the safety of use.

The applied solutions make Marsun MVD10 prepared for safe and stable operation in both home and professional applications.

Technical specification:

• Fuel Type: Diesel
• Cooling System: Air
• Rated power: 9 kW
• Maximum power: 10 kW
• AC rated voltage: 230 / 400 V
• Frequency: 50 Hz
• Phases: three-phase
• Equal power in one phase: YES
• Engine model: 1100FE
• Engine type: 1-cylinder, 4-stroke, air-cooled
• Displacement: 668 cm³
• Rotation speed: 3600 rpm /min.
• Recommended engine oil: 15W-40
• Required amount of oil: 1,65 L
• Noise level: 72 dB
• Continuous operation time: 12 h
• Fuel consumption: 265 g/kWh
• Fuel tank capacity: 12,5 L
• Dimensions (L. × W. × H. ): 1010 × 580 × 820 mm
• Heated fuel block: NO
• Starting: electric
• Connection to external ATS module: YES (ATS module optional, no built-in)
• Cut-off at 10% fuel: NO
• Online parameter analysis / Modbus: NO

Perfect support for photovoltaics and Off-Grid systems

Marsun MVD10 is perfect as an emergency source of energy in modern photovoltaic installations and Backup and Off-Grid systems.

With a power of 9 kW (10 kW maximum), it can provide solid support for households and facilities equipped with hybrid inverters and energy storage. The unit can be used to maintain power supply and replenish energy in the warehouse during longer power outages or periods of insufficient production from PV installations.

The MVD10 model is offered as compatible with Deye solutions, however, before connecting, it is necessary to check the compatibility of a specific inverter model and the manufacturer's requirements for cooperation with the unit.

Combined with a properly configured ATS system and a hybrid inverter, the Marsun MVD10 can be an important component of an independent power system, providing an additional source of energy when the photovoltaic installation and energy storage are unable to meet the demand.

Universal power supply 230 V / 400 V

Marsun MVD10 offers the possibility of powering both single-phase 230 V devices and three-phase 400 V receivers. Thanks to this, the unit can be used in a wide range of works – from household power supply to demanding workshop and construction applications.

Robust sockets placed on the front panel allow convenient connection of various types of receivers, such as RTV/AGD devices, power tools, pumps, workshop devices or selected heating systems.

The three-phase design and high power of the unit make the Marsun MVD10 a versatile source of energy, suitable for both home and professional applications.

Automatic Emergency Power Supply with ATS

Forget about power outages! The Marsun MVD10 unit in combination with the ATS (Self-Turn-On Reserve) module operates completely maintenance-free. It automatically starts during a network failure and shuts down when the power returns. Guarantee of continuity of energy for your building.
