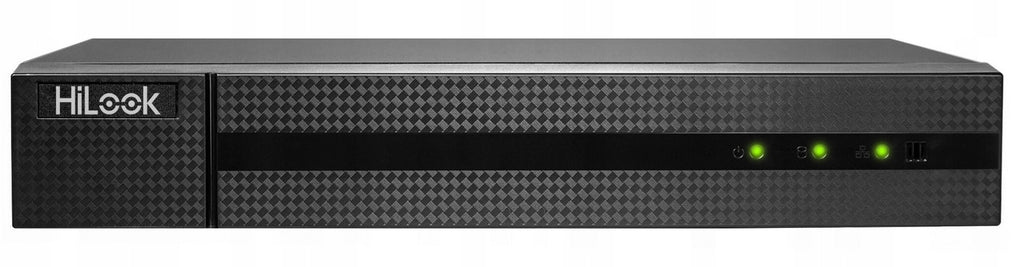

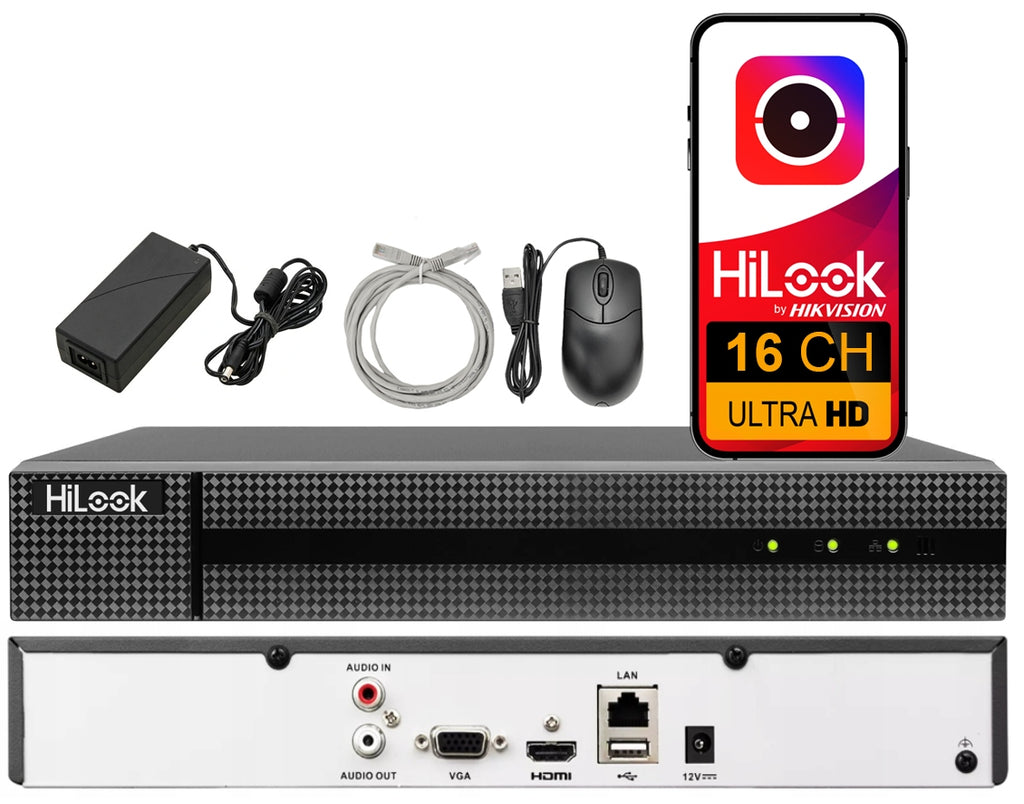

16 kanalų IP vaizdo įrašymo įrenginys HiLook by Hikvision, 2x HDD, iki 8MPx

Trumpai apie prekę

Prekė: 16 kanalų IP vaizdo įrašymo įrenginys HiLook by Hikvision, 2x HDD, iki 8MPx. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: HiLook
• Modelis: NVR-216MH-C HiLook by Hikvision

16 IP channels | up to 8Mpx | motion detection 2.0 | 2x HDD slot | in-app support and IVMS-4200

The most important features of the recorder:

• allows synchronous playback of images from 16 cameras with a maximum resolution of 8Mpx
• configuration and operation of the device is intuitive - through graphic menu, PC program and mobile application
• has the ability to install 2 HDD drives up to 8TB each (16Tb in total)
• is equipped with H.265+ data compression technology, saving disk space
• supports alarm filtering by recognizing the "human/vehicle" object - on 4 channels

• Number of channels: 16
• Recording resolution: up to 8 Mpx (4K Ultra HD)
• Framerate: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
• Bitrate in/out: 160/80 Mbps
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Video Outputs: 1x HDMI, 1x VGA
• Audio Inputs/Outputs: 1x RCA/1xRCA
• USB ports: 2x USB 2.0
• Network interface: 1x Ethernet 10M/100M/1000M Self-adaptive
• Remote operation: Hik-Connect / HiLook App, iVMS-4200, WEB Interface
• Motion detection: supported
• Intelligent detection 2.0: Yes - human/vehicle alarm filtering - for 4 channels
• Hard drive space: 2x HDD (up to 8TB each, 16TB total)
• Power supply: 12 VDC, 3.33 A
• Power consumption: 15 W (without disks)
• Dimensions: 385 × 315 × 52 mm
• Weight: < 1 kg

HiLook monitoring systems can be controlled, configured and operated using the intuitive mobile application HiLook App for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The HiLook by Hikvision NVR-216MH-C recorder supports motion detection from network cameras. This function allows you to send immediate notifications to the user (in the application or program) about detecting changes in the camera image, and also allows you to search the recordings for detected movement in the area protected by monitoring.

The advantage of the recorder is the proprietary technology Motion Detection 2.0, allowing filtering false motion detection alarms and classifying objects on video recordings (human / vehicle).

Detection mode 2.0 is available for 4 channels of the recorder.

The IP recorder is equipped with an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

• 16-channel IP video input
• Resolution: up to 8MP
• Incoming 160 Mbps transmission
• Outbound transmission 80 Mbps
• HDMI Output1-ch, 4K (4096 x 2160)/30Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz

• VGA Output: 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;
• Recording resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Video compression: H.265/H.265+/H.264/H.264+/MPEG4
• Live view/playback 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Simultaneous playback of 16-channels
• Image decoding: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• SATA Interface: 2
• Capacity: Up to 8Tb for each drive
• Network Interface: RJ-45 10/100/1000 Mbps Ethernet
• USB 2 × USB 2.0 connectors
• Power supply 12 VDC, 3.33 A
• Operating temperature: -10 ºC to +55 ºC
• Dimensions: 385 × 315 × 52 mm

Specifications
