2 LED lemputės su valdikliu ir žalvarinė pneumo apdaila voniai

Trumpai apie prekę

Prekė: 2 LED lemputės su valdikliu ir žalvarinė pneumo apdaila voniai. Kategorija: Baseino apšvietimas.

• Gamintojas: no brand
• Modelis: CDC/170

2 x LED light + 1 x driver + 1 x BRASS pneumatic button switching light + hose + stainless steel washer for pneumatic button with LED marking

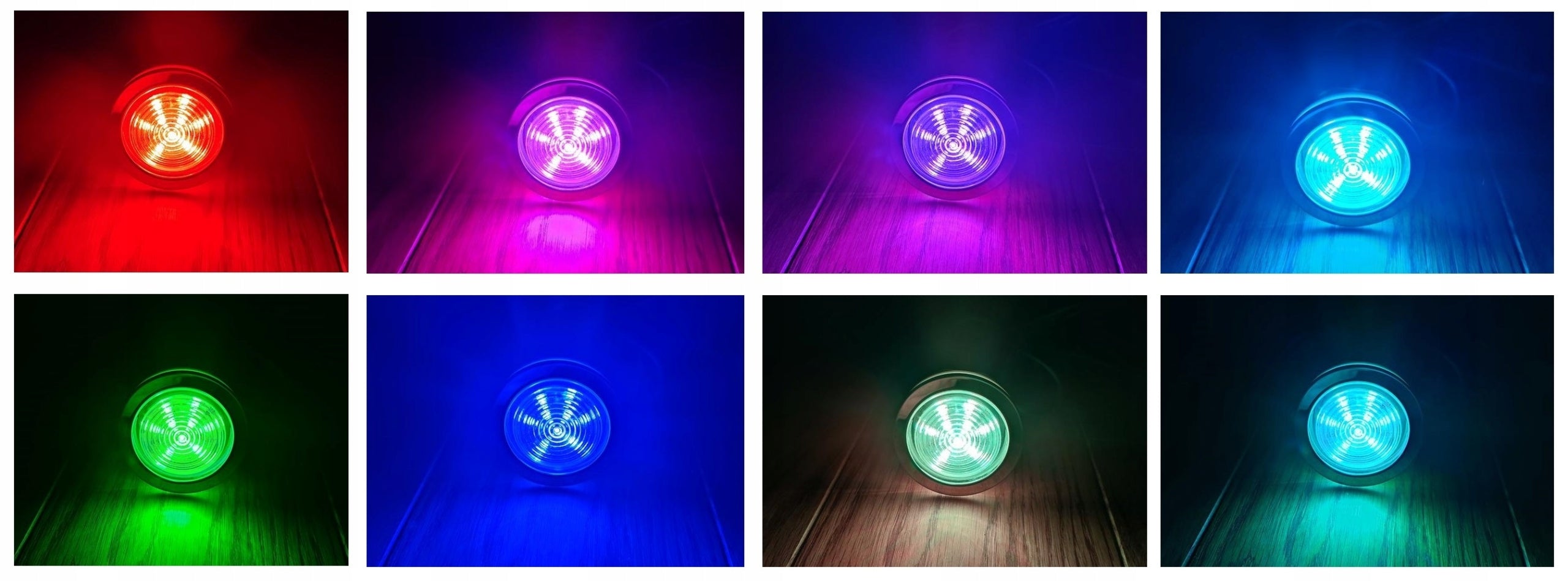

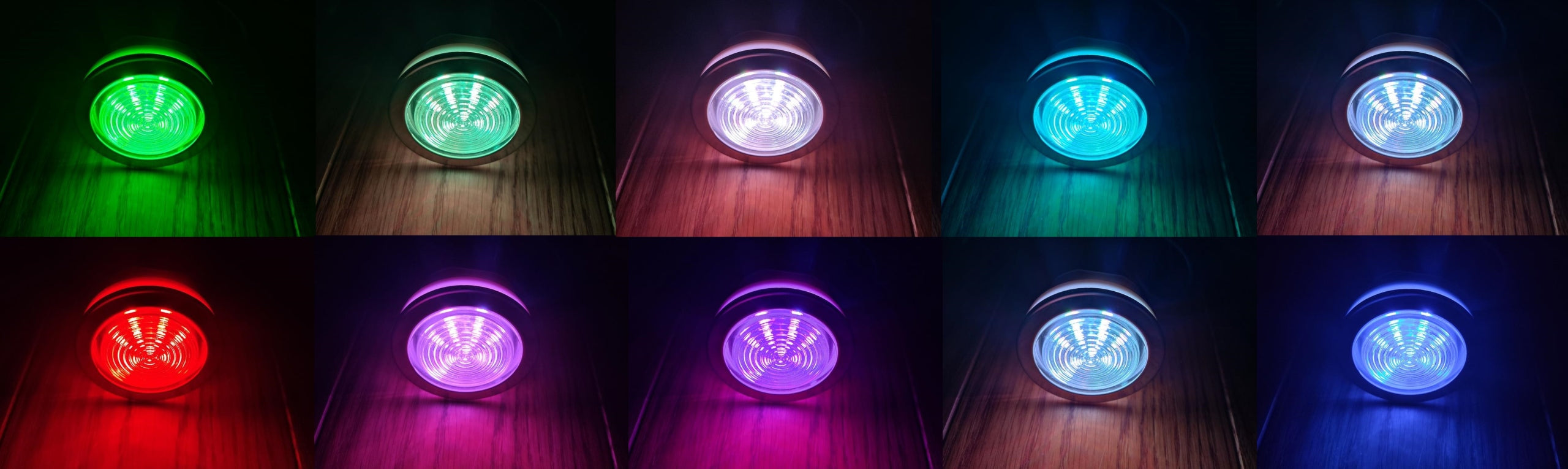

Waterproof color changing LED lamps/lights /7 types/ with controller, pneumatic button turning on the light and hose

The light can be stopped on the only color or it will change smoothly, passing one into the other.

Power supply 230 V

.

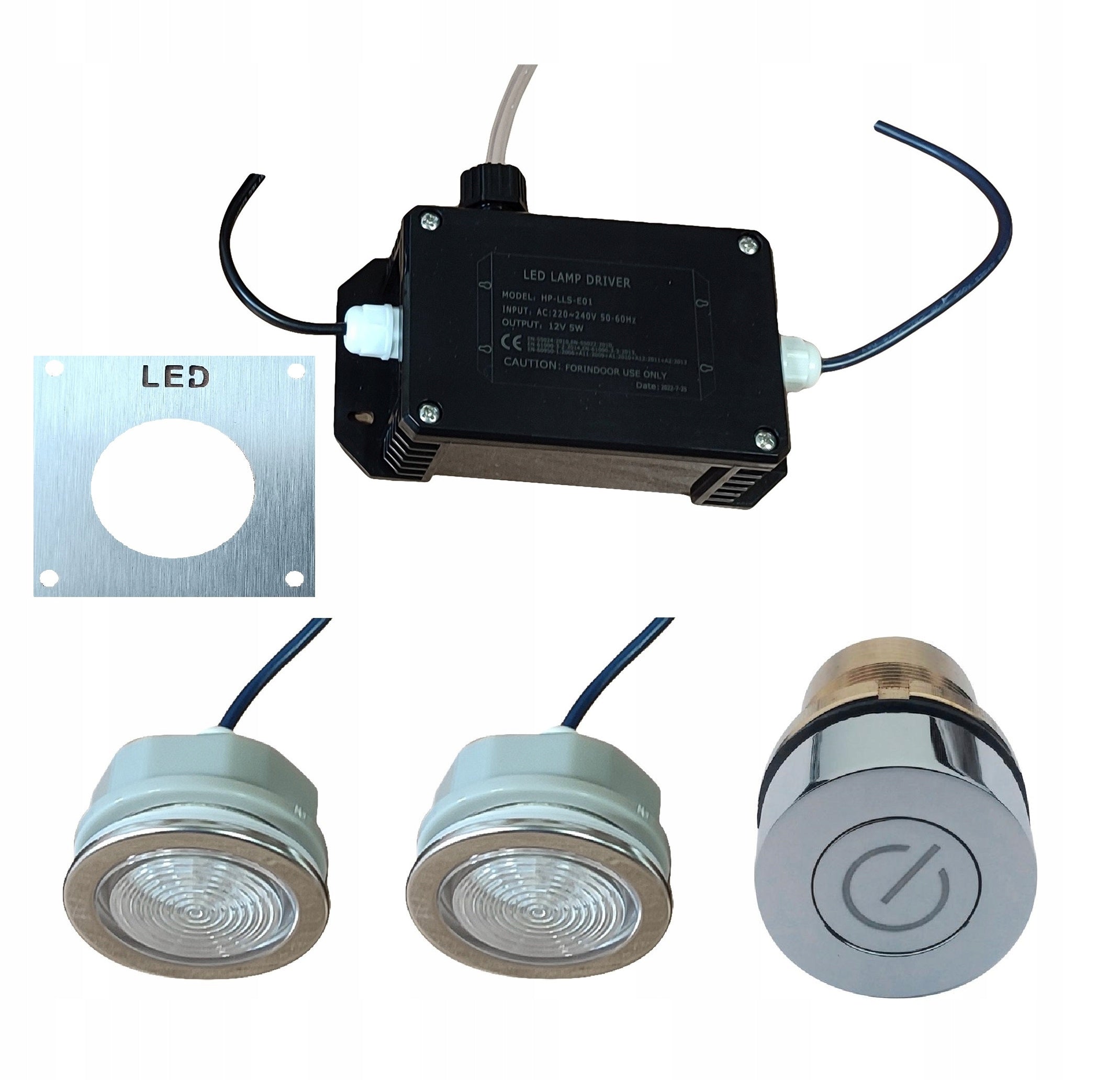

EQUIPMENT

* 2 x Underwater Lights

* 1 x controller with built-in relay for pneumatic button

* 1 x Pneumatic Button BRASS

* 2 mb hose for pneumatic button

* 1 x Power Cable

* Stainless steel washer for pneumatic button with LED marking

.

More than 1 light can be connected to the controller, each subsequent light has an additional separate cable for connecting another lamp.

You can configure the type and number of lights as. e.g. 1 large + 10 small led dots, 1 large + 1 large, maximum can connect 2 large + 10 small LED dots.

Other configurations of these lights are displayed at our other auctions.

.

TECHNICAL PARAMETERS OF THE PRODUCT:

Driver dimensions: 14 x 7 cm

Length of power cable from controller: 140 cm

Cable length after connecting the controller to the lamp: 220 cm

Lamp diameter: 65 mm

Diameter of mounting hole for lamp: fi 50 mm

Diameter of mounting hole for pneumatic button: 36mm

Diameter of the chrome part of the pneumatic button: 45 mm

Washer dimension: 70 x 70 mm

.

Compared to cheaper counterparts, the plugs are waterproof. In addition, the plugs are not only plugged in but pressed and you need to tighten the nut which at the same time protects against water entering the electronics, which in turn protects against burning the controller.

In older models, the plugs are not waterproof as well as the light does not shine with such vivid colors as in our versions, cheaper does not mean better

BRASS PNEUMATIC BUTTON

.

Pneumatic pump switch mainly used in hot tubs, logs, lighting, etc.

The button is brass not plastic, it is much more durable and massive

This button is used to turn on/off underwater lighting as well as the pump, it is connected by a hose with an electric relay that feeds/cuts off the power supply to the pump, this relay is located in the controller from the lighting

Very smooth and easy to attach

DIMENSIONS:

Overall length: 70 mm

Diameter on thread: 36 mm (min. mounting hole)

Diameter per hose: 4 mm

Diameter of chrome part: 45 mm

.

Goods are brand new Efficient 100%

.

NOTE!

We also have a SQUARE pneumatic button, which is lower than the round one from the offer.

If anyone would like to replace this button with a brass square button, please include such an annotation about the replacement when purchasing in a message to the Seller.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Manufacturer code	CDC/170
Parametry	Batteries included	no
