Aprašymas
Trumpai apie prekę
Prekė: 4 MP PoE IP vaizdo stebėjimo kamera su mikrofonu ir internetine peržiūra, HDD nepaleista. Kategorija: Rinkiniai.
- Gamintojas: Protec
- Modelis: Zestaw do monitoringu IP - PRNVRE04T4EPOE
❓ Why this set ❓
➡ Very high image quality and advanced motion detection
➡ A complete set that you can run yourself, without the need for specialist knowledge

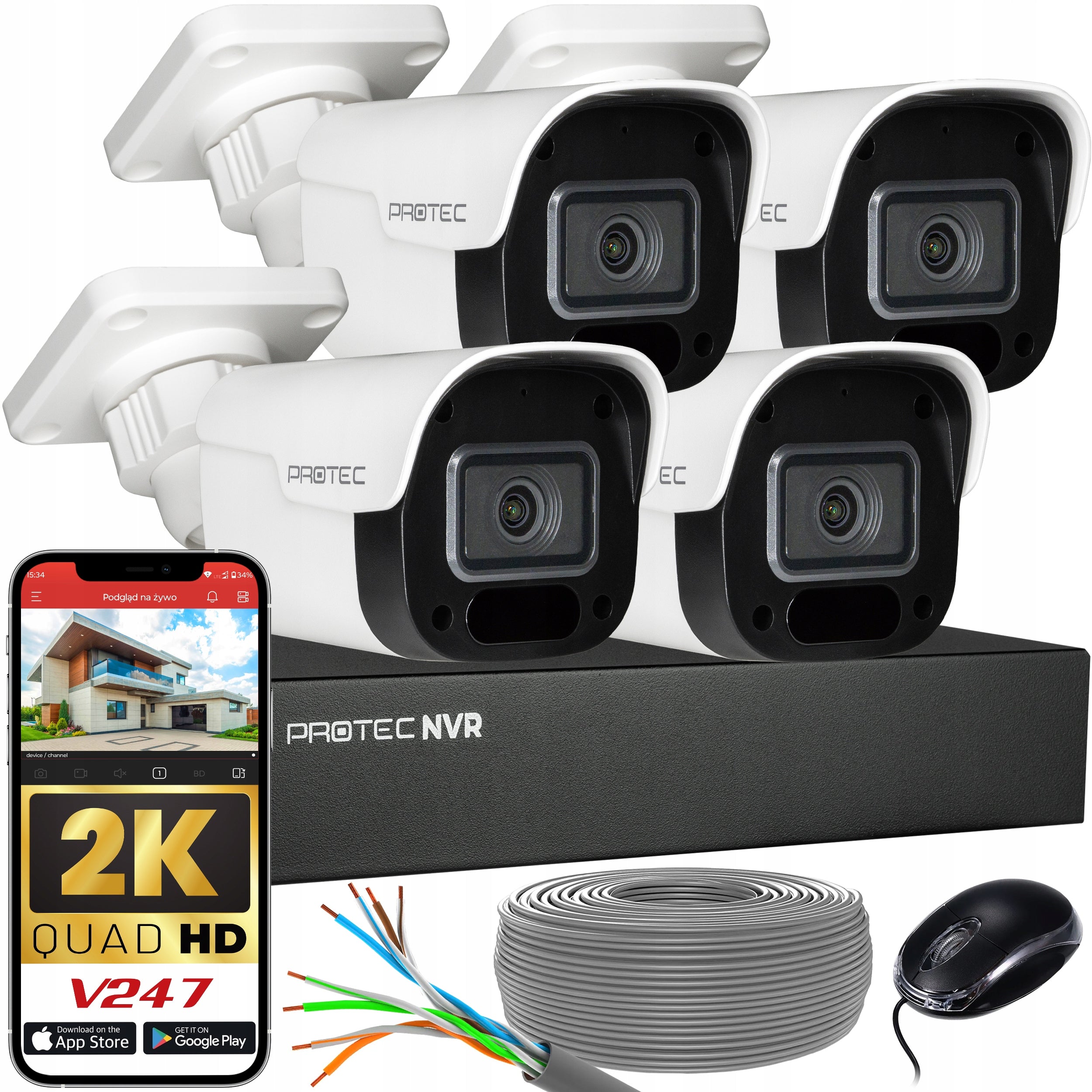

Contents of the monitoring kit:
✅ 4x Professional IP Camera 4Mpx PoE
- Cameras have built-in microphone
- Advanced human detection
- Cameras can be mounted outside
-Color image also at night with the use of LEDs
✅ NVR with built-in switch (8xPoE)
- Allows you to easily configure an online preview from anywhere in the world with P2P
- You will learn about motion detection immediately through a dedicated application
✅ 1TB drive dedicated to CCTV
- The system records in a loop 24/7 up to 11 days
✅ Accessories needed to start the system yourself
After connecting the recorder to the router and simple configuration, you will get access to the image from the recorder. All you need is a quick registration in the free application V247. The application is available in Polish.
✅ Live view - watch what is happening in front of the cameras
✅ Browsing recordings - check what happened before
✅ Notifications - receive notifications about detections
(requires access to the Internet at the place of monitoring and on the phone)
Intelligent motion detection technology
Through the use of advanced artificial intelligence algorithms, this system can precisely recognize traffic only related to people and vehicles. Significantly eliminates false alarms, which often come from random movements, animals or objects irrelevant from the point of view of safety
Selected Intelligent Detection Functions:
✅ Intrusion (people)
❗About detection you will get a notification in the application ❗
Camera with Microphone
The cameras record not only the image, but also the sound from the environment. This is an additional level of security that allows you to better understand the situation and react faster. Hear more – protect more effectively!
Examples of frames obtained from exactly such a set:
⬇ Download:
- Software for computers and mobile devices
- Polish manual to the registrar in pdf
- Step-by-step installation instructions in pdf
❓How to install monitoring❓
- Use our VIDEO setup instructions!!!
- www.youtube.com/watch?v=fML9apBAeG8
- Instructions for first system startup, camera connection and first configuration are available on YouTube
✅The system is ready for operation✅
Detailed assembly instructions are available in PDF at the end of the offer description

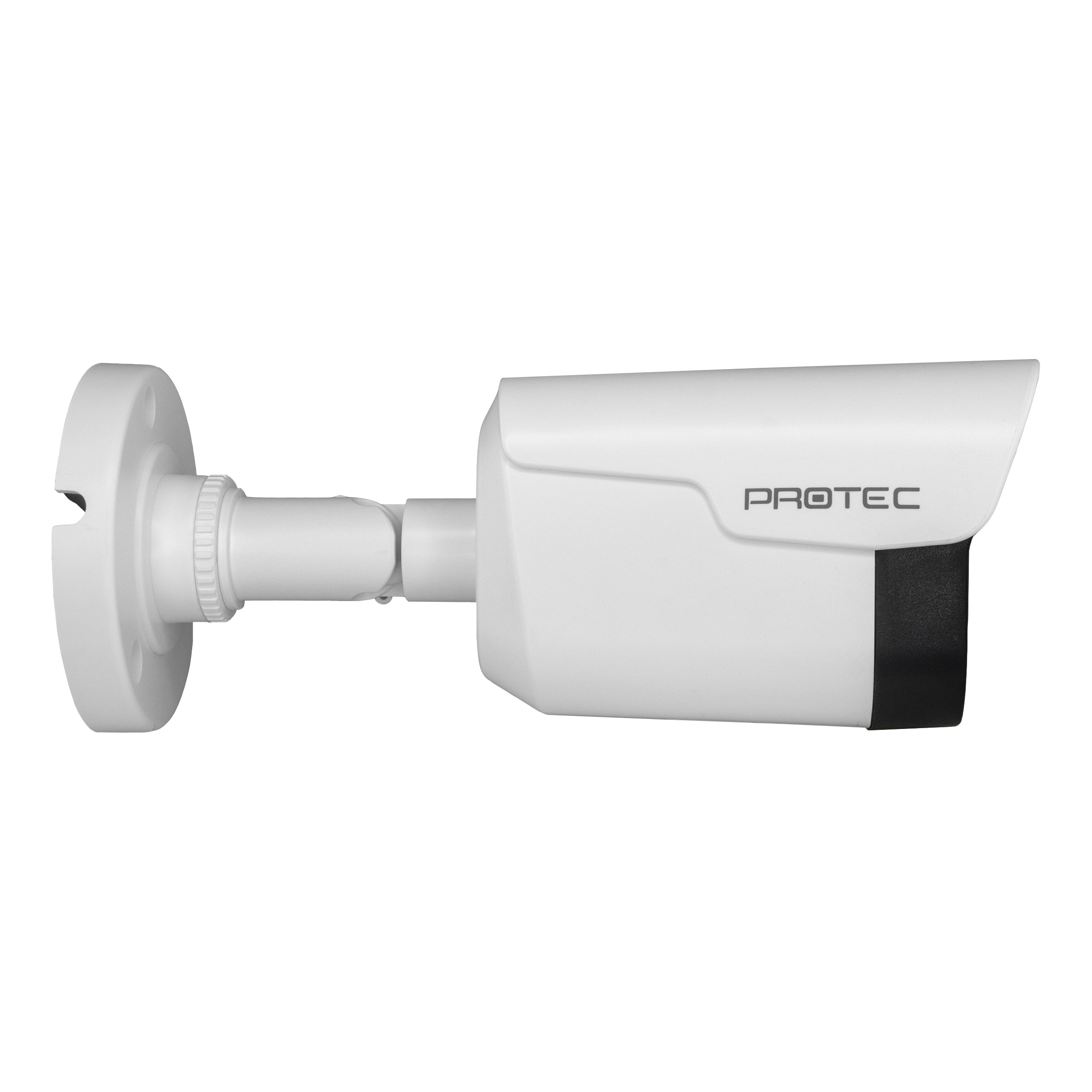

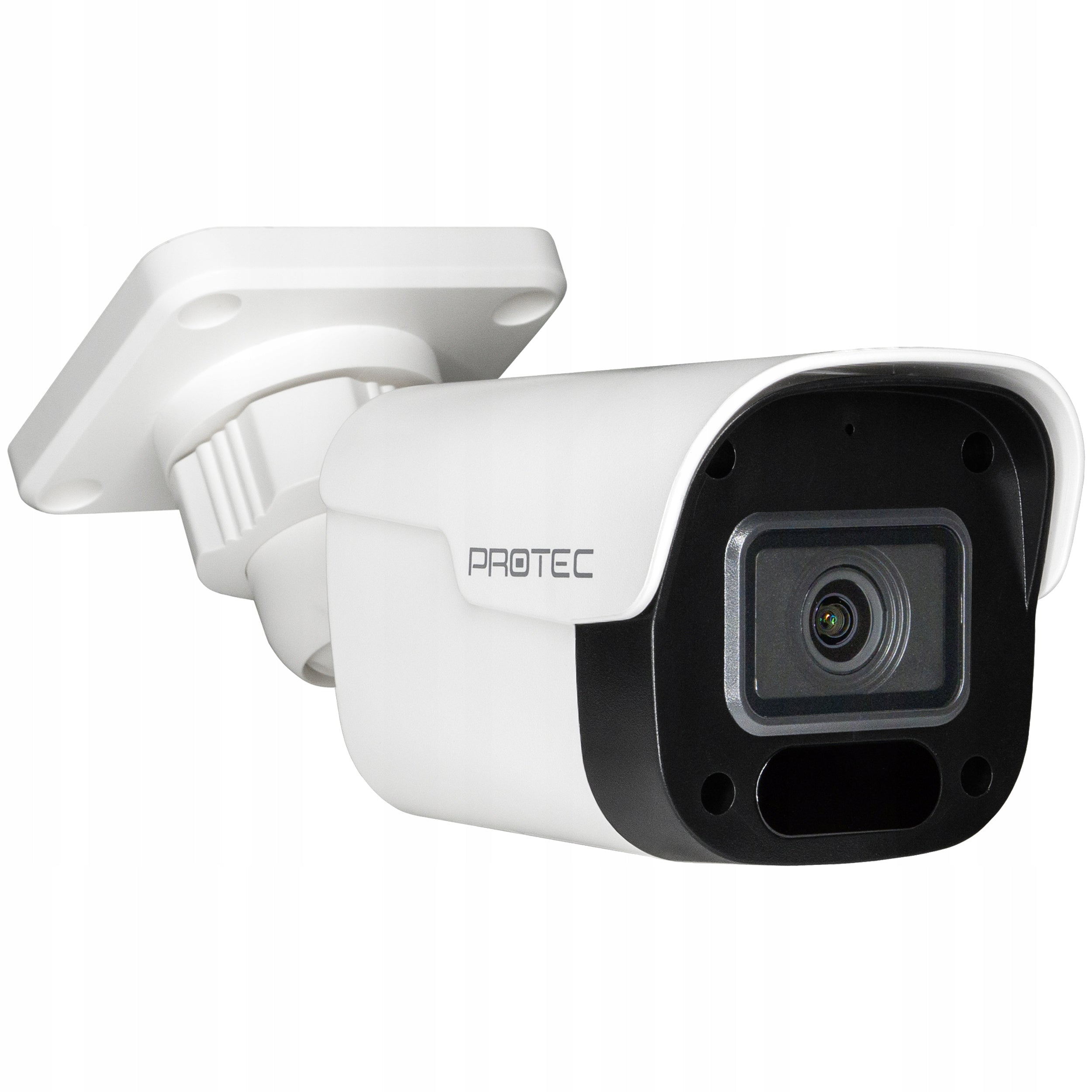

CAMERA DATA:
Transducer Size: 1/3" Progressive Scan CMOS Sensor
Image resolution: 2560 × 1440@25kl/s - 4 Mpx
Lens: 2,8 mm (Angle of view: 95°)
Coding: H.265 / H.264
Range of illuminator IR: 30 m
White light illuminator range: 30 m
Audio: Built-in microphone
Power supply:12 V DC / 48V PoE (802.3af)
Housing: Plastic
Protection class: IP66
Weight: 0.28 kg
Dimensions: 174 × 68 × 70 mm
RECORDER DATA:
PoE power supply: 8 independent PoE ports (maximum 30W per port)
Maximum power from PoE ports: 45W
Maximum number of cameras: 8 4K cameras
Audio support: yes, with IP cameras
Video outputs: 1 unit HDMI (max, 3840x2160, default 1024x768)
Image compression method: H265/H264/H265+/H264+
Supported hard drives: 1 x 8 TB SATA III 3,5"
Archiving on external media: Archiving on a USB stick
Access from mobile phone: Yes, application V247
USB: 2 units USB 2.0
Power supply: power supply included
Dimensions: 200 x 175 x 40 mm
Dedicated 1TB drive for 24/7 monitoring
- Recording up to 11 days with 4 cameras with h.256 encoding - this is twice as much as with older systems.
- Recording time depends on the amount of traffic in the camera frames, with very high activity, recording time can decrease by about 50%
- Provides optimal operating conditions of the entire system
- Allows you to record from all cameras at the same time
All necessary plugs and accessories to start the monitoring system!
- 1x Dedicated, efficient power supply of the recorder
- 1x RJ-45 connector clamp
- Sticker "Note Object monitored"
- 50m cable UTP cat. 5e CCA
- Mouse to operate the recorder
- 16x RJ-45 plug
FREQUENTLY ASKED QUESTIONS
1. How many meters of wire is included?
The amount of UTP cable is specified in the set composition. Additional cable can be found on our other Allegro offers
2. What can be the maximum distance between the recorder and the camera?
With standard settings, the signal can be routed at 100m via UTP cable from the DVR's PoE switch. In EXTEND mode, the UTP cable length can be increased up to 200 meters, the transmission rate will then be reduced to 10Mbps.
3. How to connect the DVR to the Internet?
The recorder must be connected wired to a router that has access to the Internet.
4. Can I have a preview on my phone?
Yes, you can. The recorder must first be connected to the Internet and configured.
5. How to connect the drive to the recorder?
Remove the top cover of the recorder, connect with two wires (SATA + power supply), and then attach with screws to the base of the recorder. The first time you start the drive, you need to format it.
6. How to get an image from the DVR?
The recorder should be connected to a TV or monitor via HDMI. After connecting, the screen should immediately display the DVR menu.
6a. Can I connect the DVR to my laptop with an HDMI cable?
No, laptops have an output, not a video input. This prevents you from getting the image this way.
7. How much is the disk from the set enough?
In the "HARD DRIVE" section, it is calculated how many days of recordings the disk will hold. When the drive is full, the recorder will automatically delete the oldest record and continue working.
8. Can the cameras be mounted outside?
Yes, the cameras have a sealed housing with IP66 rating and can be mounted outdoors. When installing, we recommend properly securing the cable and plugs.
9. What happens in the event of a power outage?
The device will shut down. When the voltage appears, it will automatically restart.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Zestaw do monitoringu IP - PRNVRE04T4EPOE |
| Parametry | Model | Zestaw do monitoringu IP - PRNVRE04T4EPOE |
| Parametry | Brand | Protec |
| Parametry | Product width | 17.4 cm |
| Parametry | Product height | 18 cm |
| Parametry | Product depth | 25 cm |
| Parametry | Product weight | 4 kg |
| Parametry | Technology | IP |
| Parametry | Number of supported cameras | 8 |
| Parametry | Maximum recording resolution | 4 Mpx |
| Parametry | Lens | fixed-focus |
| Parametry | Infrared range | 30 m |
| Parametry | Camera waterproof rating | IP66 |
| Parametry | Installed disk capacity | 1 TB |
| Parametry | Maximum number of supported drives | 1 |
| Parametry | Maximum capacity of drives | 8 TB |
| Parametry | Video compression | H.265 |
| Parametry | Video outputs | HDMI |
| Parametry | Number of USB ports | 2 |
| Parametry | EAN (GTIN) | 5904473556420 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
| Parametry | Functions | phone app,motion detection,PoE,advanced search,digital zoom |
| Parametry | Certificates of conformity | CE,WEEE |
