50 l hidroforas vandeniui, pilnas komplektas, efektyvus

Trumpai apie prekę

Prekė: 50 l hidroforas vandeniui, pilnas komplektas, efektyvus. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: Wigry
• Modelis: 50 INOX HYDROFOR L INOX WYDAJNY ZESTAW CICHY

✅READY-MADE 50L HYDROPHORE SET WITH INOX✅ PUMP

Hydrophore is a complete, complex set. After removing from the carton, everything is already twisted and ready to work. Just connect the suction to the water source, output to the installation and connect the device to electricity. After flooding the pump with water, the kit is ready for normal use without additional assembly and without buying parts.

Hydrophore set Wigry WIG FLOW INOX 50L - for home and farm

The polish hydrophore set by Wigry, model WIG FLOW INOX, is a complete hydrophore designed for single-family houses, plots, gardens and small farms. It works wherever there is no water supply or where stable water pressure in the installation is required. The tank with a capacity of 50 liters stores more water and pressure, thanks to which the pump switches on less often, and the entire system works calmer and more durable.

The product is factory assembled and twisted, packed in the original packaging and ready to be connected out of the box.

Technical parameters - WIG FLOW INOX 50L

• Type: Hydrophore Set
• Brand: Wigry
• Pump model: WIG FLOW INOX
• Pump Type: Self-priming
• Tank capacity: 50 L
• Maximum pump power: 1100 W
• Maximum capacity: 60 l/min (3600 l/h)
• Maximum lifting height: 50 m
• Minimum lifting height: 5 m
• Maximum working pressure: 4 bar
• Suction connection diameter: 1 inch
• Piston connection diameter: 1 inch
• Power supply: 230 V / 50 Hz
• Power consumption: 5 A
• Degree of protection: IP44

The set works automatically thanks to the pressure switch. At the time of water intake, the pressure in the installation drops, which causes the pump to turn on. The pump pumps water for installation and hydrophore tank. When the water intake point is closed, the pressure increases, and when the set value is reached, the pump is turned off. The whole process is carried out automatically and does not require manual operation or constant control.

50L hydrophore tank - higher capacity, less frequent switching

The tank with a capacity of 50 liters is responsible for storing water and maintaining pressure in the installation. Higher capacity means less frequent starting of the pump, which translates into less mechanical wear, longer life of the set and higher comfort of use. The solution is suitable for home, garden, watering and utility installations.

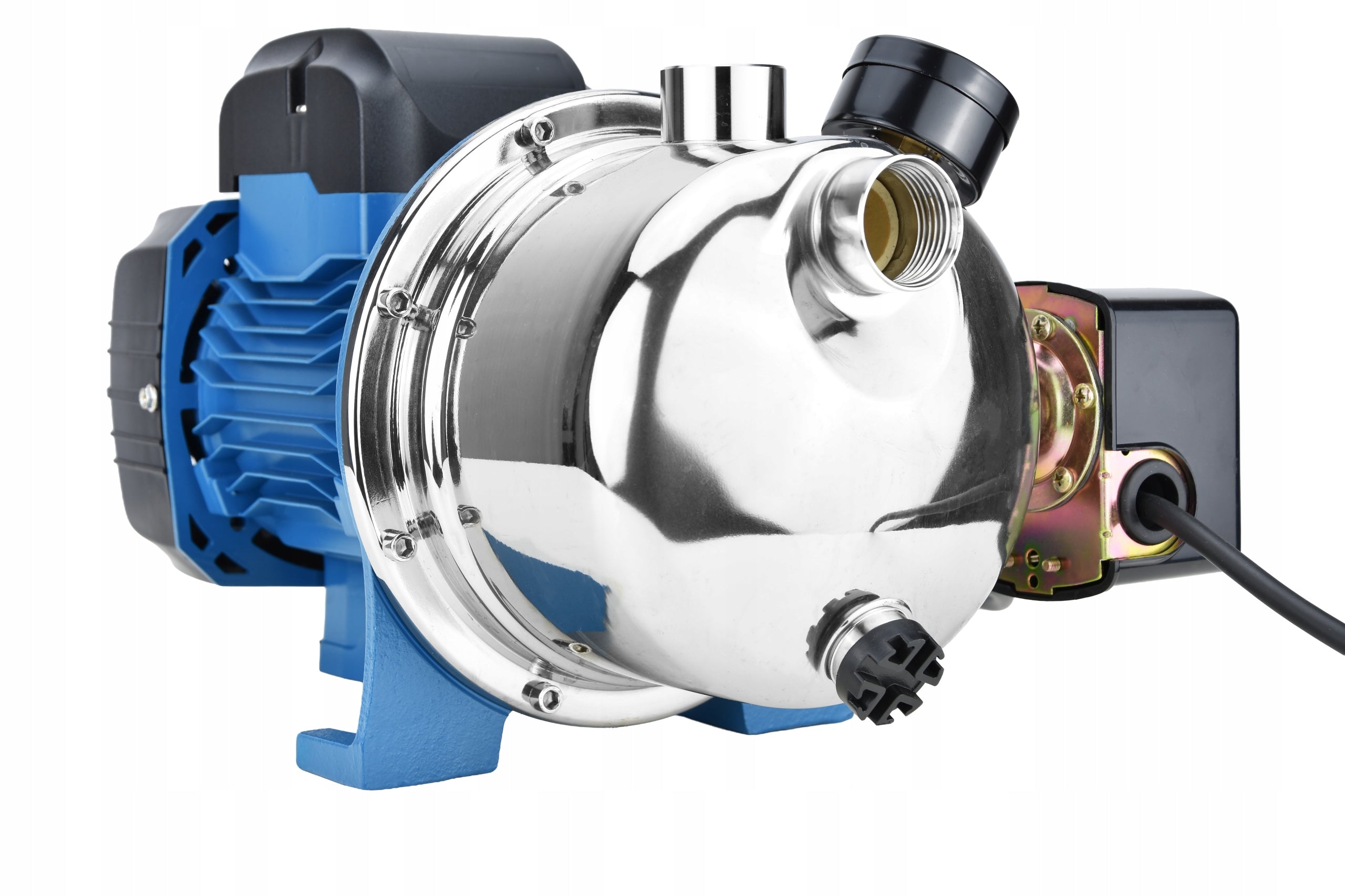

WIG FLOW INOX pump - stainless steel hydraulic body

The set is equipped with a WIG FLOW INOX pump, in which the hydraulic body (part in contact with water) is made of INOX stainless steel. This is a key element of the pump, responsible for the flow of water.

Application of INOX body:

• increases corrosion resistance
• better tolerates prolonged contact with water
• works well with poor water quality
• extends the life of the pump

The pump motor has no contact with water and is a separate structural element.

Complete set - ready to go out of the box

The hydrophore kit is complete, assembled and factory twisted. Simply connect the suction connection to the water source, output to the installation, pour water over the pump and connect the device to electricity. There is no need to buy additional elements or perform complex assembly. When properly connected, the kit is ready for normal use.

WIG FLOW INOX 50L hydrophore parameters – explanation

Type of device: hydrophore set with self-priming pump

Set for taking water from a well or tank and feeding it under pressure for home or garden installation.

Capacity of tank: 50 liters

The tank stores more water and pressure, thanks to which the pump turns on less often and the whole system works more calmly.

Maximum capacity (Q max): 60 litres per minute

It indicates how much water the hydrophore can give under the best conditions. In practice, it is enough for home, garden and plot.

Maximum lifting height (H max): 50 meters

It tells you how high or how far the pump is able to push water through the installation.

Minimum lifting height (H min): 5 meters

Minimum pressure needed for proper operation of the set.

Engine power (P2): 1100 W

Actual pump power responsible for water intake and pumping.

Maximum working pressure (Ps max): 4 bar

Water pressure in the installation sufficient for normal use at home.

Diameter of suction connection (water input): 1 inch

Standard connection of hose or pipe from a well or tank.

Diameter of discharge connection (water output): 1 inch

Standard water output for home or garden installation.

Power supply: 230 V / 50 Hz

Ordinary household outlet.

Power consumption: 5 A

Normal current consumption for a hydrophore of this power.

Degree of protection: IP44

Protection against splashes and dust.

Material of pump hydraulic part: stainless steel INOX

The hydraulic body of the pump, in contact with water, is made of stainless steel, which increases corrosion resistance and extends the life of the pump.
