Aprašymas
Trumpai apie prekę

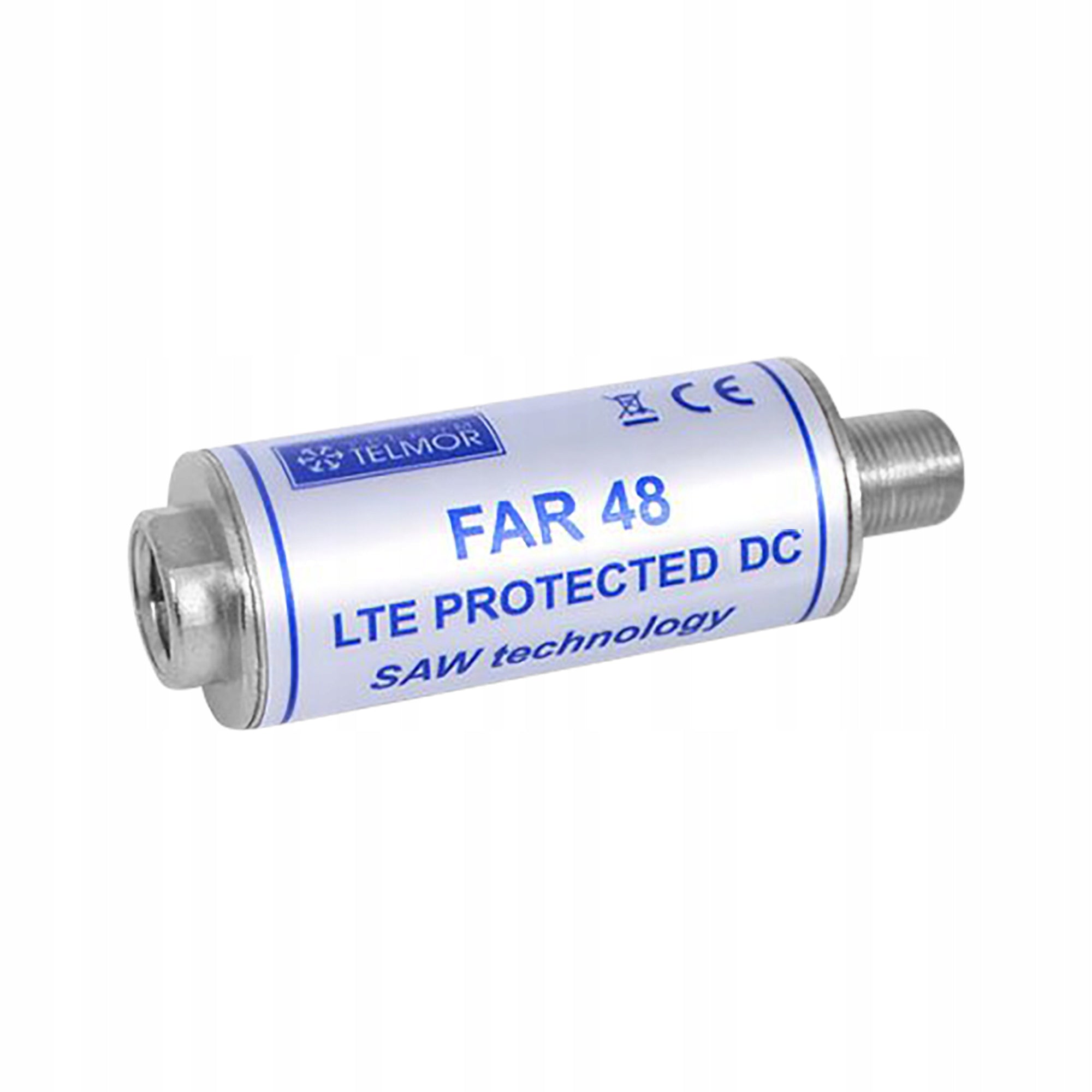

Prekė: 5G filtras Telkom Telmor FAR 48, LTE SAW, DC praleidimas, LPF 686 MHz. Kategorija: Dalys ir komponentai.
- Gamintojas: Telkom-Telmor
- Modelis: WPA-0103-005-01
FAR 48 is a LTE low-pass filter designed to cut interference signals in the frequency range above 694 MHz, including LTE 700 and 5G signals. The filter carries signals in the frequency range of 47-694MHz, which corresponds to TV and radio channels from the FM, VHF, UHF bands.
The filter is designed to work indoors.
FAR 48 LTE PROTECTED DC PASS with DC voltage transition (power supply for antenna preamplifiers)
Technical specification
- Frequency range in the bandwidth: 47-694 MHz
- Pass-through bandwidth attenuation: 4 dB
- Damband attenuation: >18 dB / 698-718 MHz; >26 dB / 718-725 MHz; >30 dB / 725-2600 MHz
- DC Transition: yes
- Transferring power from the OUT side. (max. ): 5-24 V DC / 100 mA
- Input Impedance: 75 Ohms
- Output Impedance: 75 Ohms
- Input Connector Type: F Socket
- Output Connector Type: F Plug
- Operating temperature: -20~50 degrees Celsius
- Dimensions: 64 mm (length) x 20 mm (diameter)
- Weight: 0,045 kg
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Telkom-Telmor |
| Parametry | Product weight with unit packaging | 0.15 kg |
| Parametry | Manufacturer code | WPA-0103-005-01 |
| Parametry | Certificates of conformity | CE |
