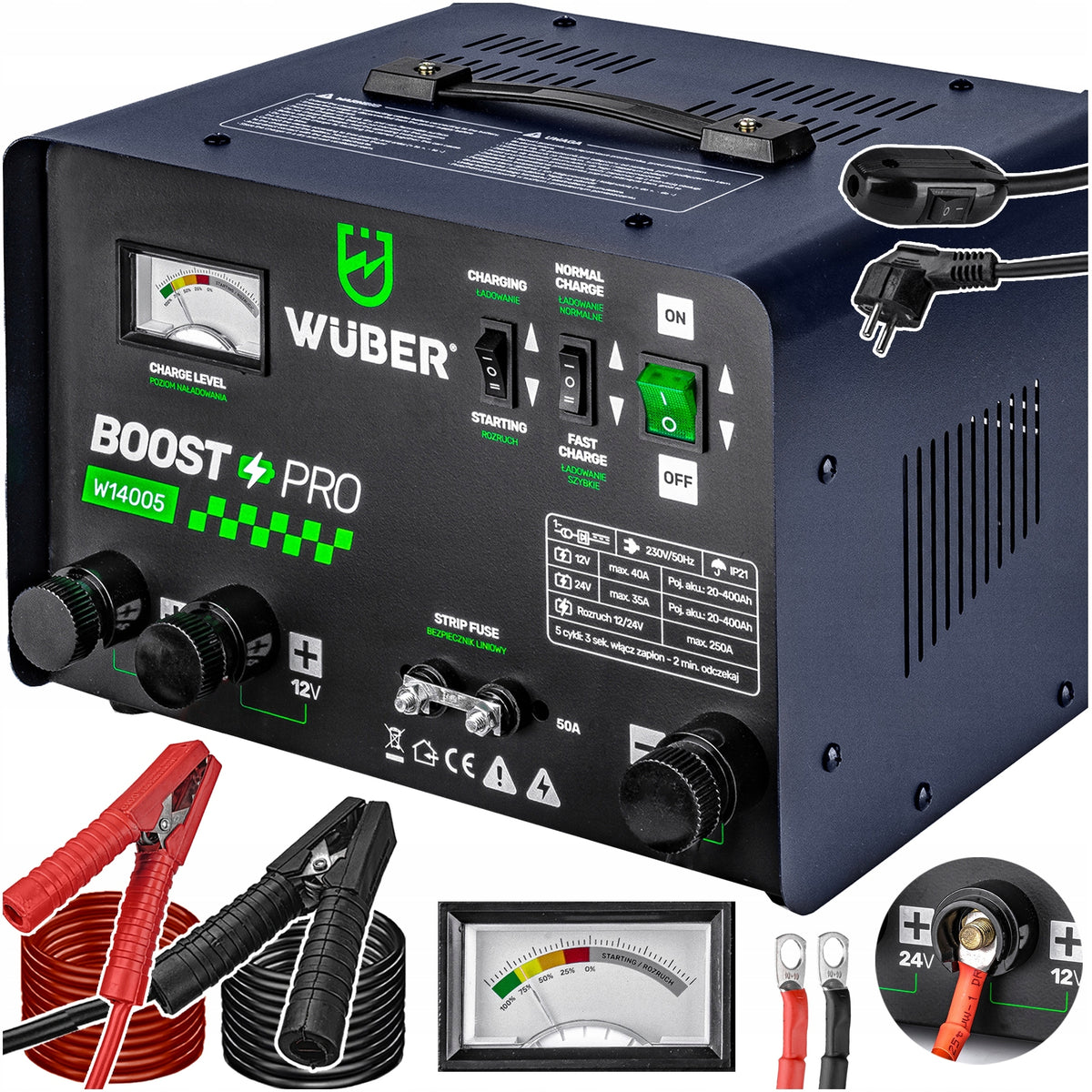

Akumuliatoriaus pakrovėjas WUBER, 40A, 12V/24V, tinka 20–400Ah baterijoms

Trumpai apie prekę

Prekė: Akumuliatoriaus pakrovėjas WUBER, 40A, 12V/24V, tinka 20–400Ah baterijoms. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Wuber
• Modelis: W14005 PROSTOWNIK SAMOCHODOWY Z ROZRUCHEM WUBER

Startup ► Max. Charging Current 40A ► Fuse 50A ► Toroidal Transformer ► Batteries 20-400Ah ► 12V and 24V ► Fast Charge Function ► Cooling System ► Door to Door ► Thick and Long Wires 1,6M

⚙ Technical specification:

Producer: Wuber

Supply voltage: 230V/50Hz

Charging current voltage: 12/24V

12V charging current voltage: 40A

24V charging current voltage: 35A

Fuse: 50A

Battery capacity range: 20-400Ah

Length of jumper cables: 160cm

Weight: 7.3 kg

Dimensions: 36x30x26cm (DSW)

⭐ ROBUST AND EFFICIENT

✅ Battery capacity range ► The rectifier supports batteries with capacities from 20Ah to 400Ah, making it an ideal solution for smaller vehicles as well as motorcycles, large trucks or agricultural machinery

✅ Charging currents ► With a maximum charging current of 40A for 12V and 35A for 24V, the device enables fast and efficient charging of batteries without the risk of overcharging and damage to cells

✅ Rectifier bridge ► High-quality rectifier bridge ensures stable and efficient conversion of alternating current into constant current, which translates into safe charging of batteries and reliable start-up function

✅ Long and thick wires 1,6m ► Our wires are very long, so you can comfortably use the rectifier in all conditions

✅ Toroidal transformer ► Advanced toroidal technology guarantees high efficiency, quiet operation and minimal energy loss

✅ Efficient cooling system ► Advanced ventilation system effectively dissipates heat from the inside of the device, ensuring safe and stable operation even during prolonged use in start-up or charging mode

⚡ RECTIFIER FOR EVERYONE

✅ Fast Charge ► The fast charging option is ideal for emergency situations, allowing you to quickly recharge the battery and get back on the road without unnecessary delays

✅ Versatility ► Supports both 12V and 24V batteries, making it suitable for a variety of vehicle types, from passenger cars to vans and trucks

✅ Robust construction ► Durable metal housing protects components from damage, and the ventilation system prevents overheating, guaranteeing long and trouble-free operation of the device

✅ Overload protection ► The rectifier is equipped with a 50A fuse, which protects both the device and the battery from the effects of overload or short circuit

✅ Ergonomics ► Compact dimensions (36x30x26 cm) and a comfortable handle make the device easy to carry and store, which increases the comfort of use

✅ Intuitive control panel ► Clearly marked buttons and indicators allow for easy operation of the device, allowing you to select the operating mode and monitor the charging and start-up process in real time

⭐ BET ON PROVEN EQUIPMENT FROM THE RENOWNED BRAND WUBER ⭐

⭐ Why should you choose our equipment?

✔ Our rectifiers are made of the highest quality materials and using proven technological solutions,

This makes them the most advantageous in their price range

► High quality

► Attention to the smallest details technical and visual

► Brand equipment with established market position

► Full access to spare parts and fast service

► Door to door - we will do everything for you!

✅ 100% SAFE

• Protection against overheating - when the rectifier temperature reaches 150°C, it will stop charging. It will turn on again after 10 minutes or when the temperature drops to 80°C

• Circuit protection - if there is a short circuit in the circuit, the rectifier will turn itself off

• Reverse connection protection - when the terminals are connected in reverse, the rectifier will signal, thus protecting the device and the user

• Fuse 50A - provides additional protection against overload, high quality of materials used in windings and transformer core guarantees overload resistance and durability

YOU CAN CHARGE THESE BATTERIES WITH THIS CHARGER:

• AGM Batteries

• Gel Batteries (GEL)

• Lead-Acid Batteries (VRLA)

• Wet Cell Batteries (WET)

• Start/Stop System Batteries (EFB)

USED IN:

• Passenger Cars

• Trucks

• ATVs (All-Terrain Vehicles)

• Tractors

• Camper Vans

• Motorcycles

• Lawnmowers

• Snowmobiles and Jet Skis

• Boats

• Forklifts

• Tractors

✅ RECTIFIER ADAPTED TO DIFFERENT WEATHER CONDITIONS

► The rectifier, thanks to its unique design, can operate effectively in a wide temperature range, ranging from -30°C to +50°C

► Regardless of the prevailing weather conditions, the rectifier maintains reliability and excellent functionality, guaranteeing trouble-free charging of batteries

⭐ FOR START/STOP SYSTEMS

The Wuber rectifier is designed for efficient charging of batteries used in cars with start/stop system.

Thanks to precisely adjusted charging parameters, the rectifier provides optimal charging conditions for batteries operating in conditions of intensive engine start and stop cycle

✅ PANEL EXPLANATION:

⚡ The power that will never let you down

✔ Charging and starting current:

With a charging current of 40A, you can quickly charge batteries with a capacity of from 20Ah to 400Ah

On the other hand, the start-up function with 250A current will allow you to start even a heavily discharged battery

✔ High power transformer:

High-quality transformer is the heart of the rectifier

Its task is to convert the voltage from the mains to one that is ideal for charging and supporting batteries

⭐ CHARGE THE BATTERY WITHOUT DISCONNECTING IT FROM THE CAR!

✔ Thanks to advanced technology, the Wuber rectifier allows you to charge the battery, leaving it connected to the vehicle

✔ Safety is a priority, that is why the rectifier has been designed taking into account protection against surges, short circuits or overheating

✔ Users can comfortably charge the battery by keeping it in the car, without the risk of damage to the vehicle or the rectifier itself

⚡ Thick and long cables

The device is characterized by compact dimensions and light weight, which makes it an ideal solution for people who need mobile equipment

• Starter cables with a length of 1,6M!

► Wires have a thick copper winding, which increases their strength

Such cables allow for safer and more comfortable work in various conditions, allowing free access to the welded material

­

⚙ Toroidal transformer – High efficiency and energy saving

The transformer supports a supply voltage of 230V/50Hz, which allows for efficient charging of both 12V and 24V batteries.

The toroidal design of the transformer ensures minimum energy losses due to less magnetic field dispersion compared to classic steel cores

The maximum charging current is 40A for 12V and 35A for 24V, respectively, which allows fast charging of batteries with a capacity from 20Ah to 400Ah

The use of high-quality materials in windings and cores guarantees durability and resistance to overload, which translates into a long service life of the device

⚡ Advanced components – technology at the highest level

✅ Rectifier bridge:

This is a key component that converts alternating current (AC) from the mains into direct current (DC), ideal for charging batteries. This makes the charging process stable and safe.

✅ Built-in voltage regulator:

It protects the battery from surges, providing exactly the amount of power it needs without the risk of damaging the battery.

✅ Efficient cooling system:

Built-in fans and special vents effectively dissipate heat, preventing overheating of the device during long-term use.

⭐ Rectifier bridge – Technology adapted to intensive work

The rectifier bridge used in the rectifier uses modern semiconductor diodes with high overload resistance, which is crucial in inrush mode when the current reaches extreme values

The design of the bridge has been optimized to minimize energy losses, which translates into greater efficiency and charging efficiency

In addition, the bridge elements are characterized by high resistance to overheating, so that the device can work safely and reliably even under intensive use

⚡ Why choose this rectifier?

­

✔ High power and efficiency:

The 40A charging current and 250A starting current guarantee fast and reliable operation.

✔ Advanced technologies:

The transformer, rectifier bridge and cooling system ensure a long service life of the device.

✔ Full safety:

Protection against reverse connection, overheating and surges ensures your safety.

✔ Ease of use:

The easy-to-use panel and automatic features make it easy for anyone to use this device.

⭐ Accelerated charging with Fast Charge

The rectifier offers the Fast Charge option, which reduces battery charging time, ideal for situations where every minute counts

Choose Normal Charge mode if you care about battery longevity and gentle power replenishment

► This flexibility allows you to customize the device to your needs

⚡ Safety at every step

­

✔ Reverse connection protection:

If you accidentally connect the cables to the wrong poles, the device will immediately turn off, preventing damage to the battery and rectifier.

✔ Overheating protection:

If the temperature is too high, the device will automatically turn off, protecting the components from damage.

✔ Surge protection:

They ensure voltage stability even during jumps in the electrical network.

⭐ Intuitive service for everyone

­

✔ Clear indicator:

The device is equipped with an analog indicator that shows the battery level, voltage and charging current on an ongoing basis.

This way you always know what’s going on with your battery.

✔ Automatic shutdown:

Once the battery is fully charged, the rectifier will complete charging on its own, eliminating the risk of overcharging.

✔ Maintenance mode:

It allows you to keep the battery fully operational for a long time, which is especially useful if your vehicle is unused for a long time.

⚡ Supports batteries for every vehicle

This rectifier is a true master of versatility

It supports 12V and 24V batteries, which means that you can use it both in passenger cars, motorcycles, and in larger machines such as agricultural tractors or trucks

Whether you have a small vehicle or equipment for special tasks, this device will do the job

THE SET INCLUDES:

• ► Battery rectifier WUBER

• ► Cables with terminals

• ► Operating instructions

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	W14005 PROSTOWNIK SAMOCHODOWY Z ROZRUCHEM WUBER
Parametry	Brand	Wuber
Parametry	Maximum amperage	40 A
Parametry	Product weight with unit packaging	7.3 kg
Parametry	EAN (GTIN)	5905873301344
Parametry	Batteries included	no
Parametry	Packaging status	original
