Akumuliatorių testeris Konnwei KW600 su LCD ekranu, 6V/12V, lenkų meniu

Trumpai apie prekę

Prekė: Akumuliatorių testeris Konnwei KW600 su LCD ekranu, 6V/12V, lenkų meniu. Kategorija: Baterijų testeriai.

• Gamintojas: Konnwei
• Modelis: MIERNIK KW600

The KONNWEI KW600 battery tester is designed for diagnostics of 12V batteries. The device allows you to quickly and accurately check the status of the battery and charging system.

Compatibility:

• acid/lead batteries (standard)
• AGM flat / plate
• AGM spiral
• gel
• EFB

The tester has a menu in 12 languages, including Polish (English, German, French, Spanish, Italian, Russian, Portuguese, Dutch, Japanese, Chinese, Korean).

Measuring functions:

• measurement of voltage and battery level
• inrush current test
• charging test (checking the operation of the alternator)
• measurement of resistance (resistance) of the internal battery

• CCA: 100 – 2000
• JIS: 26A17 – 245H52
• DIN: 100–1400
• IEC: 100 – 1400
• EN: 100 TO 2000
• SAE: 100–2000
• GB: 100–1400
• BCI: 100–2000
• MCA: 100 TO 2000
• CA: 100 – 2000

Additional functionality:

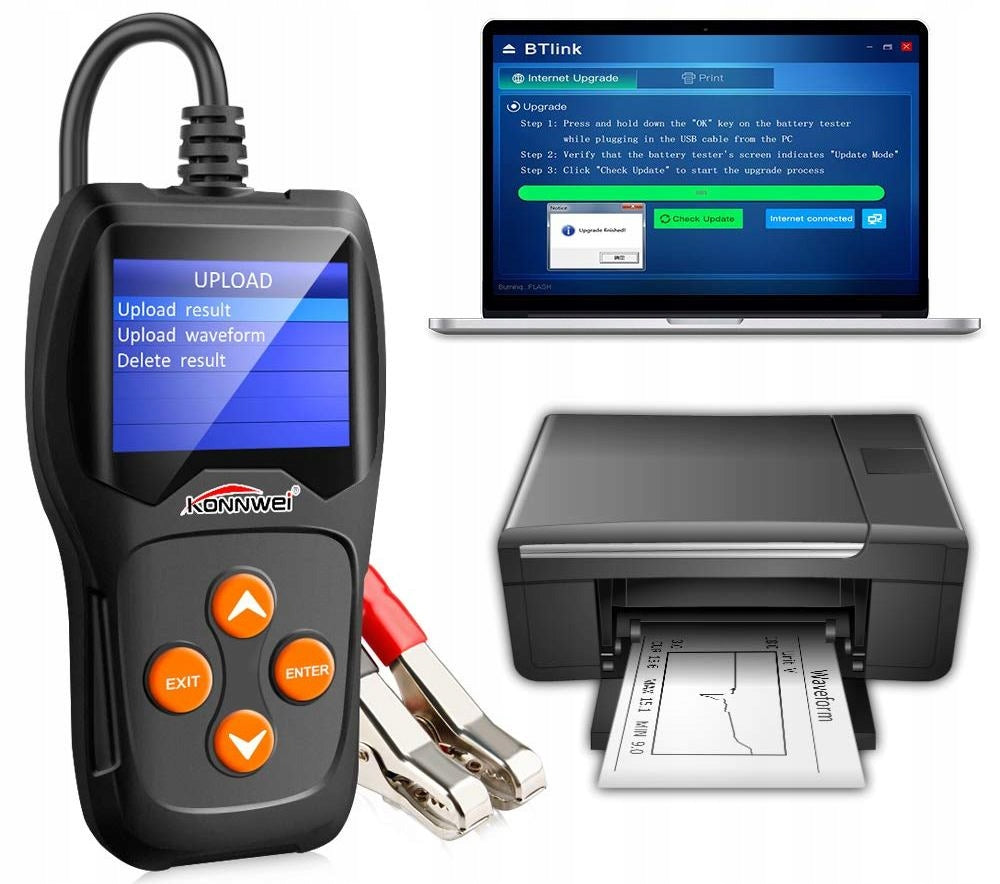

• possibility to update the software from the manufacturer
• preview and save the tests performed
• print test results when connecting the device to a computer using a USB cable
• presentation of parameters in the form of a graphic chart

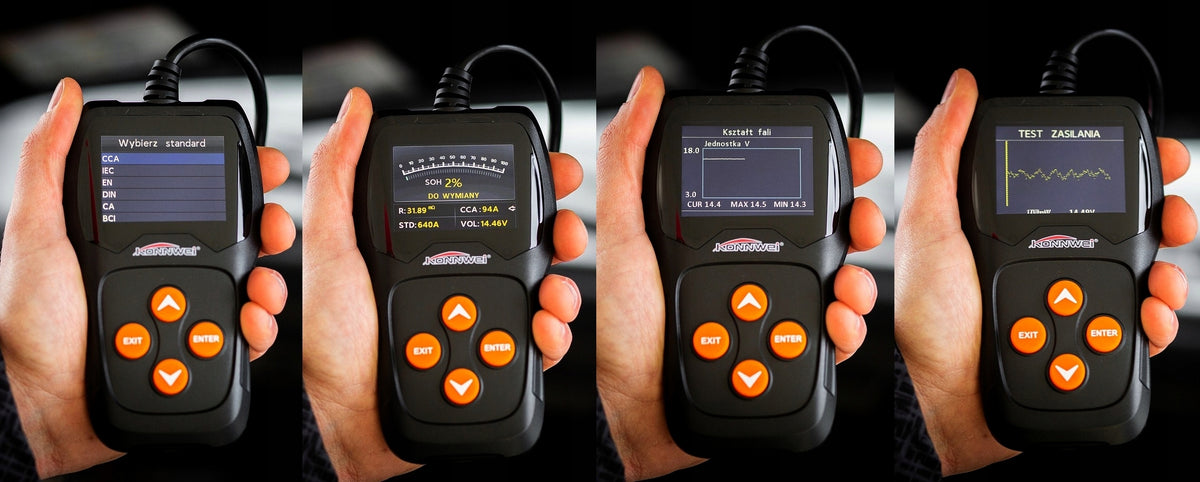

Presentation of the device:

Technical specification:

1. Working environment Temperature: 0*C to 50*C
2. Storage temperature: -20*C to 70*C
3. Housing material: acid-resistant ABS plastic
4. Battery capacity measurement range: 30Ah-220Ah
5. Voltage/Application: 12V
6. Input voltage: 8V~16V

Results of battery status measurement in %:

• SOC (State of Charge) – battery charge status
• SOH (State of Health) – degree of battery consumption

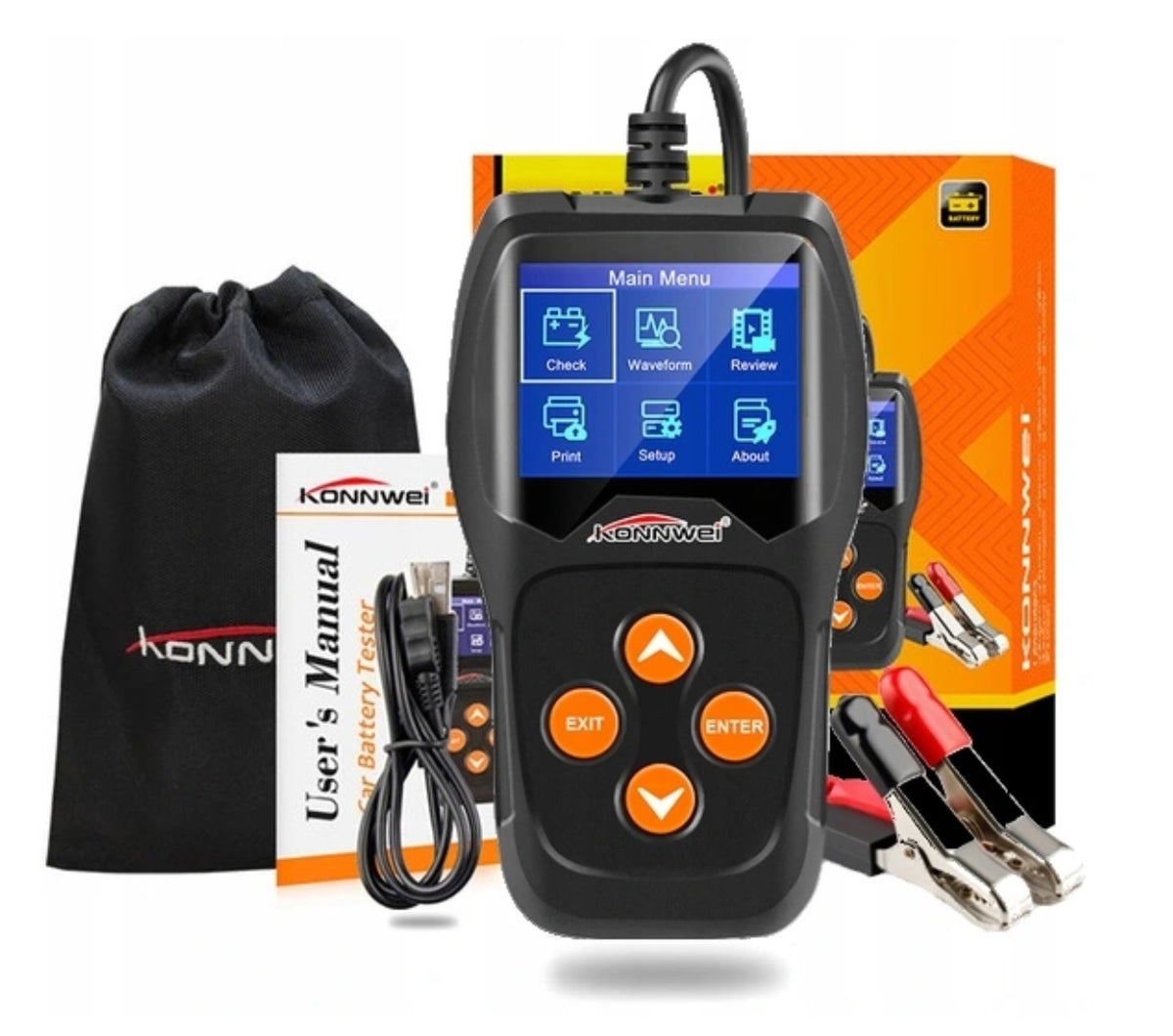

The set includes:

1. KONNWEI KW600 tester
2. USB cable for updating and printing
3. User manual in Polish language (electronic version)

No additional batteries and accumulators are needed to power the device, as it draws power directly from the tested car battery.

Cable connection:

• red (+)
• black (-)

This device, thanks to advanced electronics, has capabilities comparable to expensive professional workshop testers. And even better.

1. The device works immediately after connecting to the tested power source.
2. Detects bad batteries.
3. Protection against poor pole connection. Poor connection will not break the tester/battery/car.
4. Direct battery test with charging drops. There is no need to fully charge the battery before testing.
5. The battery test is mainly aimed at analyzing the service life when calculating its current capacity and degree of wear. This will help you assess whether the battery needs to be replaced.
6. Thanks to the test, you will assess whether the battery powers the car with the right current at start-up and engine operation.
7. The charging test enables the analysis of the charging system in the vehicle to check whether the voltage in the electrical system is correct.

1. Simple and easy to use
2. Test the battery inside and outside the vehicle (selectable in the menu)
3. Large readable color LCD display 2,4"
4. Test results based on JIS, EN, DIN, SAE and IEC standards
5. Vehicle start-up system testing: start-up time, voltage and condition
6. Vehicle charging system test: load voltage, unloaded voltage
7. Range AH: 30-220AH

• Height: 14cm
• Width: 8cm
• thickness: 2,4cm
• length of measuring cables: 110cm

Specifications
