Akumuliatorių testeris su 12 V/24 V spausdintuvu

Trumpai apie prekę

Prekė: Akumuliatorių testeris su 12 V/24 V spausdintuvu. Kategorija: Baterijų testeriai.

• Gamintojas: Autool
• Modelis: BT860

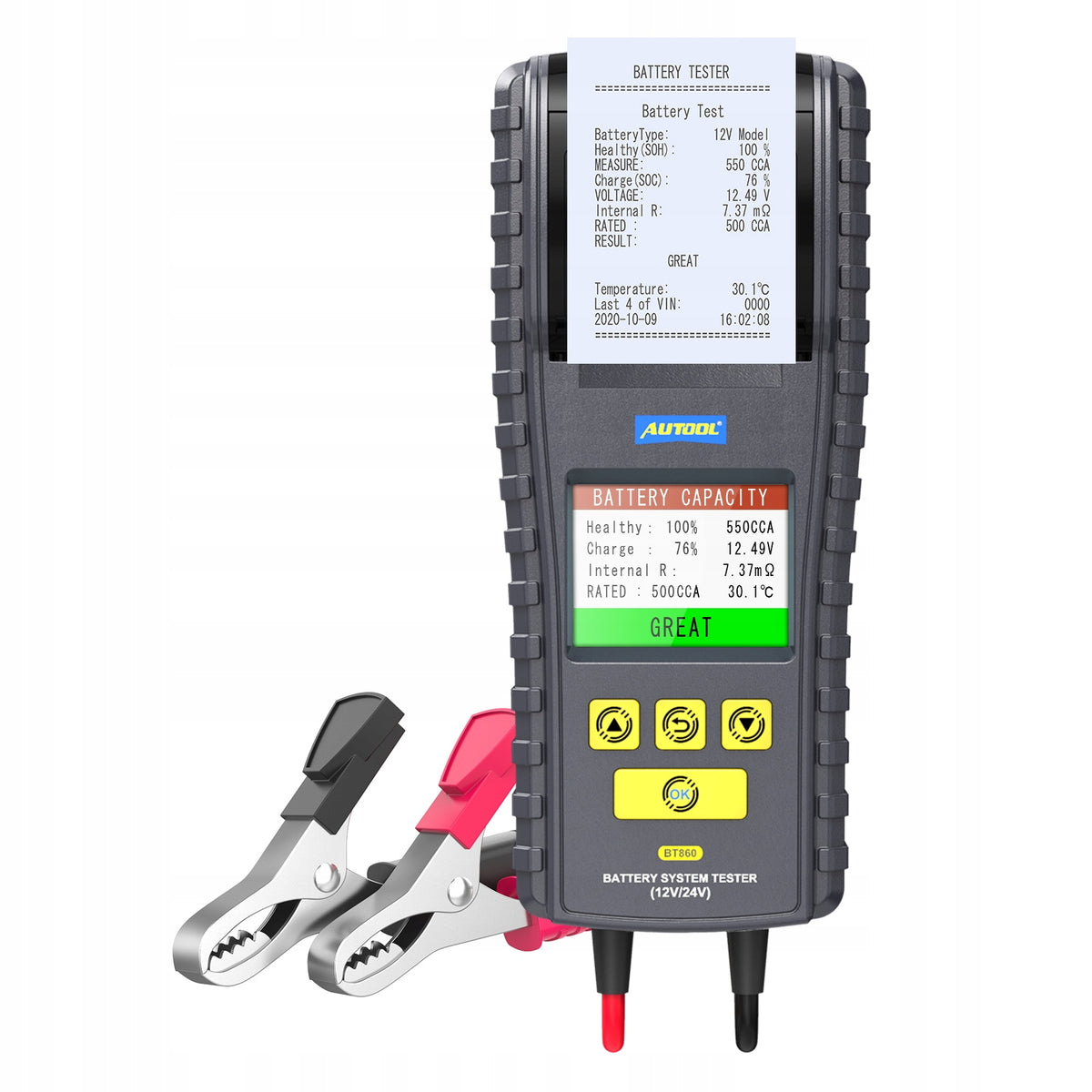

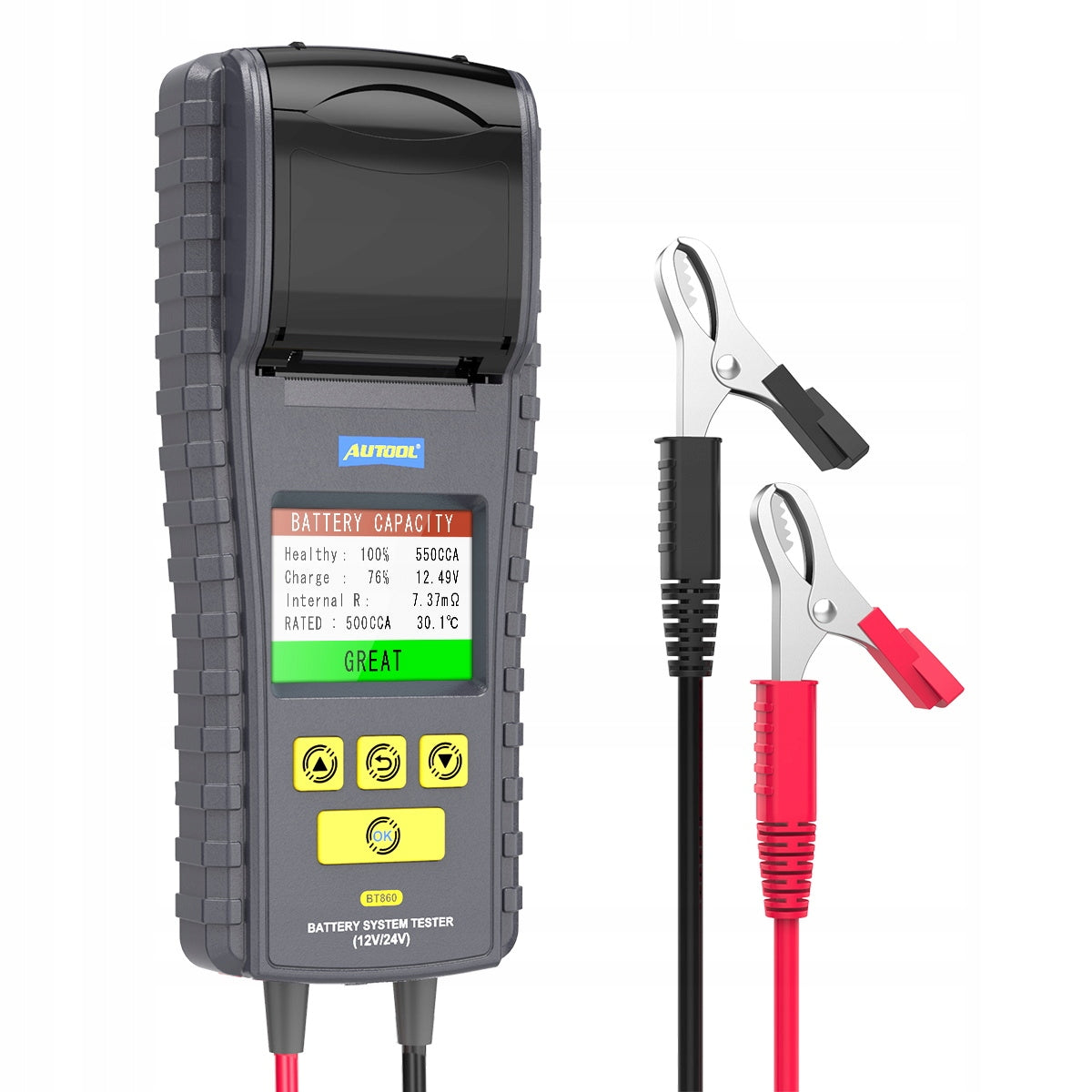

AUTOOL BT-860 Car Battery Tester with built-in printer.

The tester is compatible with the following batteries:

• acidic (regular)
• AGM flat
• Spiral AGM
• Gel
• EFB

10 languages available ( Polish, English, Spanish, French, German, Italian, Russian, Danish, Chinese, Japanese)

The AUTOOL BT-860 battery tester allows you to measure:

• battery status
• charging test
• charging test (starter/alternator)
• battery temperature
• has a database of previous measurements
• data printout by built-in printer

AUTOOL BT-860 Specification:

1. Inrush current measurement range in given units:

• CCA: 100-2000
• BCI: 100-2000
• CA: 100-2000
• MCA: 100-2000
• DIN: 100-1400
• IEC: 100-1400
• EN: 100-2000
• SAE: 100-2000
• GB: 100-1400
• JIS: 26A17-N200Z

1. Operating Environment Temperature: -20*C to 50*C
2. Housing material: acid-resistant ABS plastic
3. Battery capacity measurement range: 30Ah-200Ah
4. Voltage Measurement Range: 9-30 VDC
5. Application: 12V/24V

If you are looking for a device with the ability to test batteries after specifying only the battery capacity 'Ah' (ampere-hours), without specifying the starting power 'A' (amperes), you must purchase a different Tester than the one offered at this auction. The absence of the 'A' cranking power stated on the battery label really precludes the use of this tester for batteries used in UPS, alarm control panels, energy storage, photovoltaic panels, battery toys, etc.

In this case, one solution remains to buy a battery tester:

• 24DIAG B670 (6V 12V 24V) or 24DIAG B870 (6V 12V 24V with the option of printing measurements) (available at our Allegro auctions).

These testers are the only ones in this price range that have the option of the so-called Quick Test after giving only the battery capacity (Ah ampere-hours) without giving the starting power (A amps). In addition, they have a very wide 'Ah' range of tested batteries from 2Ah to 220-300Ah, which allows testing even very small batteries.

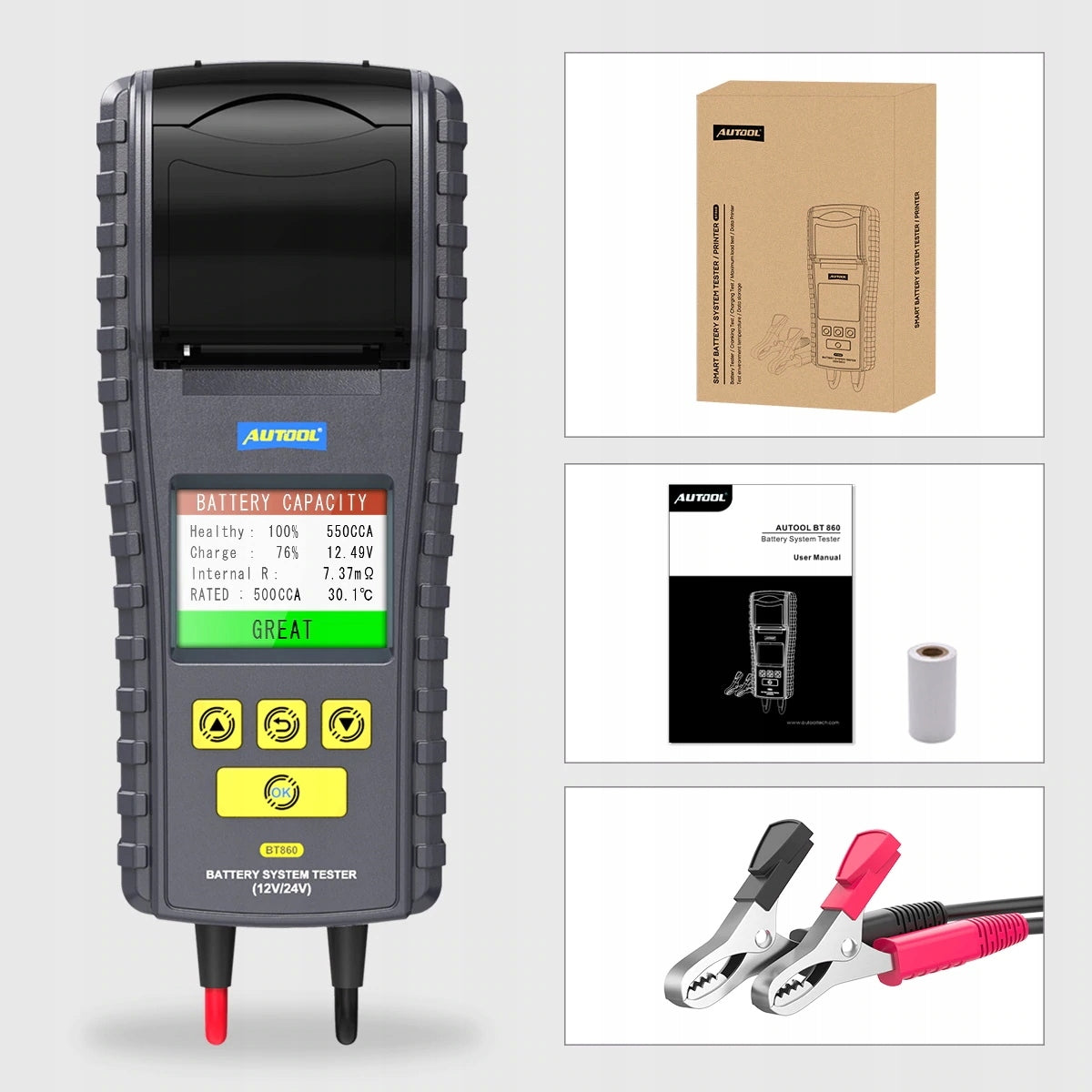

The kit includes:

1. AUTOOL BT-860 tester
2. A roll of printer paper
3. Measuring cable with clips (crocodile clips)
4. English user manual
5. Original packaging

There is no need for additional batteries and accumulators to power the device, because it draws power directly from the tested car battery.

Device presentation:

https://www.youtube.com/watch?v=dFtgm5M_w44

Cable connection:

• red (+)
• black (-)

1. Detects bad batteries.
2. Saving the measurements made, you can go back to the database of previously made measurements.
3. Battery temperature measurement, range: -20'C to 50'C
4. Protection against wrong polarity connection . Wrong connection will not damage the tester/battery/car .
5. Direct battery test with charging dips. There is no need to fully charge the battery before testing .
6. The battery test is mainly focused on the analysis of service life by calculating its current capacity and degree of wear. Thanks to it, you can assess whether the battery needs to be replaced.
7. Thanks to the test, you will assess whether the battery supplies the car with the right current when starting and running the engine.
8. The charging test allows you to analyze the vehicle's charging system to verify that the voltage in the electrical system is correct.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Autool
Parametry	Product weight with unit packaging	0.98 kg
Parametry	EAN (GTIN)	5904954300276
Parametry	Manufacturer code	BT860
