Akumuliatorių testeris su spausdintuvu Autool BT760, 12 V / 24 V

Trumpai apie prekę

Prekė: Akumuliatorių testeris su spausdintuvu Autool BT760, 12 V / 24 V. Kategorija: Baterijų testeriai.

• Gamintojas: Autool
• Modelis: BT760 30-300Ah

AUTOOL BT-760 Car Battery Tester with built-in printer.

The tester is compatible with batteries:

• Acidic (regular)
• AGM flat
• Spiral AGM
• Gel
• EFB

14 languages available (Polish, English, Spanish, Portuguese, French, German, Italian, Russian, Danish, Turkish, Thai, Korean Chinese, Japanese)

The AUTOOL BT-760 battery tester allows you to measure:

• battery status
• charging test
• charging test (starter/alternator)
• has a database of previous measurements

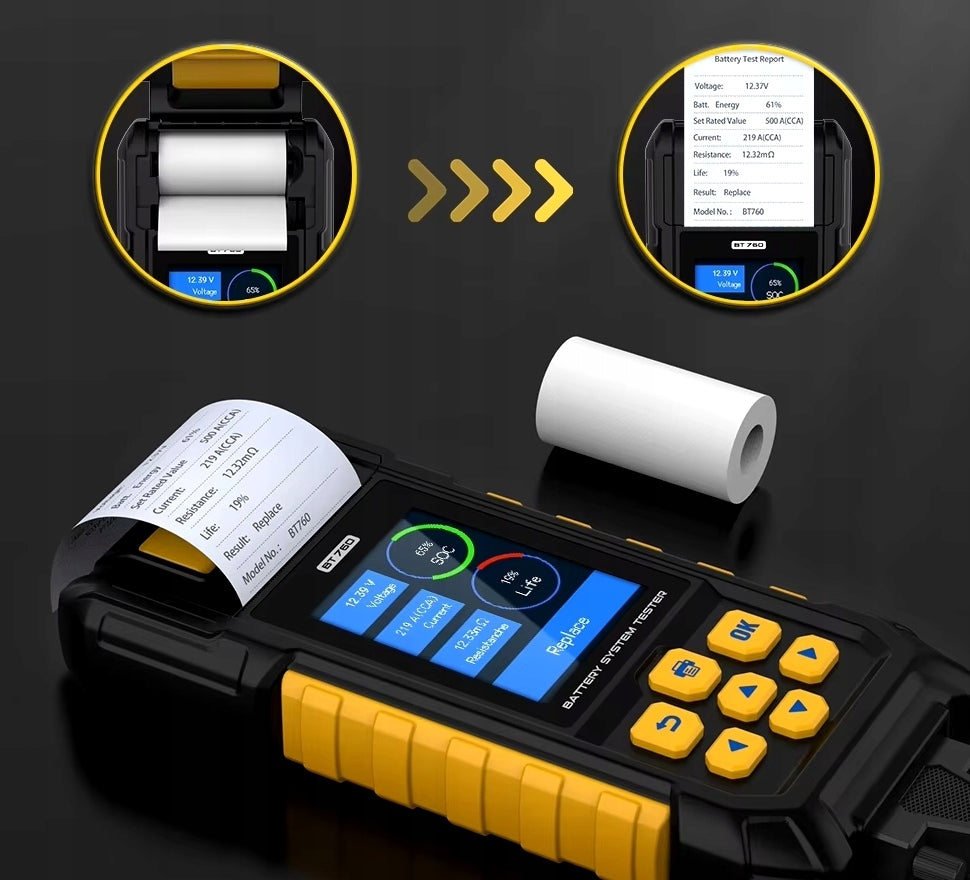

• data printing by built-in printer

AUTOOL BT-860 Specification:

1. Scope of measurement of inrush current in given units:

• CCA: 30-2000
• BCI: 30-2500
• CA: 30-2500
• MCA: 100-2000
• DIN: 30-2500
• IEC: 30-2500
• EN: 30-3000
• SAE: 30-2500
• GB: 30-300Ah
• JIS: 28A19-N135

1. Working environment Temperature: -20*C to 50*C
2. Housing Material: acid-resistant ABS plastic
3. Battery capacity measurement range: 30Ah-300Ah
4. Voltage Measuring Range: 9-30 VDC
5. Application: 12V/24V

If you are looking for a device with the ability to test batteries after specifying the same capacity of the battery 'Ah' (ampere-hours), without specifying the starting power 'A' (amps) you need to purchase a different Tester than offered in this auction. The lack of the specified starting power 'A' stated on the battery label actually excludes the use of this tester for batteries used in emergency UPS power supplies, control panels, energy storage, photovoltaic control panels, battery toys, etc.

In this case, one solution remains to purchase a battery tester:

• 24DIAG B670 (6V 12V 24V) or 24DIAG B870 (6V 12V 24V with option to print measurements) (available at our allegro auctions).

These testers are the only ones in this price range that have the so-called option. Quick Test after specifying the battery capacity itself (Ah ampere-hours) without specifying the starting power (A amperes). In addition, they have a very wide range of 'Ah' tested batteries from 2Ah to 220-300Ah, which allows you to test even very small batteries.

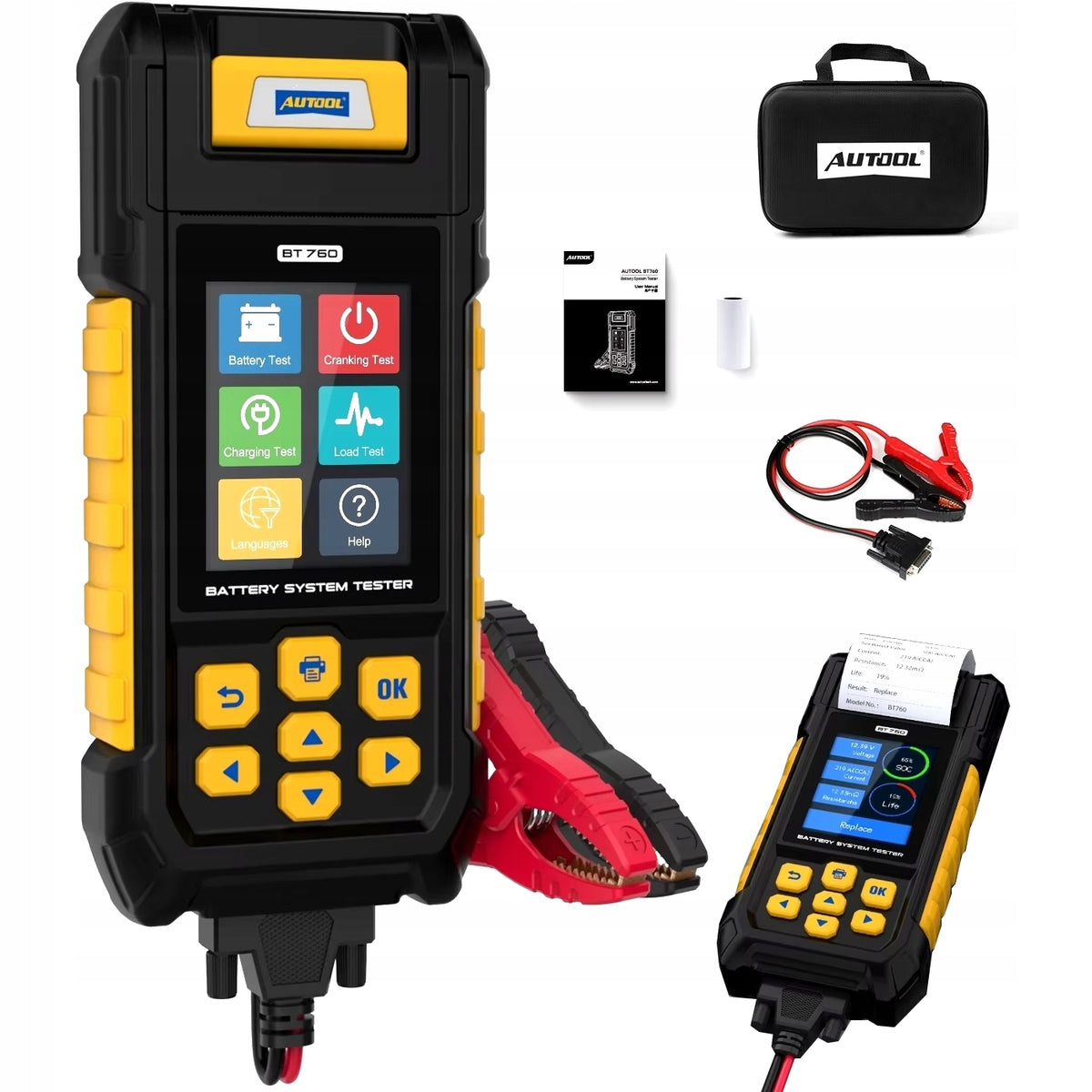

The set includes:

1. AUTOOL BT-760 tester
2. Paper roll for printer
3. Measuring cable with terminals (crocodiles)
4. Lockable case
5. User manual in English
6. Original packaging

No additional batteries and accumulators are needed to power the device, as it draws power directly from the tested car battery.

Presentation of the device:

https://www.youtube.com/watch?v=0GxmIrN-QSI

Cable connection:

• red (+)
• black (-)

1. Detects bad batteries.
2. Recording of measurements taken, you can return to the database of previously made measurements.
3. Battery temperature measurement, range: -20'C to 50'C
4. Protection against poor pole connection. Poor connection will not break the tester/battery/car.
5. Direct battery test with charging drops. There is no need to fully charge the battery before testing.
6. The battery test is mainly aimed at analyzing the service life when calculating its current capacity and degree of wear. This will help you assess whether the battery needs to be replaced.
7. Thanks to the test, you will assess whether the battery powers the car with the right current at start-up and engine operation.
8. The charging test enables the analysis of the charging system in the vehicle to check whether the voltage in the electrical system is correct.
