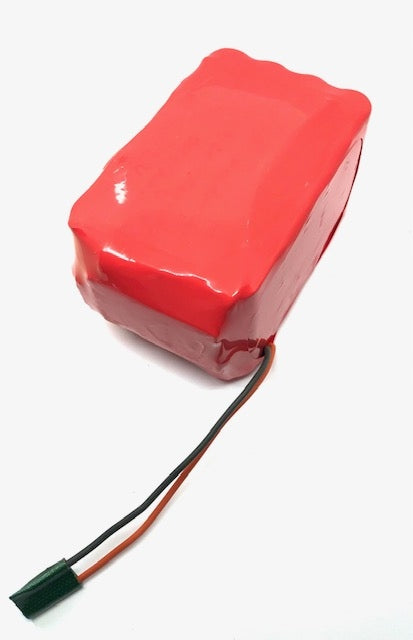

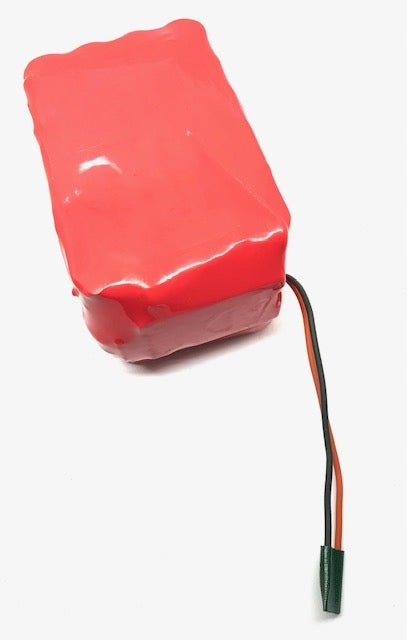

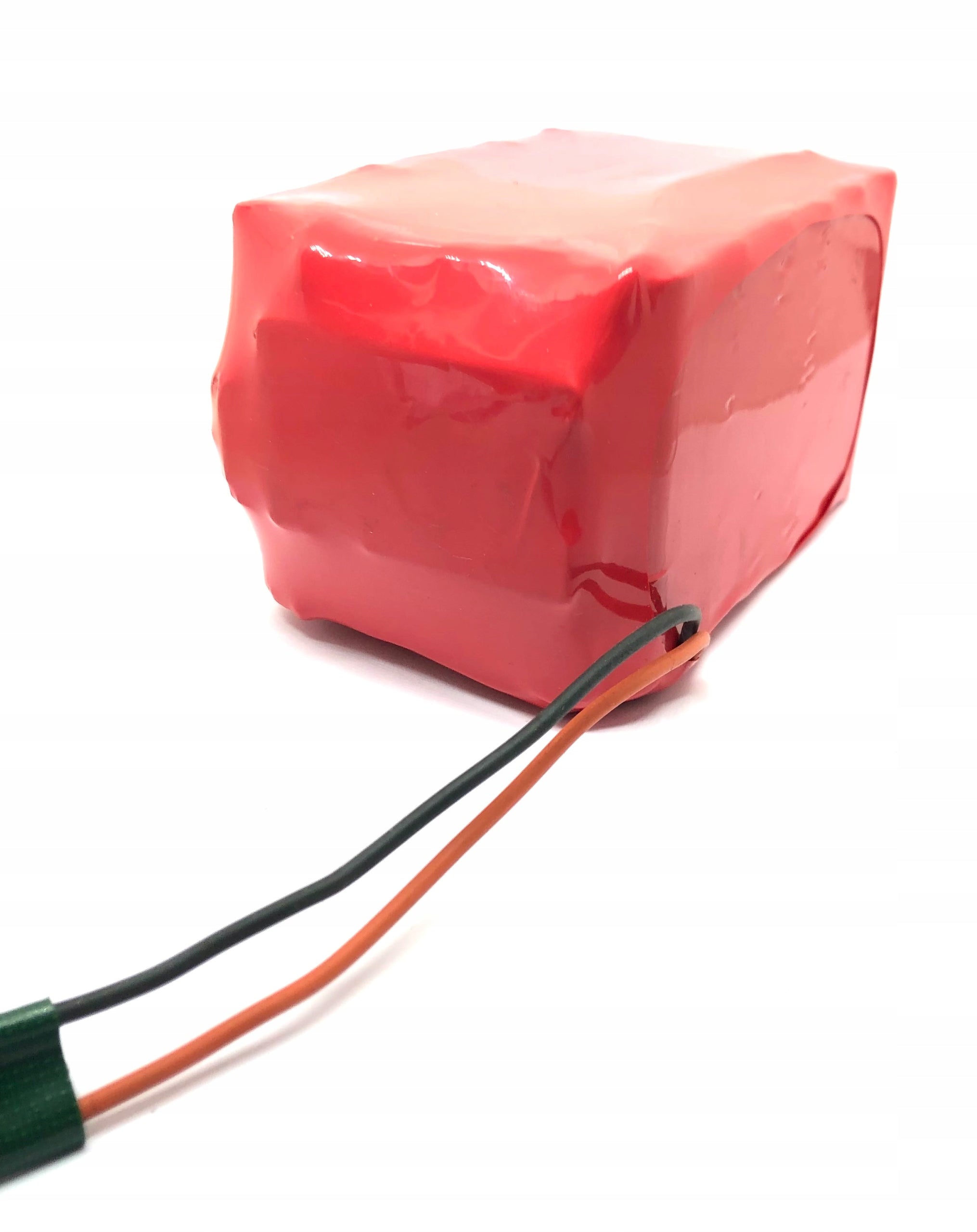

Akumuliatorius SAMSUNG INR18650-29E 24V 11,6Ah su BMS 16A

Trumpai apie prekę

Prekė: Akumuliatorius SAMSUNG INR18650-29E 24V 11,6Ah su BMS 16A. Kategorija: Dulkių siurblių baterijos.

• Gamintojas: AmElectronics
• Modelis: 24-116

Battery - 6S4P 22,5 package - 24V 11600mAh BMS 16A protection

• charging with charger max 25,2V
• Package dimensions 72,5mm x 66 mm x 118 mm

Parameters of single cell:

• Cell Type:Li-Ion(18X65mm) Lithium-Ion
• Voltage: 3.7V
• Typical capacity: 2900 mAh
• Rated Voltage: 3.635V
• Minimum Voltage: 2.5V
• Maximum voltage 4.2V
• Standard charge current:1375mAh
• Maximum charging current: 2750mA
• Maximum continuous discharge current: 2750mA
• Maximum pulse discharge current: 8250mA
• (manufacturer's data)

Attention!

• In case of improper use, Li-Ion/Li_Poli cells can be very dangerous to use.
• Each cell or package of cells must have a BMS/PCM system installed before use.
• Short circuit or improper use can cause fire or explosion.
• Use according to the parameters of the cell manufacturer's data sheet.
• Do not change the polarity (e.g. in the charger), do not short-circuit, do not carry in the pocket with metal elements (e.g. keys).
• Do not undress (lithium is poisonous).
• Do not use cells without insulation.
• Do not overload or over-discharge.
• Do not subject to water and high temperatures.
• Do not solder.
• Store in a cool, dry and ventilated room.
• Recycle used cells.
• Use dedicated chargers.

Specifications
