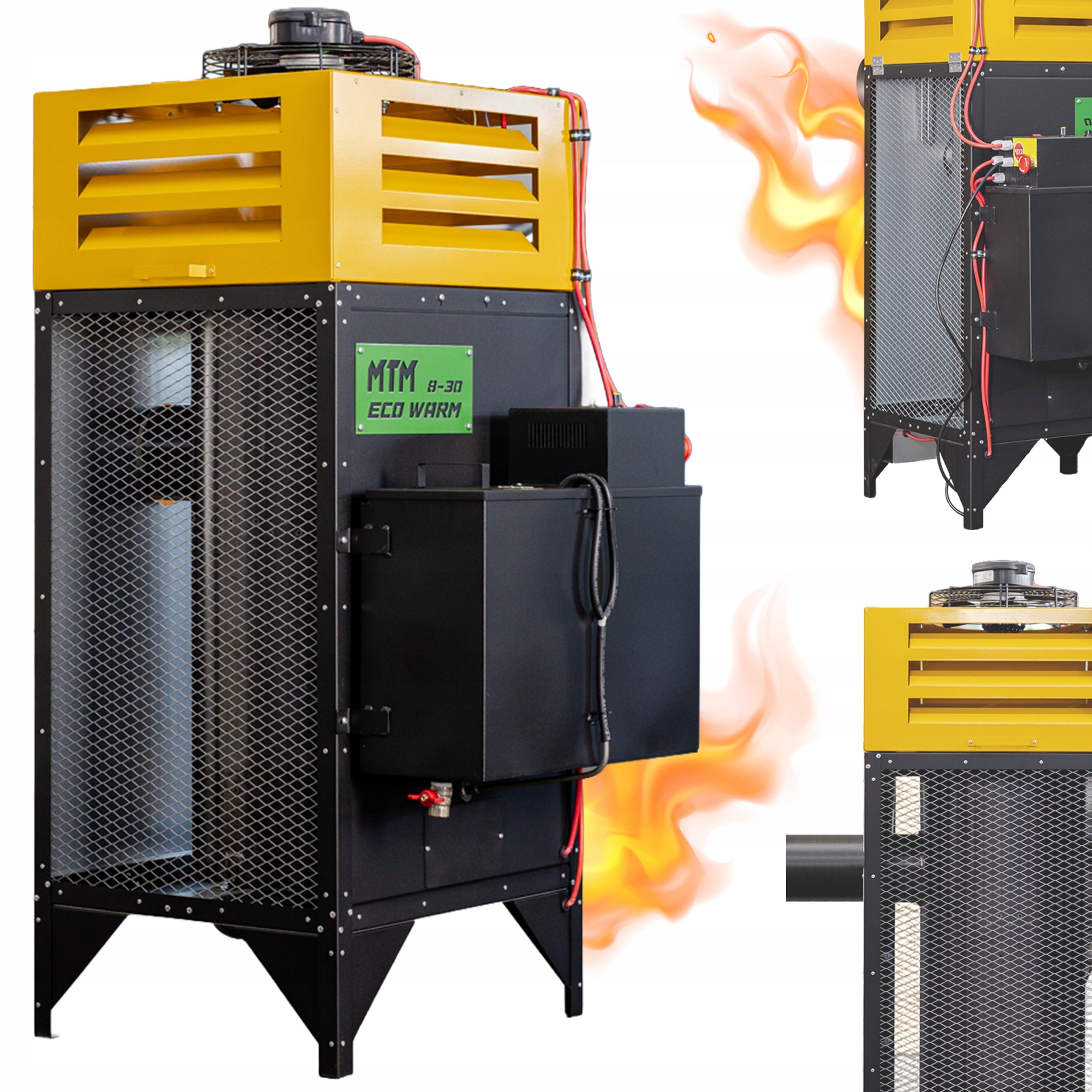

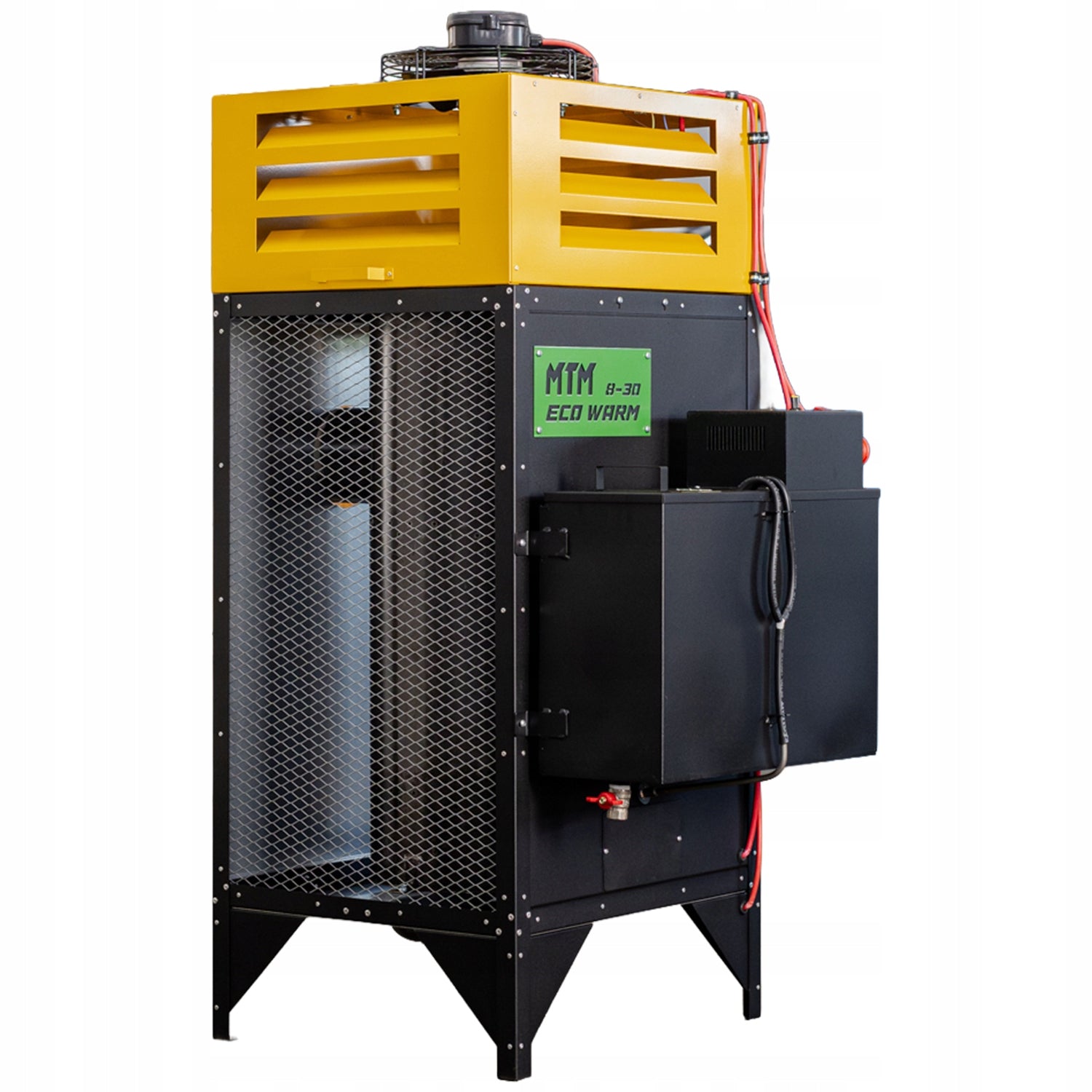

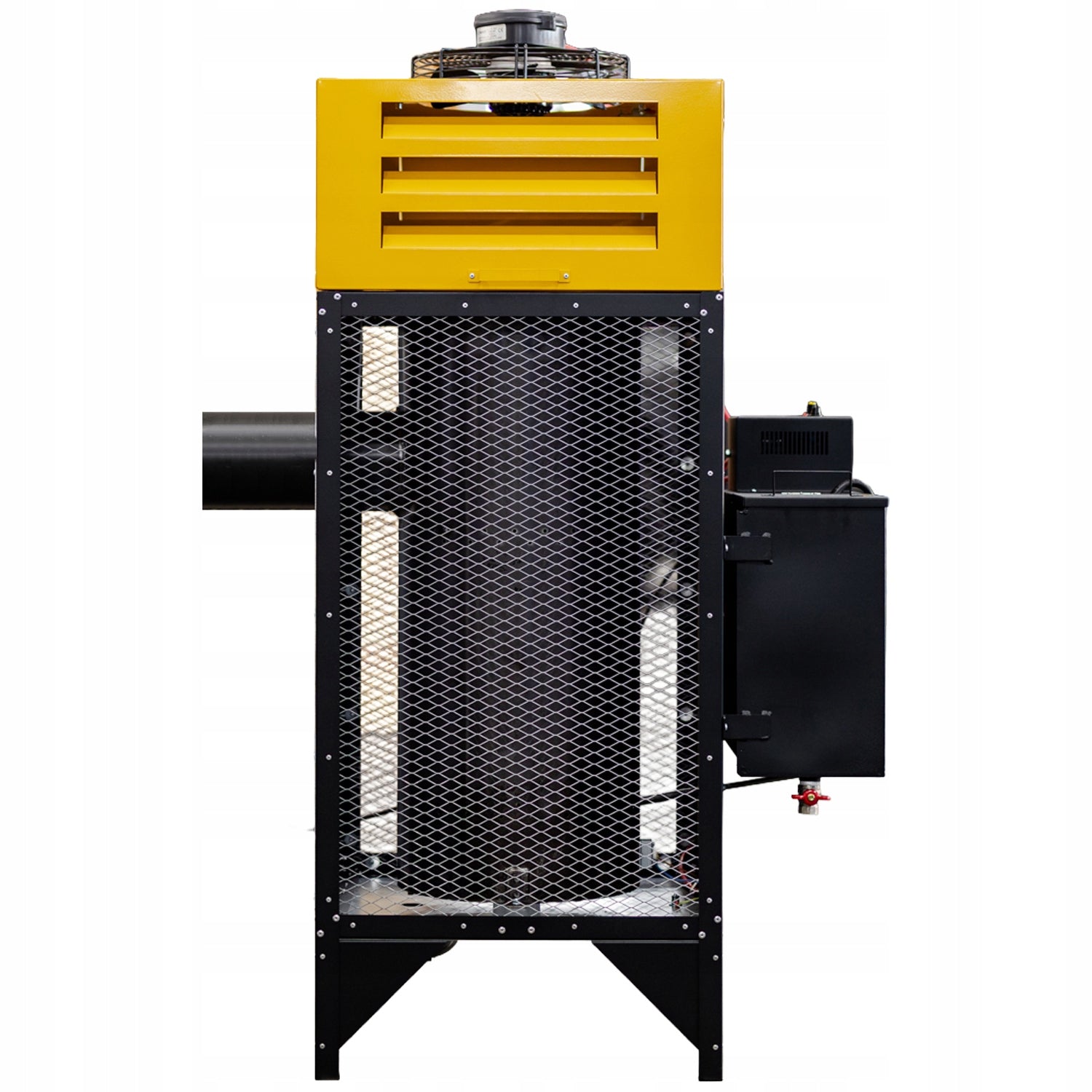

Alyvos krosnis MTM ECO WARM, 8–30 kW, dirbtuvėms

Trumpai apie prekę

Prekė: Alyvos krosnis MTM ECO WARM, 8–30 kW, dirbtuvėms. Kategorija: Oro šildytuvai.

• Gamintojas: MTM
• Modelis: MTM 8-30

⚙ TECHNICAL DATA:

• HEATING POWER: 8 kW / 19 kW / 30 kW (adjustable)
• OIL CONSUMPTION: From 0,8 to 3,0 l/h
• AIR EXPENDITURE: 800 m³/h
• ELECTRICAL POWER SUPPLY: 230 V / 50 Hz
• POWER CONSUMPTION: 100 W
• RATED CURRENT: 0,44 A
• DIAMETER OF THE SPIGOT: 130 mm
• DIMENSIONS (WIDTH X D. X H ): 590 x 880 x 1330 mm
• WEIGHT: 70 kg
• CAPACITY OF TANK: 25 l

⭐ KEY FEATURES

✔ SEMI-AUTOMATICITY: The heater is semi-automatic. It is ignited manually, then its operation is controlled automatically using the controller and power regulation.

✔ THREE DEGREES OF POWER ADJUSTMENT: Possibility to set the power to 8 kW, 19 kW or 30 kW, which allows you to adjust to your current heating needs.

✔ COMBUSTION CHAMBER: Made of steel, and the furnace bowl made of cast iron, which ensures durability and resistance to high temperatures.

✔ FUEL PUMP: The slow-rotating gear pump pumps any type of oil, regardless of its density.

✔ AUTOMATION: Improved controller with voltage stabilization system and surge protection, which increases the life of the device.

✔ THERMAL EFFICIENCY: Heats rooms up to 800 m³ (with good insulation).

✔ PROTECTION: Protection system against oil overflow in the combustion chamber and against overheating.

♨ FUELS ACCEPTED

✔ Vegetable oils (BIOPALIWA),

✔ BIODIESEL,

✔ Raw vegetable oils (including after-frying oils),

✔ Fuel oil.

The device is adapted to burn different types of alternative oils.

It can work on fuels available on local fuel depots, e.g. fuel oil, BIOdiesel, vegetable oils, HVO100, B100 and some pyrolysates. Read the local regulations.

✅ APPLICATION

➡ INDUSTRIAL AND COMMERCIAL PREMISES: Warehouses, production halls, workshops, catering outlets, commercial premises.

➡ FARMS: Livestock facilities, greenhouses.

➡ TEMPORARY SPACES: Tent halls, exhibition premises.

✴ FEATURES OF THE HEATER:

✔ FUEL FILLER: Allows easy and quick access to fuel replenishment. Equipped with a filter that can be cleaned without any problems.

✔ DRAIN VALVE: Allows the drainage of water accumulated in the fuel tank, created during long-term storage. This allows you to maintain optimal fuel quality and trouble-free operation of the device.

✔ CAPACIOUS FUEL TANK: 25l.

✔ SOLID CONSTRUCTION: Stainless steel combustion chamber, cast iron furnace bowl – ensures the life of the device and high temperature resistance.

✔ CONTROL: Precise, gradual power adjustment in the range of 8, 19 and 30 kW. The device is equipped with an intuitive and reliable control panel with a knob and an on/off button.

✔ AIR EXHAUST TEMPERATURE: The maximum temperature of the blown air is 50 to 70°C assuming an ambient temperature of about 12°C.

✔ BLOWING: The stream of heated air is distributed to the sides, ensuring effective heat distribution in the room.

✔ OVERFLOW PROTECTION: The built-in weight overflow bowl automatically stops the fuel pump in case of combustion problems, ensuring safety of use.

✔ OVERHEATING PROTECTION: This function is performed by the STB thermostat, which turns off the fuel pump when the temperature in its environment reaches 100°C, ensuring the safety of use of the device.

➡ ECONOMIZER (OPTIONAL): The possibility of recovering up to 40% of heat from exhaust gases, which significantly reduces operating costs and allows you to heat additional rooms.

1 - Combustion chamber aeration fan

2 - Air intake

3 - Location of the combustion chamber inside the housing

4 - Driver

5 - Fuel filler

6 - Warm air outlet

7 - Fuel tank with a capacity of 25L

8 - Drain valve

9 - Control thermostat

1 . Fuel is fed to the furnace bowl using a pump in the tank.

2. On a hot surface, the fuel evaporates and mixes with air to form a flame.

3 . The flame warms the combustion chamber.

4 . The fan sucks in cold air and lets it pass around the chamber, heating it - this is how we get heated air.

5 . The exhaust gases are directed through the deflector and sleeve to the exhaust outlet.

6 . Exhaust gases are removed outside by the chimney on the principle of natural thrust.

♨ CHIMNEY INSTALLATION

For the proper operation of the heater, a properly carried out chimney installation is necessary.

The indicated drawing shows the chimney installation carried out in an appropriate manner.

It is recommended to use the device after reading the instruction manual in detail. Only proper use guarantees full efficiency and safety of work. The heater is reliable and efficient – provided that the rules of use are observed.

⚠ IMPORTANT INFORMATION FOR THE USER

For the proper operation of the heater, a properly carried out chimney installation is necessary.

It is recommended to use the device after reading the instruction manual in detail. Only proper use guarantees full efficiency and safety of work. The heater is reliable and efficient – provided that the rules of use are observed.

IMPORTANT: Copyright protection

The photos, titles and descriptions of this listing are protected by copyright. Copying them without our permission is prohibited and will be prosecuted.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	MTM
Parametry	Kind	oil
Parametry	Heating power	35 kW
Parametry	Model	MTM 8-30
Parametry	Manufacturer code	MTM 8-30
Parametry	Energy efficiency class	brak klasy energetycznej
Parametry	Range of energy efficiency classes	no energy class
