Alyvos šildytuvas MASTER B 35CED, 10 kW

Trumpai apie prekę

Prekė: Alyvos šildytuvas MASTER B 35CED, 10 kW. Kategorija: Oro šildytuvai.

• Gamintojas: Master
• Modelis: B35 CED

OIL HEATER MASTER B 35CED 10 KW WITHOUT EXHAUST FUMES

Oil heaters without exhaust fumes are highly efficient devices that ensure a constant supply of large amounts of heated air where it is desired. They are perfect for open or well-ventilated surfaces, such as factories, warehouses, or construction sites. Master exhaust-free heaters are both efficient, durable and safe and easy to use.

Heater Master model B35CED 10 kW

________________________________________

• Model: B 35CED
• Heating power kW: 10
• Heating power Btu/h: 34 200
• Airflow: 280 m3/h
• Fuel consumption l/h: 0,8
• Tank capacity: 15 l
• Operating time on full tank: 16 h.
• Protection factor: IP41
• Dimensions of the device length. x W x H: 745 x 300 x 405
• Package dimensions L. lat. x H : 810 x 350 x 450

Model description:

• High airflow
• Possibility of connecting an external thermostat
• Thermal protection
• Set of filters as standard
• Combustion chamber made of stainless steel
• Oil Level Indicator
• Electronic flame indicator with photocell
• Strong and durable construction
• New Image

The B35CEd heater with a power of 10 kW and an air flow of 280 m3/h is a model from the series of low-pressure heaters used to heat smaller rooms. The device features a compact design and ergonomic construction for easy use and transport. The fuel tank with a capacity of 15 l ensures continuity of operation for several hours – the average fuel consumption is 1l / h. You can additionally connect a thermostat to the device, which will save us time and fuel.

DESCRIPTION OF THE MODEL:

The large air flow of 280 m3/h and the power of 10 kW allows for quick heating of rooms and semi-open spaces. The big advantage of this heater is a stable, specially profiled, durable housing resistant to harsh conditions. All components have been selected in such a way as to ensure trouble-free operation for a long period of time regardless of the degree of operation. The B35CEd heater has m.in. electronic flame indicator, motor with thermal protection and high-quality combustion chamber made of stainless steel. The convenient handle allows you to easily position the device anywhere, while the built-in 15 liter fuel tank provides several hours of continuous operation.

The Master B35CED heater does not require complicated installation and is ready to work immediately after commissioning. The control panel itself is easy to use, and in addition, there is a clear step-by-step instruction on how to prepare the device for work. The heater has a thermostat with a display that allows you to efficiently control the temperature in the room and significantly reduces operating costs by reducing fuel consumption. Maintenance of the device is also very easy, so it does not cause long breaks in the work.

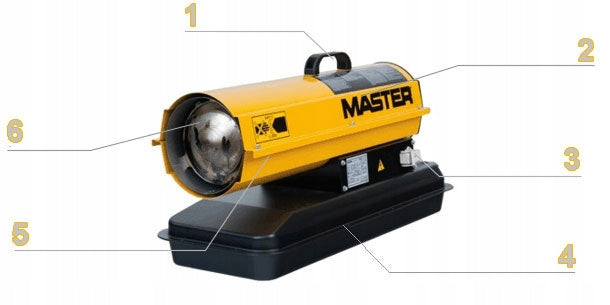

1. Easy transport

2. Stainless Steel Chamber

3. Possibility of connecting an external thermostat

4. Fuel tank included

5. Fuel tank indicator

6. High airflow

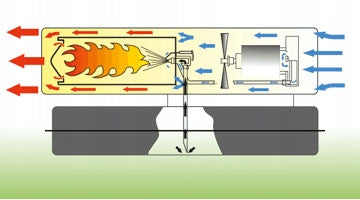

DESCRIPTION OF ACTION:

• After starting the heater, the compressed air sucks fuel from the tank.
• Sprayed fuel, in contact with the ignition element, ignites in the combustion chamber.
• The burned fuel is mixed with the flowing air flow produced by the fan.
• The flowing air flow heats up and comes out with the exhaust gases.

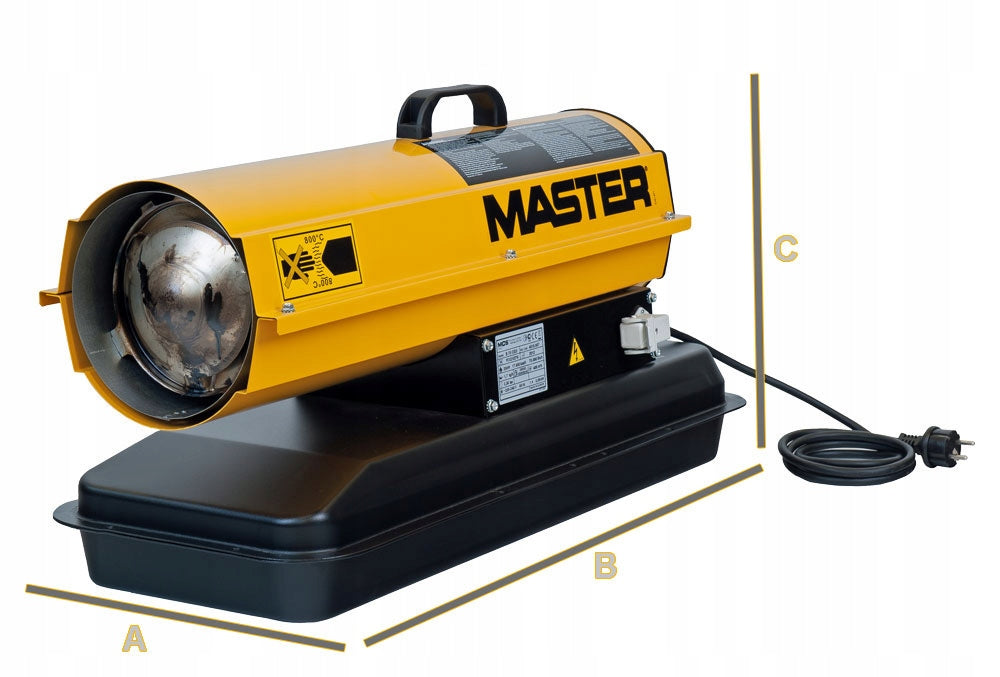

DIMENSIONS:

A width - 30 cm

B length - 74,5 cm

C height - 40,5 cm

TECHNICAL SPECIFICATION:

• Heating power [kW]: 10
• Air flow [m3/h]: 280
• Working time on full tank [h]: 16
• Thermostat adjustment: possible
• Fuel consumption [kg/h]: 0,8
• Power supply / frequency [V/Hz]: 220-240/50-60
• Electrical power [kW]: 0,08
• Rated current [A]: 0,35
• Protection [IP]: 41
• Capacity of tank [l]: 15
• Dimensions of the device (Lx sz x H) [mm]: 745 x 300 x 405
• Package dimensions (L x sz x H) [mm]: 810 x 350 x 450
• Net weight/gross [kg]: 15/18

APPLICATION:

warehouses, workshops, construction, repairs, agriculture

WE ALSO SUGGEST BUYING ADDITIONAL ACCESSORIES FOR HEATERS:

• Outdoor Manual Room Thermostat
• Set of wheels
