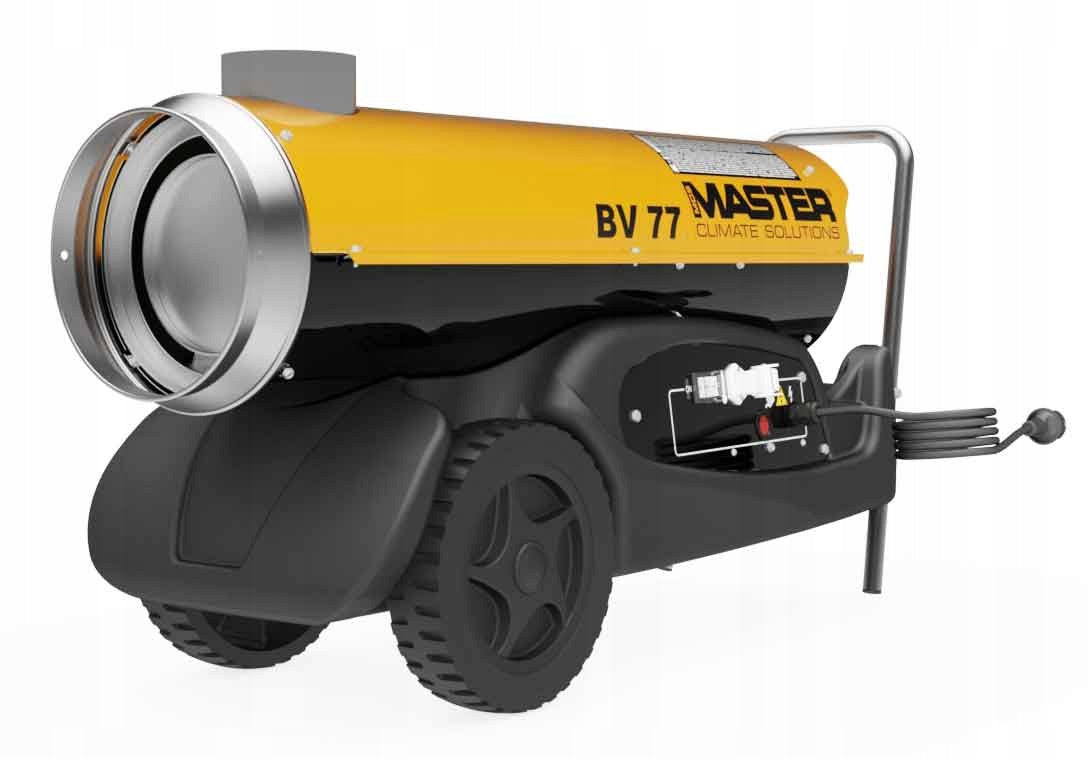

Alyvos šildytuvas MASTER BV77E, 20 kW

Trumpai apie prekę

Prekė: Alyvos šildytuvas MASTER BV77E, 20 kW. Kategorija: Oro šildytuvai.

• Gamintojas: Master
• Modelis: BV77E

OIL HEATER MASTER WITH EXHAUST GAS DRAINAGE BV 77E 20 KW

__________________________________________________________________________

Oil heaters with exhaust gas drainage are highly efficient devices that provide 100% clean, dry and smoke-free warm air. They are perfect for places where ventilation is limited, such as shops, party tents, quick service bars or exhibition halls. They can be used with flexible conductors allowing for quick and easy distribution of warm air.

Heater Master model BV77E 20 kW

________________________________________

• Model BV77E
• Heating power Btu/h: 71 700
• Airflow: 1550 m3/h
• Fuel consumption l/h: 1,67
• Tank capacity: 36 l
• Operating time on full tank: 19 h.
• Diameter of chimney connection: 120 mm
• Protection factor: IP41
• Dimensions of the device length. x width x H [mm]. : 1130 x 380 x 660
• Package dimensions L x W x H [mm]: 1200x400x530

Model description:

• Clean, warm air
• Very high airflow
• Possibility of connecting a room thermostat
• Possibility of connecting flexible wires
• Thermal protection
• Set of filters as standard
• Combustion chamber made of stainless steel
• Oil Level Indicator
• Strong and durable construction
• Manufacturer: MASTER

Bv77 with a power of 20 kW and an air flow of 1 550 m3/h is a model from the MASTER BV series of heaters with a heat exchanger. It features a compact housing and ergonomic design for easy use and transport, especially the comfortable handle and large, stable wheels. The fuel tank with a capacity of 36 l ensures continuity of operation for several hours – the average fuel consumption is 1,67 kg / h.

DESCRIPTION OF THE MODEL:

The design of the BV 77 heater is refined to even the smallest detail to ensure its high functionality and trouble-free operation. The combustion chamber is made of stainless steel, three oil filters are used: a filter in the fuel pump, a suction filter and a filter on the infusion, and an external pump facilitates maintenance. The novelty is the so-called. snorkel - an innovative solution in the fuel tank venting system that allows tight sealing of the filler and no oil leakage.

A flexible cable with a length of 7,6 m can be connected to the heater, distributing warm air to hard-to-reach places and to higher floors. In addition, it is also recommended to connect a room thermostat (mechanical or electronic) to control the temperature inside the room and minimize the costs associated with fuel combustion. Other useful accessories include e.g. fuel heater, pipe and chimney hood for exhaust made of stainless steel and a special rain cover that increases the degree of protection to IP 44 – useful especially when the device works most of the time outdoors.

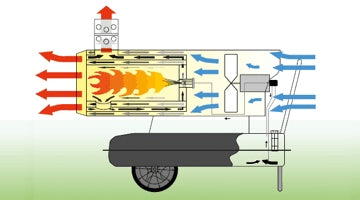

1. After starting the heater, the compressed air sucks fuel from the tank.
2. Sprayed fuel, in contact with the ignition element, ignites in the combustion chamber.
3. The burned fuel is mixed with the flowing air flow produced by the fan.
4. The flowing air flow heats up and comes out with the exhaust gases.

TECHNICAL SPECIFICATION:

• Heating power [kW]: 20
• Air flow [m3/h]: 1550
• Working time on full tank [h]: 19
• Thermostat adjustment: possible
• Fuel consumption [kg/h]: 1,67
• Power supply [V]: 220-440
• Frequency [Hz]: 50
• Electrical power [kW]: 0,3
• Rated current [A]: 1,5
• Protection: IP 41
• Capacity of tank [l]: 36
• Diameter of chimney connection [mm]: 120
• Air blowing diameter [mm]: 230
• Dimensions of the device (length x width x H ) [mm]: 1130x380x660
• Net / gross weight [kg]: 33 / 37

APPLICATION:

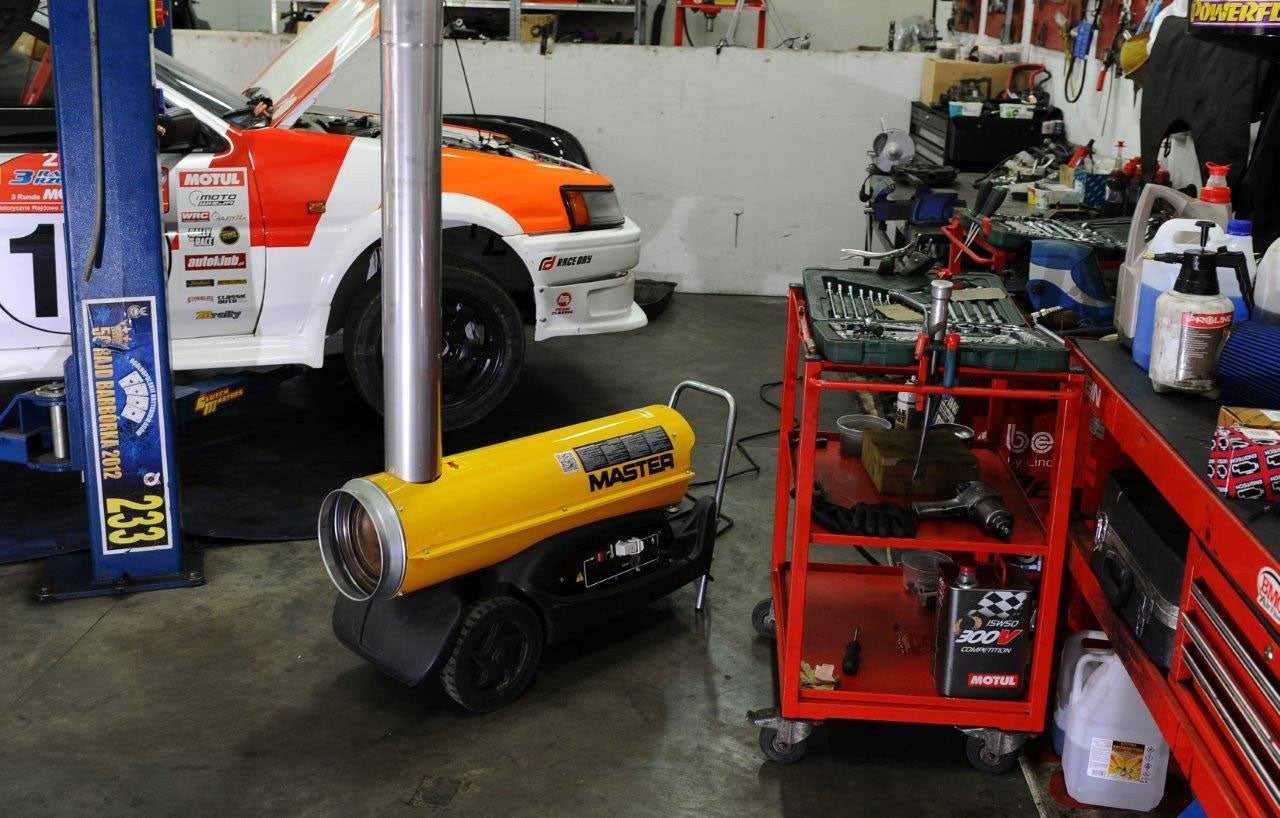

• warehouses, workshops, construction, greenhouses, rooms with animals
