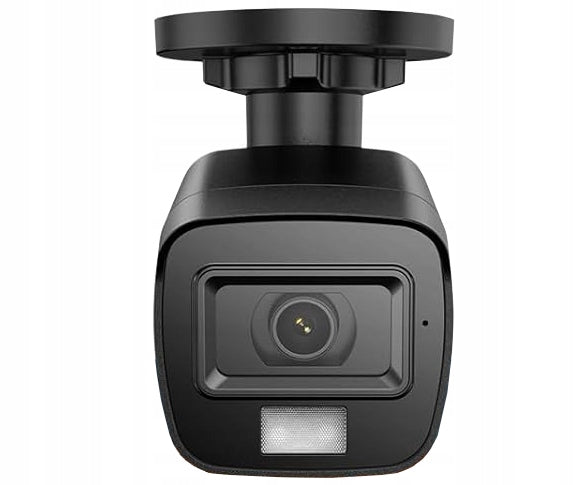

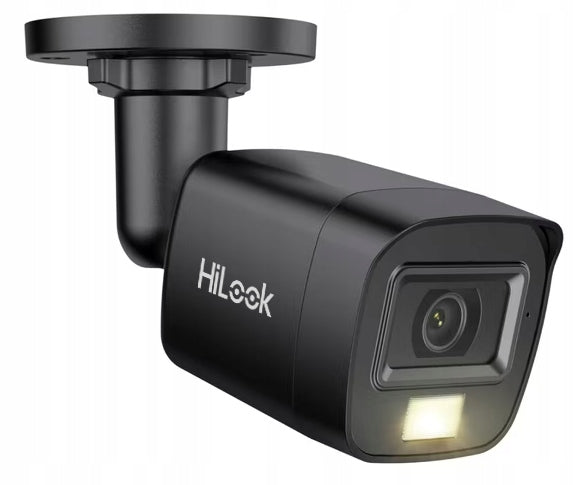

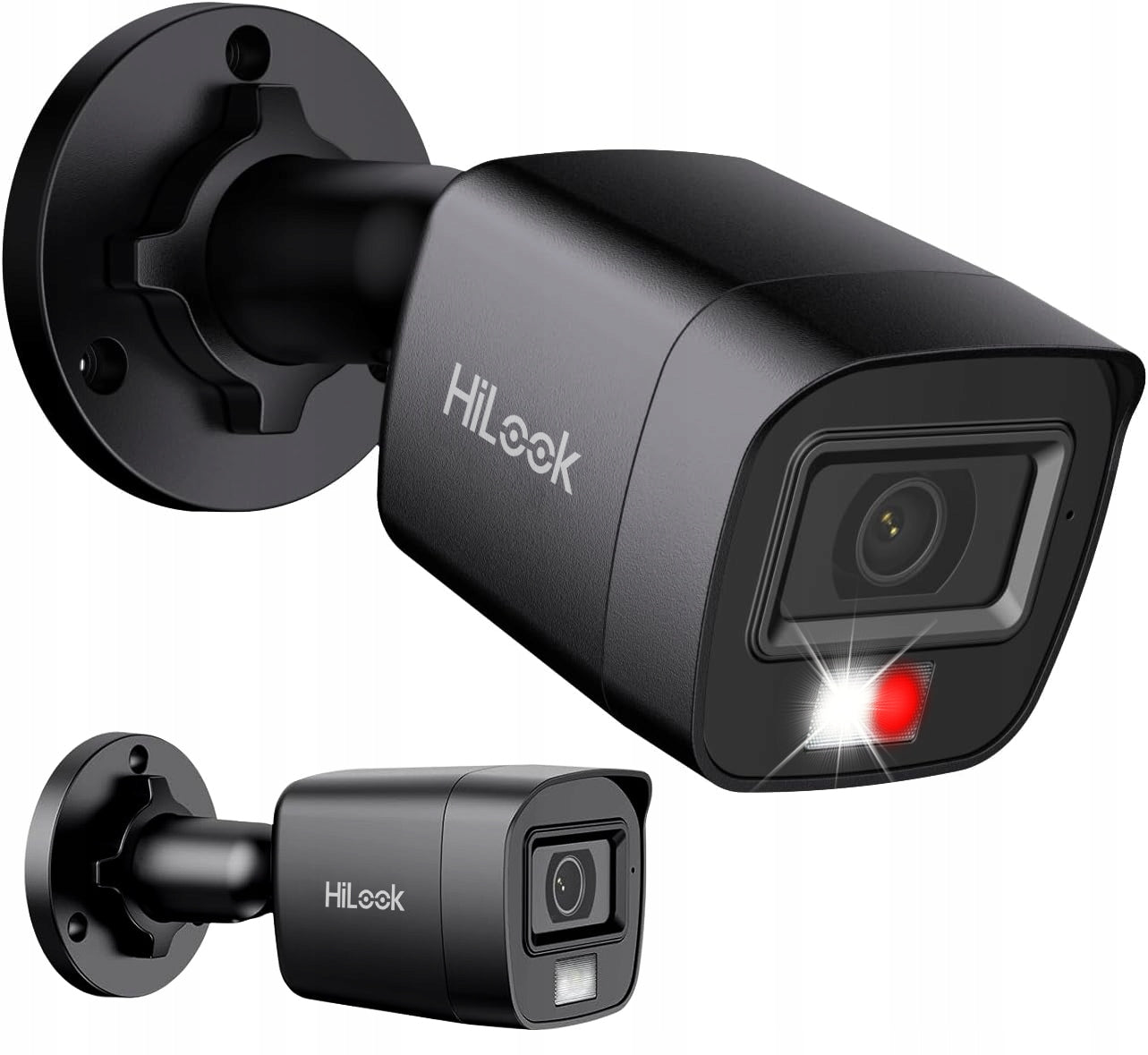

Analoginė kamera HiLook Hikvision TVI-B8M-20DL, 8 Mpx, 4in1, juoda

Trumpai apie prekę

Prekė: Analoginė kamera HiLook Hikvision TVI-B8M-20DL, 8 Mpx, 4in1, juoda. Kategorija: Fotoaparatai.

• Gamintojas: HiLook
• Modelis: TVI-B8M-20DL BLACK

4in1 / 8Mpx / 2.8mm / Hybrid Light 30&20m / IP66 housing

The TVI-B8M-20DL BLACK HiLook by Hikvision is a modern 8-megapixel horn camera, based on the 4in1 system - TVI, CVI, AHD and CVBS.

The camera has a built-in double illuminator (white + IR), which allows you to record images at night both in color and infrared.

The camera is great for installation both in new CCTV monitoring systems and in existing installations that require better image quality.

The most important features of the camera:

• High resolution 8Mpx image
• Specific housing with IP66 class
• Double illuminator: IR with a range of up to 20 meters and white light up to 30m
• Easy installation and control from the intuitive on-screen menu (OSD menu)

Technical parameters:

• Converter: CMOS 8 Mpx
• Recording resolution: 3840 (H) × 2160 (V)
• Framerate:

TVI: 8MP@12.5 fps, 8MP@15 fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30 fps

AHD: 8MP@15fps

CVI: 8MP@12.5fps, 8MP@15fps

CVBS: PAL/NTSC

• Fixed-focal lens: 2,8 mm
• Angle of view: 108°
• Day/night automatic switch: Yes
• Infrared illuminator: up to 30m
• White light illuminator: up to 20m
• Working mode: 4in1 (HD-TVI/AHD/HDCVI/CVBS switch)
• Protection class: IP66
• Image functions: DWDR/BLC/HLC/
• Automatic white balance: Yes
• OSD Menu: Yes
• Application: external or internal
• Power Supply: 12V
• Material: metal
• Dimensions: 138.8 mm × Ø70 mm
• Weight: 0.31 kg

The camera is equipped with a high-quality CMOS sensor with a resolution of 8Mpx - such a large number of pixels on the image allows you to record all the details and make digital close-ups, facilitating the identification of recorded objects. High resolution, and thus sharper image, improve the quality of the system and allow to protect the property even more effectively.

Thanks to the dual Smart Hybrid Light, the TVI-B8M-20DL will allow you to record at night in three modes, which you can adjust to your needs:

✅ IR Infrared Mode - in this mode, the camera captures images in black and white using an IR illuminator to illuminate the scene

✅ 24/7 color mode - in this mode, the camera observes the scene all the time in color, permanently starting the white light LEDs after dark

✅ *Intelligent mode - in this mode, the camera watches, recording the image in infrared, after which it activates white light illumination as soon as it detects movement in the image. Thanks to this, it can quickly capture e.g. clothing colors or body color while remaining discreet when nothing happens in the image

*smart mode is only available in conjunction with the HiLook / Hikvision recorder, which supports this function.

The TVI-B8M-20DL BLACK camera is mounted using a handle with the possibility of adjustment in three planes - so you can adjust its position in both mounting scenarios:

• A - installation in wall variant
• B - ceiling mounting

Thanks to its compact size, the installation of the camera is lightning fast.

• Converter: 4K CMOS
• Maximum resolution: 3840 (H) × 2160 (V)
• Minimum lighting: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter time: PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
• Day and night: color or infrared
• Angle adjustment: Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
• Signal system: PAL/NTSC
• Lens type: Fixed focal length 2.8 mm and 3.6 mm
• Focal length and FOV: 2.8 mm, horizontal FOV: 108°, vertical FOV: 59°,
• Lens mount: M12
• Type of additional lighting: White light, IR
• Additional lighting range: IR: Up to 30 m, White light: Up to 20 m
• Image settings: Brightness, Focus, Smart IR
• Frame rate: TVI: 8 MP @12.5 fps, 8 MP @15 fps, 4 MP @25 fps, 4 MP @30fps, 2 MP @25 fps, 2 MP @30 fps AHD: 8MP@15fps CVI: 8MP@12.5fps, 8MP@15fps CVBS: PAL/NTSC
• Day/Night Mode: Auto/Color/Black and White
• Wide Dynamic Range (WDR): Digital WDR
• Image improvement: DWDR/BLC/HLC/Global
• White Balance: Auto/Manual
• AGC: Yes
• Video output: Switchable TVI/AHD/CVI/CVBS
• Power supply: 12 VDC ± 25%, 0.38 A, max. 4.6 W, *It is recommended to use one power supply to power one camera
• Material: Metal
• Dimensions: 138.8 mm × Ø70 mm
• Weight: Approx. 310 g (0.68 lb.)
• Working conditions: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
• Application: HiLook App / Hikconnect(using HiLook DVR)
• Protection class: IP66

The camera is sold without a 12V power supply. Compatible power supply is available at auction No. 16007754465.
