Analoginis vaizdo įrašymo įrenginys DVS, 4 kanalai, 8MPx, nuotolinis stebėjimas

Trumpai apie prekę

Prekė: Analoginis vaizdo įrašymo įrenginys DVS, 4 kanalai, 8MPx, nuotolinis stebėjimas. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: DVS
• Modelis: DVS-XVR0401-N8

Professional analog recorder for monitoring systems

The subject of the offer is a professional AHD recorder DVS-XVR0401-N8 from the renowned brand DVS. Powerful, multi-threaded processor of the new generation makes the recorder provides preview and recording of up to 4 cameras in the highest resolution 8MPx lite

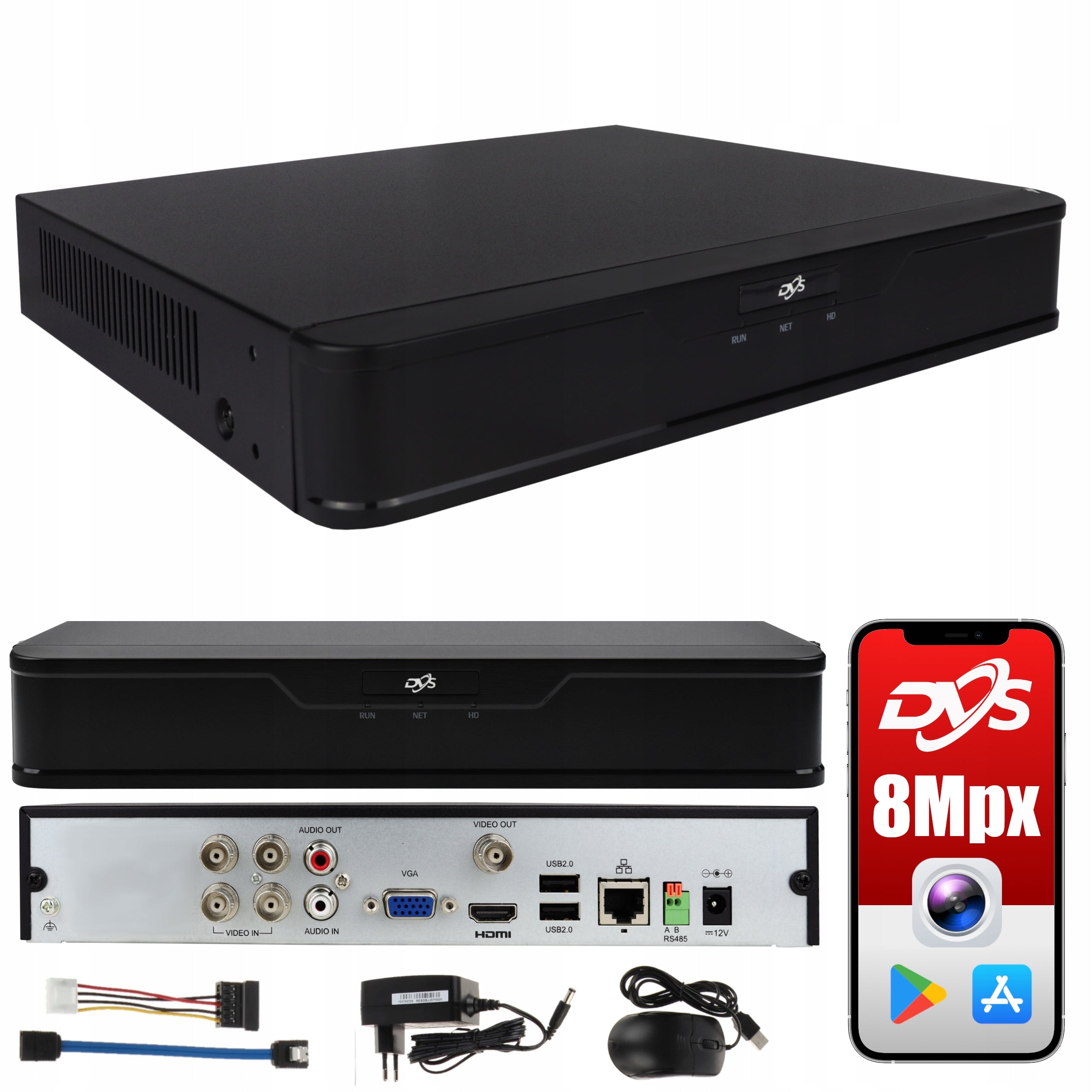

The set includes all the necessary components needed for installation, commissioning, and configuration:

• DVS-XVR0401-N8 recorder
• set of accessories
• complete documentation (instruction in electronic form can be found in the tab "Additional information")

Most important features:

• Support for up to 4 cameras
• Maximum supported camera resolution: 8MPx lite
• Local preview via monitor or using a dedicated mobile application for Android, iOS and Windows desktop computers
• Recording events in a loop, after motion detection, based on schedule
• State-of-the-art H.265 image encoding that allows you to save almost twice as much data as H.264 encoding
• Support for ONVIF protocol

DVS-XVR0401-N8 we recommend users who expect the highest image quality from the device and functionality beyond standard solutions. The recorder is dedicated to small and medium-sized monitoring systems, e.g. for apartment, house, shop, warehouse, restaurant or office. Intuitive operation and automatic search for cameras from different manufacturers means that installation and configuration does not require specialized knowledge and can be done by almost any user.

Preview on your phone/computer

The set offers preview via both smartphone, and computer, monitor or tablet. The user can play and save recordings to the DVR's hard drive from within the application.

Just install the Polish-language Guard Viewer application, prepared for Android / iOS devices, create an individual account and have an Internet connection. Dedicated program Guard Station will allow you to view the image from the cameras using a computer.

Schedule of recordings

Choose from six types of recording trigger events (continuous, event, motion detection, alarm, motion and alarm, motion or alarm) and freely select the materials you are interested in. Choose recording days and times, add holidays and exceptions to save your valuable time and hard disk space.

-

Motion detection

With one click of the mouse, set advanced motion analysis and receive precise information (including a photo) about the zone violation directly on your mobile phone with the Guard Viewer application installed. Select on the screen where the motion detection option is to be active and set its sensitivity.

-

Automatic overwriting of recordings

The oldest recordings will be automatically replaced with new ones, without having to remove the disk (no disk in the recorder) or reformat it. If you decide that you want to keep some of the recordings, you can indicate them as excluded from overwriting, or use the archiving option on an external device that you connect to the USB port of the recorder.

-

Privacy mask

Rest assured of the requirements set by GDPR, including the option to set a privacy mask. Create up to 4 areas that will be excluded from previewing and recording events.

DVS-XVR0401-N8 specification:

• Resolution: 8Mpx lite
• Supported technologies: AHD/TVI/CVI/CVS/IP
• Maximum number of cameras supported: 4
• Number of disks supported: 1
• Disk connector: SATA
• Maximum disk capacity: 6TB
• Image compression: H.265
• Mobile application: Guard Viewer
• CMS: Guard Station
• Power supply: 12VDC
• Dimensions: 255mm×215mm×42mm
• Operating temperature: -10°C~+55°C

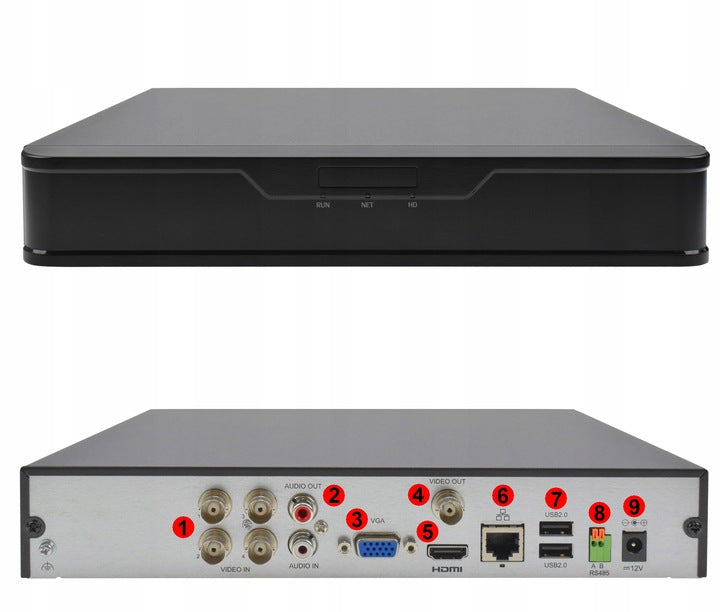

Connectors:

1. 4x BNC - camera connection
2. 1x AUDIO OUT - speaker connection , 1x AUDIO IN - microphone connection
3. VGA - monitor/TV connection
4. BNC Video - BNC video output
5. HDMI - monitor / TV connection
6. LAN - port for connecting a local network
7. 2x USB - socket for connecting a mouse / pendriva
8. RS485 - communication port
9. DC 12V - power socket

Offer Number: 12405845085
