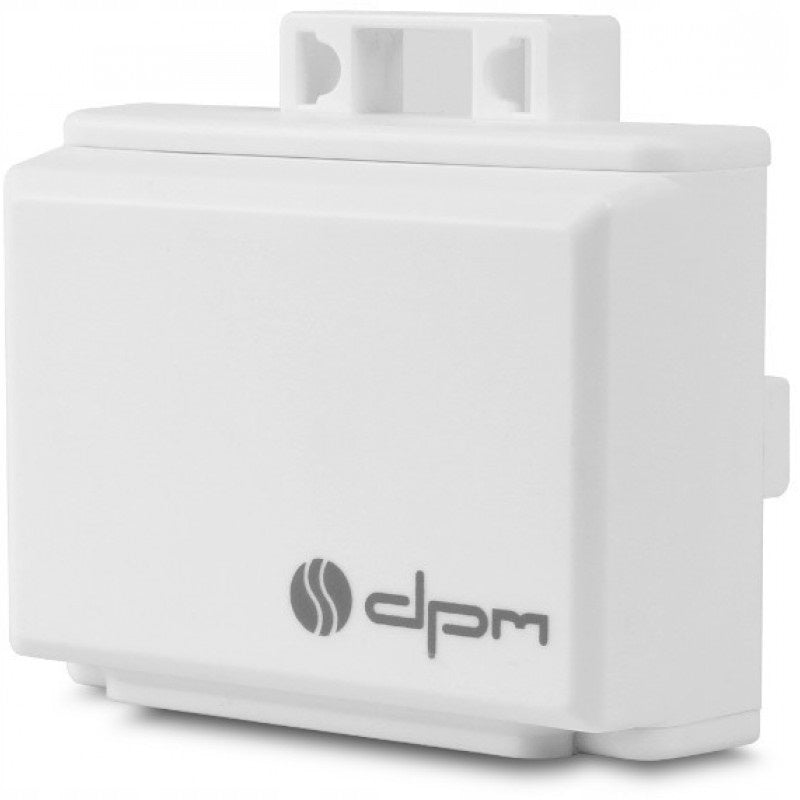

Antena DVB-T FM/VHF/UHF1/UHF2 DPM su skirstytuvu

Trumpai apie prekę

Prekė: Antena DVB-T FM/VHF/UHF1/UHF2 DPM su skirstytuvu. Kategorija: Skirstytuvai.

• Gamintojas: DPM
• Modelis: MM407

DPM DVB-T2 FM/VHF/UHF1/UHF2 Antenna Crossover

• manufacturer: DPM
• amperlux part number: 06742
• Sales Measurement Unit: pcs.

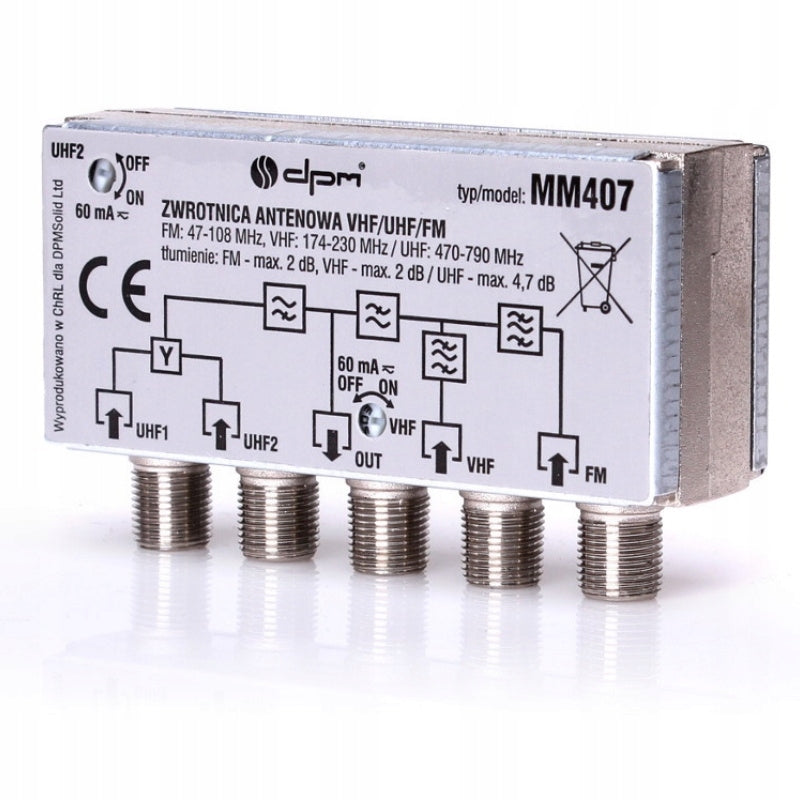

DPM DVB-T FM/VHF/UHF1/UHF2 antenna crossover

4-input antenna crossover is used to sum signals from antennas

television and radio. Suitable for building an antenna kit for

reception of programs from multiplexes MUX1, MUX2, MUX3 and MUX8. Regulated transmission

voltages for antenna amplifier allows installations with active antennas

television. Installation on the antenna mast outside the building. The set includes

clamp band for mounting the crossover on the mast.

Technical specification

• Inputs: 4 (FM, VHF, UHF1,UHF2)
• Output: 1
• Frequency Range: FM 47-108 MHz
• Frequency Range: VHF 174-230 MHz
• Frequency Range: UHF 470-790 MHz
• VHF/FM Channels: 1-5
• VHF Channels: 6-12
• UHF Channels: 21-60
• Bandwidth: FM/ VHF / UHF
• Voltage transmission at UHF2 and VHF input: 60 mA
• VHF attenuation: max. 2 dB
• UHF1/UHF2 attenuation: max. 4,7 dB
• Input/Output Impedance: 75 Ω
• Connectors: F
• Number of Connectors: 5
• Power transmission to antenna amplifier
• The product is designed to work outdoors
• Summing the signal from four antennas
• Can be mounted on an antenna mast
• Dimensions: 120 mm x 130 mm x 40 mm

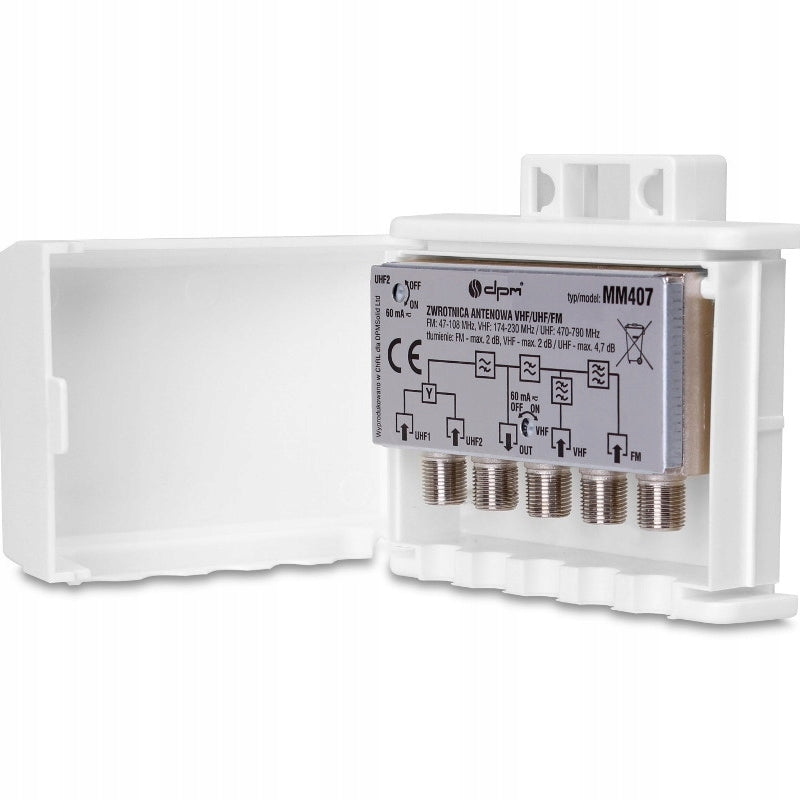

Included:

• Antenna crossover
• Clamp band for mounting
