Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: 3 eur
Aprašymas
Trumpai apie prekę
Prekė: Antena DVBT2 televizijai, kryptinė, su 5G filtru, USB, 2 laikikliai, ACTIVE. Kategorija: Antenos.
- Gamintojas: Mistral
- Modelis: Mistral MI-ANT07
- Spalva: white
TVs and Antennas and Cameras and Recorders and Accessories
Suitable for receiving DVB-T2/HEVC terrestrial television (H.265) from all multiplexes (MUX 1, 2, 3, 6, 8)
☑ external/internal ☑ 360° reception ☑ VHF and UHF reception ☑ 35 dB amplifier ☑ 3 mounting options
Most important features:
▶ Suitable for digital terrestrial TV reception - DVB-T/DVB-T2, Full HD,4K
▶ omnidirectional antenna 360° (works in all directions, without setting)
▶ Ability to receive all multiplexes (MUX-1, MUX-2, MUX-3, MUX-6 and MUX-8)
▶ Built-in low-noise amplifier
▶ Three mounting options (magnetic foot, side handle, permanent foot) - QUICK INSTALLATION WITHOUT ADDITIONAL TOOLS
▶ Antenna gain: 35dB
▶ The maximum output signal level is up to 115dBuV
▶ Built-in LTE/4G/5G filter for suppression of interfering LTE, GSM and DECT signals
▶ High resistance to harsh weather conditions (waterproof ABS housing with UV coating)
▶ Manufacturer: Mistral Poland (reputable polish brand offering i.a. truck equipment: TVs, antennas, cameras, etc. )

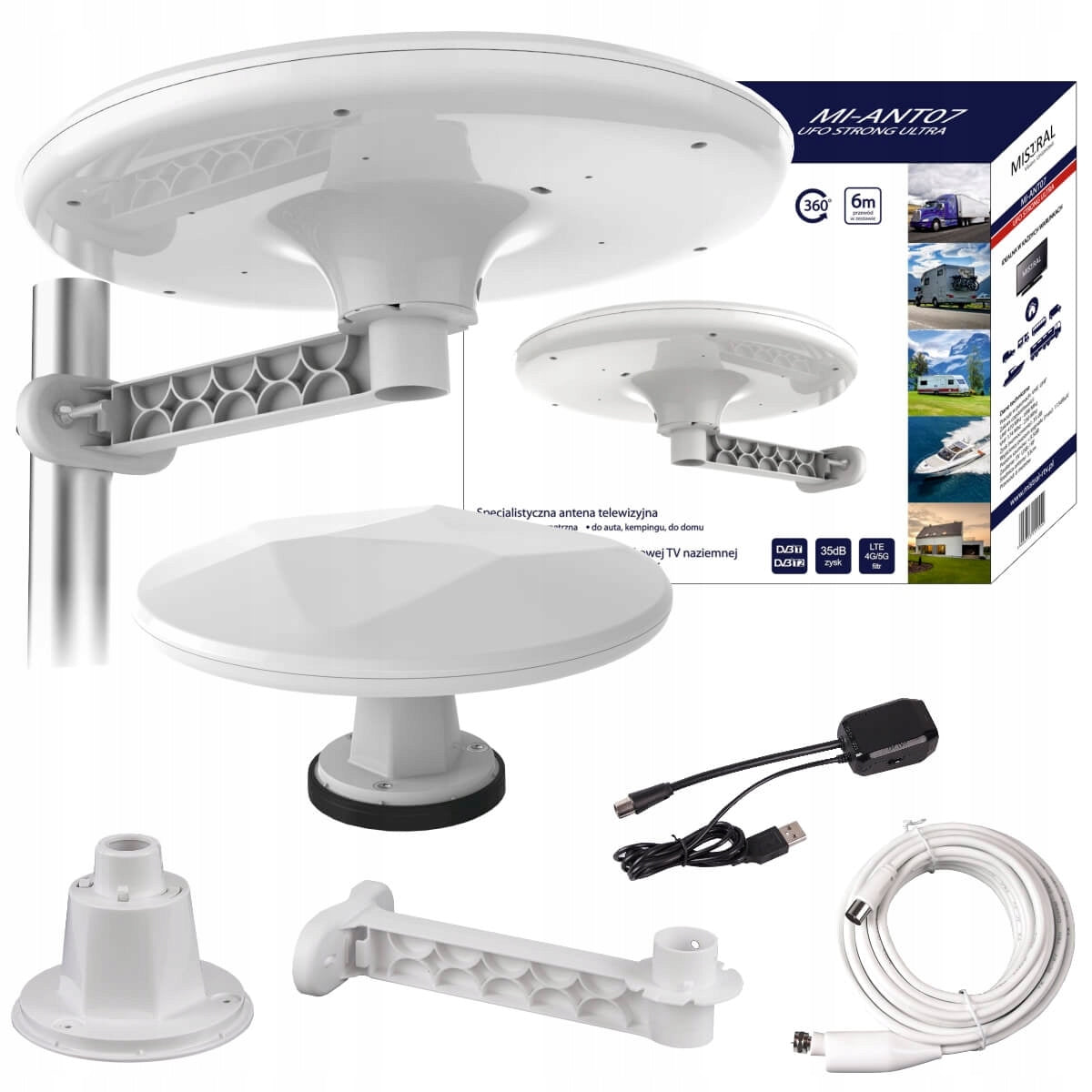

Included (everything necessary):
- Antenna MI-ANT07 white
- Side handle with mounting elements
- Magnetic holder (foot + magnet)
- Cable with a length of 6 meters
- Voltage separator with USB power cord
- Amplifier - built into the antenna
- Gasket (for permanent mounting on the foot)
Antena ANT07 UFO STRONG ULTRA, like all antennas of the Mistral Poland brand, is adapted to receive DVB-T (H.264) and DVB-T2 (H.265) signals, i.e. the latest encoding, which is available on Polish territory since 2022.
WITH THE BEST TECHNICAL PARAMETERS ON THE MARKET
Ideal for mobile applications, m.in. KAMPER, CARAVAN, ŁÓDŹ, YACHT, TIR, as well as stationary: HOME, COTTAGE, PLOT et al. It works in almost all conditions.

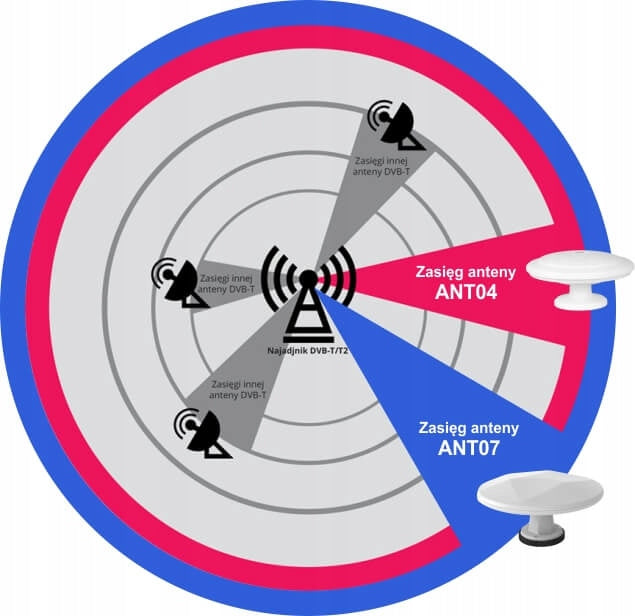

The ANT07 UFO-STRONG ULTRA antenna with omnidirectional performance characteristics and an energy gain of 35dB, provides even greater possibilities of receiving TV signal. With the uneven placement of on Polish territory and the associated often long distances between them, the ANT07 antenna seems to be an ideal solution. The effective reception distance is 120km from the transmitter*, and the maximum output signal level is 115dBuV.
*the actual reception distance depends on the transmitter strength and the signal strength that the transmitter emits.
Three mounting options depending on the needs and capabilities (side handle, magnet and the ability to attach the antenna on the foot permanently to the ground):
Side grip
The practical handle allows you to attach the antenna to a tube, mast, balcony railing, etc. (especially useful m.in. in motorhomes, on yachts). Set of fasteners included.
Permanent rate
Possibility to attach the antenna on the foot permanently to the ground (e.g. on the roof of the vehicle, under the fairing, etc. ) The antenna cable is guided in the middle of the foot, which facilitates installation and increases aesthetics.
Magnetic foot
A very strong magnet with a diameter of 120 mm perfectly holds any metal substrate. Handle designed for quick installation during standstill. It is forbidden to drive a vehicle with an antenna attached to a magnetic foot.
✅ Importantly, the cable is hidden in the foot. No additional hole in the roof for the cable is needed - the cable can be passed through the hole located at the bottom of the antenna foot. Previously, the cable is enough to screw into the built-in antenna socket at the bottom of the plate.
This solution increases aesthetics and facilitates installation.
Resistant housing and robust workmanship
The antenna is made of the best quality materials. Housing resistant to adverse weather conditions:
- waterproof
- anti-corrosion
- coated with a special UV-resistant coating.
In addition, the included rubber cap for the antenna cable, in order to minimize the possibility of moisture getting in.
Try the ANT07 antenna in all conditions and be sure of optimal results (with minimal space required).
Horizontal construction of the antenna in the shape of a flat "disk" with a diameter of approx. 33cm, definitely facilitates the reception of the TV signal. The large surface area makes the antenna easier and more effective to collect the signal and does not lose it. This affects the stable connection and smooth image without unnecessary interference.
The integrated circuit inside the antenna is made in SMD technology. A decent amplifier with low noise and high gain 35dB, is a big advantage of the antenna.
Below are the exact dimensions of the antenna ANT07 UFO STRONG ULTRA:
- Antenna on side handle (cybant + butterfly nuts included)
- Permanent foot
- Magnet for attaching to the foot (screws included)
In addition, the antenna has a built-in LTE/4G/5G filter to avoid interference with digital signal reception. The filter used allows to eliminate problems resulting from the overlapping frequency of wireless LTE Internet on the frequencies used by the DVB-T digital terrestrial television signal. This can lead to significant interference and even reduce DVB-T/T2 signal. The LTE/4G/5G filter eliminates any interference generated by 4G, 5G and mobile phones. It allows full reception of DVB-T/T2 terrestrial TV signal without interference.
TWO TYPES OF POWER SUPPLY
The antenna can be powered directly from the RF socket of the TV (if the receiver has such a function) or from the USB port of the TV.
"zero" unnecessary cables in the cabin (no additional power supply required from the 12V socket)
The 6 running meters of cable allow you to easily connect the antenna in any location without having to extend the cable.
Matching gasket
Perfectly matched rubber gasket, necessary to mount the antenna permanently to the ground (without the use of a magnetic foot).
- UHF range: 470 MHz - 698 MHz
- VHF range: 174 MHz - 230 MHz
- Profit: 35 dB
- Output signal level (max): 115dBuV
- Noise level: < 3.5dB
- Power supply: 5V, antenna
- Direction: 360 degrees
- Attachment: Side handle / Magnetic foot / Permanent foot
- Cable length: 6 m
- Diameter of the plate: 33 cm
- Height (with magnet foot. ): 17 cm
- Filter: LTE/4G/5G
- Antenna MI-ANT07 white (black on in. our auctions)
- Side handle
- Foot + magnet + gasket
- Cable with a length of 6 meters
- Voltage separator with USB power cord
- Amplifier - built into the antenna
- Fasteners for the side handle
- Instructions
- Guarantee
💡FREQUENTLY ASKED QUESTIONS (FAQ)
Does the antenna need power?
Yes. The antenna has a built-in amplifier and requires power. It can be specified via USB (e.g. from a TV or set-top box) or from an antenna socket – if the TV or set-top box supports antenna power.
Does the antenna fit any TV?
Yes, for all DVB-T2/H.265 (HEVC) enabled TVs and set-top boxes.
If the TV or set-top box does not support this standard, the antenna is not able to decode the signal itself.
I live far away from the transmitter – will this antenna work for me?
The only sure way is to test under real conditions. If the antenna works in your location, it stays.
However, if it does not meet expectations, you can return it within 14 days of purchase by reporting a return in the My Purchases tab on Allegro. The antenna must return in an undamaged and undamaged state.
Is the antenna suitable for home use?
Yes. The antenna can be used both mobile (car, motorhome) and stationary – e.g. in the house, on the balcony, terrace or in the summer house. The efficiency of reception depends on local signal conditions.
Does the antenna guarantee the reception of channels in every location?
No. The quality of reception depends on the distance from the transmitter, terrain and terrain obstacles. The antenna cannot guarantee correct reception in every location.
ℹ ABOUT US
Mistral Poland has been operating on the mobile consumer electronics market for years, offering mainly 12V-24V TVs, DVB-T2 antennas, cameras, recorders and accessories.
The offer is addressed primarily to drivers and users of passenger cars, trucks, trucks, motorhomes, caravans, boats, yachts and all other recipients.
Our products are characterized by high quality and the use of state-of-the-art technical solutions.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Mistral |
| Parametry | Color | white |
| Parametry | Model | Mistral MI-ANT07 |
| Parametry | Kind | external |
| Parametry | EAN (GTIN) | 5901867727251 |
| Parametry | Manufacturer code | MISTRAL ANT07 |
| Parametry | Packaging status | original |
