Antena Spacetronik su UHF/VHF filtru, apsauga nuo 4G/5G

Trumpai apie prekę

Prekė: Antena Spacetronik su UHF/VHF filtru, apsauga nuo 4G/5G. Kategorija: Antenos.

• Gamintojas: Spacetronik
• Modelis: EOS Combo White
• Spalva: white

The subject of sale is:

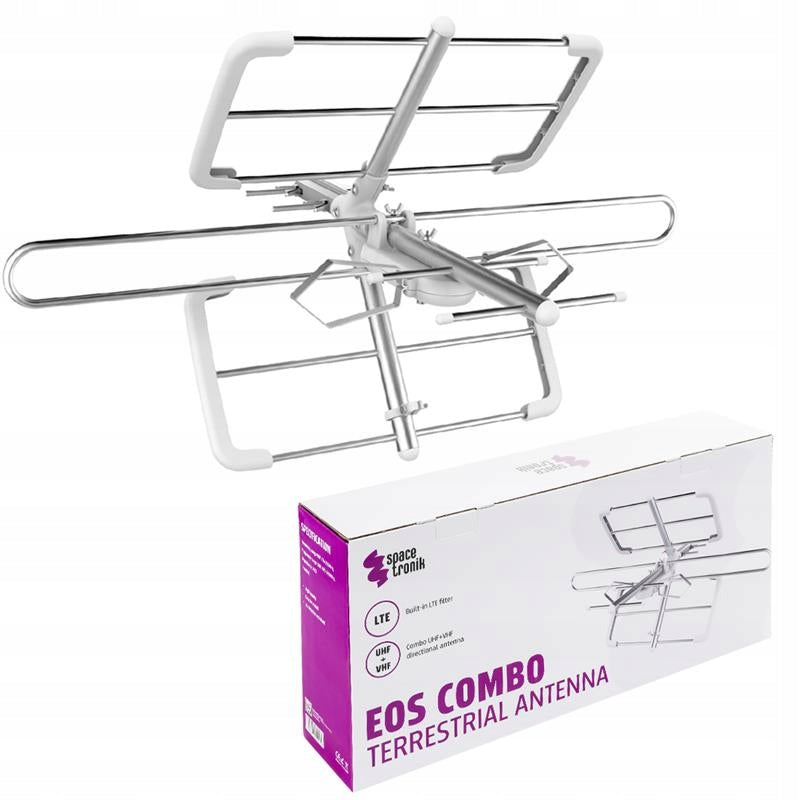

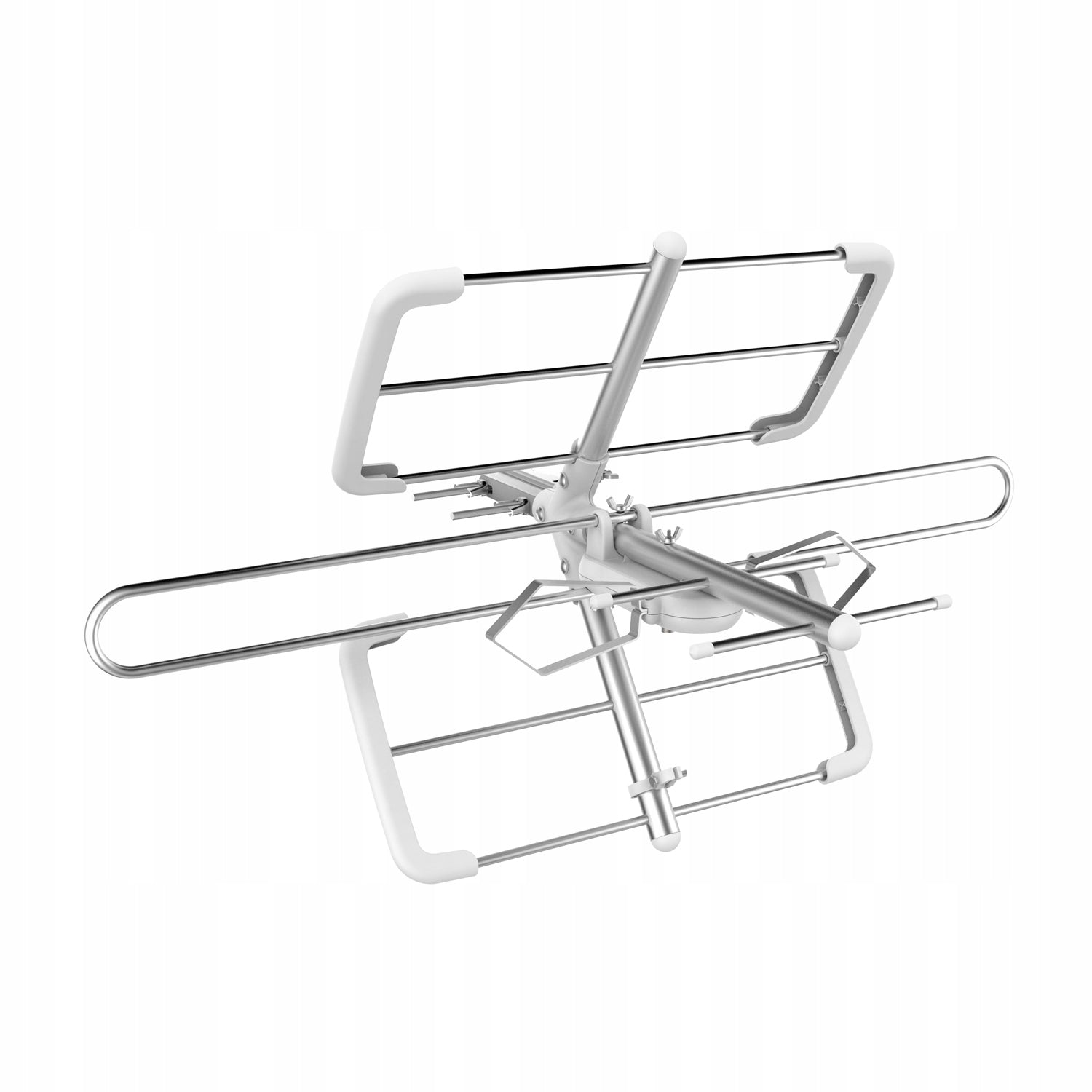

ANKMEOSW; DVB-T antenna Spacetronik EOS Combo White

Directional antenna is used to receive digital, DVB-T and DVB-T2 signal in Full HD, Ultra HD – 4K and 3D quality. The professionally designed design of the antenna makes it stable and easy to install. Strong and durable components are anti-corrosion and waterproof. The antenna has high resistance to weather conditions, and its design does not require tools for installation. Due to its modern, designer appearance, EOS Combo is used in modern urban buildings, but not only. Use it wherever you want.

High resistance to weather conditions

Spacetronik EOS is highly resistant to adverse weather conditions. Rain, storm, snow, extreme frost or heat are not terrible to her. The antenna is fully waterproof and resistant to sunlight. Under their influence, it does not become discolored and deformed. Metal elements are of high quality and do not corrode.

Excellent technical parameters and quality that matters

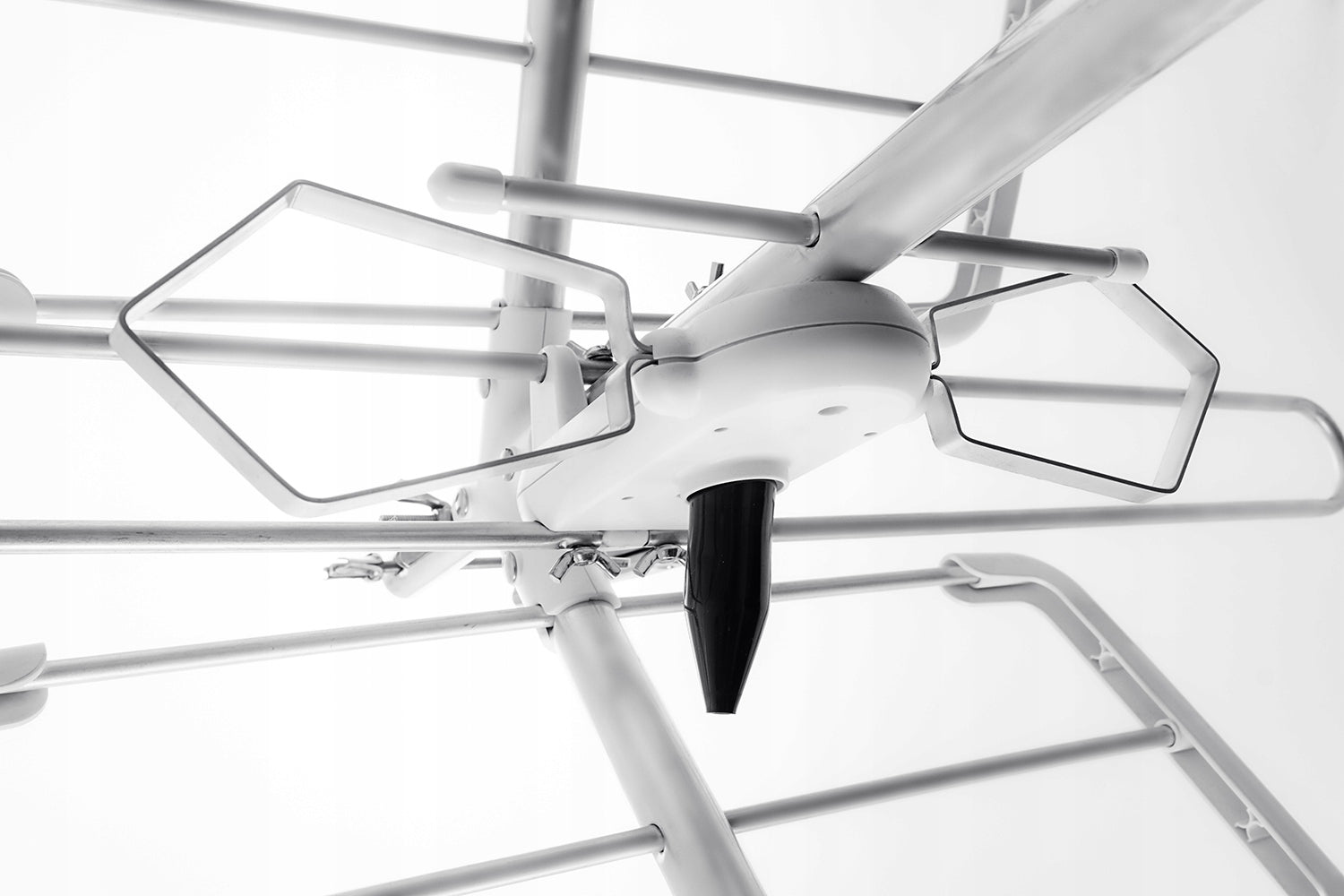

The antenna has a shielded symmetrizer, enclosed in a sealed housing. The design not only feels solid, it is in fact. Excellent technical parameters guarantee high-quality signal, which translates into clear image and sound.

Built-in 4G and 5G LTE filter

The Spacetronik EOS antenna is equipped with a 4G LTE filter (and a new 5G) that cuts unwanted bands, eliminating interference.

Receive DVB-T/T2 TV in the highest possible quality

Watch DVB-T and DVB-T2 TV channels in Full HD, Ultra HD – 4K and 3D. In addition, the antenna is prepared for TV reception in the new DVB-T2 H.265 compression, which according to preliminary assumptions is to be introduced by the end of 2022 throughout the European Union.

Easy, even trivial assembly

The antenna is distinguished by very easy installation and installation. Its design does not require the use of any specialized tools during assembly. Every user should be able to easily install the antenna.

Television for free - no contract and subscription

Watch close to 30 TV channels without any hidden charges. Totally free! The Spacetronik EOS antenna allows you to watch all available digital terrestrial TV channels.

How to check the TV transmitter from which TV channels are broadcast in your location / area?

It's very simple! Just go here (link: https://emimaps.emitel.pl). In the search box, enter the name of your city and select the appropriate multiplex*. Your location and the transmitter you are using will be marked on the map. Other details such as broadcast channel, ERP power, polarity, and H will also be included. antennas, distance from transmitter. The Spacetronik EOS Combo antenna receives channels broadcast in UHF (21-59) and VHF (5-12) at the same time - all channels must be broadcast in one polarity - horizontal.

*The television multiplex, also called the digital multiplex, is a package of television and radio channels, along with additional services transmitted digitally at one time to the recipient using a single frequency channel. in Poland we distinguish 4 multiplexes, described as MUX 1, MUX 2, MUX 3 and MUX 8. Each of them has assigned channels.

Specification

• Material: High-quality weather-resistant, anti-corrosion components
• Receiver bandwidth: VHF+UHF (Combo)
• Channels: 5-12 + 21-59
• Frequency [MHz]: 174-230 + 470-690
• Output Impedance [Ohm]: 75
• Polarity: horizontal
• Connector: Type F
• LTE filter: Yes, built-in
• Maximum mounting diameter: 60mm
• Dimensions [mm]: 475x740x430
• Colour: white
