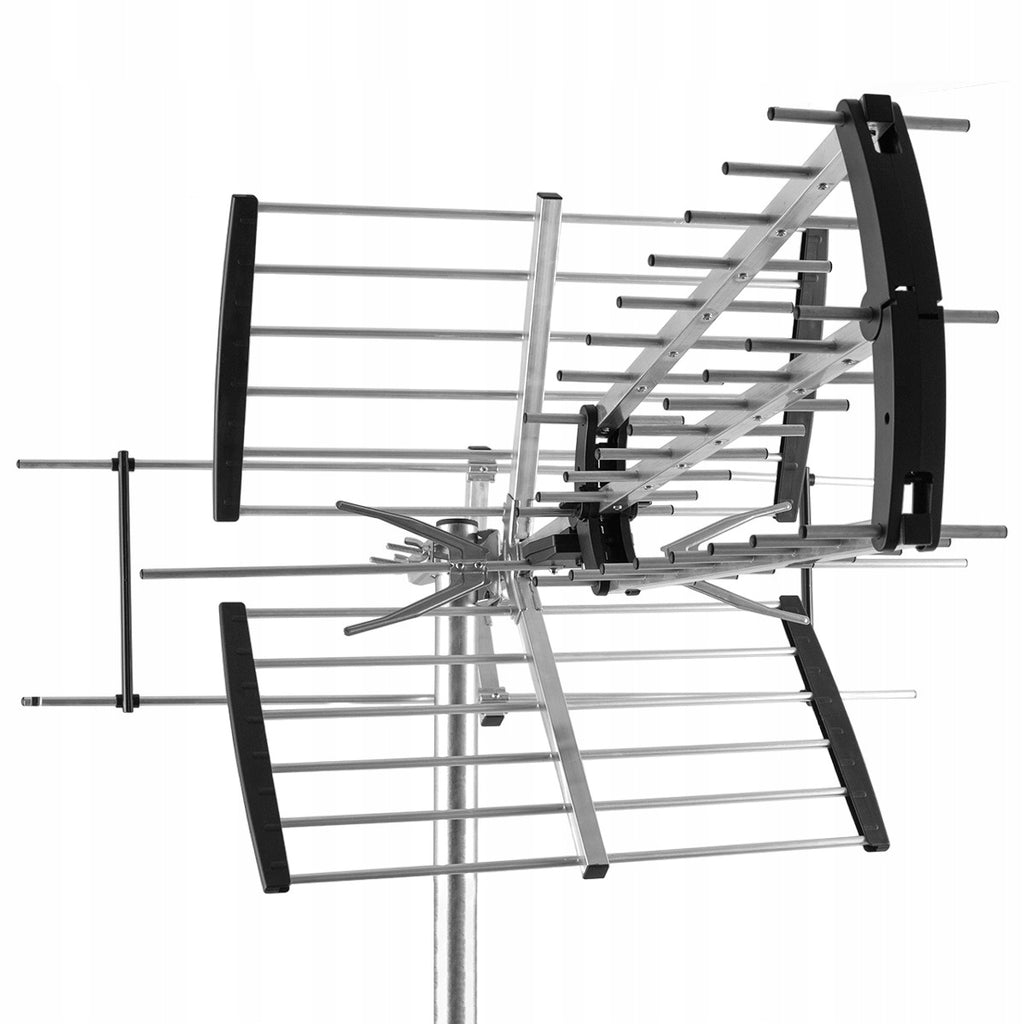

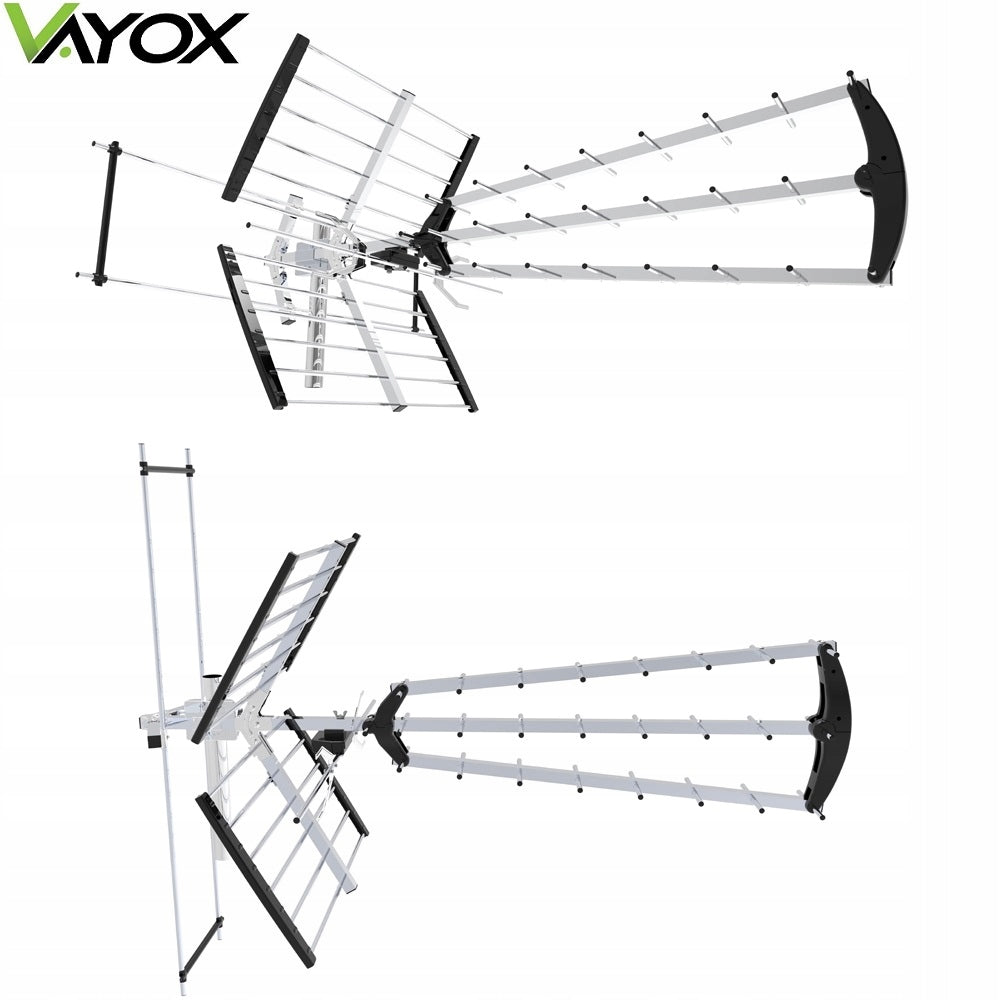

Antena VAYOX DVB-T2, kryptinė, VHF/UHF, 4K, LTE, MUX8, antžeminei TV

Trumpai apie prekę

Prekė: Antena VAYOX DVB-T2, kryptinė, VHF/UHF, 4K, LTE, MUX8, antžeminei TV. Kategorija: Antenos.

• Gamintojas: Vayox
• Modelis: Mocna antena dvbt2 do tv naziemnej VA2000
• Spalva: silver

POLISH BRAND VAYOX

Model: VA2000 COMBO

• Suitable for DVB-T2 digital terrestrial TV reception, Full HD, 4K
• Receives all channels MUX1,2,3,4,5 and 8 (vertical and horizontal polarization)
• Passive directional antenna (No power required and directional gain can be up to several dozen dBi)
• Built-in digital symmetrizer guarantees correct operation in all conditions
• Noise level < 3 dB
• Receives VHF and UHF frequencies
• Antenna factory range up to 120km (depending on signal strength in your area)
• Antenna gain: UHF (18dB) VHF (14dB)
• Built-in LTE filter and strong suppression of GSM mobile signals
• It is made of high quality aluminum for long antenna life
• High resistance to adverse weather conditions
• Simple installation with no tools required.

We often hear from our customers that they receive most channels in addition to those broadcast on MUX8.

Most channels are broadcast in horizontal polarization, however, channels with MUX8 are broadcast vertically or horizontally (depending on the transmitter in your area) so that's why you need a COMBO antenna...

Because the VA2000 COMBO antenna receives MUX8 both vertically and horizontally.

When assembling, all you need to do is install the rear dipole and the box appropriately, depending on the polarization in your area.

1. Horizontal polarity
2. Vertical polarization

The directional design of the antenna radiates almost all the power in one distinguished direction, collecting the signal exactly from the place you need.

The effective range of the antenna is up to 120km* without the use of any additional amplifiers or power supplies, just connect the cable to the TV and watch what you want.

*Depending on the power of the transmitter in your area

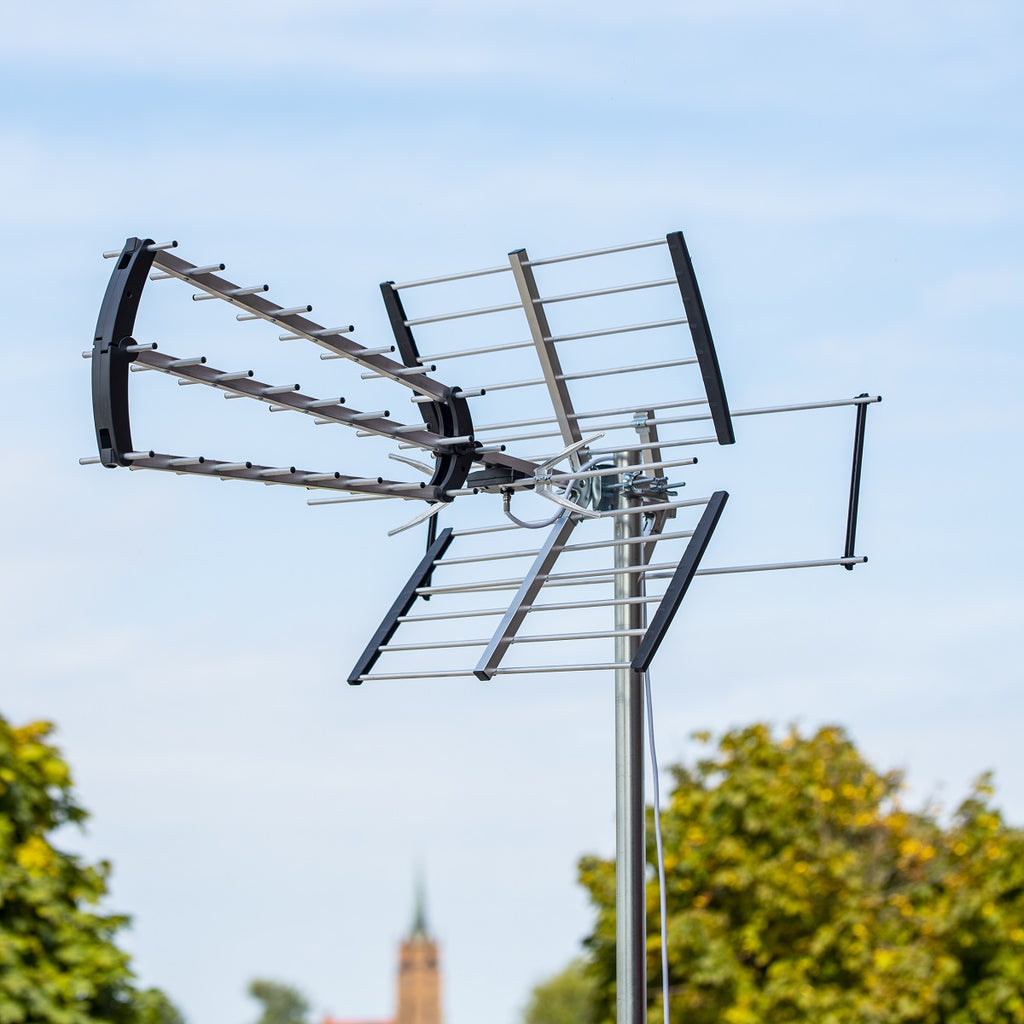

The durability and wind resistance of the antenna is ensured by aluminum support structure. The optimal size and a special holder allow you to mount the antenna not only on the roof, but also on the balconies of the walls of buildings (using a stand).

The antenna is equipped with a shielded, high-quality symmetrizer

Thanks to such high antenna power, it is possible to simultaneously connect several TV or radio receivers (after using the appropriate signal splitter).

The antenna has an integrated LTE filter, which allows you to eliminate interference of digital terrestrial television signal from transmitters or devices using LTE technology.

The VA2000 COMBO antenna is designed for demanding customers and is used to receive all standards of i. terrestrial television. digital DVB-T, DVB-T2 , H.265 in FULL HD and 4K quality

Putting together our antenna is very simple. The scheme of connecting the antenna to the TV is presented above.

Remember!!! Before starting to assemble, check the assembly instructions in which everything is described clearly and legibly step by step

• Built-in socket F allows for quick and hassle-free installation
• Built-in antenna cybant allows for fast and stable screwing of the antenna to the antenna mast

• Reception channel: VHF 6 - 12 CZ, UHF 21 - 60 CZ
• Bandwidth: VHF 174 - 230MHz, UHF 470 - 790 MHz
• Energy Gain: VHF: 14dB, UHF: 18dB
• Output Impedance: 75 ohms
• Effective range: up to 120km
• Antenna length: 97cm

• Antenna VA2000 Combo
• Antenna cybant
• User manual
• Original packaging

Specifications
