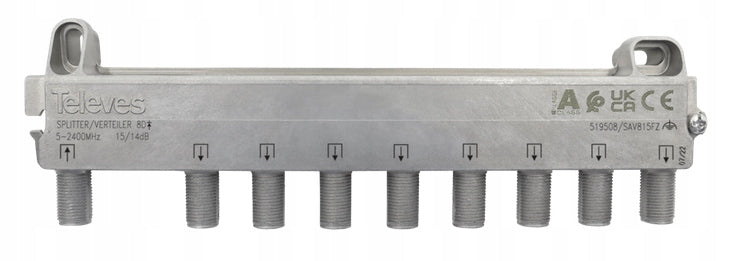

Antennos signalo dalytuvas Televes 519508, 1 į 8

Trumpai apie prekę

Prekė: Antennos signalo dalytuvas Televes 519508, 1 į 8. Kategorija: Skirstytuvai.

• Gamintojas: Televes
• Modelis: SAV815FZ

High-end splitter 1/8 Televes ref. 519508, or 1 input, 8 outputs, operates in the range of 5 MHz - 2400 MHz. It allows you to divide the DVB-T2 terrestrial or DVB-C cable TV signal into eight TV sets . It works with the Unicable system in satellite installations based on this type of converter and enables the division of the Unicable to signal of eight satellite decoders.

It is characterized by high electrical efficiency due to miniaturization used in electronic components. Zamak housing provides excellent shielding.

Designed for installation in rooms, for mounting on a wall, rack plate or DIN rail (can be mounted on a DIN rail after purchasing a mounting bracket - Televes ref. 519901, available in other offers of our store). Compatible with DOCSIS 3.1.

The Televes 519506 is the successor to the popular splitter, which is no longer produced, the Televes 7406. The new model has improved shielding.

Spanish manufacturer the company Televes guarantees high quality of equipment for signal distribution.

• High shielding (class A), made of cast Zamak
• F connectors with longer thread for easy and secure mounting on the rack plate
• Installation in the room
• Ground screw included
• They have DC transitions

• Flexibility of installation: can be screwed to the wall, on a rack plate with nuts on their connectors or on a DIN rail (with adapter cat. no. 519901)
• Convenient screwing of the cable, thanks to the 10º angle of inclination of the F connectors from the installation wall
• Optimization of space in boxes and installation cabinets: their inputs and outputs are always on the same side
• Better organization of installation: possible wiring through the rear part of the branch
• F series components can be connected to each other by ground screw, which requires the use of ground cable
• The signal level is maintained in outlets, even with long cables, thanks to a better response to flatness
• Exceptional reliability: robotic production using the latest generation microcomponents
• 100% European design, quality and production

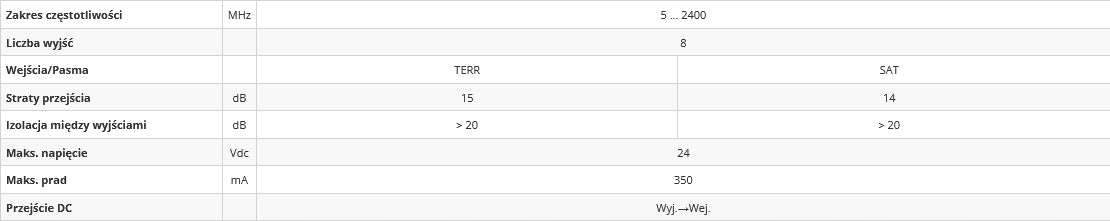

• Frequency Range: 5 - 2400 MHz
• Number of outputs: 8
• Branch Starts: 14 dB SAT /15 dB TERR
• Branch isolation: > 20 dB
• Passes voltage max. 24Vdc
• Voltage Transition: Input > Output
• Maximum intensity: 350mA
• Connectors: Type F female

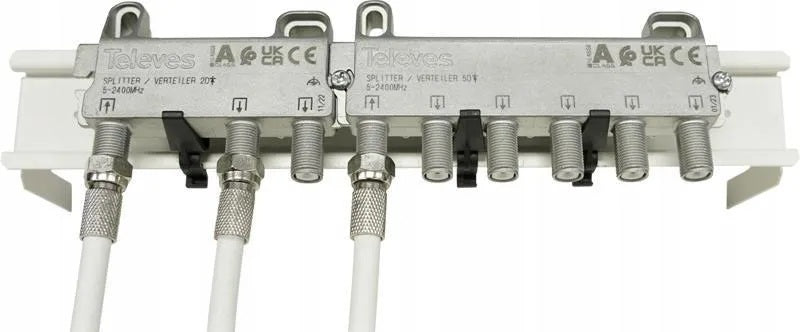

Televes splitters and splitters from the new series can be joined together, screwed to the wall or fixed on a rack plate with nuts on their connectors or on a DIN rail (with adapter cat. no. 519901).

ROZST1725

Specifications
