Antenos laikiklis kaminui LXSAT63, 7 m

Trumpai apie prekę

Prekė: Antenos laikiklis kaminui LXSAT63, 7 m. Kategorija: Antenos laikikliai.

• Gamintojas: AMT
• Modelis: LXSAT63

Description:

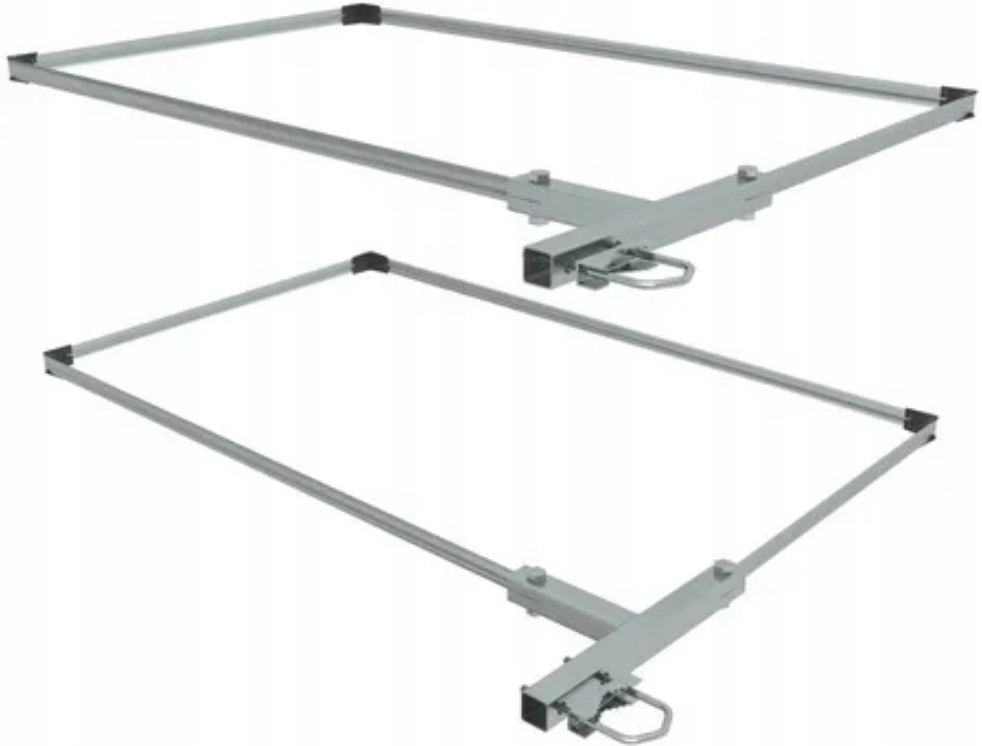

Chimney band with mounting elements for TV or Internet antenna installation mast

Technical specification:

• Max mast diameter 50 mm
• Max. mast height 300 cm
• Length of steel strip included 2 x 7 m
• Material: steel
• Coating: Galvanized
• The maximum diameter of the canopy of the mounted antenna was adopted as 100 cm
• Installation only in the wind load zone up to 72 km/h (in gusts of 158 km/h)
• The total weight of the installed installation should not exceed 8 kg
• Recommended steel mounting mast with a diameter of 30 mm
• The distance between the mounting points of the mounting mast (“T” sections) should not exceed 10 mast diameters
• The mounting point of the satellite dish canopy shall be between the mounting points of the mounting mast

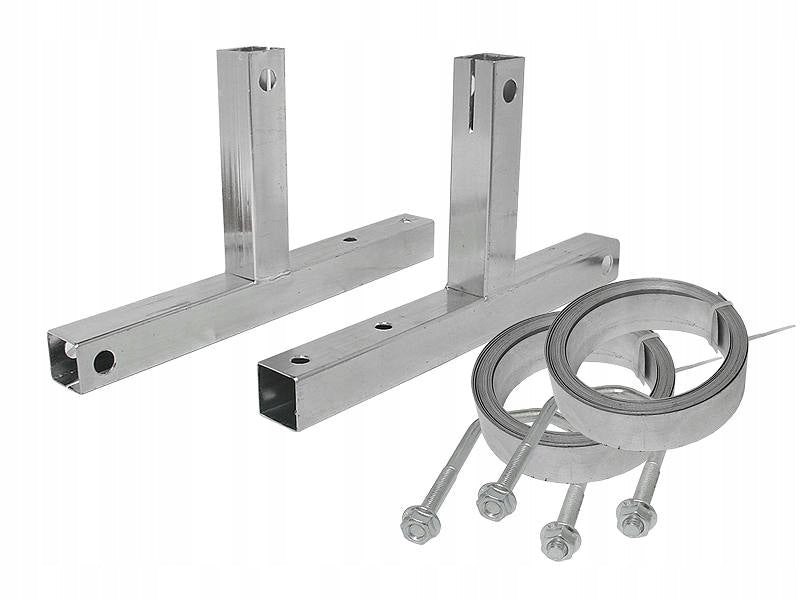

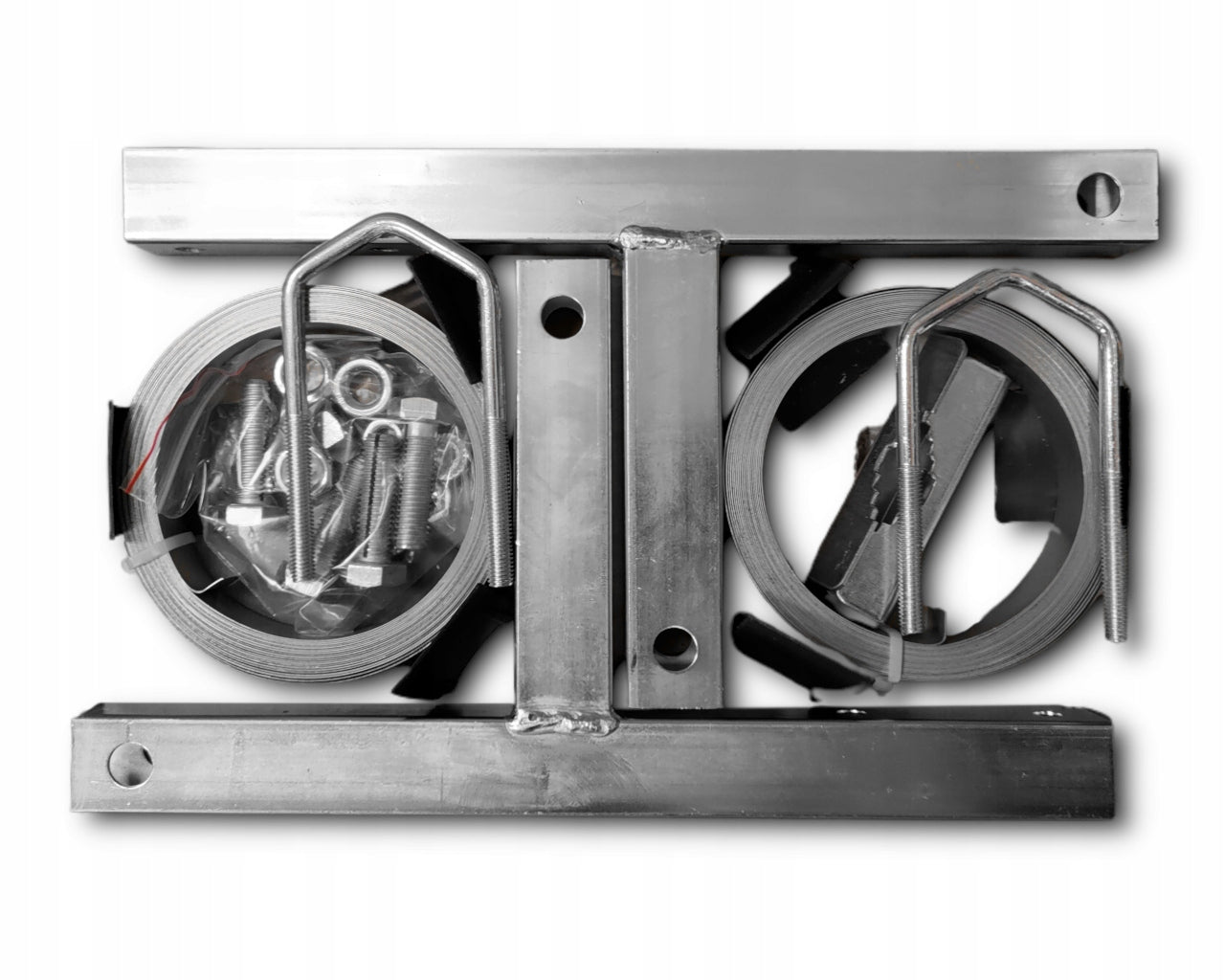

The set includes:

• Section x2
• Screw M12 (cut) with nuts x4
• Cybant complete x2
• Tape with a Length of 7m x2
• Edge guard x8

______________________________________________________

Security compliance and alerts (GPSR)

Installation of handles at height should be done by a person with appropriate qualifications. It is necessary to ensure stable fastening and possible grounding of the structure in accordance with local regulations. The manufacturer is not liable for damages resulting from improper installation. Never mount a mast near power lines. During a storm or strong wind, do not perform assembly or service work. Check that all screws and clamps are properly tightened before lifting the antenna. Regularly check the condition of the mast and fasteners, especially after strong winds. Wear appropriate personal protective equipment (gloves, shoes with non-slip sole). The mast is intended for external use only. Do not load the mast with additional equipment that exceeds the permissible load capacity parameters. Ensure stable mounting and possible grounding of the structure in accordance with local regulations. .
