Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: 3 eur
Aprašymas
Trumpai apie prekę
Prekė: Antenos perjungiklis ZA-AMS. Kategorija: Antenos.
- Gamintojas: AMS
- Modelis: ZA-106AMs

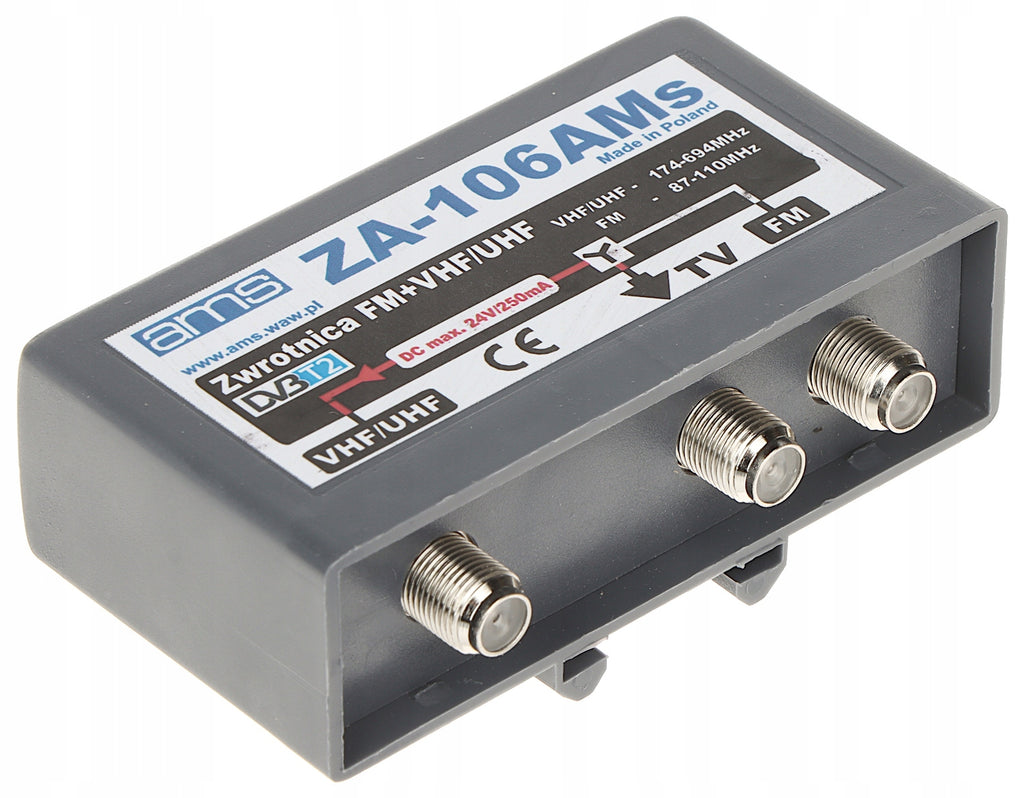

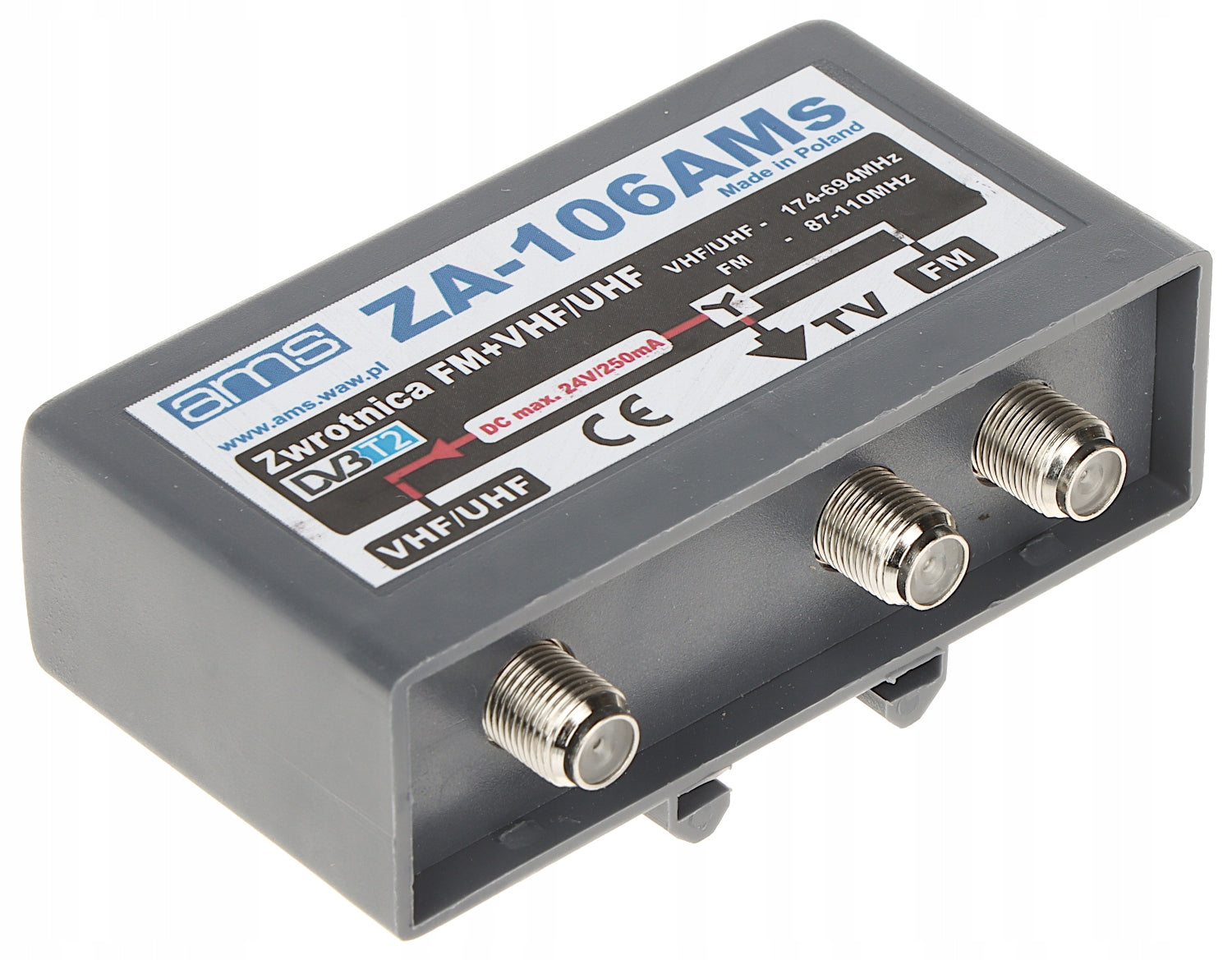

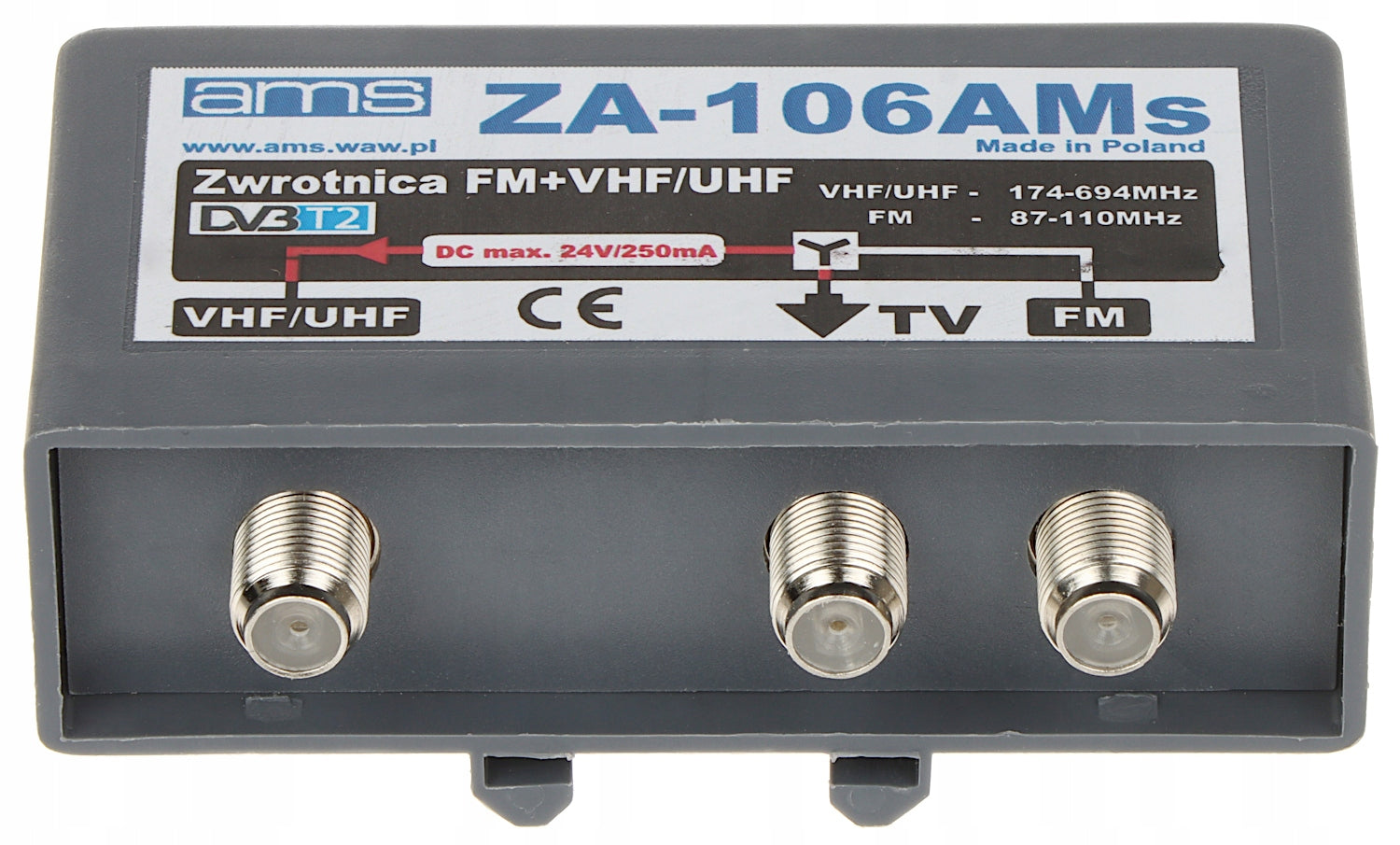

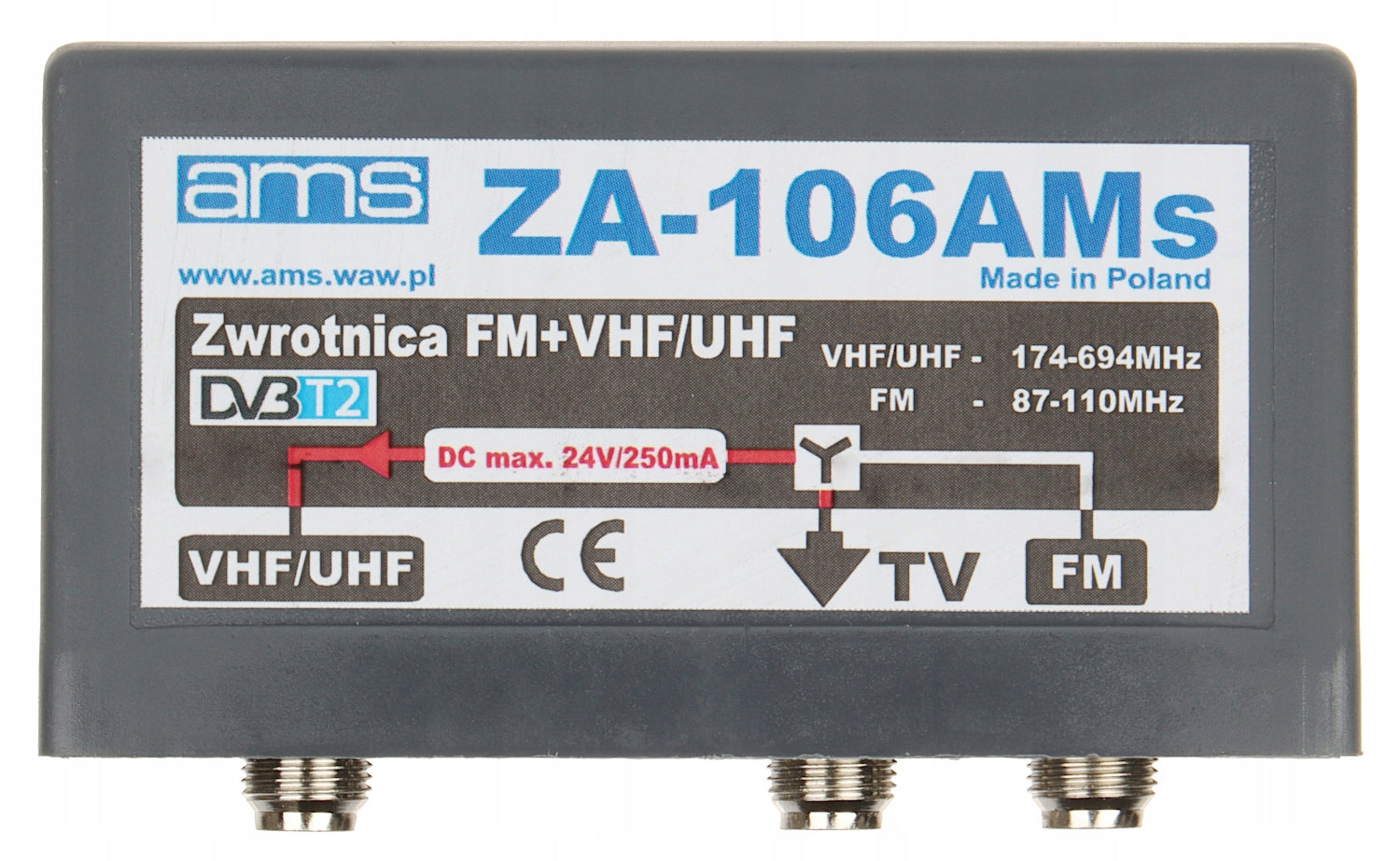

The ZA-106AMS antenna crossover with 2 inputs is used as an element summing signals from 2 antennas (FM band signals (87...110 MHz), and VHF+UHF band (174...694 MHz)), is mounted on the antenna mast, near the antenna set. It has an additional filter limiting the UHF band above 700 MHz. ZA-106AMS allows you to send DC power max. 24V/250mA to power the amplifier mounted in the antenna box (power supply is possible in the VHF/UHF branch).
- Input: FM : 87 ... 110 MHz - F socket, VHF/UHF : 174 ... 694 MHz +DC- F socket
- Impedance: 75 Ω
- Pass-through attenuation: 1dB
- Dam attenuation: ≥ 40dB
- Constant current transition: max. 24 V / 250 mA
- Housing: Metal - Shielded + Plastic
- Attachment: To the mast
- Weight: 0.09 kg
- Dimensions: 90 x 54 x 34 mm
- Manufacturer / Brand: AMS
Selected features:
- Built-in filter >700 MHz
Full name of the product:
ANTENNA CROSSOVER ZA-106AMS AMS
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | AMS |
| Parametry | Model | ZA-106AMs |
| Parametry | Kind | external |
| Parametry | Product weight with unit packaging | 0.126 kg |
| Parametry | EAN (GTIN) | 5902887073816 |
| Parametry | Manufacturer code | C0345 |
