Antenos stiprintuvas-skirstytuvas 3 televizoriams

Trumpai apie prekę

Prekė: Antenos stiprintuvas-skirstytuvas 3 televizoriams. Kategorija: Dalys ir komponentai.

• Gamintojas: no brand
• Modelis: WZMACNIACZ ROZGAŁĘŹNIK NA 3 TELEWIZORY

TV MAST ANTENNA AMPLIFIER 22 dB AB-012

Product Number: 27729

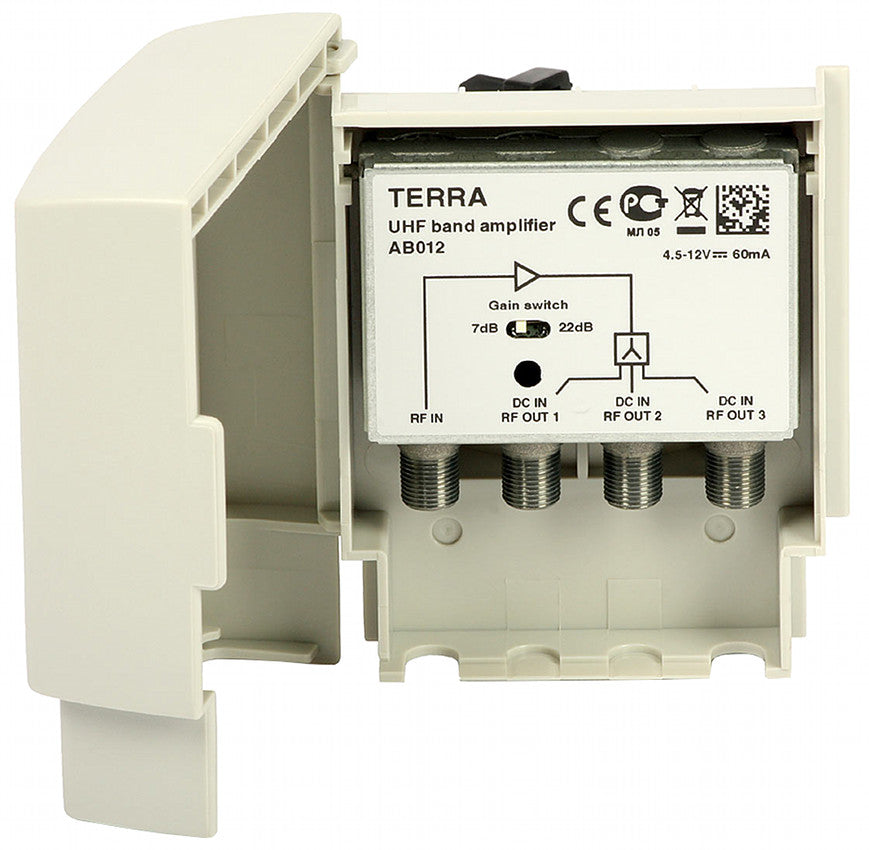

Terra's AB-012 mast amplifier is a device dedicated to the installation of individual or small collective installations for several sockets, e.g. in single-family houses.

The amplifier has 3 outputs that allow you to connect 3 receivers or further divide them into a larger number of sockets.

The maximum signal output level of 103dBµV (IMD3=60dB, DIN45004B) allows it to be safely distributed to several sockets.

The amplifier is also characterized by a very low noise level not exceeding 1dB An important feature of the AB-012 amplifier is the low power consumption of 0.3W associated with the use of a specially designed 5V powered system.

This voltage value is in accordance with the DVB-T standard (EN 300 744).

5V voltage is displayed on the antenna input of digital terrestrial television receivers The use of the AB-012 amplifier in place of standard amplifiers powered by 12V avoids the placement of additional power supplies in the installation.

Frequency range: 470 MHz ... 862 MHz

Gain: 7 dB / 22 dB (switch)

Noise Ratio: < 1 dB

Mismatch attenuation: > 10 dB

Number of inputs/outputs: 1 / 3

IMA3 60dB: 103 dBµV

Amplifier Screen: Yes

Input/Output Impedance: 75 Ω

Connector Type: "F"

Housing: cast housing fixed inside compact plastic housing

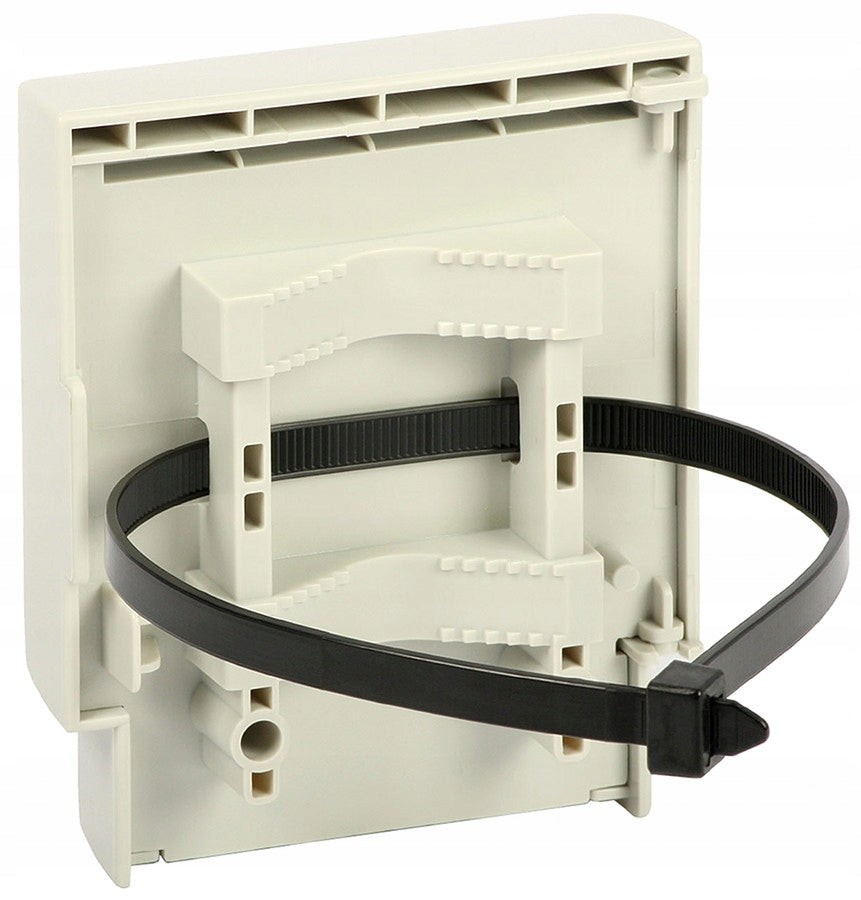

Fixation: on mast or wall

Operating temperature: -20 °C ... 50 °C

Power supply: 4.5 V ... 12 V DC

Weight: 0.170 kg

Dimensions: 108 x 90 x 44 mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	no brand
Parametry	Manufacturer code	WZMACNIACZ ROZGAŁĘŹNIK NA 3 TELEWIZORY
