Apsauginis šalmas su skydeliu Optrel Helix Quattro 1050.100

Trumpai apie prekę

Prekė: Apsauginis šalmas su skydeliu Optrel Helix Quattro 1050.100. Kategorija: Kaukės.

• Gamintojas: OPTREL
• Modelis: 1050.100
• Spalva: black

Made in Switzerland

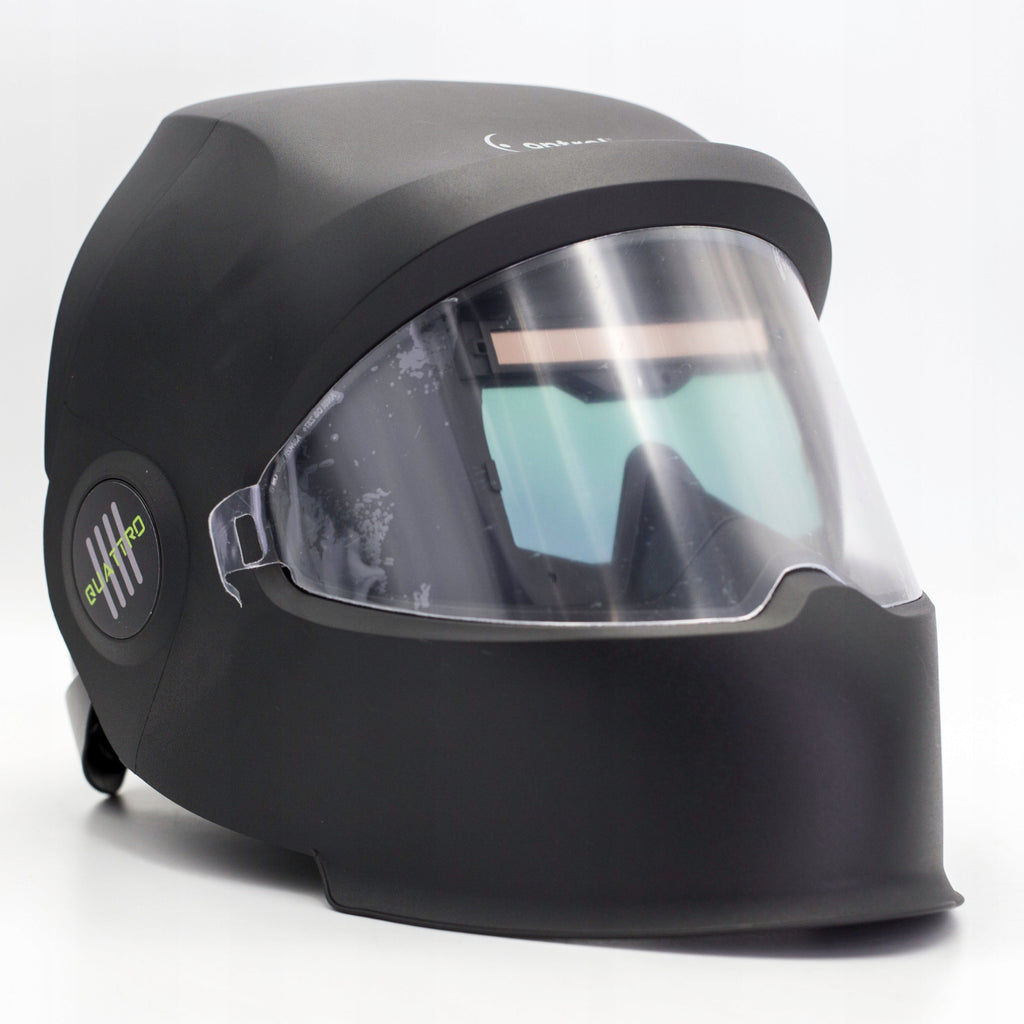

The OPTREL Helix Quattro welding visor is the world's first automatic visor with an internal tilting self-tinting filter. Thanks to the unique shell design and the slide-up mechanism, the welder can instantly raise and lower the filter with a convenient side knob. The Helix visor with Hardhat helmet provides complete protection for the eyes, face and head in harsh industrial conditions.

The Helix series provides unprecedented comfort during intensive welding and grinding in various positions while maintaining excellent visibility Panoamaxx XXL – ADF filter is located maximum close to the eyes expanding the field of view 6 times. Each Helix visor is equipped with a unique extended IsoFit® header, which provides the highest level of fit to the head in as many as three dimensions (3D).

Helix Quattro has the highest optical classification according to EN379 of 1/1/1/1 and a wide blackout range of 8 – 13 DIN, provides reliable protection during the toughest industrial conditions even in extreme forced positions or at extreme viewing angles. The visor has a number of proven additional functions to improve everyday work, such as: ShadeTronic® – automatic adjustment of the degree of obfuscation, FadeTronic – reduction of eye fatigue, Multi-Sensor-Detection – intelligent control of five sensors.

Features/Advantages

• Swiss build quality – reliable technological solutions in a new design with a raised internal ADF self-tinting filter cartridge.
• ShadeTronic® – patented system that automatically selects the darkening range in the range of 4 – 13 DIN in automatic operation mode (adjustable ± 2) – the visor itself adjusts the darkening level in real time, measuring the intensity of the welding arc.
• Excellent visibility of the weld and the environment from different angles and lighting conditions – the highest optical class 1/1/1/1 in accordance with EN379.
• FadeTronic function – smooth brightening after welding, in the time from 0.1 s to 2 s – this solution prevents eye strain,
• Depending on the header setting, even more than 6 times larger field of view than in standard visors, thanks to the shell design and a special fast shape with a nose cutout (Panoramaxx XXL).
• Perfect fit for each head – innovative design of the IsoFit® header consisting of two independent layers connected by a system of cords passing through the entire head circumference. The inner elastic layer supported by the outer rigid, provides the best fit for any head from size S to XL.
• Modern and unique design was awarded by: Red Dot Design Award 2023 (the highest award for extraordinary design quality) and iF Design Award 2023 (outstanding design).
• Smooth adjustment of the degree of sensitivity (SuperHigh) of arc detection and reliable intelligent obfuscation (Multi-Sensor-Detection) controlled by 5 independent sensors.
• Protection against UV and IR rays in any darkening setting.
• True Color filter – visibility of natural colors, as opposed to visors with visibility only in shades of green.
• The rounded shell shape and heat-reflecting metallic paints provide a more comfortable temperature inside the visor.
• Power supply via solar cells and additionally lithium-polymer battery, with the possibility of charging via USB connector.
• Photovoltaic cell – Under normal operating conditions, there is no need to charge the battery – the radiation energy of the welding arc is used.
• The Helix visor with Hardhat helmet provides complete protection for the eyes, face and head in harsh industrial conditions.

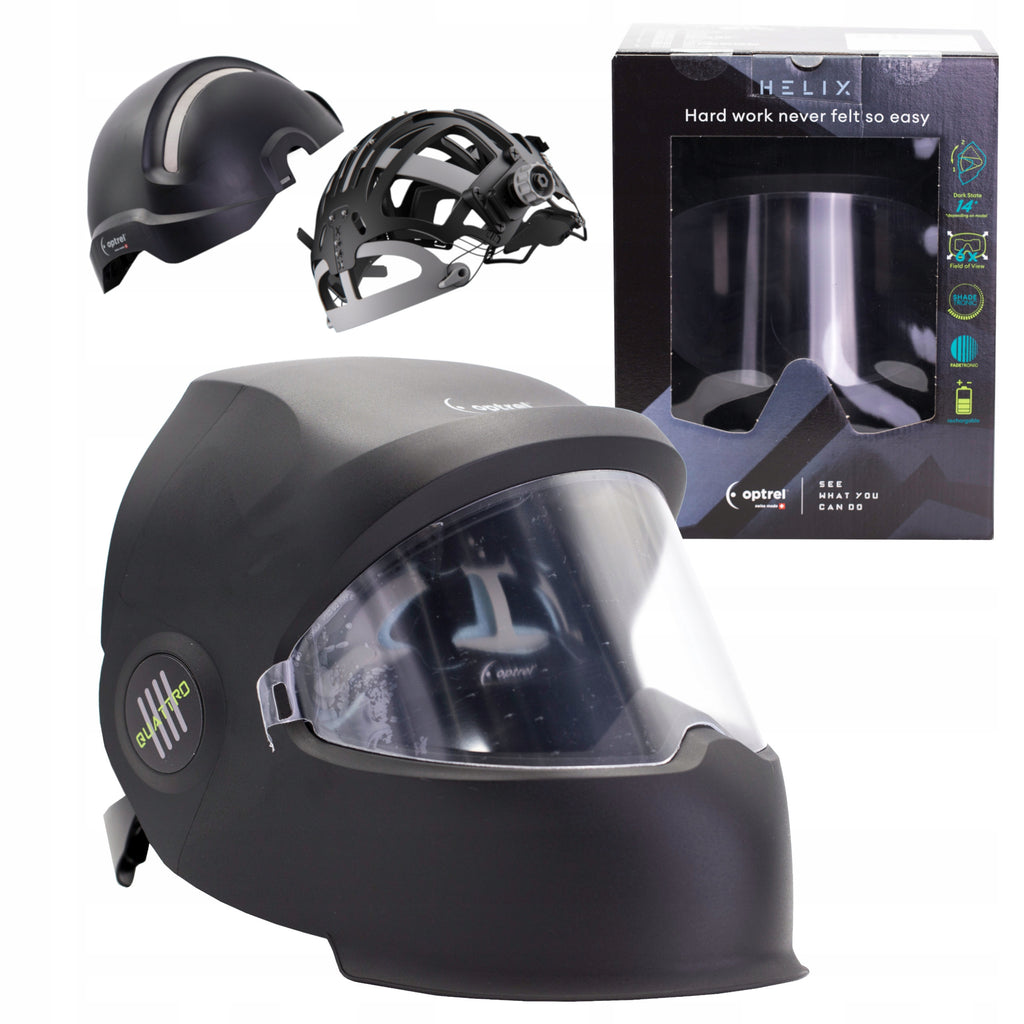

estaw contains

• Visor OPTREL Helix QUATTRO with advanced header IsoFit®
• Integrated protective helmet HardHat compliant with EN397
• Micro USB cable
• Quick replacement front SN+1
• User manual
• Warranty card

Requirements

• Eye protection classification according to EN379: 1/1/1/1
• CE, UKCA, ANSI, EAC, AS/NZS compliant with: CSA Z94.3,
• pr ISO 16321 standard "WIG+" ("low amp Tig")

Specifications
