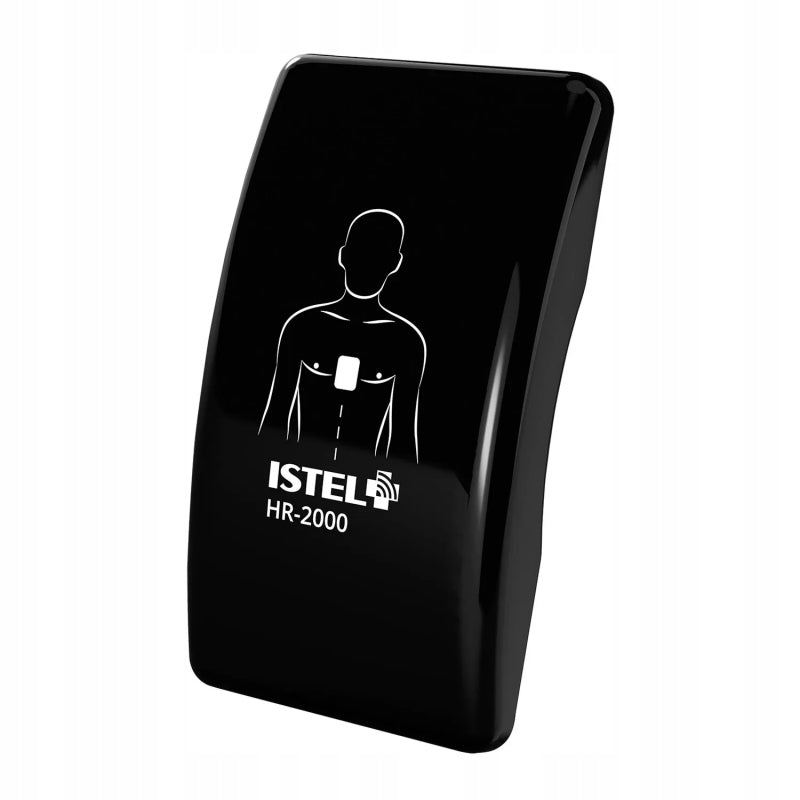

Asmeninis EKG prietaisas Istel HR-2000 su Bluetooth, dėklu ir baterijomis

Trumpai apie prekę

Prekė: Asmeninis EKG prietaisas Istel HR-2000 su Bluetooth, dėklu ir baterijomis. Kategorija: Pulso ir deguonies matuokliai.

• Gamintojas: Istel
• Modelis: HR-2000
• Spalva: black

The Istel HR-2000 ECG recorder is a portable device designed to carry out ECG examinations on its own.

Basic information Istel HR-2000, ECG recorder, 1 pc. Diagnosis

The Istel HR-2000 ECG recorder is a small and easy-to-use (one-button measurement) medical device with an ergonomic shape that records ECG signals and transmits them via Bluetooth to mobile devices such as e.g. smartphone or tablet. The recorder detects the ECG signal by applying it to the chest. It is equipped with four widowed electrodes that allow to obtain 6 leads (I, II,III,aVR,aVL,aVF). It works on exactly the same principle as devices used in hospitals, but thanks to its compact dimensions it allows you to independently perform an ECG examination wherever you are and at any time. The recorded results, on the other hand, allow for their subsequent analysis by a doctor and can be used as a source of information about the patient’s health. The Istel HR-2000 ECG recorder communicates wirelessly via Bluetooth. It has six leads - I, II, III, aVR, aVL, aVF and the ability to set the sensitivity of electrodes and the measurement frequency. In addition, it has an automatic shutdown function.

Composition Istel HR-2000, ECG recorder, 1 pc. Diagnosis

CONTENTS OF THE SET:

ECG recorder Istel HR-2000

Case

Instructions for use

2 Batteries type AAA 1.5V

Action Istel HR-2000, ECG recorder, 1 pc. Diagnosis

Wireless Bluetooth Communication

ECG recorder with six leads I, II, III, aVR, aVL, aVF

Detection of ECG signal by applying the device to the chest

Electrodes built into the device

Possibility to set sensitivity and measurement frequency

Easy to use - one-button measurement

For home use

Power supply 2×1,5V LR03(AAA) batteries

Ergonomic shape

Automatic shutdown function

Indications Istel HR-2000, ECG recorder, 1 pc. Diagnosis

A medical device designed to monitor heart rate at home.

Suitable for people with heart disease, people with poor health, as well as will work in prevention and health care for adults.

Dosage Istel HR-2000, ECG recorder, 1 pc. Diagnosis

Before the first use, carefully read the instruction manual and follow the instructions contained in it at each measurement.

Before the first measurement, download the free Istel ECG application for a mobile device such as a smartphone or tablet.

Before Measurement

Before measuring, make sure the electrodes are clean. In case of dirt, wipe them with a soft cloth dampened with alcohol for disinfection. Alcohol for disinfection can only be used to clean electrodes.

Launch the app and turn on the recorder.

Connect your devices via Bluetooth and proceed to measure.

Measurement

Apply the Istel HR-2000 recorder with electrodes directed to the chest at the height of the sternum at its central point directly on the skin. The switch should be pointing upwards. Make sure the electrodes are in direct contact with the skin. Improper contact of the electrode with the skin will signal the application in the mobile device (smartphone, tablet, etc. ).

If all electrodes are in proper contact with the skin, the measurement begins automatically. The phone/tablet display shows the ECG. Stay calm during the measurement. Any movement, including speaking, coughing or sneezing, can affect the measurement result.

The measurement will be completed after 30 seconds unless the test time has been set differently.

Put the recorder away from the skin and record the measurement result.

Turn off the device.

Contraindications Istel HR-2000, ECG recorder, 1 pc. Diagnosis

Do not use the product:

if you have an implanted pacemaker;

with the simultaneous use of a defibrillator;

in the presence of combustible anaesthetics, medicines or oxygen under pressure (e.g. in a hyperbaric chamber, UV sterilizer or oxygen tent;

Do not take measurements:

by clothing,

on moist skin,

if the device is exposed to a strong electromagnetic field or static electricity,

while driving.

Do not use contact gel.

Additional information Istel HR-2000, ECG recorder, 1 pc. Diagnosis

Self-examination is not synonymous with a medical diagnosis and should never be grounds for starting or changing treatment without additional independent medical advice.

ECG records transmitted by Istel HR-2000 are values from the moment of measurement. If you notice disturbing symptoms in your health, take an ECG measurement with Istel HR-2000 and consult your doctor regardless of the result obtained.

If the position of the ECG recorder is inadequate during the measurement, the result may be unreliable.

Do not expose the product to strong shocks, vibrations, protect against falls and other mechanical damage.

Keep out of reach of small children and dependent people.

Technical specification

number of leads: I, II, III, aVR, aVL, aVF,

wireless communication: Bluetooth 4.0 Low Energy,

operating system: Android, iOS,

frequency range 0,05-32 Hz, 0,05-65 Hz, 0,05-130 Hz;

sampling: 160 p/s, 320 p/s, 640 p/s;

sampling sensitivity (resolution): 24 bit/sample,

degree of protection: IP22,

working conditions:

temperature: +5°C ~ +50°C,

humidity: ≤80%;

storage conditions:

temperature: -25°C ~ +80°C,

humidity: 10%-95%;

power supply: 2 x AAA batteries (LR03 1,5 V),

dimensions: 118 x 66 x 26 mm,

Weight: approx. 75 g (without batteries).

Additional information

Free app to download (IOS, ANDROID).

https://play.google.com/store/apps/details?id=pl.cronsoft.istelecg

Producer

Diagnosis SA

5th floor in 5 storey block without elevator. Gen. W. Anders 38A

15-113 Bialystok

This is a medical device. Use it according to the instructions for use or label.

Important information about the medical device:

• Medical device - has the CE marking.
• It has an EU declaration of conformity
• Includes instruction manual in Polish
• Includes a label in Polish

The storage and transport of medical devices comply with the conditions specified by the manufacturer.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Medical device	yes
Parametry	Medical device type	accessories for a medical device or a product without an intended medical purpose
Parametry	Manufacturer of a medical device	Diagnosis
Parametry	Authorized representative	Istel
Parametry	Medical device class	I
Parametry	Brand	Istel
Parametry	Model	HR-2000
Parametry	Color	black
Parametry	Product width	118 cm
Parametry	Product height	26 cm
Parametry	Product depth	66 cm
Parametry	Product weight	0.31 kg
Parametry	Power supply	batteries
Parametry	EAN (GTIN)	5907581254479
Parametry	Manufacturer code	ISTEL HR-2000
Parametry	Packaging status	original
Parametry	Batteries included	yes
Parametry	Certificates of conformity	CE
Parametry	Functions	automatic shutdown,none
