Asmeninis radiacijos matuoklis GEIGER, beta ir gama spinduliams

Trumpai apie prekę

Prekė: Asmeninis radiacijos matuoklis GEIGER, beta ir gama spinduliams. Kategorija: Detektoriai.

• Gamintojas: Habotest
• Modelis: HT629

BETA, X-RAY GAMMA

⭐⭐⭐⭐⭐

Habotest HT629 is an advanced Geiger counter designed for precise measurement of ionizing radiation.

This device is ideal for both professional and amateur applications, offering a range of features and functionality that ensure accurate and reliable measurements.

Included with the counter is an instruction manual in Polish and English, a protective case, a set of batteries.

• Wide measuring range: HT629 can measure Beta, Gamma and X-ray radiation in a wide range, making it a versatile tool for a variety of applications.
• High sensitivity: The sensitivity of the meter allows you to detect even very low levels of radiation, which is extremely important for safety monitoring and health protection.
• Quick response: The device responds quickly to changes in radiation intensity, allowing for precise measurements in real time.
• Large LCD Display: High contrast LCD display provides a clear and easy-to-read user interface.
• Compact and lightweight design: The HT629 is handy and easy to carry, making it an ideal tool for field work.
• Double alarm: sound and light, after exceeding the alarm values.
• Low battery indicator: function that will indicate low battery level in advance to ensure your continuity of operation.

• Safety monitoring: HT629 can be used to monitor radiation levels in various environments such as nuclear power plants, hospitals, laboratories and industrial plants.
• Health protection: The meter can be used to assess exposure to ionising radiation to protect the health of workers and bystanders.
• Scientific research: HT629 can be used for scientific research in the fields of nuclear physics, radiochemistry and geology.
• Education: The meter can be used for educational purposes in schools and universities.

• Types of radiation detected: Gamma radiation (γ-ray), beta radiation (β-ray), X-ray radiation (x-ray).
• Detector type: Energy Compensation GM tube (Geiger-Müller counting tube)
• Dose strength: 0.00 - 50000 μSv/h (50 mSv/h)
• Radiation accumulation: 0.00 μSv - 5000.0 mSv
• Energy Range: 48 keV – 1.5 MeV ±30% (CS-137 Cs -)
• Sensitivity: 80CPM/uSv
• Real-time tolerance: ≤ ± 15% (below 100uSv/h);
• ≤ ± 20% (above 100uSv/h), below 1000uSv/h); ≤ ± 25% (above 1000uSv/h);
• Unit selection: μSv/h, mR/h, cps, cpm
• Preservation of results: YES
• Low Battery Indicator: YES
• Light alarm: the color of the screen changes from green to red in case of strong radiation
• Audible alarm: YES
• Possibility to turn off the sound: YES
• Maximum value measurement function: YES
• Average value measurement function: YES
• Accumulated Value Measurement Function: YES
• Automatic shutdown: YES

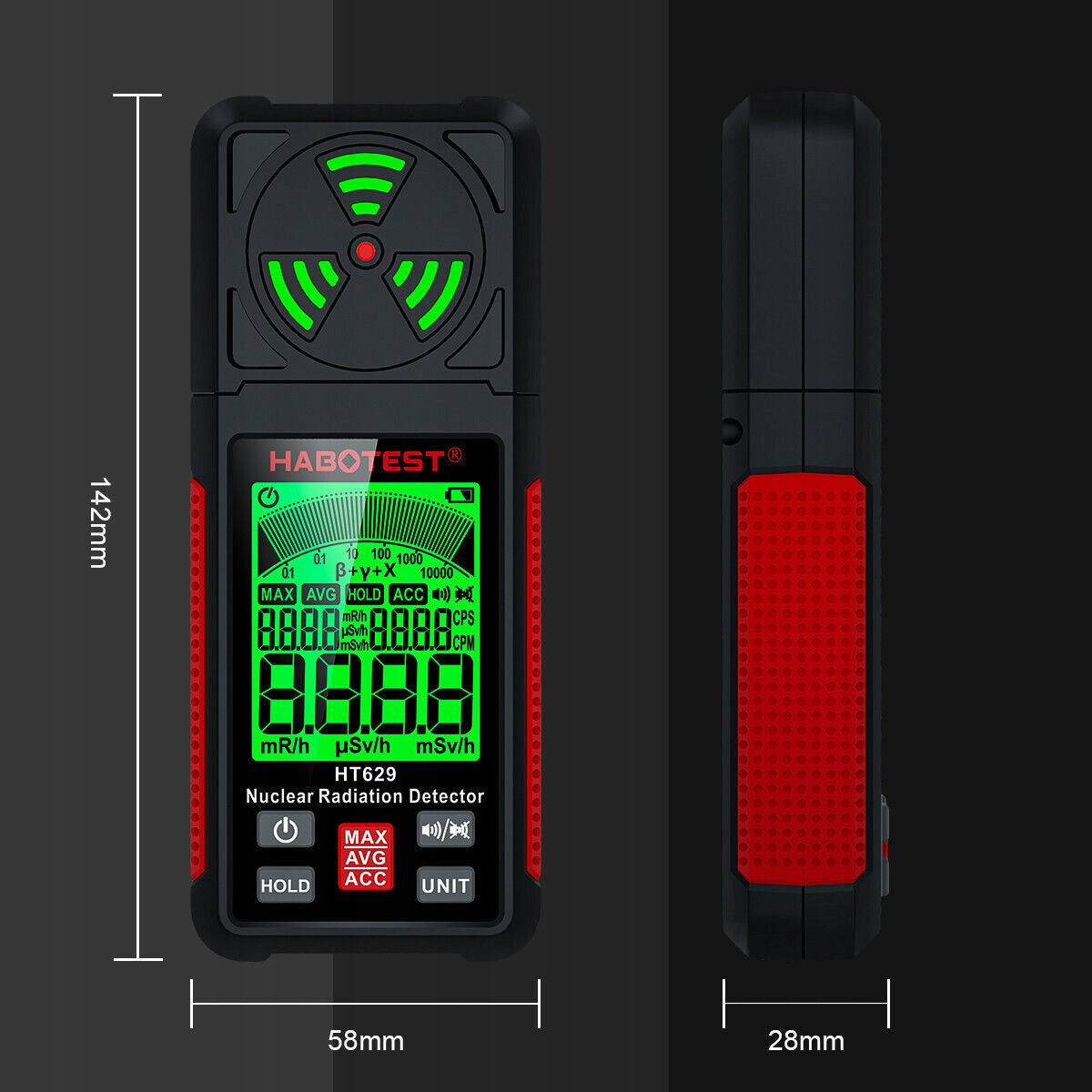

• Product Dimensions: 142 x 58 x 28 mm
• Product Weight: 167g

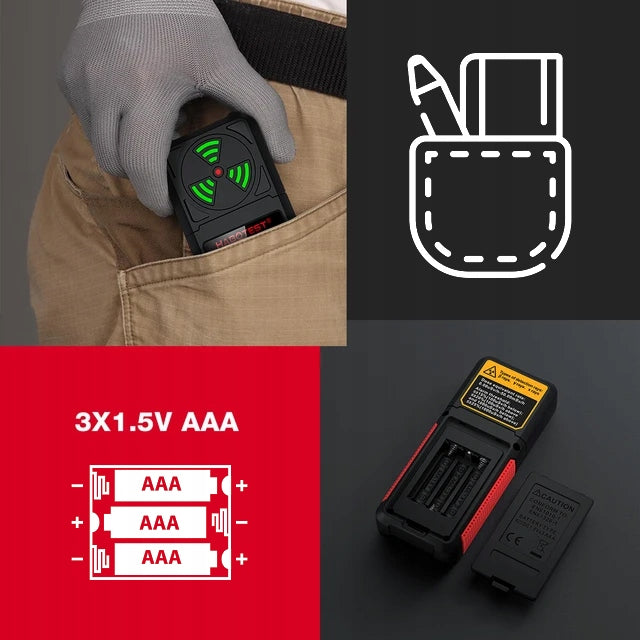

• Power Supply: 3x 1.5V AAA battery (included)

It is very important, especially in the case of radiation with low values correct application of the meter to the radiation source, e.g. when measuring uranium ceramics.

Pay attention to where the sensitivity center of the GM counter (Geiger-Müller) is located, marked with the symbol A.

• A: GM sensor sensitivity center
• 1: View from front radiation counter
• 2: top view of the device
• 3: view on the back of the meter
• 4: view from the bottom of the instrument
• 5: side view of the GM counter

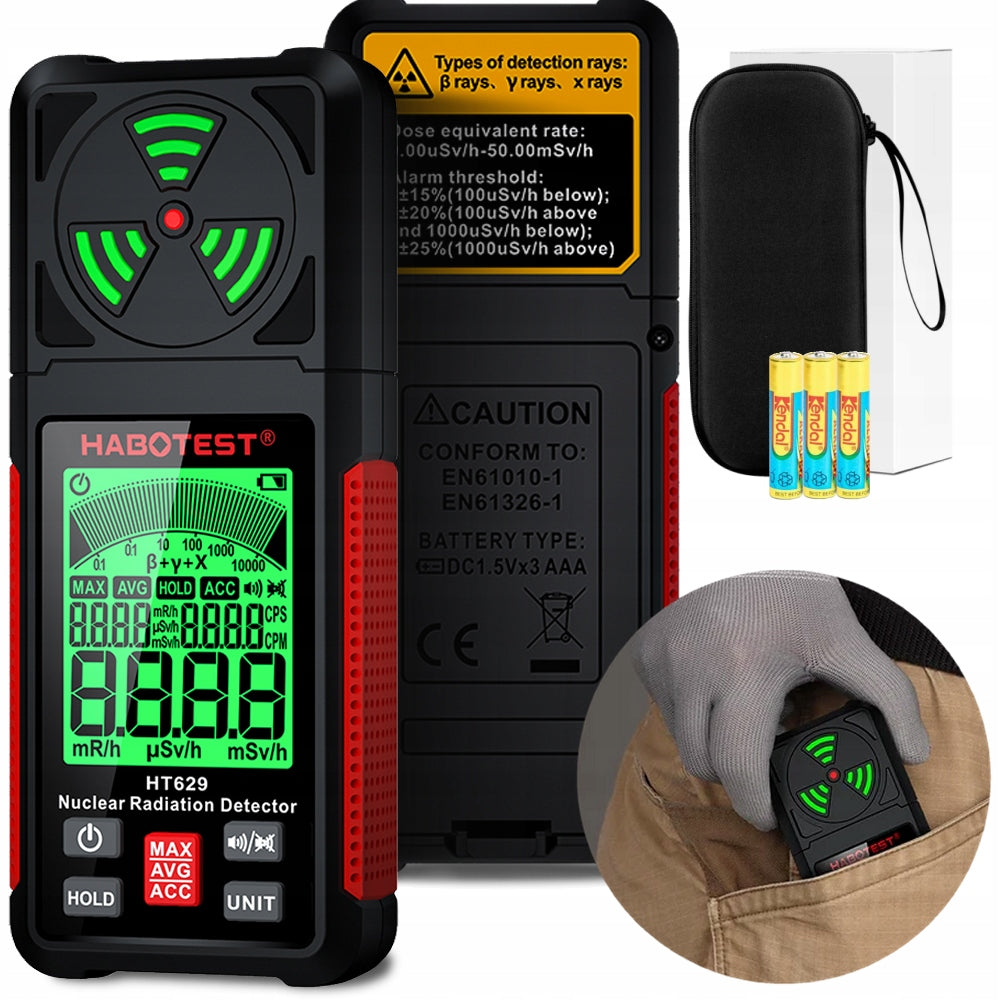

1. Packaging.
2. Protective case, durable with zipper.
3. Gauge.
4. Battery set: 3x 1.5V AAA battery.
5. User manual in English and Polish.

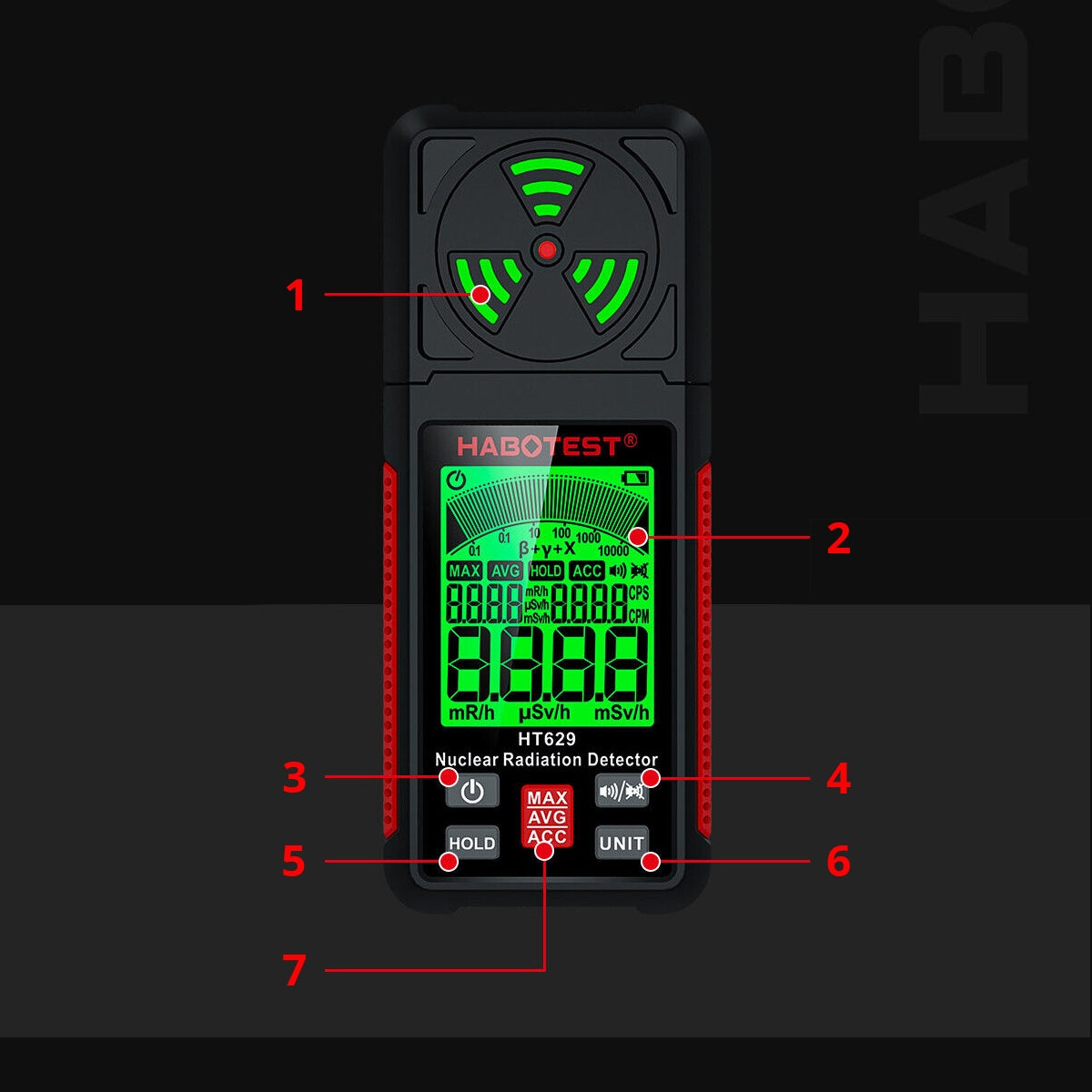

1. Indicator control.
2. Display screen.
3. Power on/off button.
4. The button to turn the sound signal on/off.
5. Data hold button.
6. Select button for measuring type.
7. Selection button for measuring range.
