ATS avarinio elektros maitinimo perjungimo sistema

Trumpai apie prekę

Prekė: ATS avarinio elektros maitinimo perjungimo sistema. Kategorija: Elektros generatoriai.

• Gamintojas: Kaltmann
• Modelis: ATS11000

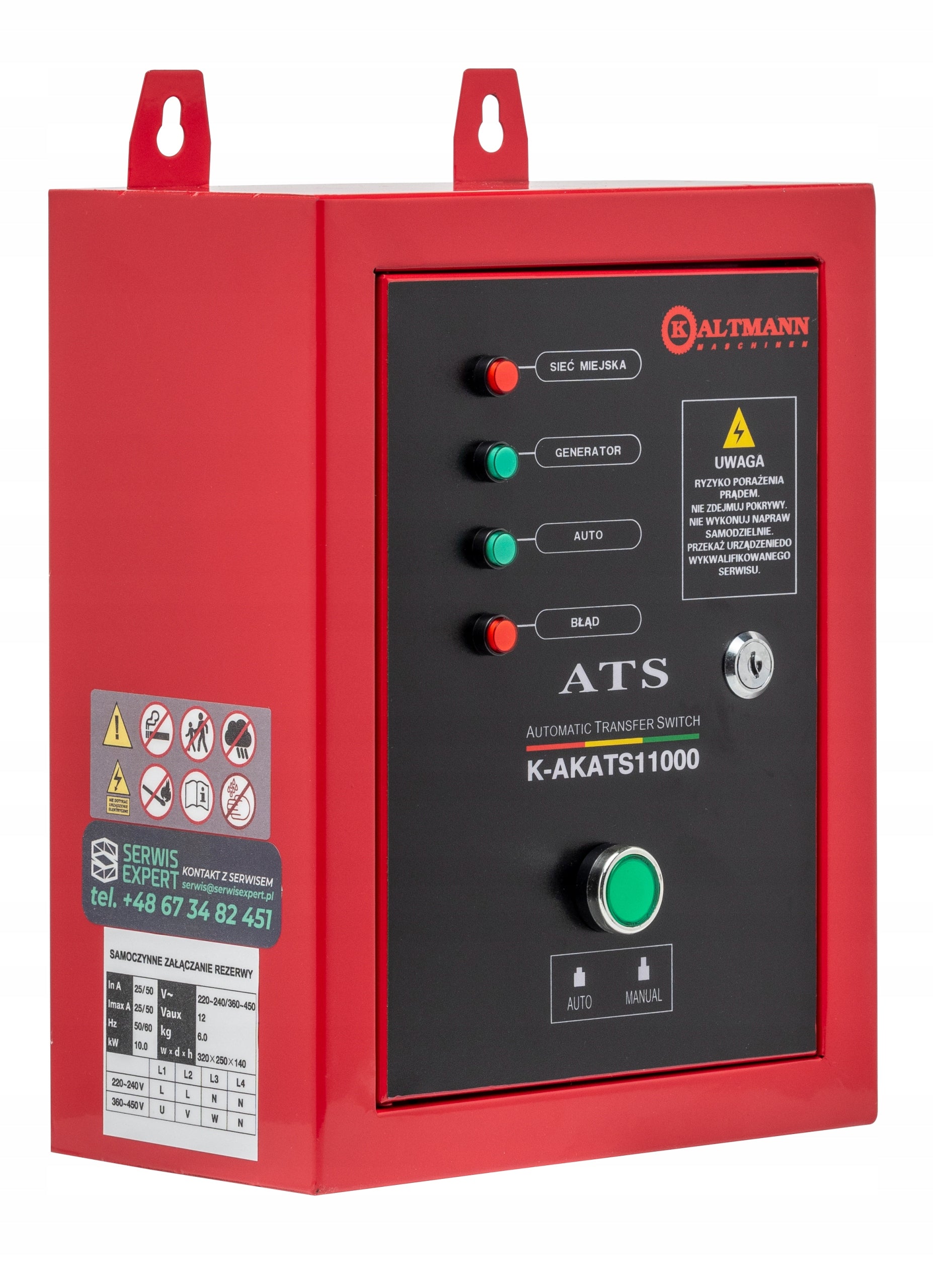

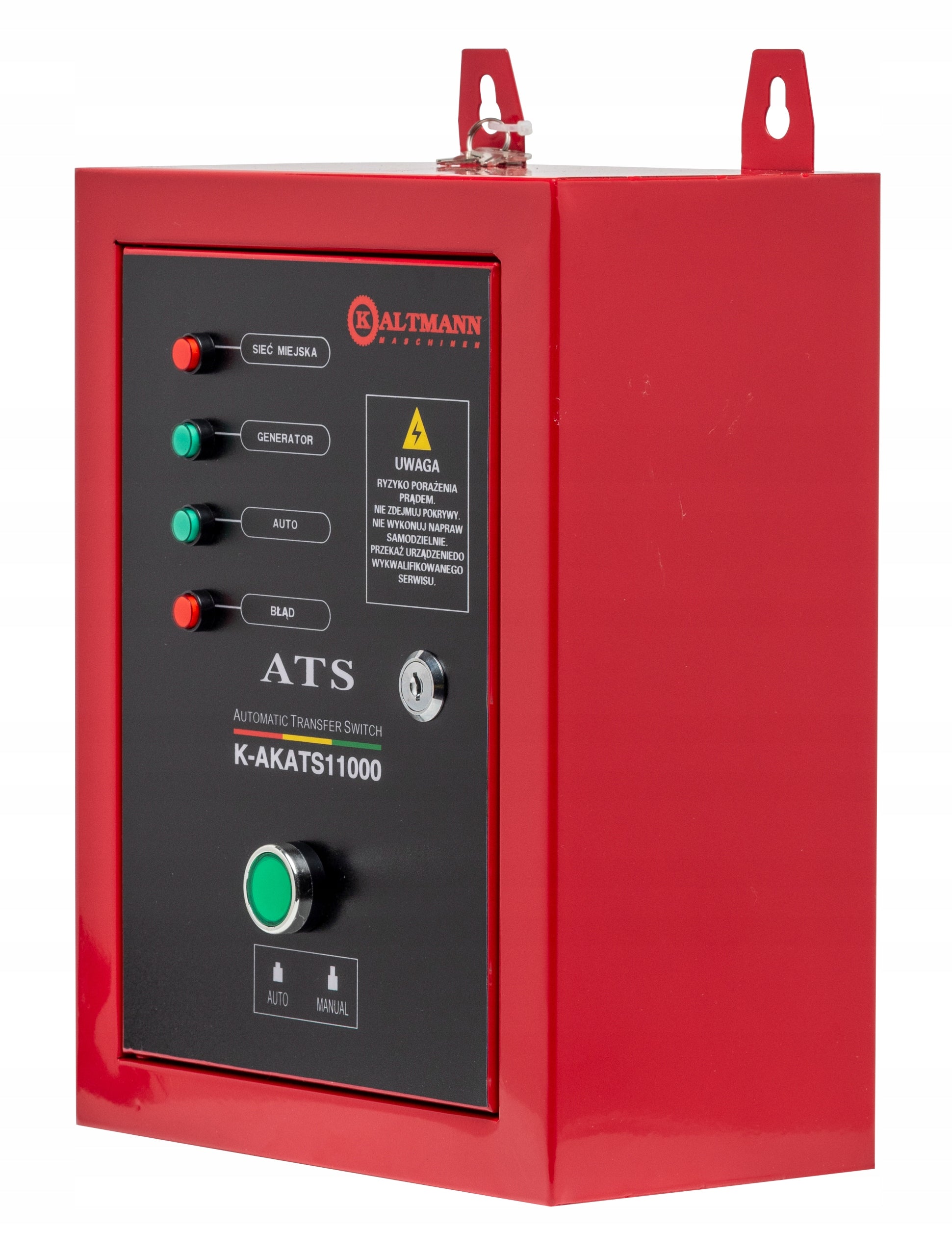

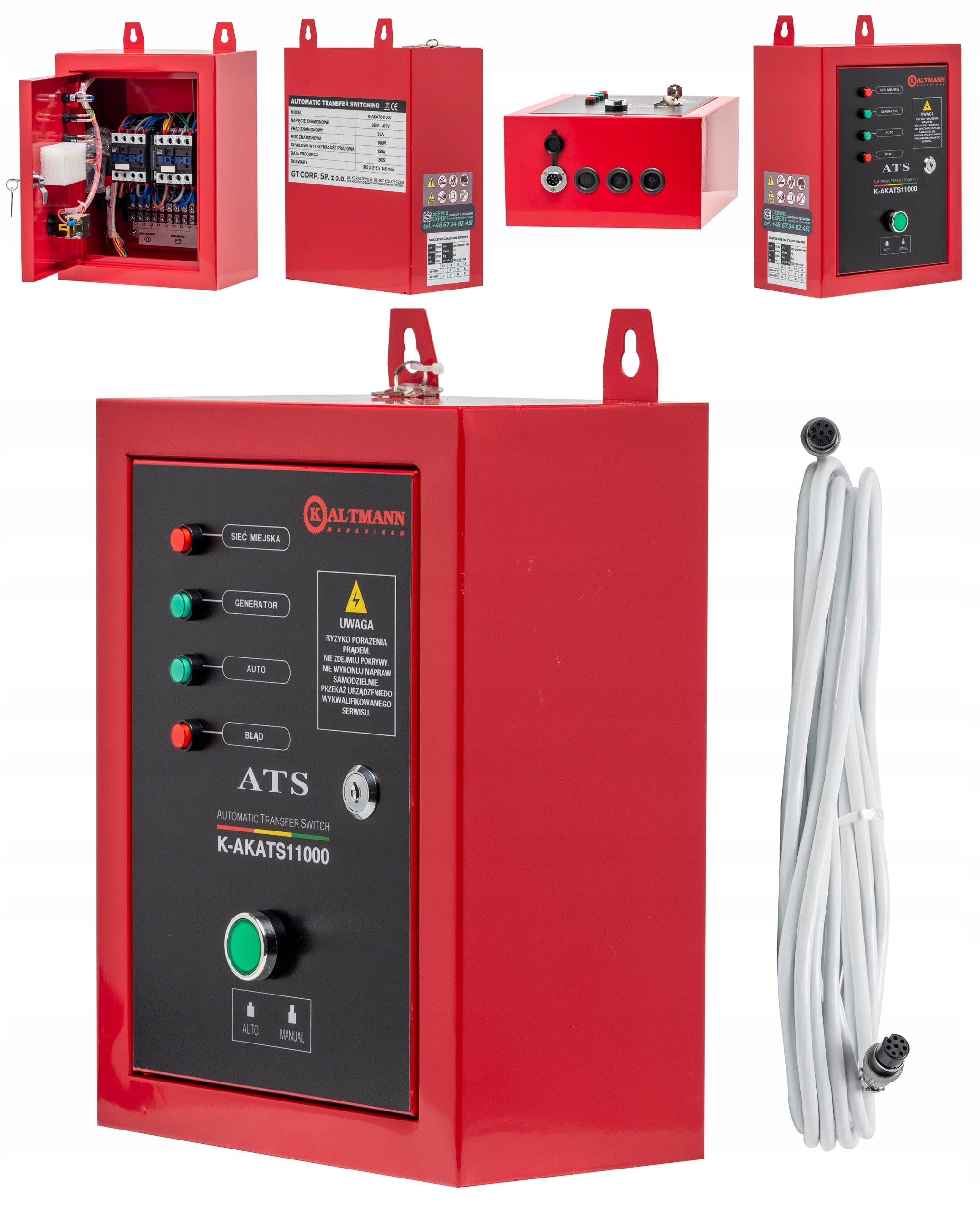

ATS/SZR is a critical solution for ensuring uninterrupted power supply in your home or business. Our automatic reserve switching system, KALTMANN ATS K-AKATS11000, is a guarantee of peace of mind and safety in case of sudden power outages.

TECHNICAL DATA

Rated voltage and rated current:

-Single phase: 230 V/25 A (5 kW unit)

-Single phase:230 V/50 A (10 kW unit)

-Three-phase:380 V/25 A (5~10 kW unit)

Internal charging of the power generator battery:

-Input voltage: AC 90~250V

-Output voltage: DC 13,8 V (± 2%)

-Charging current: 1A

Dimensions ATS (mm) 250×140×320

Control cable connector: 8-wire

External length of connection line: 8 m

Working temperature -25～80℃

Storage temperature -15～60℃

Diameter of power rail connection cables:

-2,5 mm2 (single-phase and three-phase 5 kW units)

-4 mm2 (three-phase units 10 kW)

-6 mm2 (single-phase 10 kW units)

Why is it worth investing in our ATS system?

Automatic switching: At the time of power outage, our ATS system responds instantly, without the need for user intervention, ensuring continuity of power supply by immediately switching to the generator.

Device safety: ATS protects your devices from sudden voltage spikes or power outages, minimizing the risk of damage.

Comfort: Thanks to the automatic operation of ATS, you do not have to worry about manually connecting the generator in an emergency situation. Our system will take care of it for you, ensuring you a peaceful sleep.

Energy independence: ATS gives you the confidence to keep your home or business protected from unexpected power outages, giving you peace of mind and security.

Intelligent management: Our advanced ATS systems monitor the quality of the supplied electricity and make decisions about the optimal switching time to the generator, ensuring you operate efficiently and reliably.

With our ATS/SZR system, your concerns about power outages are a thing of the past. Investing in our solution is an investment in the security and security of your home or business.

Specifications
