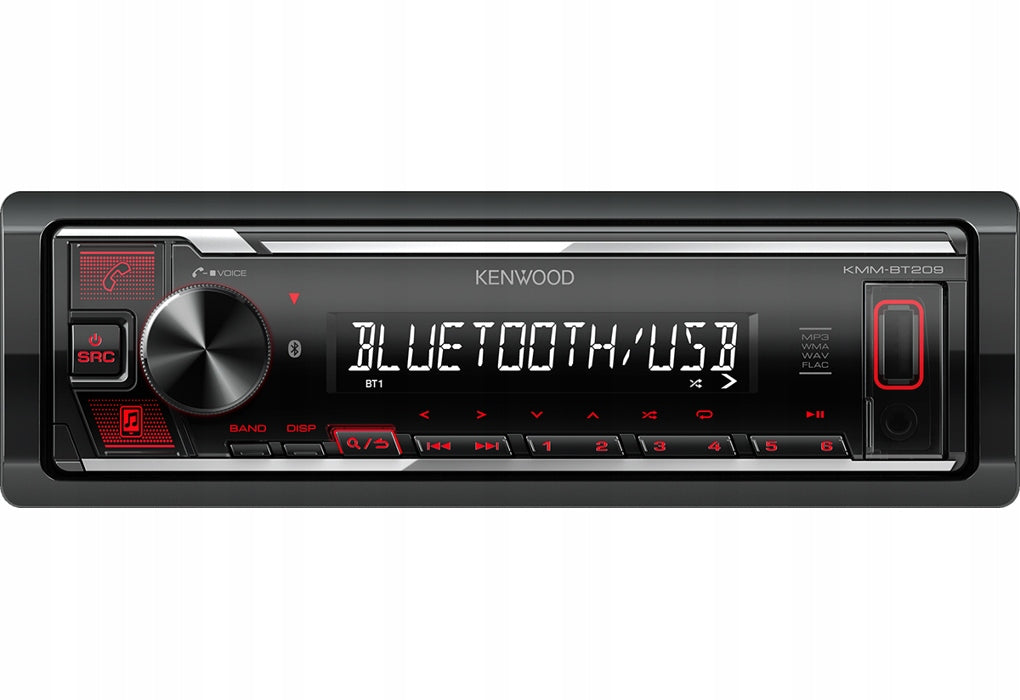

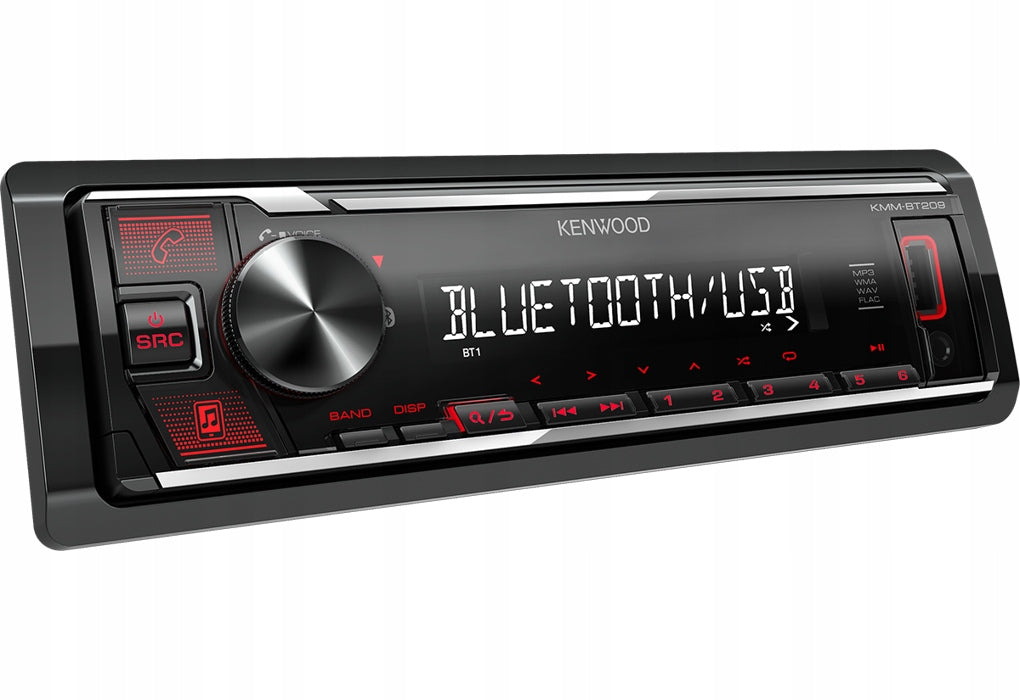

Automagnetola KENWOOD KMM-BT209 su Bluetooth, USB, AUX, FLAC

Trumpai apie prekę

Prekė: Automagnetola KENWOOD KMM-BT209 su Bluetooth, USB, AUX, FLAC. Kategorija: Radijo grotuvai.

• Gamintojas: Kenwood
• Modelis: KMM-BT209

Digital media receiver with Bluetooth technology for hands-free phone calls and music streaming.

Enjoy comfortable control. Built-in Bluetooth technology for hands-free calling and music streaming, and the ability to use your smartphone as a wireless remote control. The digital sound processor, time alignment, and 13-band equalizer provide optimal sound tuning enhancements.

Key features

Bluetooth technology for hands-free calling and music streaming.

Dual Phone Connection automatically switches between 2 paired phones for incoming calls.

Enjoy streaming audio by switching between 5 connected BT devices using Music Mix

Use your smartphone like a wireless remote control with the KENWOOD Remote app.

Play MP3/WMA/AAC/WAV/FLAC music files.

Digital sound processor, time alignment and 13-band equalizer for optimal sound tuning improvement.

Rear or subwoofer (switchable) RCA preamplifier for connecting a power amplifier.

Wide, 1-line LCD display with high contrast, wide viewing angle and white LED backlight.

The language of the menu is English (default), Russian, Spanish or French.

Short body (100mm) for easy installation

Main features

• DIN size: 1 DIN
• Removable faceplate: TAk
• Key lighting: Red LED
• Rotating encoder and control knob: TAk
• You click with two accents: Hands-free and audio streaming
• Backup memory: Tuner settings and menu settings
• Suppressor with smooth volume return: TAk
• Touch sensor sound: TAk
• Digital clock (24h): TAk
• Display the clock after power off: disabled by default
• All-off Select (20/40/60 minutes): TAk
• Built-in connector: Mitsumi, 16 pins
• ISO connector: Yes, Mitsumi to ISO cable
• Built-in Bluetooth unit: TAk
• USB interface x 1: Yes, (front)
• Upgradeable firmware: TAk
• Mechanical receiver: TAk
• Short body: TAk

Display Functions

• Display type: Liquid crystal display (LCD)
• Display layout: 1 line 13 segments x 13 digits
• Liquid crystal display with vertical alignment: TAk
• Display Backlight: White (LED)
• Dimmer control: Manual/Setted by Timer
• Brightness control: 0 - 31 steps
• Demo version: TAk
• Menu text in selected language: English (default)/Spanish/French/German/Russian;

Features of cosmetics

• Dress plate: Black injection
• Ready-made key finish: Black injection
• Rosette finish: Black piano
• Knob or volume and operation knob: Transparent lighting
• Triangle lighting: Red LED
• Front clamps dust cover: TAk
• Keylight: Red LED
• Backlit front USB port: Red LED
• Brightness control (key): 0 - 31 step
• Dimmer control (key): Manual/Setted by Timer
• Accents finished in chrome: Volume knob and faceplate

Tuner Functions

• Station selection: Manual / Preset
• FM reception: TAk
• AM reception (MW/LW): TAk
• Tunner settings (FM/AM): 24 Presets (18FM/6AM)
• Settings memory without backup: TAk
• Mixed settings memory (FM and AM): 6 presets
• Up/down/scan search: TAk
• Automatic memory input (AME): TAk
• FM Stereo / Mono Selector: TAk
• Radio data system: TAk
• Radio text Plus: TAk
• Traffic information: TAk
• Local search: TAk
• RegionalAF: Selectable: AF/AF Reg/OFF
• Automatic TP search: TAk
• Improved function of other networks (EON): TAk
• Program Type Function (PTY): TAk

Played audio file

• You can play AAC files (*. m4a): USB
• You can play AAC files (*. aac): USB
• MP3 files can be played: USB
• You can play WMA files (. wma): USB
• You can play WAV files (. wav): USB
• FLAC files can be played: USB

USB Functions

• USB connector: Yes, front with dust cover
• USB type: 2.0 High speed
• Play MP3, WMA, AAC, WAV, FLAC: TAk
• Repeat/scan/random search: TAk
• Repeat/Random Playback: TAk
• Direct search: TAk
• Resume play: TAk
• Display time code: TAk
• Fast charging smartphone 1,5 A: TAk

iPod Features

• Created for iPod and iPhone *: TAk
• Direct USB control (audio, 1 cable, Lightning connector): with optional KCA-iP103 cable
• Music playback: TAk
• Alphabetical search: TAk
• Skip search: TAk
• Similar search: TAk
• Direct search: TAk
• iPod equalizer mode: TAk
• Manual control: TAk
• App and iPod control mode: TAk
• Link to Spotify app: TAk
• iAP via Bluetooth: TAk
• iTunes Radio app: yes iAP2
• Backview: TAk
• Battery charging + power control: TAk
• * Always update to the latest Apple software:

Audio functions

• Maximum output power: 50W x 4
• MOSFET power integrated circuit: TAk
• Auxiliary type: Mini-jack, front panel
• Before output: 1 RCA
• Preamplifier output level: 2,5V
• Switchable rear preamplifier output / subwoofer: TAk
• Subwoofer reference level adjustment: TAk
• Two-way X'over network: TAk
• 3-way x'over (bi-amp connection): TAk
• Tone control / Easy EQ: 13 bands, 8 presets
• Balance/Fader/Volume control: TAk
• Bass amplification circuit: Off. /+1/+2/+3/+4/+5
• Att. (-20dB) with smooth volume return: TAk
• Easy 3-Band Equalizer Mode: TAk
• Graphic Corrector + Presets: 13-Band Graphic EQ with 8 presets.
• Built-in Digital Sound Processor (DSP): TAk
• Digital time alignment (DTA): TAk
• Low-pass and high-pass filter: TAk
• Speaker size control: Yes, independently front/rear/subwoofer
• Sound reconstruction Kenwood: TAk
• Sound reconstruction: TAk
• Space Amplifier: TAk
• Realizer: TAk
• Stage Correction: TAk
• EQ drive: TAk

General Bluetooth Features

• Maximum number of registry. phones for HFP and A2DP: 5 phones
• Hands-free profile with high sound quality: HFP V1.7.1
• Maximum number of registry. phones for HFP: 5 phones
• 2 full-time phones: TAk
• Audio Streaming (A2DP): TAk
• High-quality audio streaming: SBC/AAC
• Maximum number of registry. units for A2DP: 5 units
• Serial port profile (SPP): TAk
• Phone Book Access Profile (PBAP): TAk
• Automatic pairing of iPhone and Android via USB: TAk
• The KENWOOD Remote application is ready:
• Support KENWOOD Music Mix: TAk
• Amazon Alexa ready: TAk
• Catchphone / Pending call: TAk
• Private mode: TAk
• Alphabetical search (phone book): TAk
• Noise attenuator: TAk
• Echo Silencer: TAk
• Display the status of the telephone device: TAk
• Display the status of the audio device: TAk
• Signal strength display: TAk
• Remaining battery indicator: TAk
• Bluetooth pairing indicator: TAk
• High quality noise cancelling microphone: Wired rear
• Bluetooth firmware updateable: TAk
• * depends on phone model/brand: Unit & Kenwood

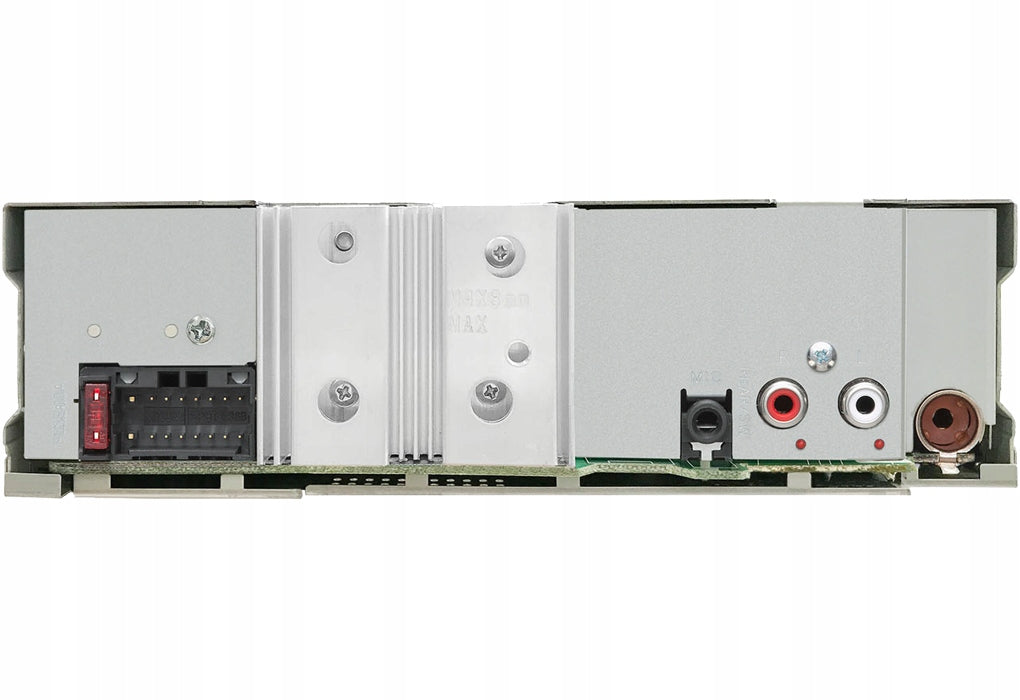

Communications

• Front USB and AUX input: TAk
• Ready-made OEM Wired Remote Control: TAk
• DC cable: Mitsumi to ISO
• Power control cable (P.CON): TAk
• Preamplifier output: 1 RCA: Rear/Subwoofer (selectable)
• FM antenna input: JASO connector
• External microphone input: Mini jack 3,5 mm

Tuner Specifications

• FM range: 87,5 MHz - 108 MHz (50 kHz step): TAk
• Use sensitivity FM: 0.56μV/75ohm (S/N 30dBf)
• FM mute sensitivity: 1,58μV/75ohm (S/N 46dBf)
• FM frequency response: 30Hz ~ 15kHz (± 3dB)
• Signal-to-noise ratio FM (mono): 68dB
• FM stereo separation (1 kHz): 40dB
• MW range: 531kHz - 1611kHz (step 9kHz): TAk
• Use sensitivity of MW: 28,5 μV
• LW range: 153kHz - 279kHz (step 9kHz): TAk
• Use sensitivity LW: 45μV

Codec specification

• MP3 format: MPEG 1/2 Audio Layer 3 files
• WMA format: according to Windows Media Audio
• AAC format: AAC-LC Files ". aac” (CD&USB) and “. m4a”(USB)
• WAV format: RIFF Waveform Audio Format (LinearPCM only)
• FLAC format: FLAC files (up to 96kHz/24bit)

USB Specifications

• USB version compatibility: Full speed USB 1.1 / 2.0
• File system: FAT 32/16/12
• Maximum power current: 1500mA
• C/A converter: 24-bit
• MP3 decoding: Compatible with MPEG-1/2 Audio Layer-3
• WMA decoding: Compatible with Windows Media Audio
• AAC decoding: File "m4a" and "aac" encoded in AAC-LC format
• WAV decoding: Linear - PCM Files
• flac decoding: FLAC files up to 96kHz/24bit

Sound Specifications

• Maximum power: 50W x 4
• Output power (DIN45324,+B=14,4v): 22W x 4
• Preamplifier level: 2500mV / 10kOhm,
• Preamplifier Impedance: ≤ 600 Ohms
• Speaker Impedance: 4Ohm ~ 8Ohm
• AUX frequency response: 20Hz ~ 20kHz (±1dB)
• Maximum AUX input voltage: 1000mV
• AUX input impedance: 30kOhm

Specifications of DSP

Frequency band — front

62,5 Hz ~ 16 kHz

Equalizer enhancement

–9db ~ +9db

Control Q

0,25/ 0,50/ 1,00/ 2,00

Frequency of high-pass filter

By/50~220(Hz)

Slope of high-pass filter

-12/-18/-24 dB/October

Low-pass filter frequency

50 ~ 120 (Hz)/by

Low-pass filter inclination

-12/-18/-24 dB/October

Alignment of time

0 — 610 cm (every 2 cm)

Inspection of the type of car

► OFF

► COMPACT

► Full size CAR

► WAGON

► MINIVAN

► SUV

► MINIVAN LONG

Equalizer Type

Graphical

Frequency band

13 strands

Bluetooth Specifications

• Technology: Bluetooth V4.2
• Frequency: 2,402 - 2,48 GHz
• Output power: +4dBm(max), 0dBm (AVE) power class 2
• Maximum range: Line of sight approx. 10 meters
• Hands-free profile (HFP): TAk
• Serial port profile (SPP): TAk
• Advanced Audio Distribution Profile (A2DP): TAk
• Audio codec: SBC/AAC
• Audio/Video Remote Control Profile (AVRCP): TAk
• Phone Book Access Profile (PBAP): TAk

Accessories

• Release keys: 2 pieces
• Cup: TAk
• Installation sleeve: TAk
• DC cable (Mitsumi to ISO): 15 cm
• Hands-free microphone: with 3 m cable

General technical data

• Working voltage: 14,4 V (10,5 ~ 16 V acceptable)
• Maximum power consumption: 10 A
• Dark current consumption: Under 1mA
• Dimensions: 182x53x100mm
• Weight: 600 gr.
• Operating temperature range: -10°C ~ 60°C
• Handbooks: Quick guide in multiple languages
