Automagnetola SKODA OCTAVIA 2004–2013, 10" Android, 4+64 GB, CarPlay, WiFi, AHD kamera

Trumpai apie prekę

Prekė: Automagnetola SKODA OCTAVIA 2004–2013, 10" Android, 4+64 GB, CarPlay, WiFi, AHD kamera. Kategorija: Radijo grotuvai.

• Gamintojas: no brand
• Modelis: RAH3157

TECHNICAL PARAMETERS

• Operating system: Android 15
• Processor: 4-CORE
• RAM: 4 GB
• Internal memory: 64 GB
• Screen diagonal: 10 inches
• Screen resolution: 1280 × 800
• Screen type: capacitive touch screen
• Screen split: supported
• Wi-Fi: 2,4 GHz
• Wi-Fi standard: 802.11 b/g/n
• Bluetooth: calls, music and phone book synchronization
• Apple CarPlay: wired and wireless
• Android Auto: wired and wireless
• Mirror Link: wired and wireless connection
• Navigation: GPS online and offline
• Radio: FM with RDS
• FM range: 87,5 – 108 MHz
• Output power: 4 × 45 W
• Sound Corrector: EQ adjustment
• Control from the steering wheel: operated by CANBUS
• Reversing camera input: CVBS and AHD
• Maximum camera quality: up to 1080P
• Reversing camera: AHD camera included
• USB: 2 USB 2.0 connectors
• Supported USB stick: 4 to 64 GB
• USB video recorder: supported when connected to compatible DVR camera
• Audio input: AUX left and right channels
• Audio outputs: 4 RCA channels
• Subwoofer output: supported
• External microphone: supported, microphone is included
• Working voltage: 9 – 16 V
• Working temperature: from -20°C to +60°C
• Video decoding: H.264 / AVC
• Maximum video resolution: 1080P
• Audio formats: MP3, FLAC, APE, WMA, WAV, AAC, M4A, AMR, Opus, MID, OGG
• Video formats: AVI, ASF, MP4, MOV, MPG, MPEG-1/2/4, VOB, MKV, FLV, TS, WMV, RMVB, 3GP
• System languages: English, Polish, Slovak, Czech, Hungarian, German, French, Italian, Spanish, Portuguese, Russian, Turkish and others

COMPATIBILITY

• Škoda Octavia: 2004–2013

Before purchasing, please compare the appearance of your center console, factory radio, and the vehicle's connectors with the photos provided in this listing.

CARPLAY, ANDROID AUTO, BLUETOOTH AND WI-FI

• The radio supports Apple CarPlay and Android Auto wired and wireless. When you connect a compatible phone, you can use maps, music, calls, messages, and voice assistant directly on your device screen.
• The Mirror Link function allows you to display images from your smartphone wired or wirelessly.
• Bluetooth allows you to make calls, play music and sync your phone book. The 2,4 GHz Wi-Fi module allows you to connect the radio to your phone's hotspot or other available wireless network.

10" 1280 × 800 SCREEN, ANDROID 15 AND 4+64GB MEMORY

• The large capacitive 10" touchscreen with a resolution of 1280 × 800 provides a clear image and convenient operation of navigation, multimedia and applications.
• The quad-core unit, 4 GB of RAM and 64 GB of internal memory allow you to seamlessly use the most important functions of the radio. You can save apps, offline maps, music and other files in the device memory.
• The split screen feature allows you to view two compatible apps at the same time, such as navigation and a music player.

ONLINE AND OFFLINE GPS NAVIGATION

• The built-in GPS module allows you to use popular navigation applications available for Android.
• Once connected to the internet, you can use online navigation, up-to-date traffic information and seat search. After downloading the appropriate maps in advance, the radio also allows offline navigation without constant access to the Internet.
• The included GPS antenna helps to achieve stable satellite signal reception.

FM/RDS RADIO, 4 × 45 W SOUND AND STEERING WHEEL CONTROL

The built-in tuner supports FM 87,5 – 108 MHz band and RDS function. Compatible radio stations can display, among other things, the station name and information about the currently broadcast program.

Radio offers:

• Output power 4 × 45 W
• Sound adjustment and EQ
• four RCA output channels
• Output for compatible subwoofer
• AUX input
• Playing music via Bluetooth and USB
• control of buttons on the steering wheel via CANBUS

The CANBUS module is included and works with a dedicated installation beam.

REVERSING CAMERA AHD 1080P INCLUDED

• The set includes a AHD reversing camera. The radio supports both standard CVBS signal and AHD signal with quality up to 1080P.
• When properly connected, the camera image can be automatically displayed when the reverse gear is turned on. It is also possible to set mirror reflection and auxiliary lines.
• The AHD camera provides a clearer picture than standard CVBS cameras, making it easier to park and reverse in low visibility conditions.

1080P MEDIA, TWO USB CONNECTORS AND DVR SUPPORT

• The radio plays popular music and film formats and supports video content up to 1080P resolution.
• Two USB 2.0 connectors allow you to connect your phone, portable memory or compatible accessories. USB flash drives with capacities from 4 to 64 GB are supported.
• It is also possible to connect a compatible USB video recorder. The DVR camera is not part of the kit.

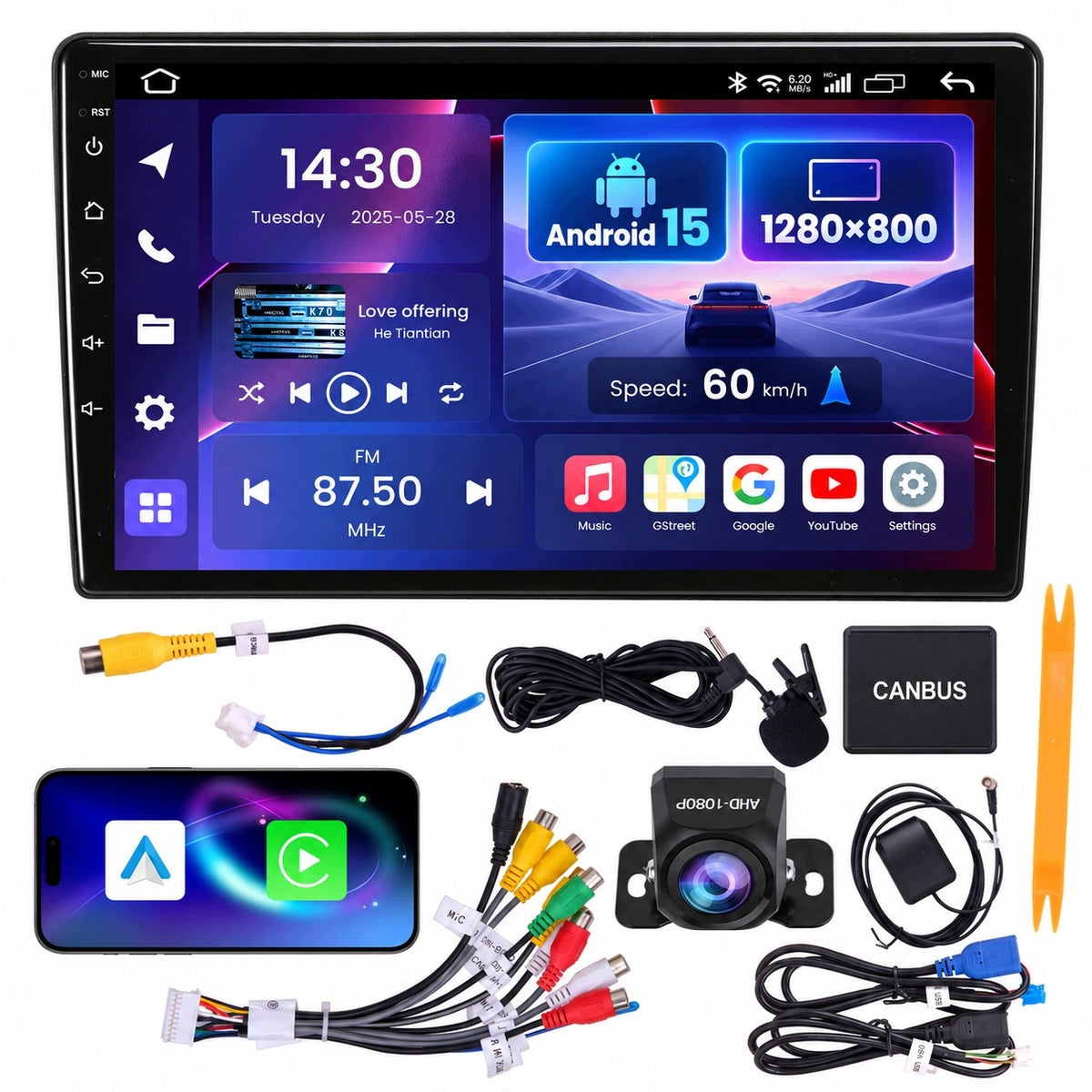

CONTENTS OF THE SET

• Android 15 radio with 10" screen
• dedicated frame for Octavia Šcodes
• matching mounting elements of the air conditioning panel
• AHD reversing camera
• CANBUS module
• dedicated power beam
• RCA cable
• reversing camera input cable
• 4-pin USB cable
• 6-pin USB cable
• external microphone
• GPS antenna
• Dual Radio Antenna Adapter
• dismantling tool
• installation instructions

IMPORTANT INFORMATION BEFORE PURCHASE

• The radio is designed for the Š Octavia code from 2004 to 2013, whose center console and factory radio correspond to the versions presented in the photos of the offer.
• Before buying, you should carefully compare the shape of the console, the air conditioning panel, the appearance of the factory radio and the car connector.
• The CANBUS module is factory connected to the beam. It should not be disconnected, as this may cause the selected functions to not work.
• The factory car microphone is not supported. Use the external microphone included in the kit to make calls.
• For factory reversing camera, the image quality may be lower due to the older CVBS standard. For better quality, it is recommended to use the included AHD camera.
• Installation should be carried out with the power off. In the absence of experience, we recommend using the services of a professional installer.

FREQUENTLY ASKED QUESTIONS — FAQ

1. Does the radio fit every Octavia Šcode from 2004 to 2013?

The radio fits cars with a compatible console shape, air conditioning panel, and corresponding connector. Before buying, you should compare the interior of the car with the photos of the offer.

2. Is the radio menu available in Polish?

Yes. The system offers Polish and many other European languages.

3. Does CarPlay and Android Auto work wirelessly?

Yes. The device supports wired and wireless Apple CarPlay and Android Auto.

4. Is the reversing camera included?

Yes. The set includes an AHD reversing camera that supports images up to 1080P.

5. Does the radio support steering wheel control?

Yes. Steering wheel control is supported via the included CANBUS module if the car has compatible buttons.

6. Can I use a factory reversing camera?

A compatible CVBS camera can work with a radio, but the image quality may be lower. The method of connection depends on the factory installation of the car and may require a suitable adapter.

7. Does navigation work without the internet?

Yes. After downloading the maps to the radio memory, you can use compatible offline navigation.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With invoice (excluding VAT)
Parametry	Brand	no brand
Parametry	Kind	accessory
Parametry	Model	RAH3157
Parametry	Product weight	1.8 kg
Parametry	Amplifier power	4x45 W
Parametry	Media played	USB
Parametry	Screen diagonal	10"
Parametry	Installation	2-DIN
Parametry	EAN (GTIN)	7841971128231
Parametry	Manufacturer code	RAH3157
Parametry	Packaging status	original
Parametry	Supported file formats	.aac,.ape,.flac,.mp3,.wav,.wma
Parametry	Radio	RDS information,FM band
Parametry	Functions	touchscreen,sound equalizer,playing music from iPhone/iPod
Parametry	Ports	AUX,RCA pre-out (preamplifier),RCA sub-out (subwoofer),USB
Parametry	Communications	Bluetooth,GPS,Wi-Fi
