Automatinė baseino chemijos dozavimo sistema Micro pH/Redox MS27355

Trumpai apie prekę

Prekė: Automatinė baseino chemijos dozavimo sistema Micro pH/Redox MS27355. Kategorija: Siurbliai ir filtrai.

• Gamintojas: Astralpool
• Modelis: MS27355

Providing automatic parameter measurement and pH and chlorine balancer dosing

Do you have time for weekly dosing of pool chemistry?

Are you tired of tediously manually measuring the pH of water and chlorine content?

Do you dream of perfectly clean water at all times throughout the season?

If so, you've come to the right place!

Limit your role to supplementing the dosed chemistry and calibration of measuring probes once every 3 months for 10 minutes!!!

Our measuring and dosing station will treat water automatically, according to the set parameters. It will determine and apply the appropriate dose of measures. The electronics used in the station are supplied by leading manufacturers of the electronics industry, which ensures many years of work.

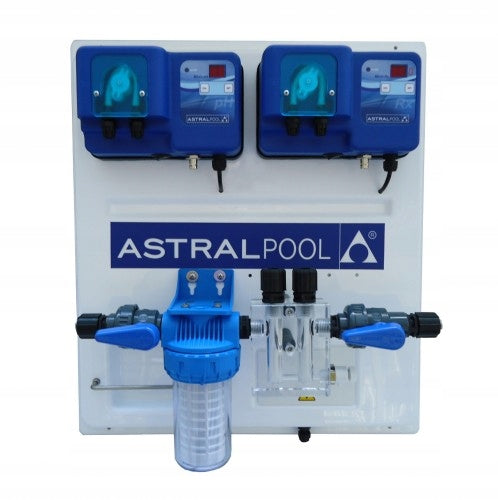

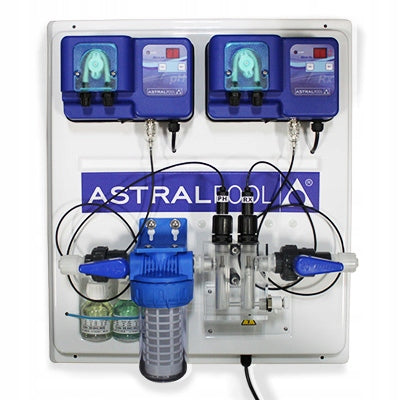

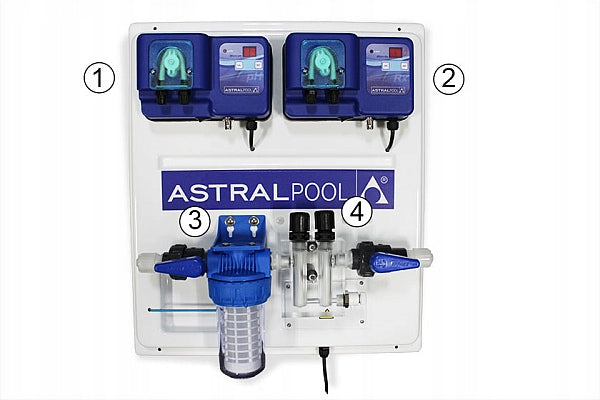

The ASTRALPOOL control panel with chlorine and pH peristaltic pumps is a fully automatic and fully equipped multi-product automatic for analysis and control. It has a ready-to-install wall panel with two metering pumps (Micro pH and Micro Rx). Supplied with a complete connection kit, including support flanges. Its installation is quick and easy in most filtration systems, and the electrical connection is made on a power supply in the C-15-100 standard (protection with a 30 mA differential).

Thanks to the analytical chamber, pH and chlorine measurements are more precise, thus optimizing the injection of the pH and/or chlorine corrector, and significantly extending the life of the probes.

• Peristaltic pumps with built-in pH and Rx control
• Suitable for dispensing acids
• Easy programming of set points
• pH setting in the range of 6,0 - 8,0
• Redox setting in the range of 300 – 800 mV
• Semi-automatic calibration of pH 7.01
• Displaying the pH value on the display
• Dosing proportional to the desired set point
• ON/OFF function
• Polycarbonate front panel
• Pump body with manual switch
• Degree of protection IP 55
• Standard 230 Vac power supply
• In accordance with CE regulations
• ON/OFF switch

The basic parameters of water in the pool depend on the appropriate dosage of chemistry.

Two of them, indirectly related, constantly affect water quality:

• pH of water cannot be too acidic or too alkaline: a good pH index in the pool is considered to be 7. Neglected pH in water becomes the cause of eye irritation, the skin dries out, algae multiply, and chlorine stops working.

• sterilization of water, which is most often done with chlorine or bromine, strong oxidants that allow the destruction of all bacteria and algae contained in water. Excess product leads to irritation and allergies. High concentration of the product can also lead to premature degradation of the pool infrastructure.

• Digital display
• 2 buttons to adjust and calibrate or pause the pump
• LED indicating pH value

Mechanical properties

• Polypropylene housing reinforced with 30% glass fibres
• Polycarbonate panel - Protection rating IP 65
• Preparation for wall mounting

Action

• Proportional peristaltic pump with integrated pH measurement
• pH adjustment range from 7,1 to 7,4
• Semi-automatic calibration probe at pH 7,0
• Probe self-control
• Probe anomaly alarm
• Designed for pH minus dosing (pH- e.g. sulphuric acid concentration 50%)

• Digital display
• 2 buttons to adjust and calibrate or pause the pump
• LEDs indicating chlorine value

Mechanical properties

• Polypropylene housing reinforced with 30% glass fibres
• Polycarbonate panel - Protection rating IP 55
• Preparation for wall mounting

Action

• Proportional peristaltic pump with integrated measurement
• REDOX adjustment range: 0... + 800 mV
• Automatic probe control
• Probe anomaly alarm
• Designed for chlorine dispensing (e.g. sodium hypochlorite)

• Pre-filter placed in front of the analytical chamber
• Washable and replaceable filter cartridge

Mechanical properties

• PVC Threaded Gasket
• Maximum temperature 40°C
• Filter height 127 mm

Action

• It allows you to filter the water used for water analysis.
• Power supply by connection to a support flange located on the filter circuit.
• Valve with ball valve to regulate water flow.

• Monoblock polycarbonate analytical chamber factory mounted on the control panel
• 2 probe support modules (1 for pH probe and 1 for Rx probe)
• Drainage of water analyzed by connection with a support flange located on the filtration circuit.

Mechanical properties

• Plexiglas construction
• Gravity drain valve integrated into the analytical chamber.
• Valve with ball valve to regulate water flow.

Action

• Allows probes to remain submerged at all times (except for calibration or replacement operations).
• Prevents probes from remaining near product injection correction flanges (potential risk of value reading error).
